Item Name: BTC-T37 PCI Express 16X Graph Card DDR3 8 GPU Mining Motherboard Set w/ CPU. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK

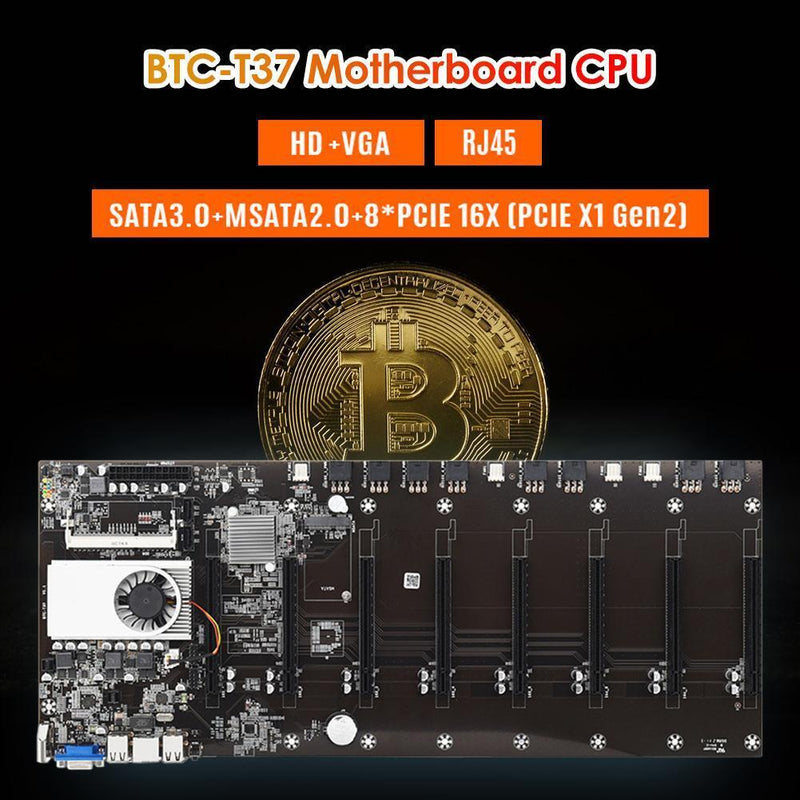

BTC-T37 8 GPU Desktop Computer Mining Machine Motherboard Set with CPU PCI Express 16X Graph Card DDR3 Miner Board Supports HDMI-compatible
Feature:
Memory slot: 8 graphics card plugs including HDMI-compatible+VGA+2*SATA+mSATA 3.0+8*PCIE 16X.
Durable: The motherboard of this mining machine is made for you, and it is durable.
Voltage stabilization: Stabilizing capacitors can provide a stable voltage for your power supply equipment.
Low energy consumption: It can ensure low power consumption, less heat generation, energy saving, and safe use.
Mute performance: The mainboard of this miner is noiseless during the working process and keeps mute at all times.
Specification:
Name: Mining motherboard CPU set
Model: BTC-37
processor:
On-board CPU: For Intel Celeron CPU 1037U 1.80GHz shipped randomly
Chipset: For Intel HM77 Chipset
Display: Onboard VGA+HDMI-compatible display output, or PCIEx16 extended discrete graphics card
Memory: 1*32G SODIMM DDR3 1066/1333/1600MHz memory slot (ECC memory is not supported)
Sound card: None
Network card: Onboard 1*Realtek RTL8111F Gigabit network card (supports Wake on LAN and PXE boot)
Storage: 1*SATA3.0+1*SATA2.0+1*mSATA2.0 hard disk interface
USB: 8*USB2.0
SuperIO: ITE IT8772E
Expansion slot:
8*PCIE 16X slot (x1 GEN2 speed)
1*mSATA2.0 interface
Rear I/O interface:
4*USB2.0 port
1*RJ45 port
1*HDMI-compatible port
1*VGA port
1*switch button
Internal interface:
1*JPS2 (extended PS2 KB+MS)
1*Serial COM pin
2*F_USB2.0 pin (expandable 4*USB2.0 port)
2*Vertical SATA interface (SATA1 3.0 speed, SATA2 2.0 speed)
1*F_PANEL pin
1*3PIN hardware power-on jumper
1*CPU_FAN pin
1*SYS_FAN pin
3*Chassis fan pin
1*mSATA2.0 interface
1*3PIN CLR_CMOS jumper
8*6PIN PCIEx16 slot power supply interface
1*BIOS ROM fetch/up interface
Power supply mode: ATX 24PIN+4PIN (the official board may be removed)
Board size: 470x195mm/18.5x7.68in
Product weight: 900g
Note:
Due to the large number of
