Item Name: JEYI PWM Cooling Fan HUB Cooler Splitter Extension Adapter with 60cm Cable. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
JEYI 4-pin PWM Cooling Fans HUB Cooler Splitter Extension Adapter Motherboard CPU Fan Controller 5*ARGB Interface 15Pin SATA Power with 60cm Cable
Feature:

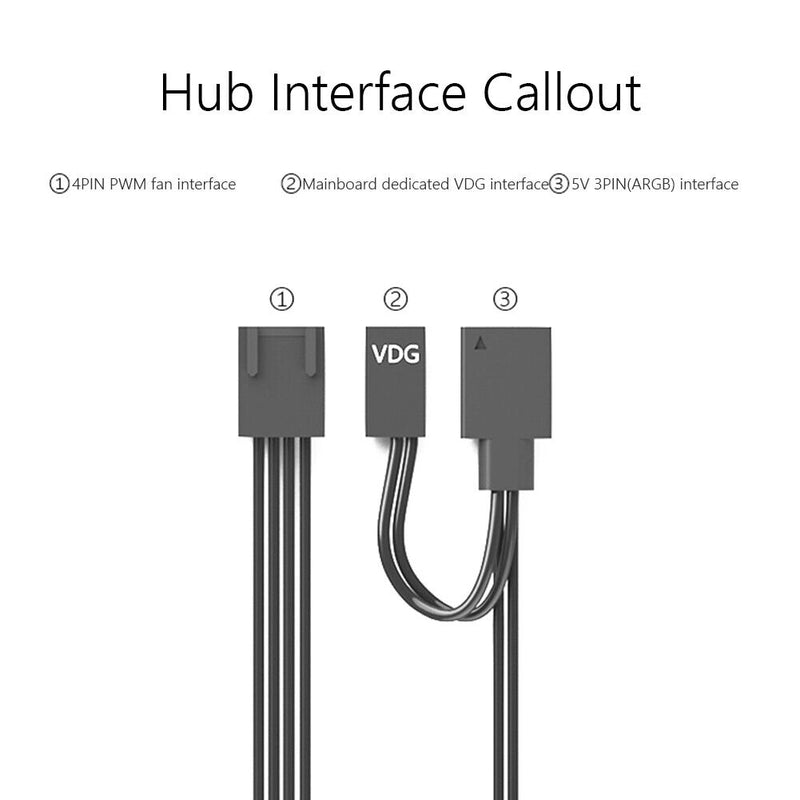

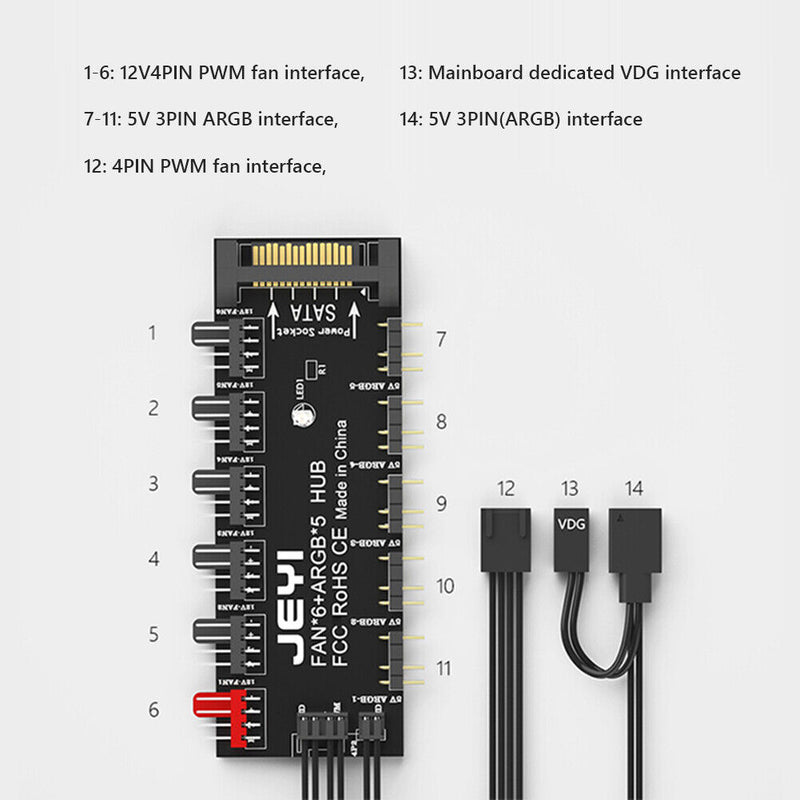

1. Product function interface: 12V4PIN PWM fan interface, 5V 3PIN ARGB interface, 4PIN PWM fan interface, VDG interface for Gigabyte motherboard, 5V 3PIN(ARGB) interface.
2. The hub is a 12V 15PIN SATA interface power supply port version. Specifically, it depends on the interface on the motherboard and the number of pins of the device interface you are using.

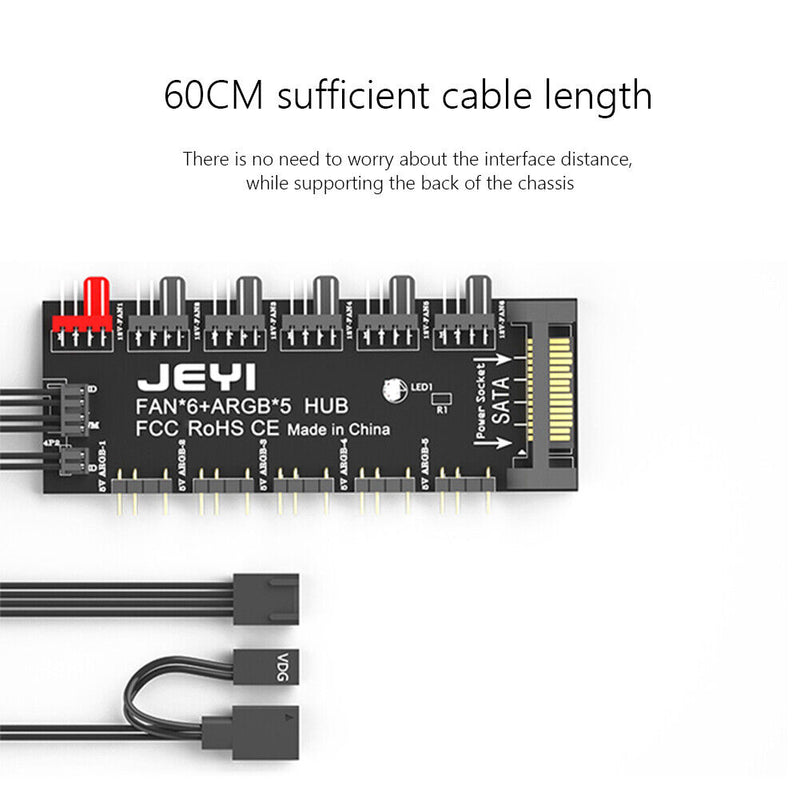

3. 60CM sufficient line length. There is no need to worry about the distance of the interface, and it supports the wiring on the back of the chassis.

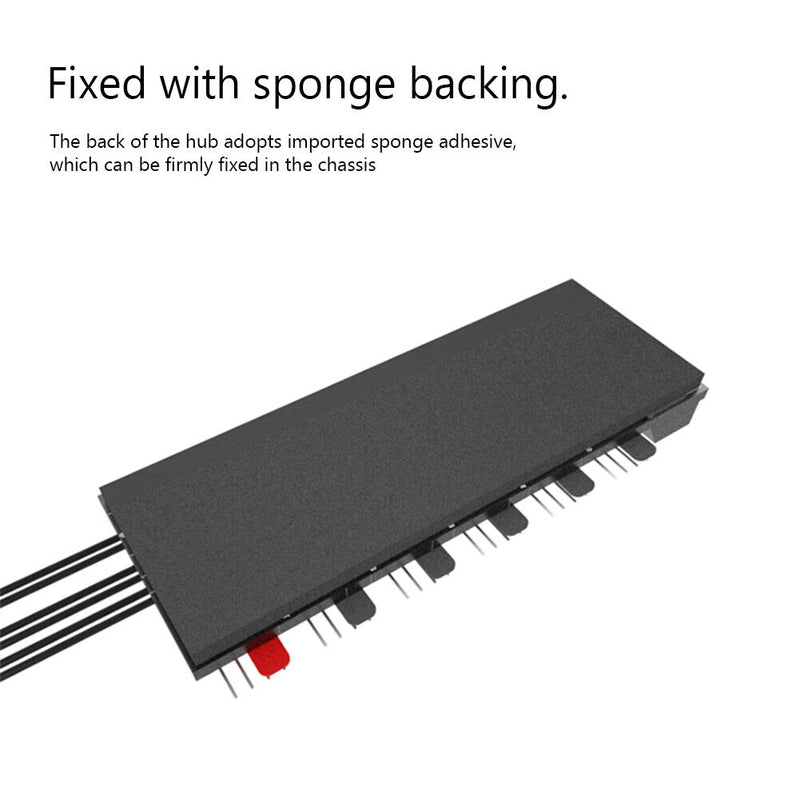

4. Fixed with sponge adhesive. The back of the hub adopts imported sponge adhesive, which can be firmly fixed in the chassis.
Specification:
Category: ARGB&PWM Hub
Brand: JEYI
Number of fan ports: 11
Function: PWM+ARGB interface extension
Power supply: 12V 15PIN SATA interface

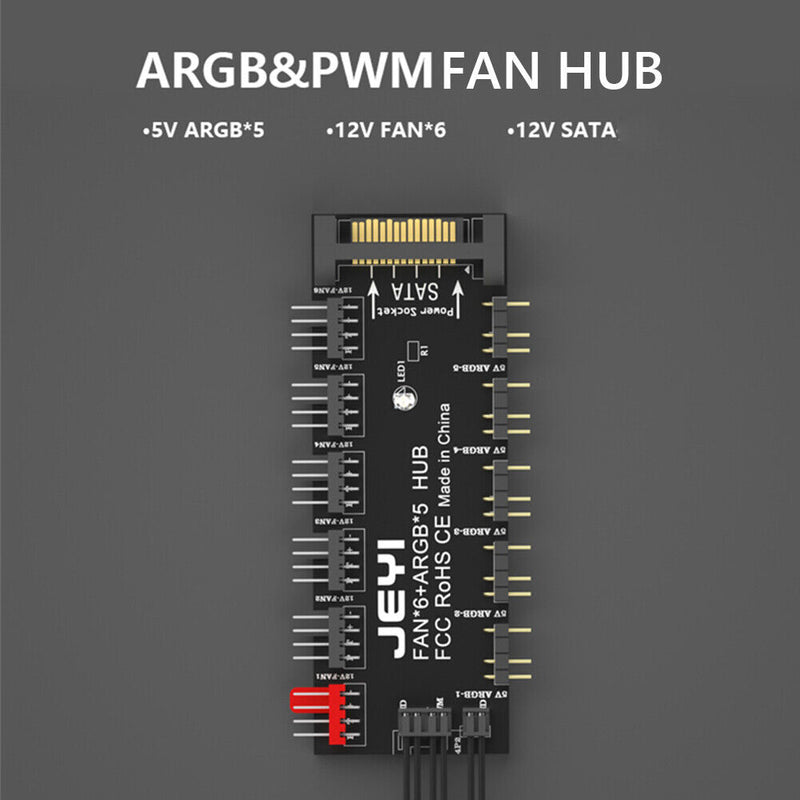

Interface: 12V FAN*6/5V ARGB*5
Fixing type: adhesive backing

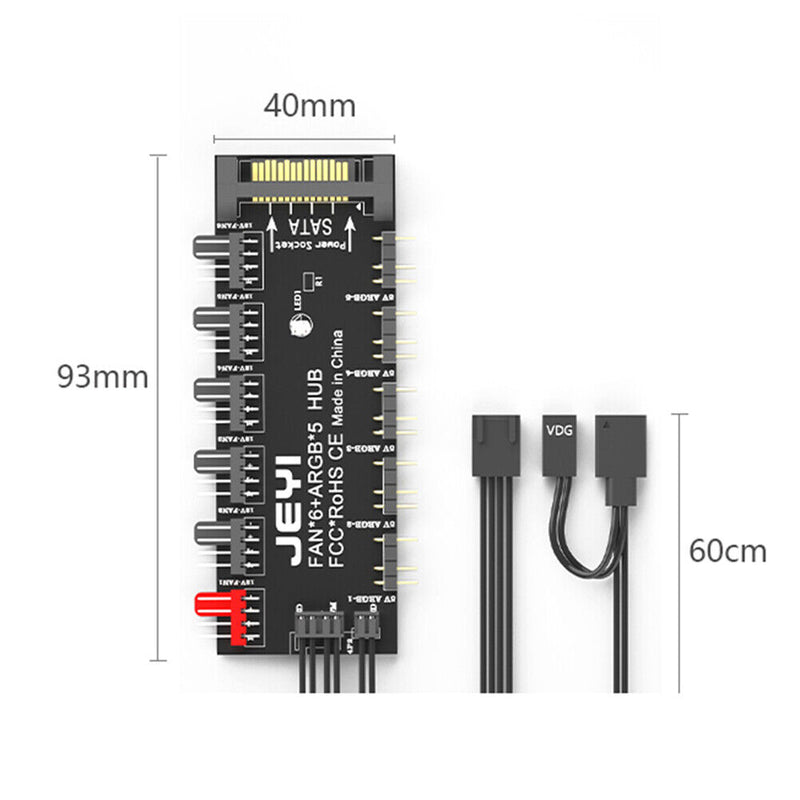

Product size: about 93*40MM/3.66*1.57 inch
Packing size: about 70*20*135MM/2.76*0.79*5.31 inch
Product packaging: color box
Product weight: about 40g
Note:
This product is not an adapter, this is just a hub, it can only be used when the mainboard interface is not enough, the device interface without adapter function must be the same as the mainboard with the same number of interface pins before it can be used.
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
