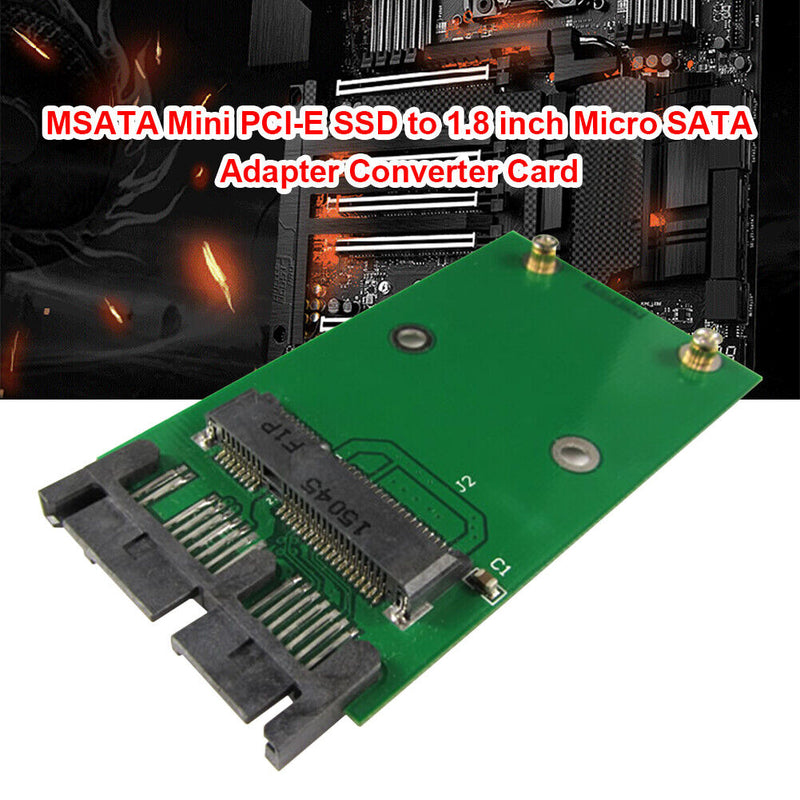

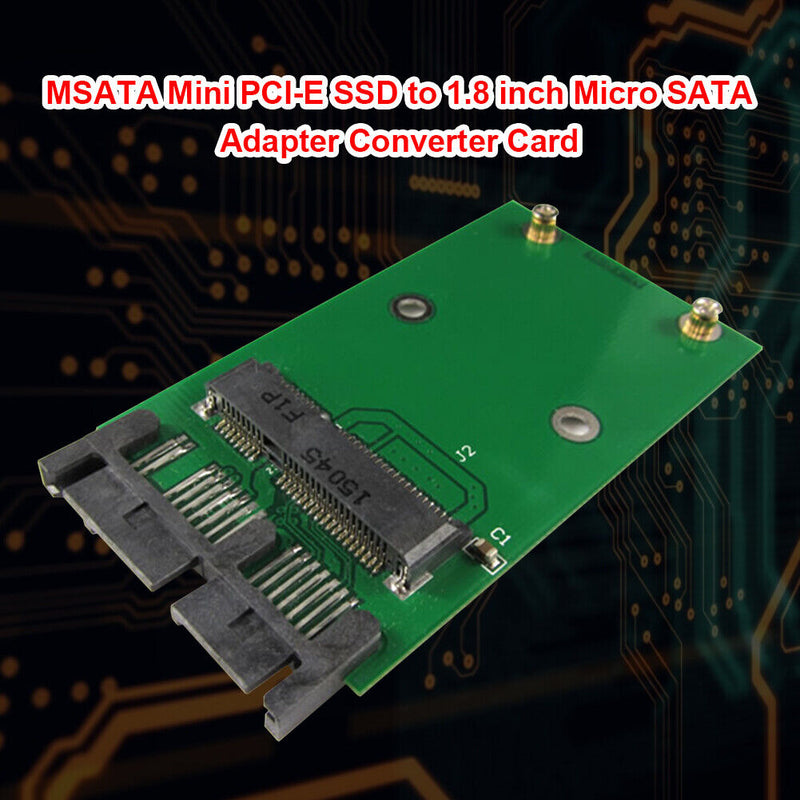

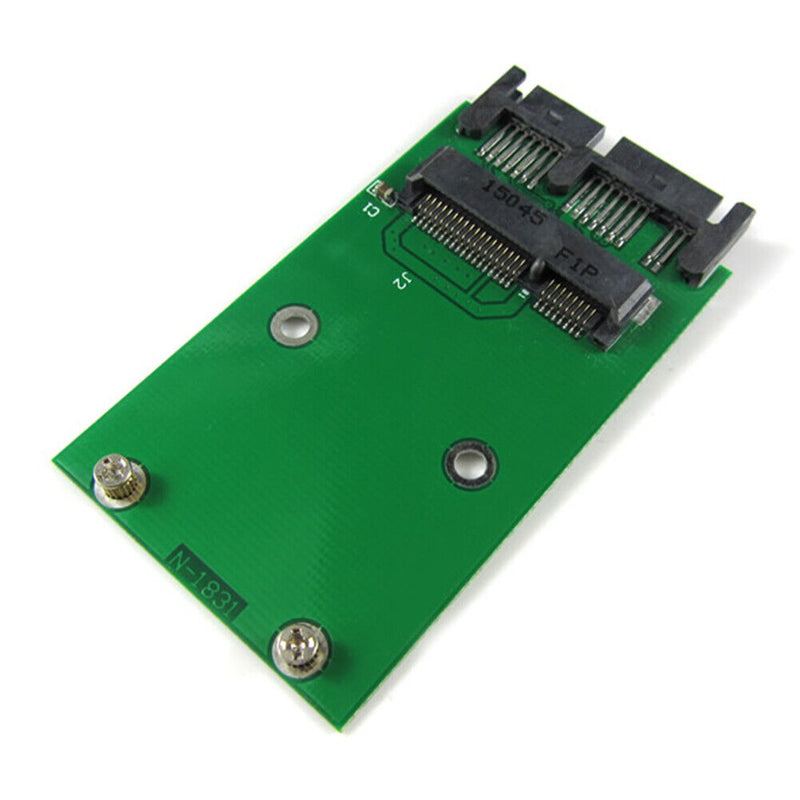

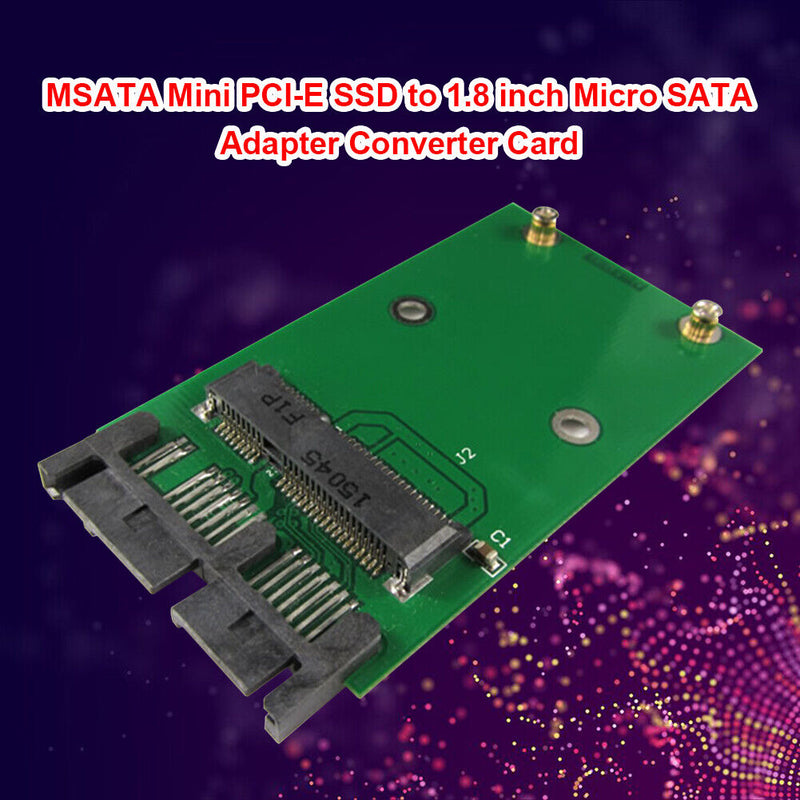

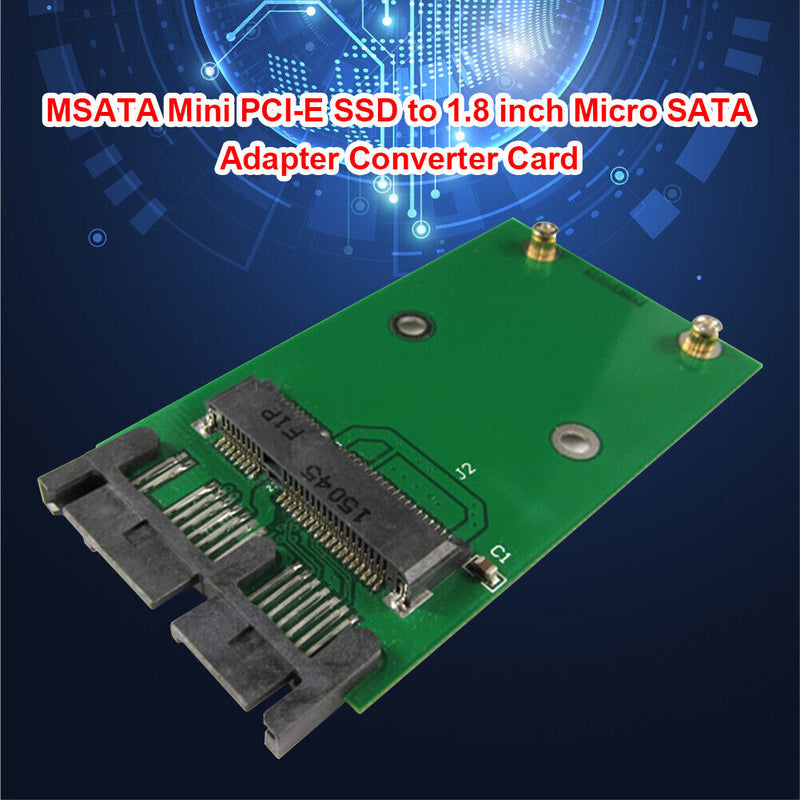

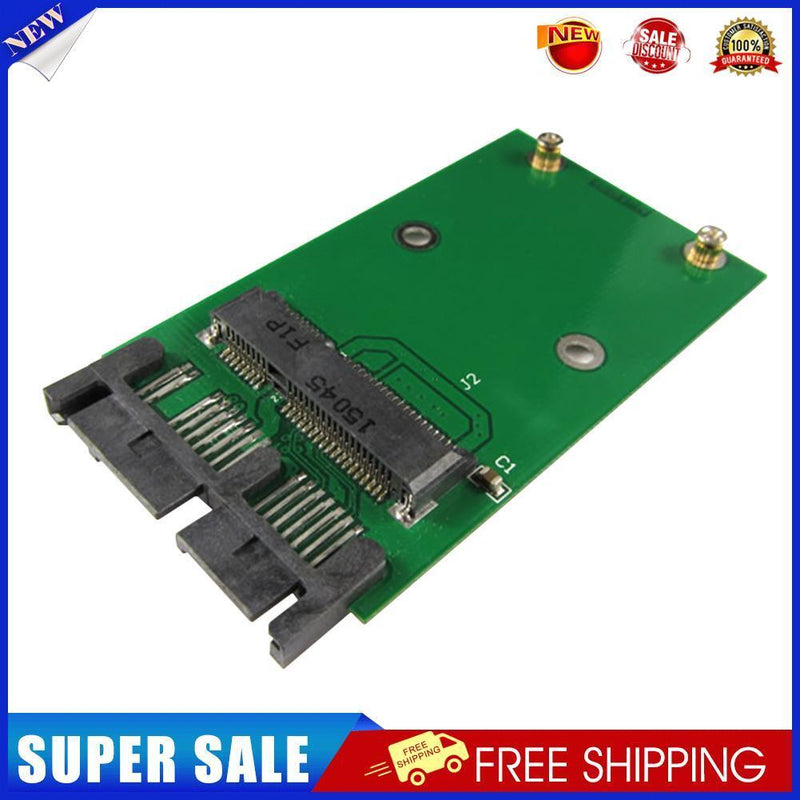

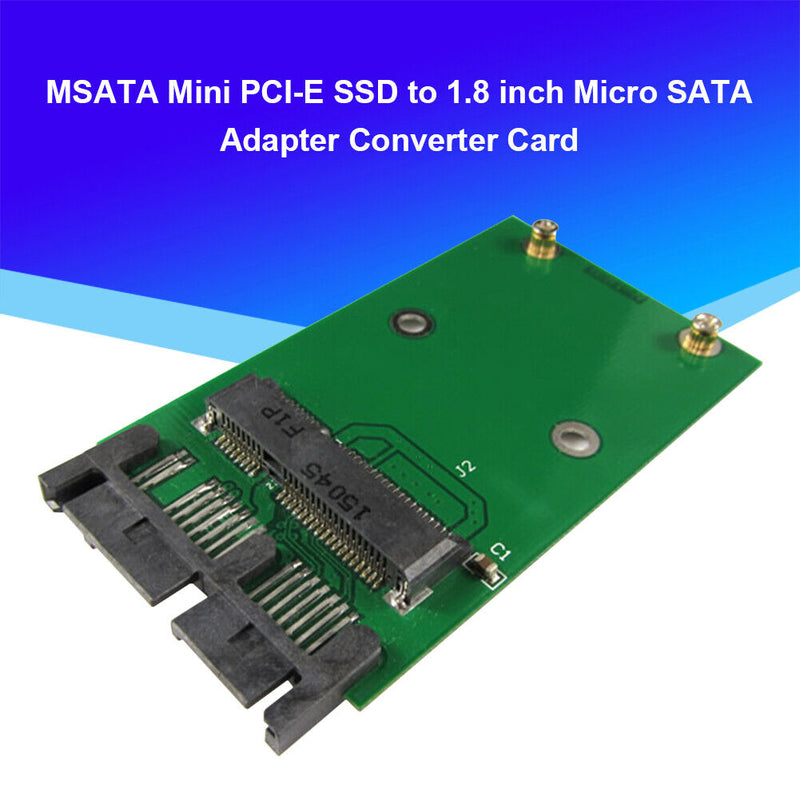

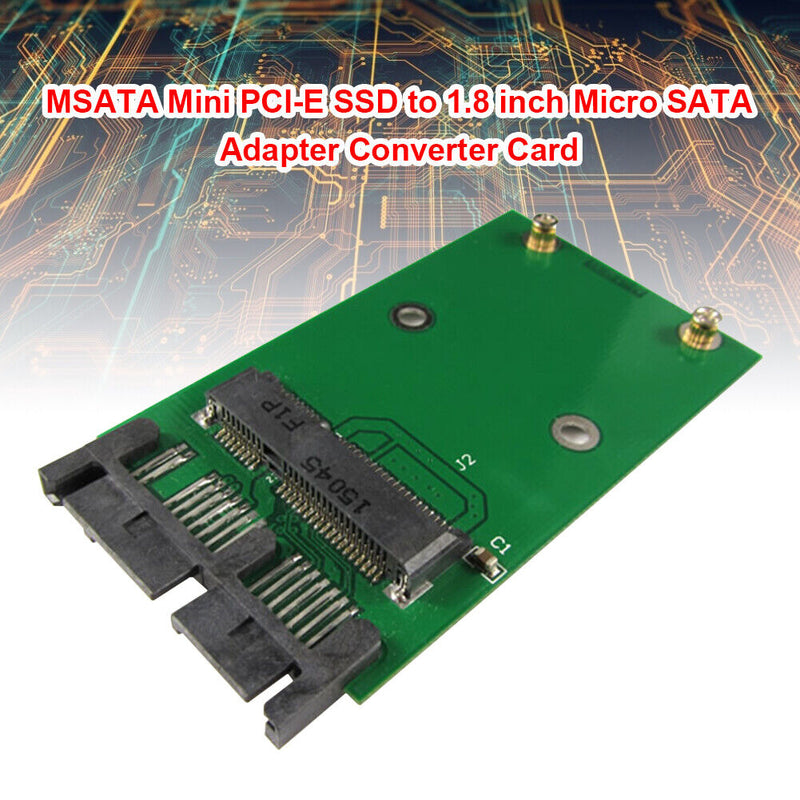

Item Name: MSATA Mini PCI Express SSD to 1.8 inch Micro SATA Adapter Converter Card. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
MSATA Mini PCI Express SSD to 1.8 inch Micro SATA Adapter Converter Card for Computer PC Accessories
Feature:
1: This product only supports solid state drives defined by the mSATA interface in Mini PCI-e, with a length of 5cm/1.97in, commonly known as full height, and mSATA is not equal to a 1.8-inch Micro SATA.
2: The SSD with Mini PCI-e interface has three pin definitions, one is called mSATA, which is more common in for Lenovo and THINPAD machines, and can also be called for INTEL defined interface
The other is called SATA Mini PCI-E, and more Seen on for ASUS EPC and some tablet computers, it is also called for ASUS-defined interface
There is also a PATA-defined interface, which is essentially an IDE interface, which is mostly seen on for Dell Mini 9 and other machines.
The appearance of the three interface definitions is exactly the same, and the naked eye cannot distinguish, so please be sure to distinguish the interface definition of your solid state drive!
3: In addition to the pin definition of the solid state drive with Mini PCI-e interface, there is also a length distinction: A: half height, length 2.7cm/1.06in B: full height, length 5cm/1.97in C: length 7cm/2.76in. This product only supports 5cm/1.97in length!
4: With the different batches of
