Item Name: PCIE X4 Riser 3.0 U.2 to PCIE Adapter SFF-8639 to SATA SSD Expansion Card. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
U.2 to PCI-E X4 Riser Card 3.0 SFF-8639 to SSD Adapter U.2 SSD SATA PCI Express HDD Computer Extension Card
Feature:
Integrated high-speed signal enhancement technology, full-speed transmission, precise and firm structure design.

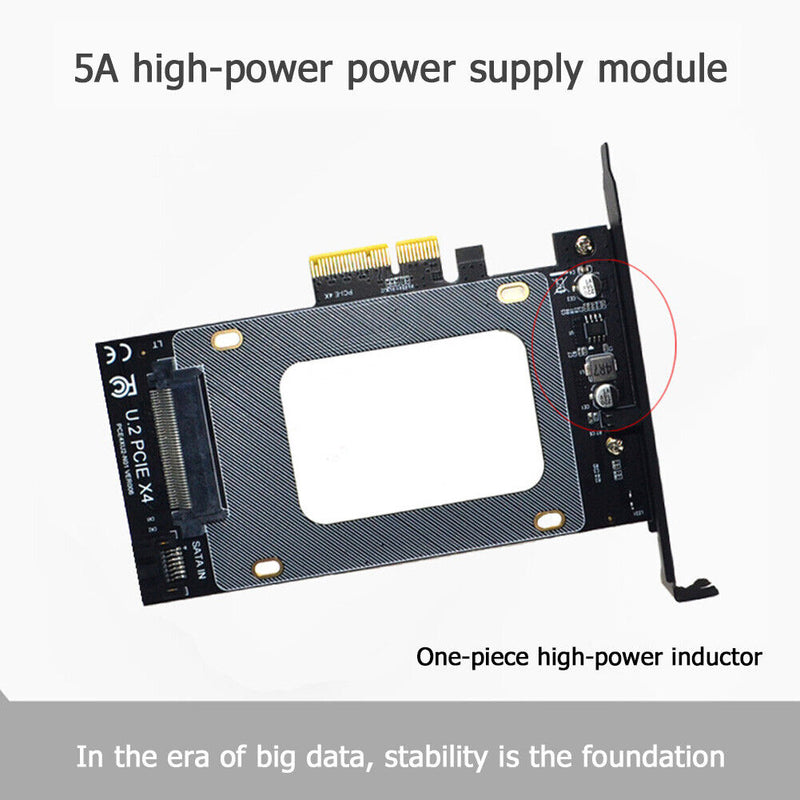

5A high-power DC TO DC power module, long-term stable operation, can work in a wide temperature range.

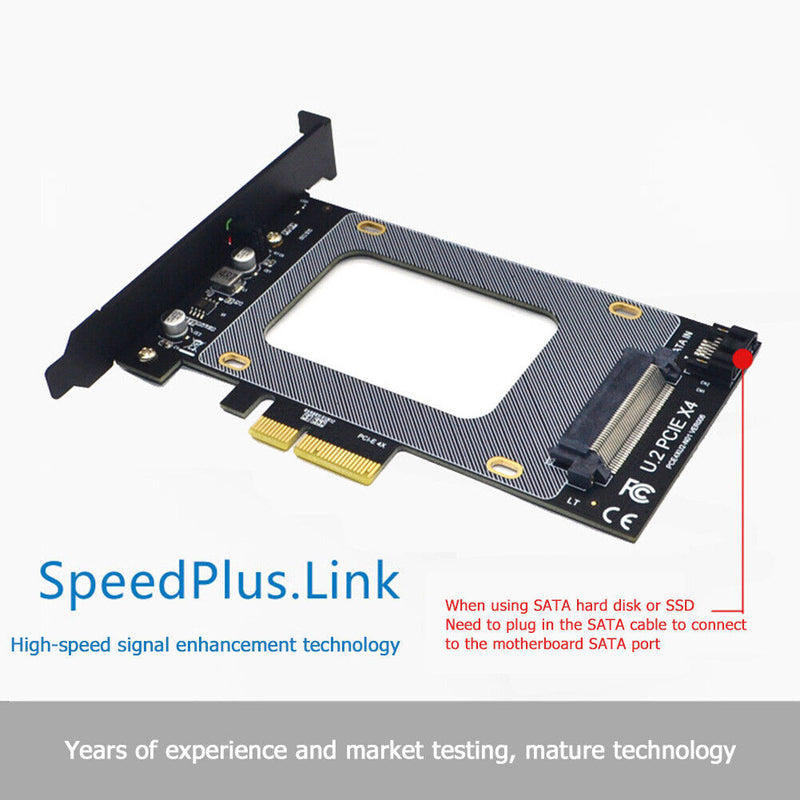

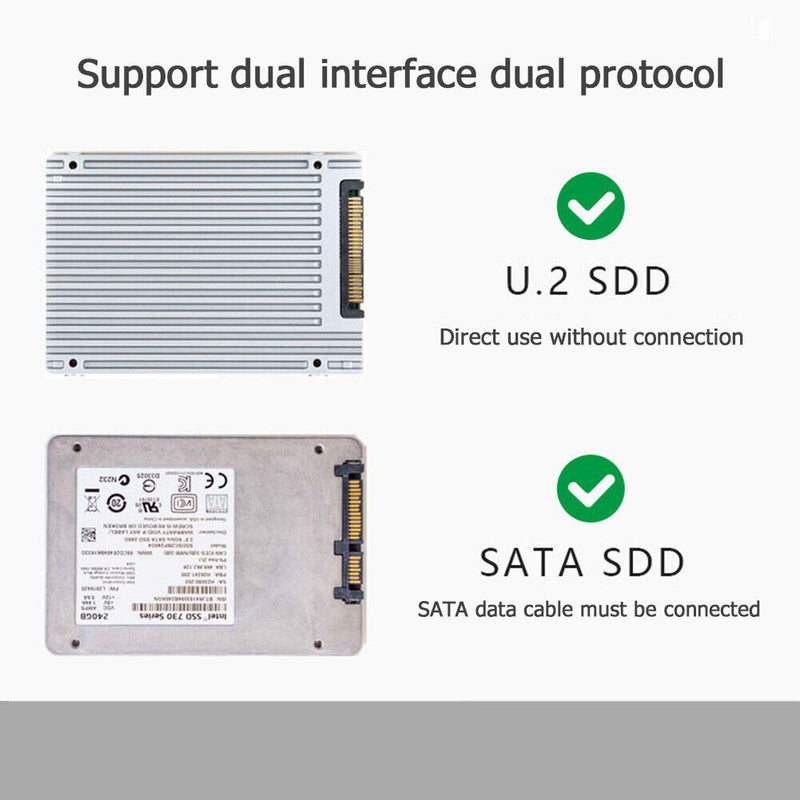

It supports U.2 SSD and 2.5" SATA HDD via SATA cable.

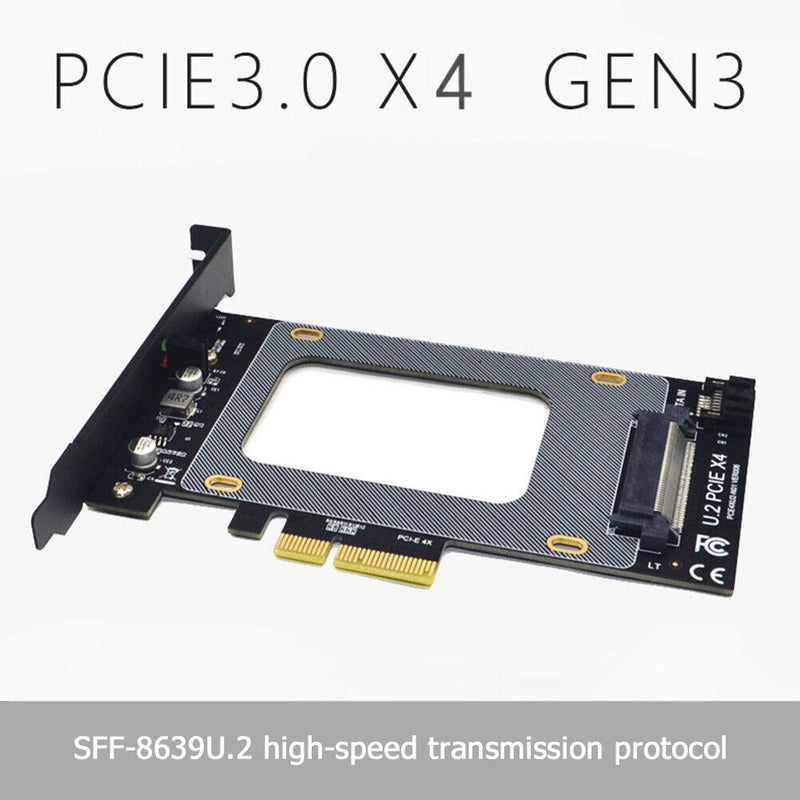

PCIE3.0 x4 GEN3 design, full speed at the bottom of the technology.

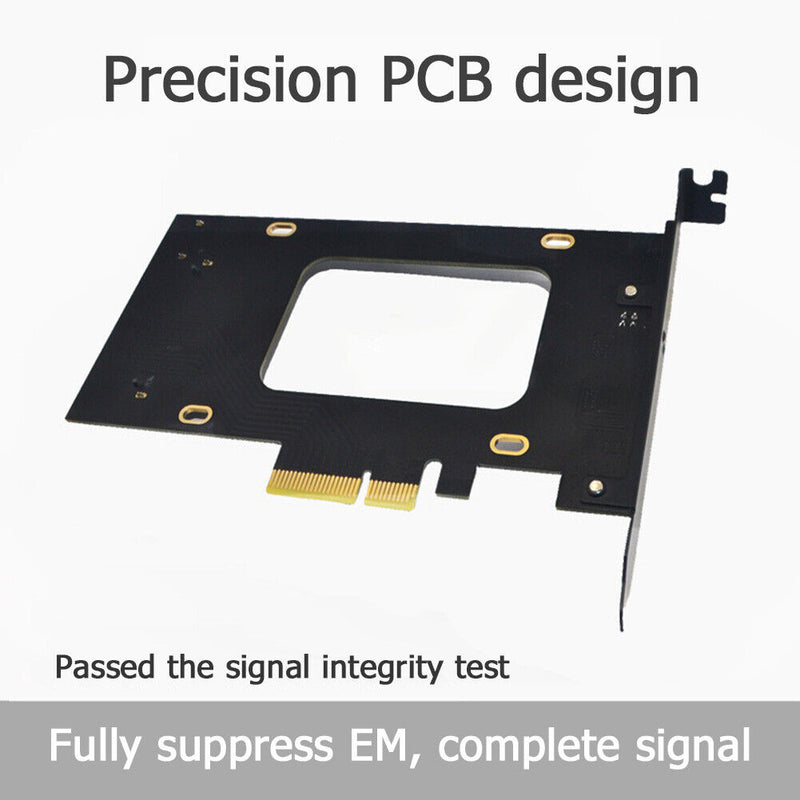

Precision PCB design, has passed the signal integrity test
Support system: for WIN7/WIN8/WIN10 32/64BIT/MAC/linux.
Specification:
Material: plastic + metal
Colour: Black
Interface: PCIE3.0 x4
Product size: 150*120*25mm
Product weight: 110g

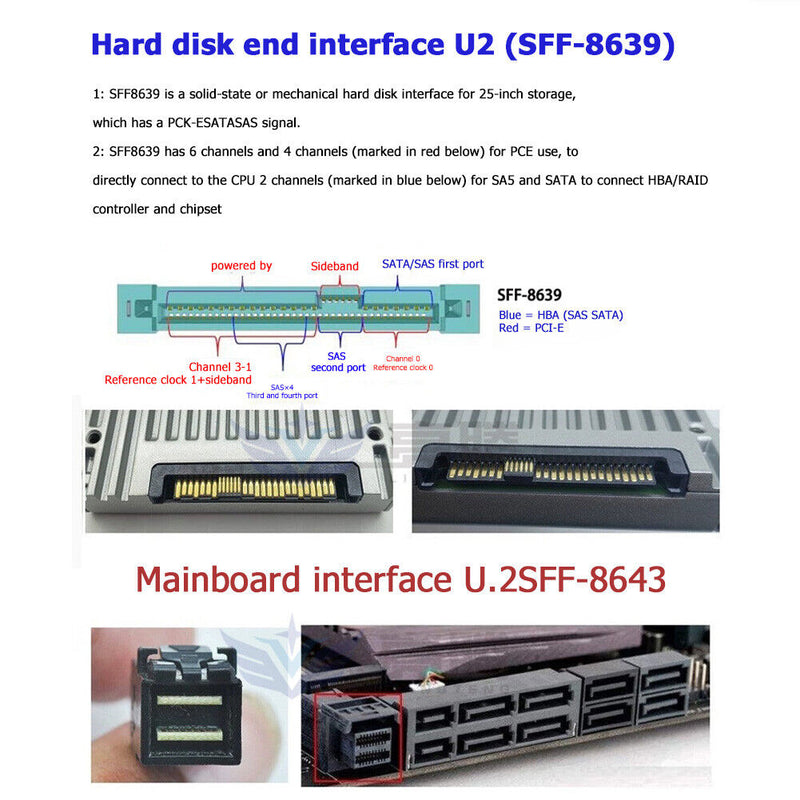

Hard disk end interface U.2 (originally called SFF-8639)
1. SFF-8639 is a solid-state or mechanical hard disk interface for 2.5-inch storage, which has PCI-E/SATA/SAS signals.
2. SFF-8639 commission has 6 channels
4 Channels (marked in red below) are exclusively for PCI-E to directly connect to the CPU
2 Channels (marked in blue below) dedicated to SAS and SATA to connect HBA/RAID controller and chipset
NVME SSD installation
