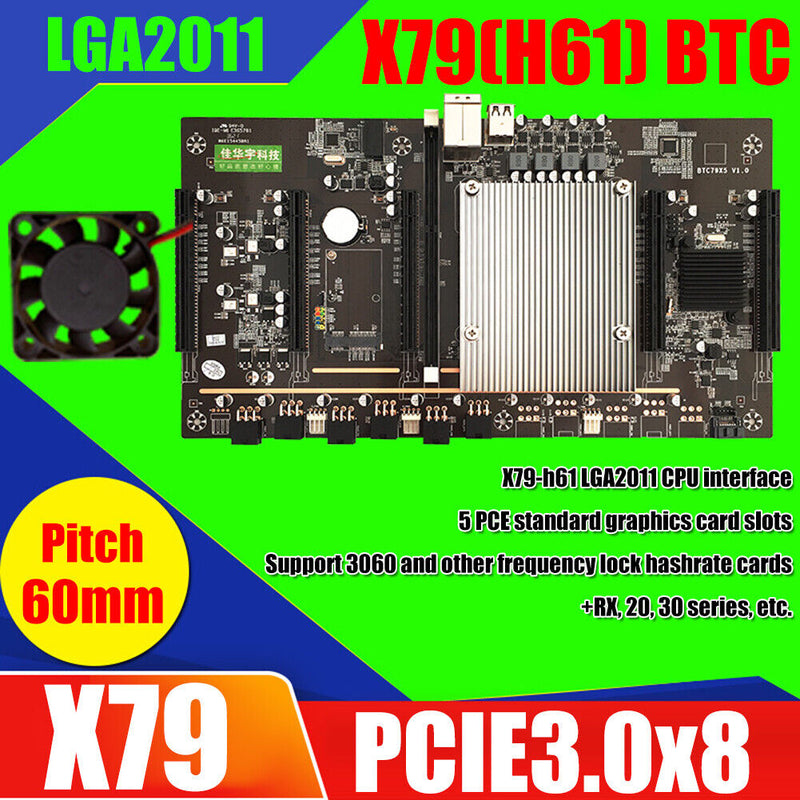

X79 BTC 60mm Mining Machine Motherboard Kit with 12V Cooling Fan 5x PCI Express 3.0 8X DDR3 LGA 2011 Pin Miner Board Supports 3060 Graphics Card
Feature:

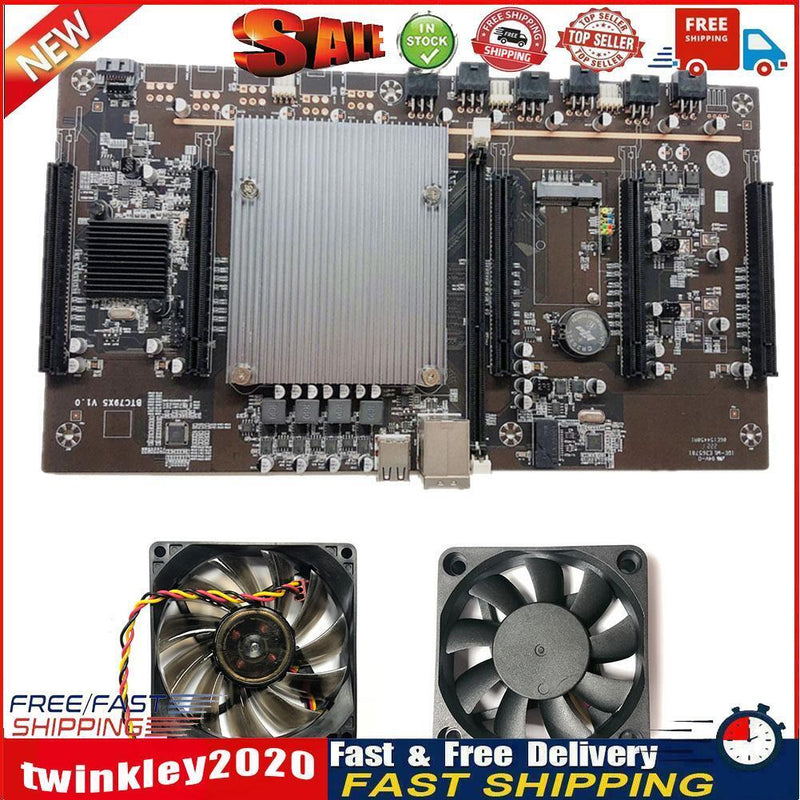

X79 BTC 5 card mining board +12V cooling fan kit, better heat dissipation.

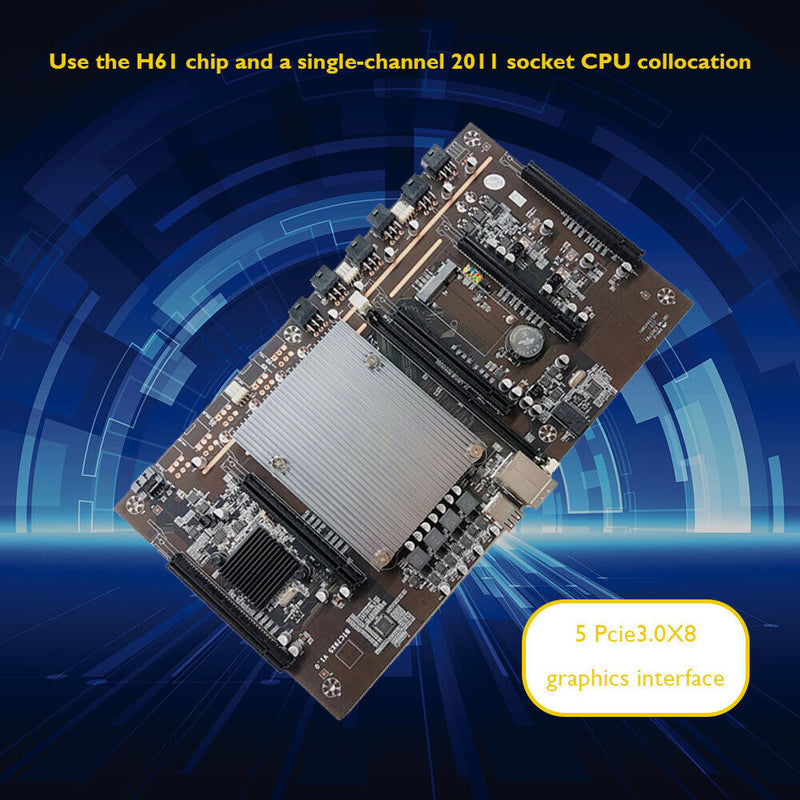

The BTC X79 motherboard uses the H61 chip and a single-channel 2011 CPU socket with a size of 322*188mm. It takes into account the cost-effectiveness and mainstream practicality, and the transmission is stable.

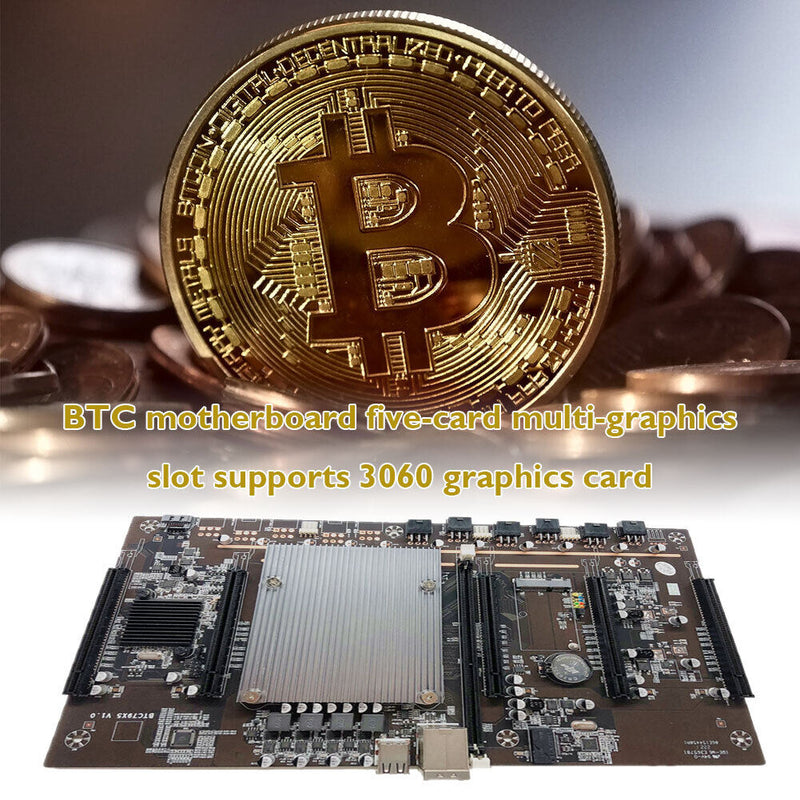

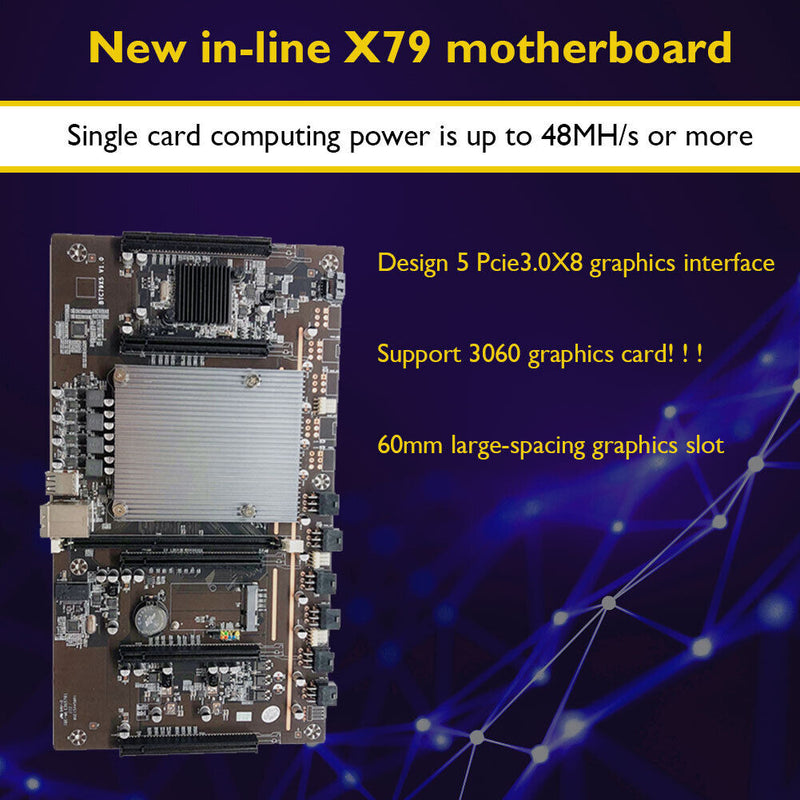

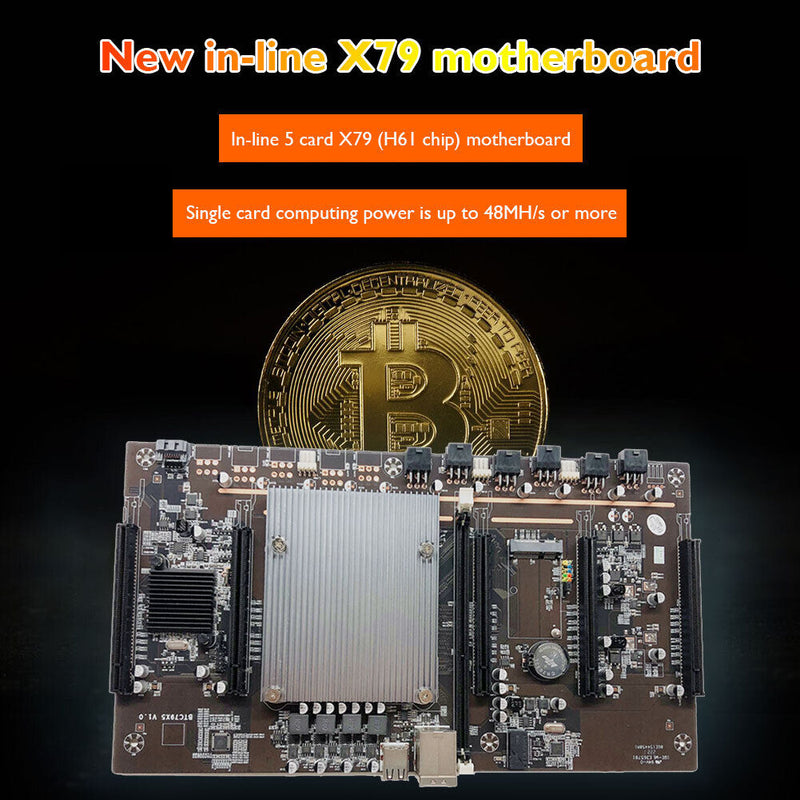

60mm large-spacing graphics slot, designed with 5 X PCIe 3.0 X8 graphics interface. A single card has a computing power of up to 48MH/s or more, perfectly supports 4G video memory graphics cards, and supports 3060 graphics cards! ! ! The mining function that greatly improves the computing power.
If you want to use other CPUs, please use CPUs below 2630. For example, use 26 series such as 2603 2609 2620 2603 V2 2609 V2 2620 V2 and so on.
Note: The graphics card power supply port is an improved version of 6 X 6Pin
(The 6 X 6P are an improved version, and the motherboard needs 2 X 6P power supplies.
If the power supply of the graphics card is directly enough, connect it directly to the power supply
If the power supply is not enough for the power supply interface of the graphics card, you need to use an adapter cable, one end is connected to the power supply, the other end is connected to the motherboard, and the other end is connected to the graphics card).

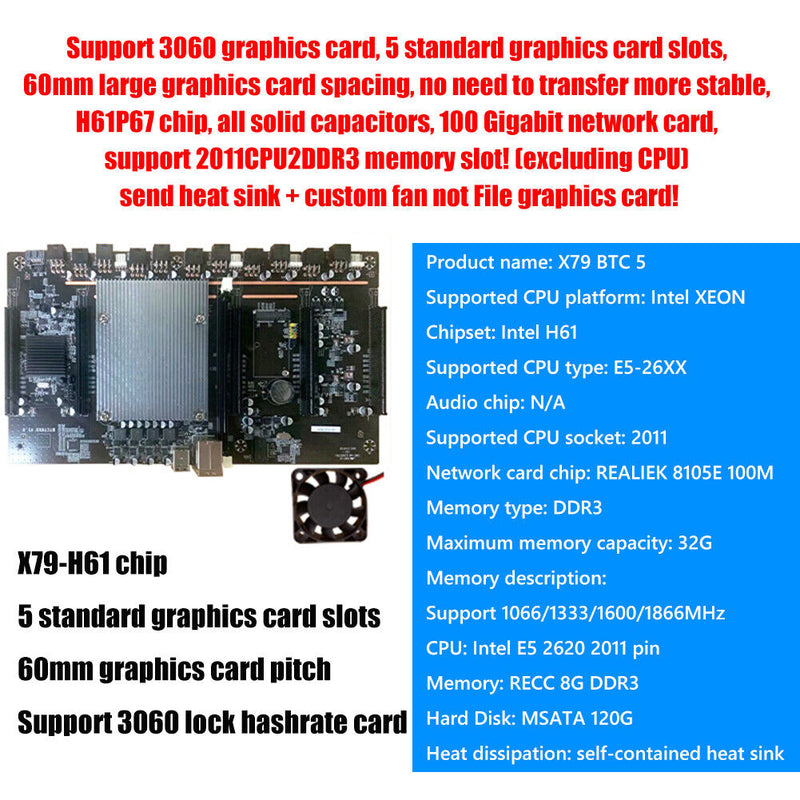

Specification:
Product name: X79 BTC 5 card mine board + cooling fan
Supported CPU platform: for Intel XEON
Chipset: for Intel H61
Supported CPU type: E5-26XX (supports 26 series CPU below 2630)
Audio chip: N/A
Supported CPU socket: 2011
Network card chip: 1*REALIEK 8105E 100M network card
Memory type: DDR3 supports desktop and server memory
Maximum memory capacity: 32G
Working environment: 0-95% relative humidity, non-condensing, -20C-60C
Memory description: Support 1066/1333/1600/1866MHz frequency
CPU: for Intel E5 2620 2011 pin
Memory: RECC 8G DDR3
Hard Disk: MSATA 120G
Heat dissipation: The motherboard comes with a heat sink
Detailed interface:
(1) CPU interface: 1*LGA(2011)
(2) USB interface: 4*USB2.0
(3) USB pin: 1*USB2.0
(4) Hard disk interface: 1*SATA3.0
(5) Hard disk interface: 1*MSATA
(6) Network card interface: 1*LAN
(7) Memory slot: 1*DDR3
(8) Chipset: BGA (H61)
(9) BIOS initial restore: JCMOS
(10) Graphics interface: 5*PCI Express 3.0 8X with a pitch of 60mm/2.36in
(11) Motherboard/graphics card power supply: 6*POWER_PE
(12) Self-initiated call: AUTO_ON
Other:
Slot type: 2011 pin
Support memory type: DDR3
Storage type interface: MSATA or SATA
Back I/O Ports: 4 USB 2.0, 1 LAN
Onboard network function: 100M network card
Product weight: 880g
Motherboard size: 322x188mm/12.68x7.4in
Short connector size: 54x24x9.5mm/2.13x0.94x0.37in
Note:

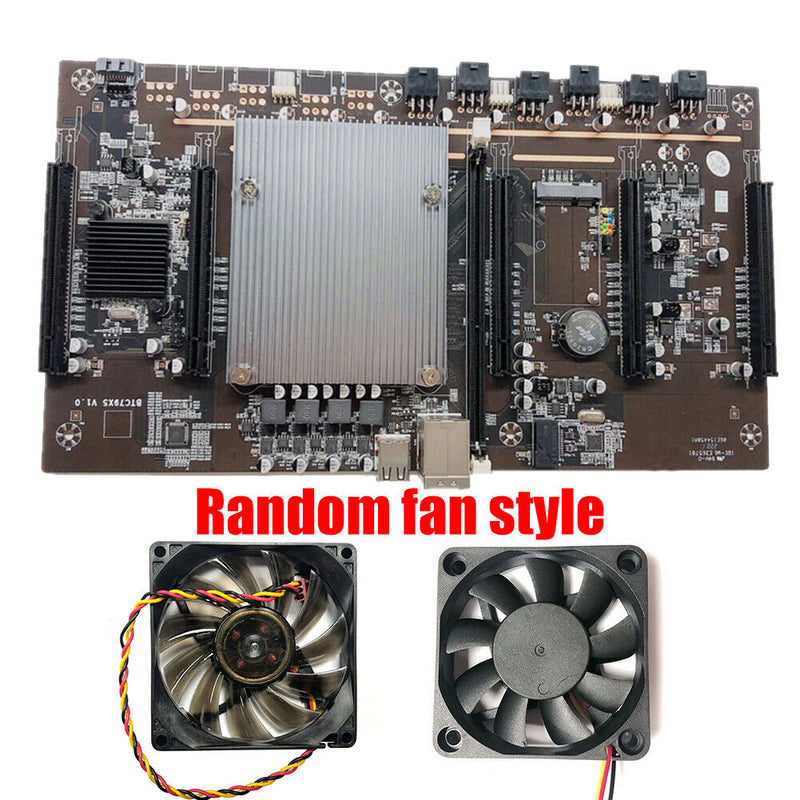

The color of the cooling fan is shipped randomly.
