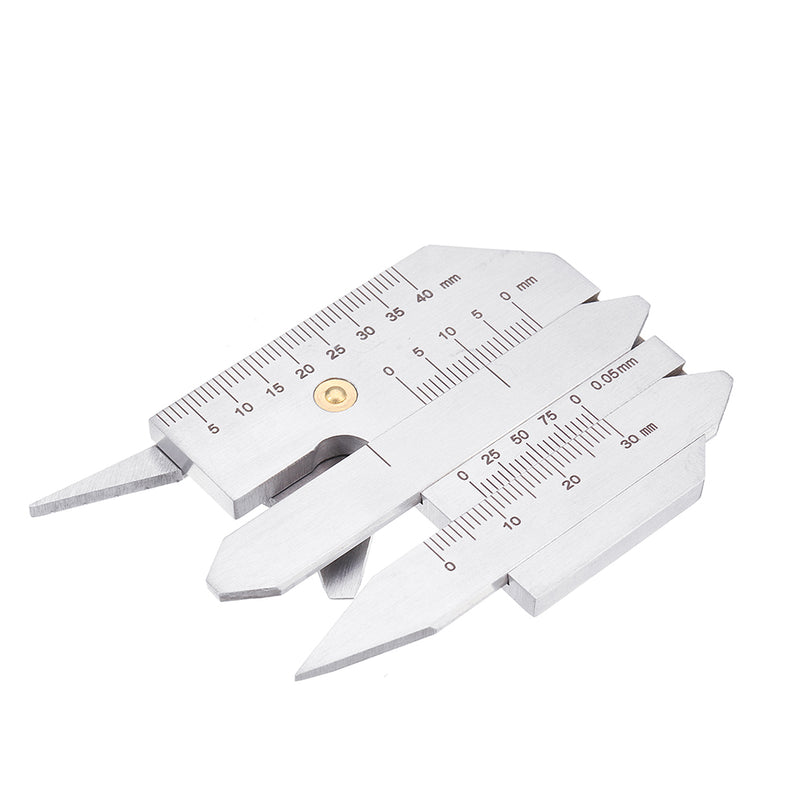

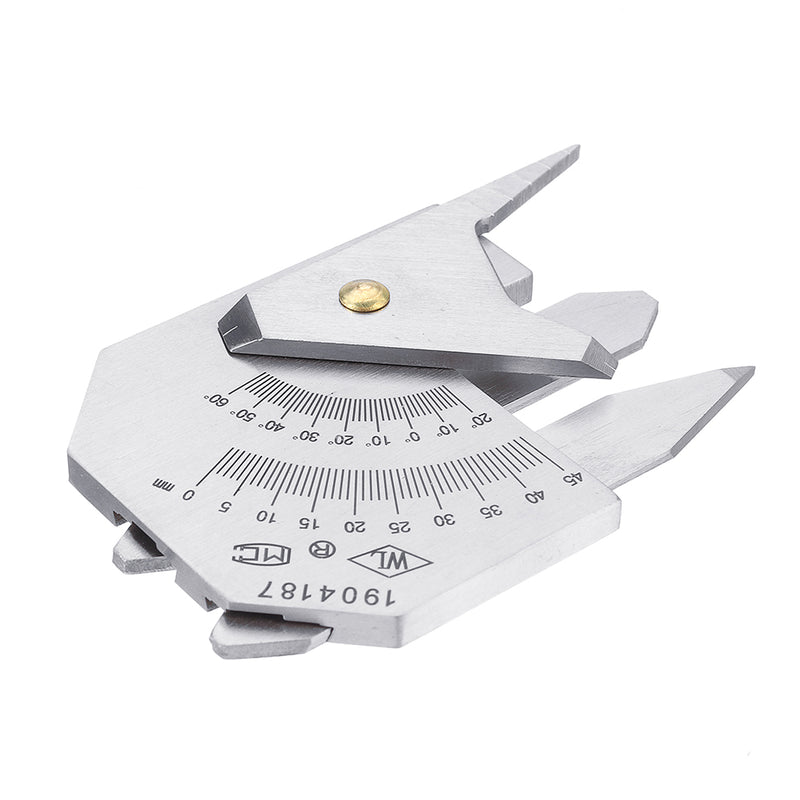

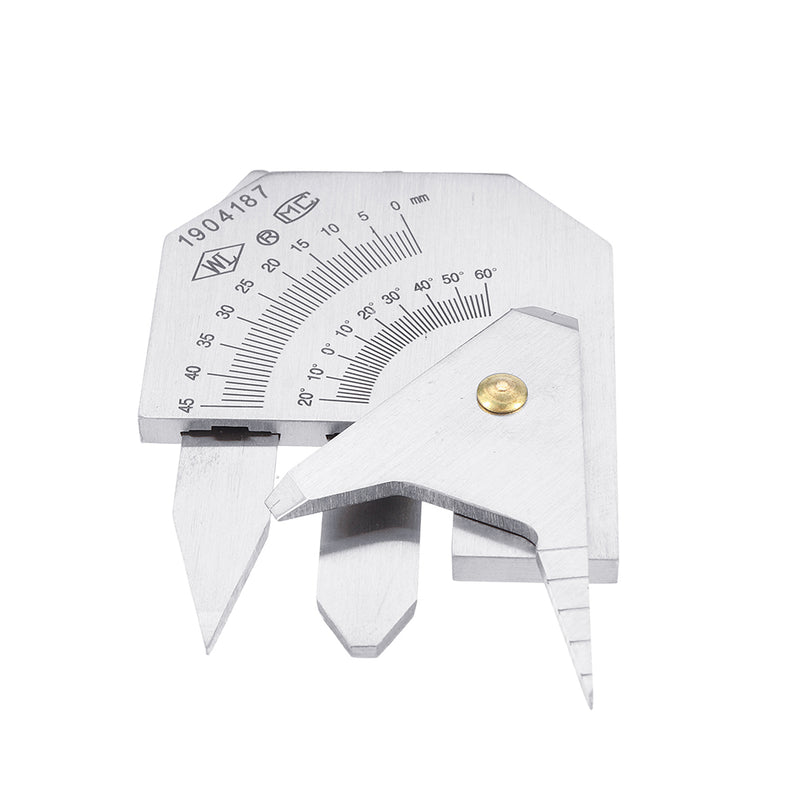

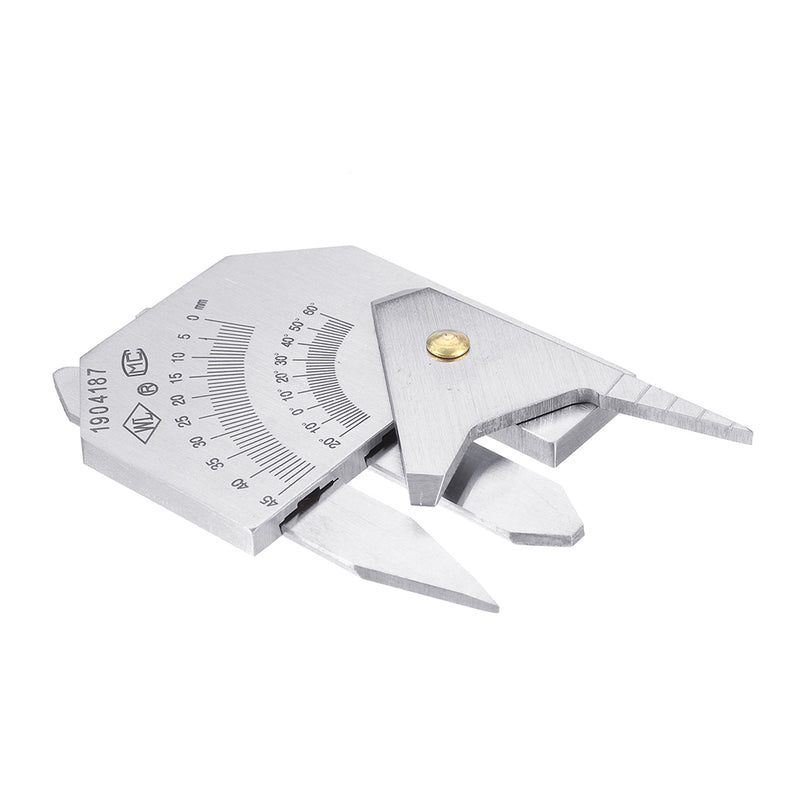

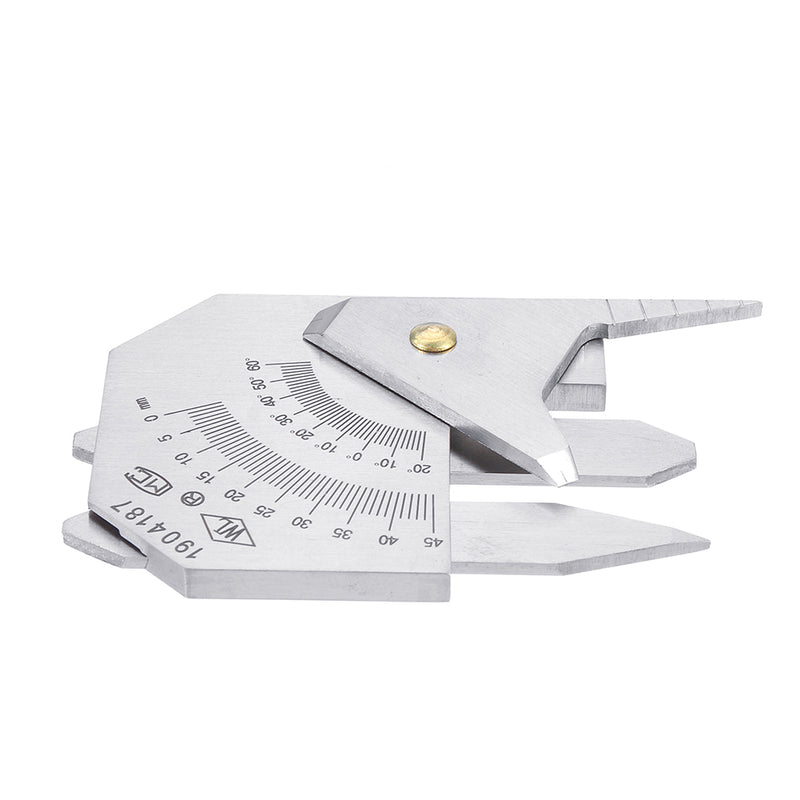

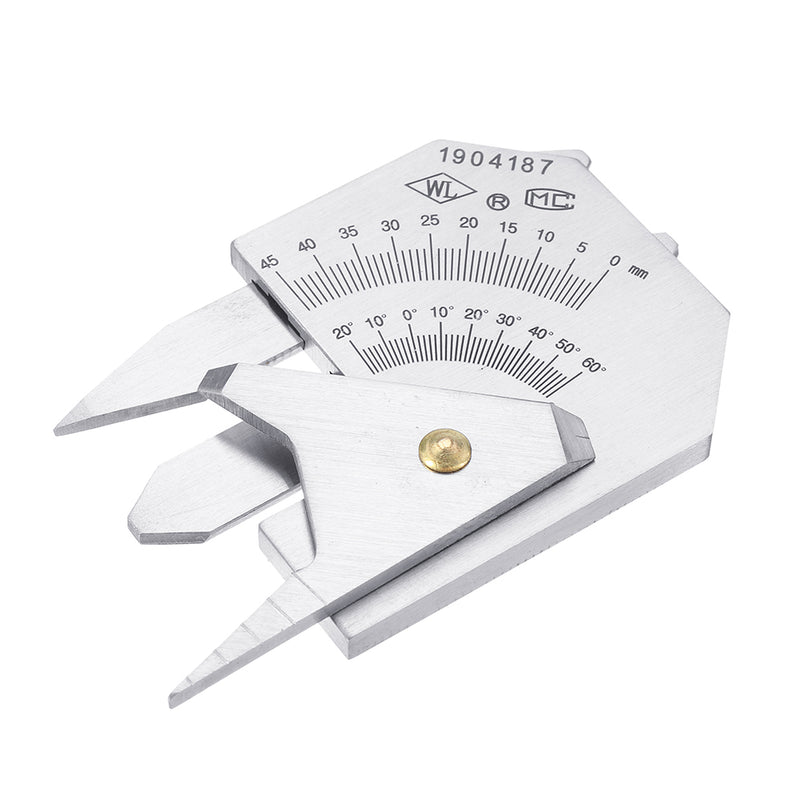

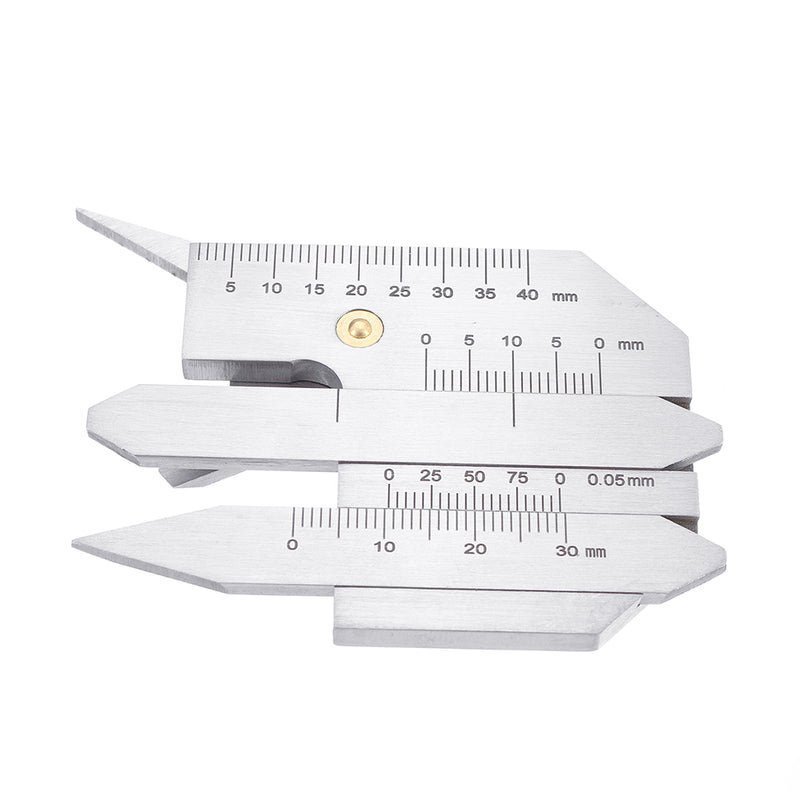

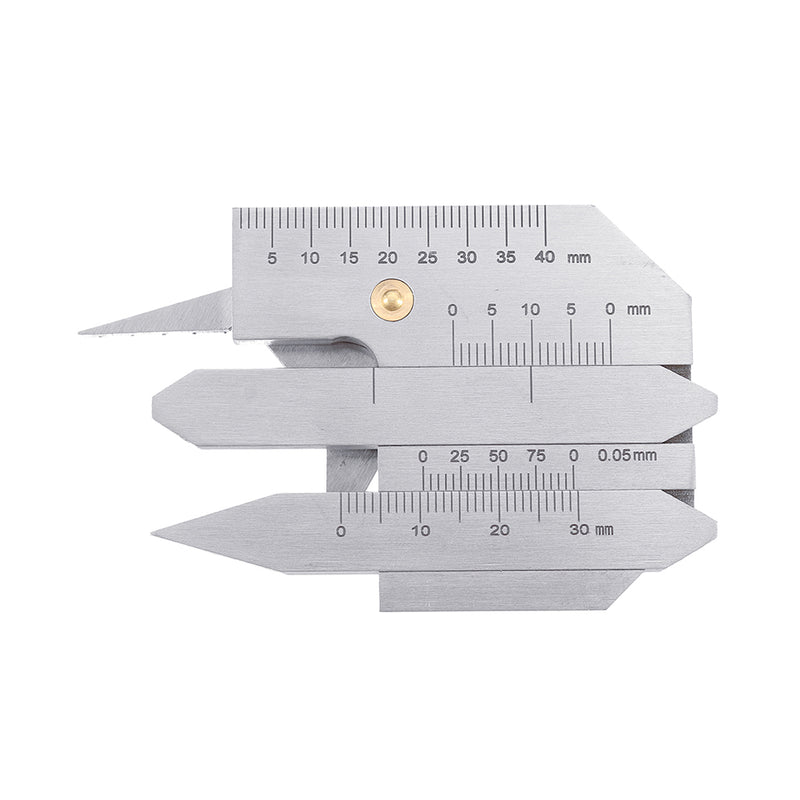

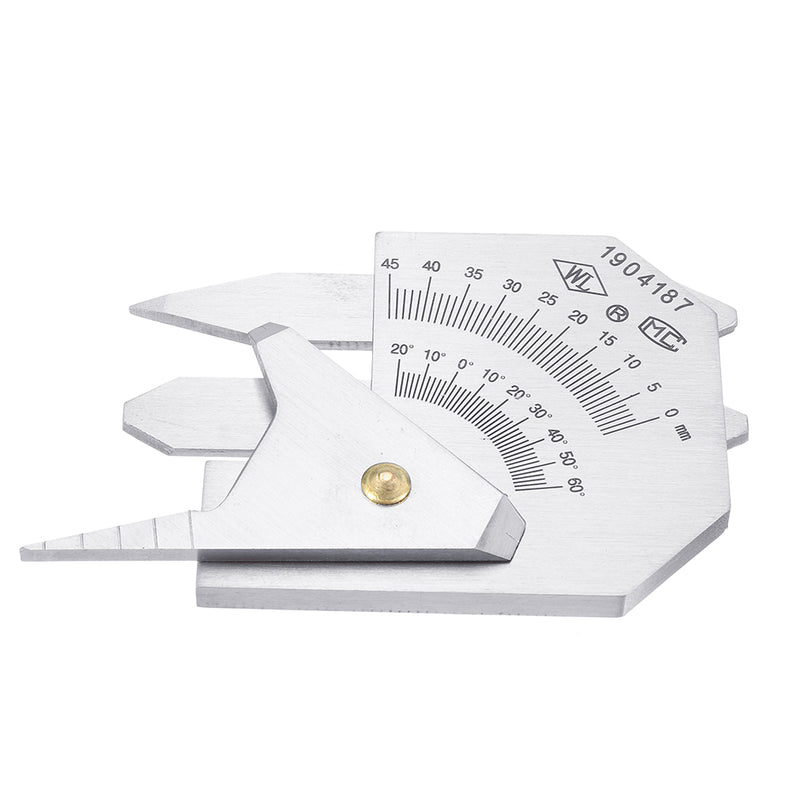

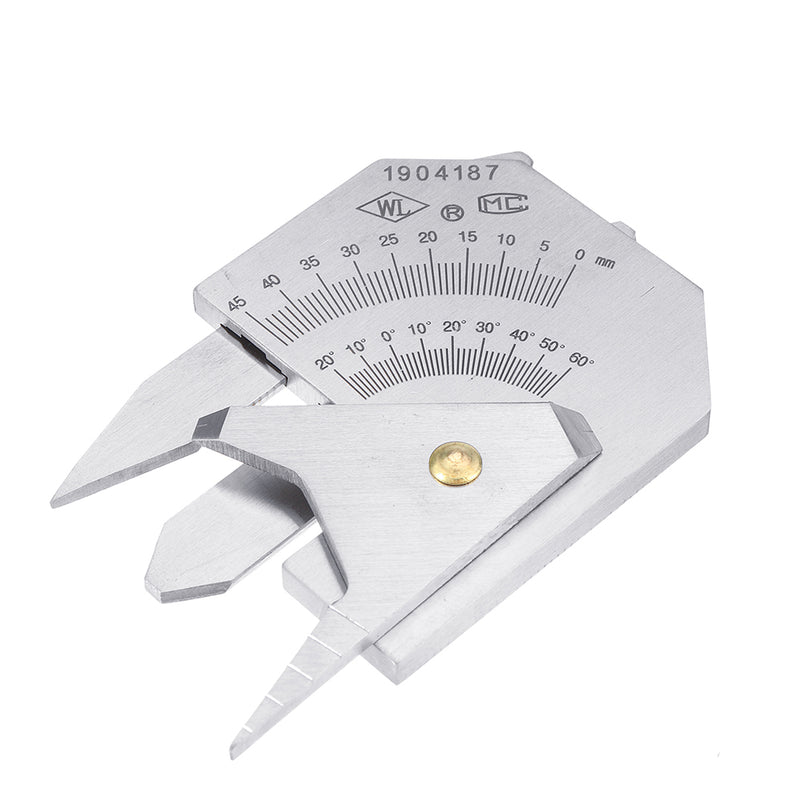

Description:Machifit HJC45B Welding Inspection Ruler Gauge Weld Bead Height Welding Seam Gap
Specification:Model: HJC45B
Type: double sliding chute
Material: stainless steel
Range: 0-45mm
| Measurement items |
Range(mm) |
Allowed Deviation |
| Flat welds |
0-20
|
0.2 |
| Fillet weld thickness
|
0-12 |
0.2 |
| width |
0-45 |
0.3 |
| Weld Undercut depth |
0-5 |
0.1 |
| Weld bevel angle |
90-150°
|
30’ |
| Gap size |
0.5-5
|
0.1 |
Features:
The major products are the main scale, height gauge, undercut depth gauge and multi-foot four parts, is a welding inspection feet, for a variety of bevel angle detecting weldments, height, width, gap and undercut depth.
It applies to checks on boilers, bridges, shipbuilding, pressure vessels and oil pipelines. Also applies to the measurement of welding requiring high quality components.
This product is made of stainless steel, reasonable structure, beautiful appearance, easy to use, wide measurement range.
Package Included:1 x HJC45B Welding Inspection Ruler
