Specifications:

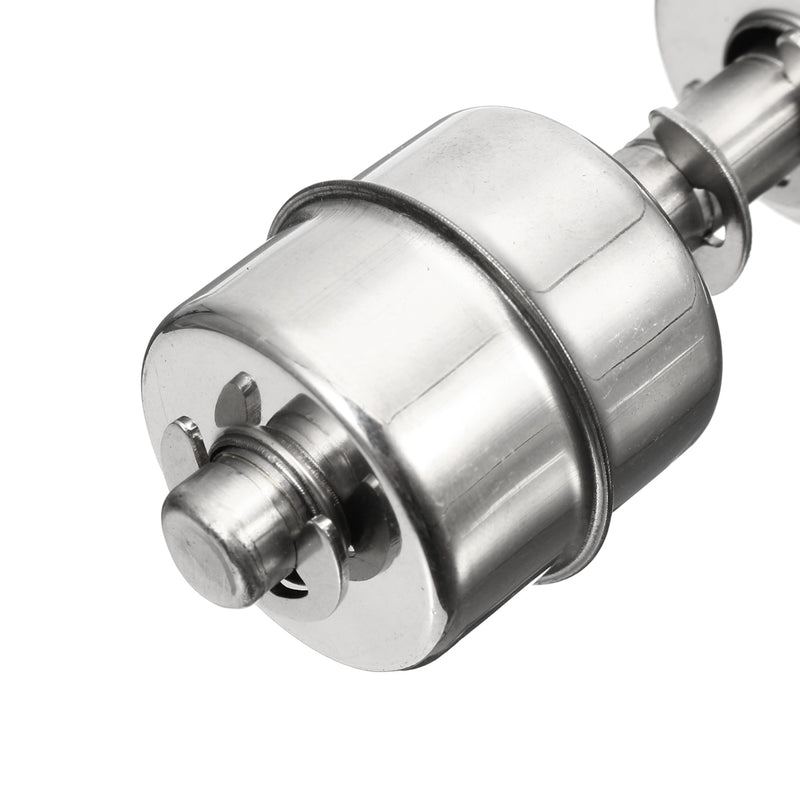

Material: Stainless Steel
Max. Contact Rating: 10W / 50W
Max. Switching Voltage: 240V AC
Max. Breakdown Voltage: 220V DC
Max. Switching Current: 0.5A
Max. Carry Current: 1A
Max. Contact Resistance: 100mΩ
Operating Pressure: 10kg/cm
Max. Pressure: 0.2 Mpa
Applicable Proportion: 0.75
Operating Temperature: -10 ~ +120℃
Switch Operation: Reversible

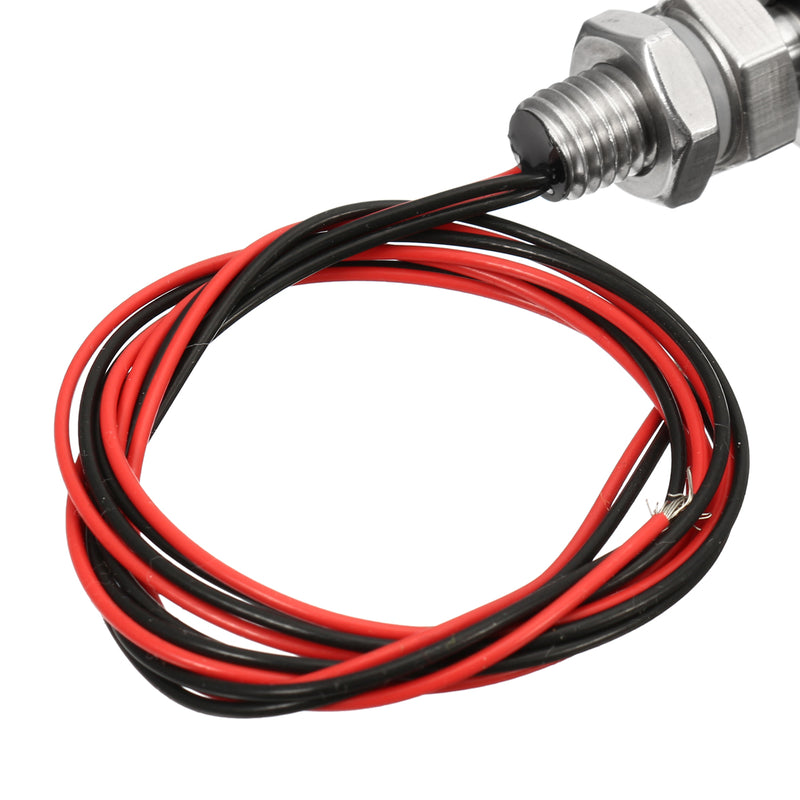

Wire: Teflon PTFE High Temperature Line
Installation Method: Vertical Mounting
Thread Diameter: 10mm / 0.39 inch

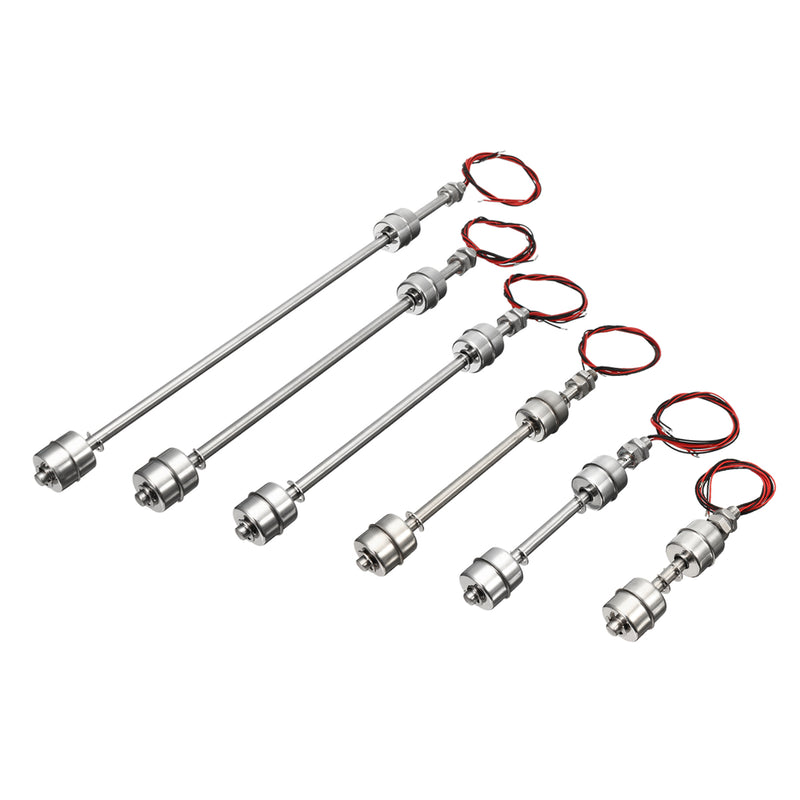

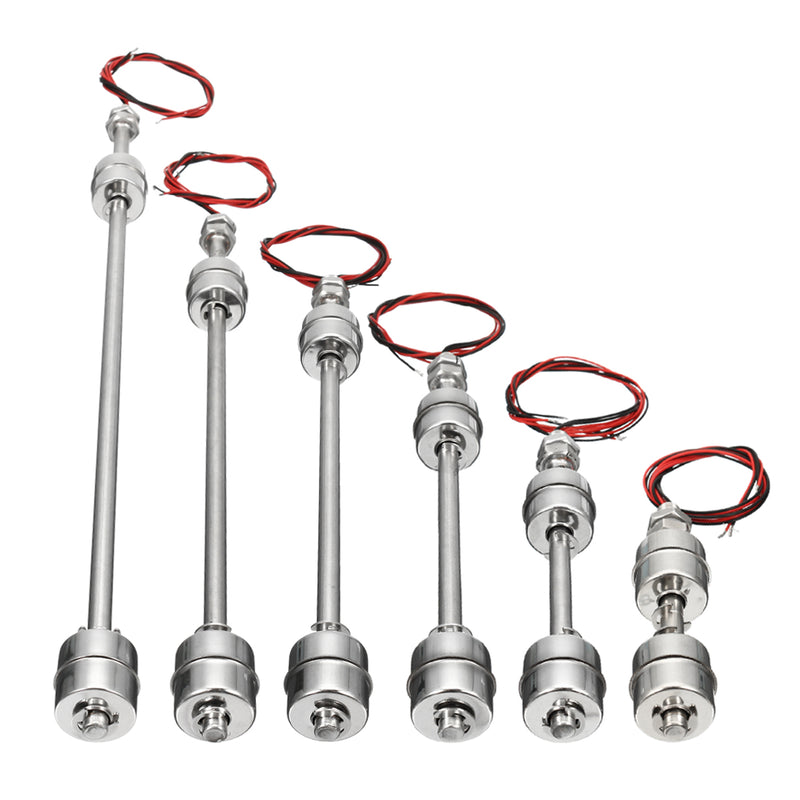

6 Size Optional:
100mm / 3.94 inch
150mm / 5.91 inch
200mm / 7.87 inch
250mm / 9.84 inch
300mm / 11.81 inch
Features:
• Used to sense the level of liquid within a tank.
• Light weight and simple working principle, high reliability.
• The switch may activate a pump, an indicator, an alarm, or other device.
• This float switch is a simple structure, easy installation liquid level controller.
• Widely used in electronic, electrical, chemical, water treatment, drainage and other fields.
• The versatility of this vertically mounted sensor means that it can be installed either at the top or base of your tank,
depending on whether you for wish to detect the water's rise or fall.
Package Included:
1 Pc x Floating Switch
