Descriptions:
Straight through module material: port copper needle with 15 wheat gold plating, outstanding oxidation resistance; superior transmission performance, the module is firmly connected!
The quality is stable, the standard is over-tested, the interface is firm and not loose, no tools need to be wired, straight-in type, no complicated wiring.
Specification:

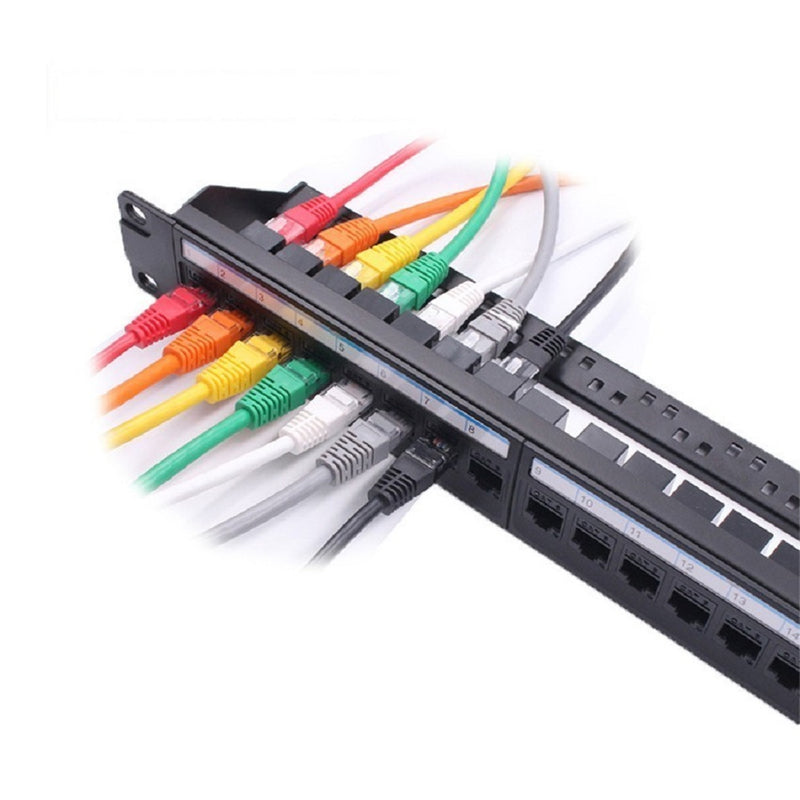

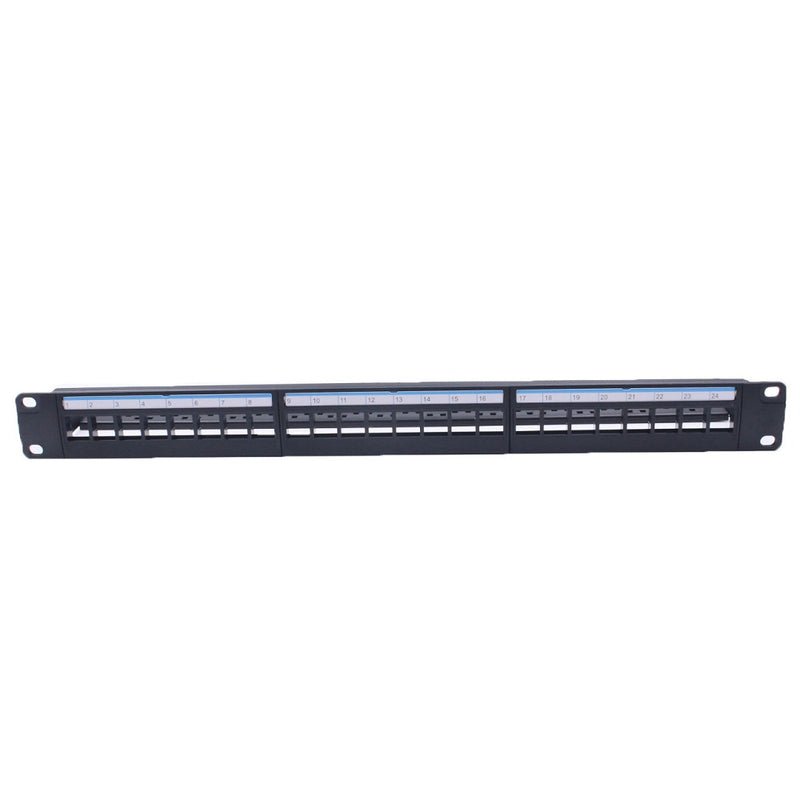

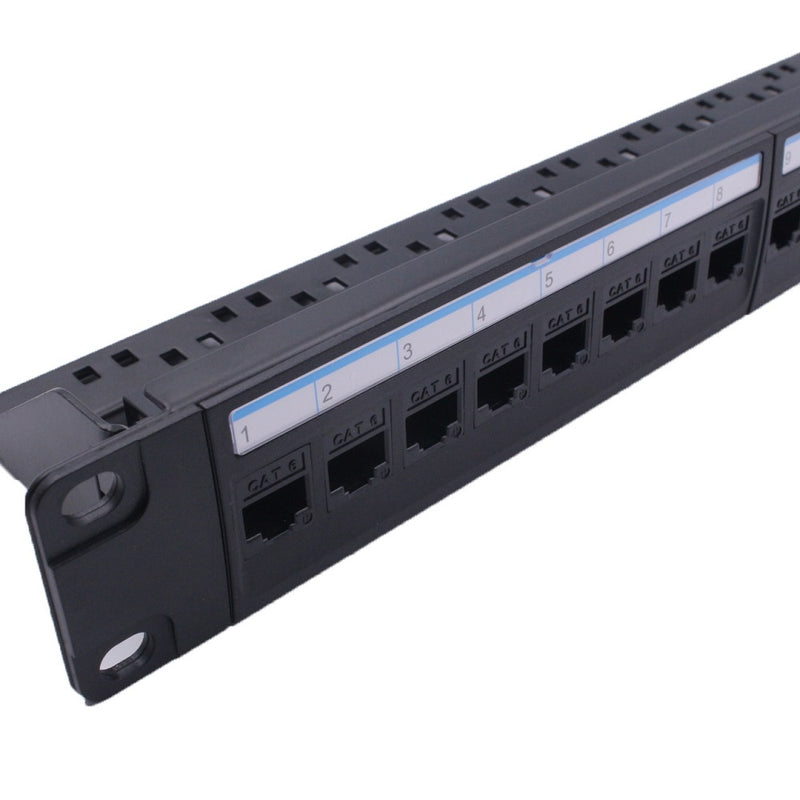

Product Name: UTP CAT6 straight-through modular distribution frame
Product Type: CAT6 24-port patch panel, unshielded
Color: Black
Terminal material: phosphor bronze plating nickel, the number of insertions and removals is not less than 300 times
Eight-needle material: phosphor bronze bronzed, the number of insertions and removals is not less than 800 times
Contact resistance: no more than 2.5mΩ under normal atmospheric conditions
Insulation resistance: not less than 1000MΩ under normal atmospheric pressure
Electric strength: DC 1000V (AC, 750V) No breakdown and arcing in 1 minute
Design standard: designed and manufactured according to international standard ISO/IEC11801; TIA/EIA568
Package Includes:
1 x Wire tester accessories
1 x Box
Details Pictures:
