SKU: U2I-BG-1010936

Share this product

Description:

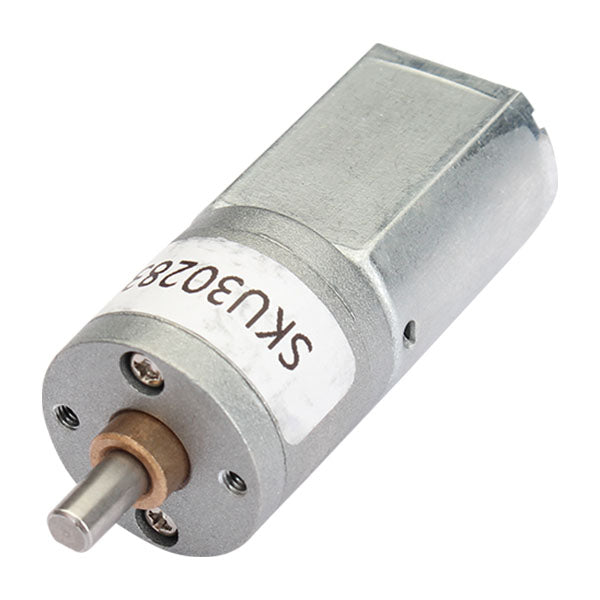

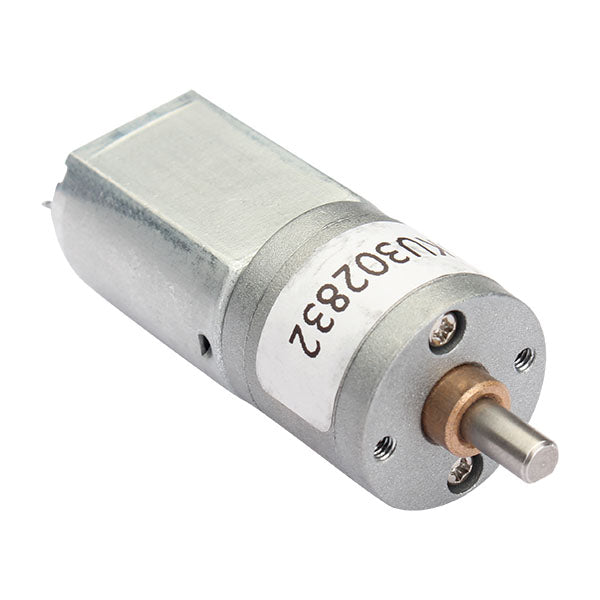

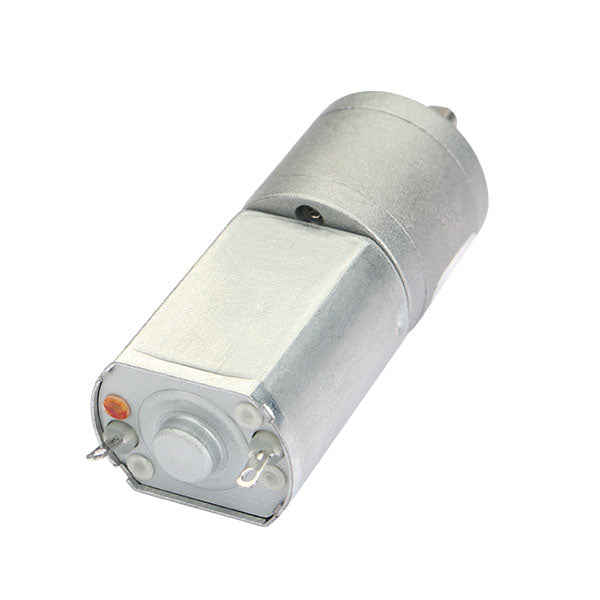

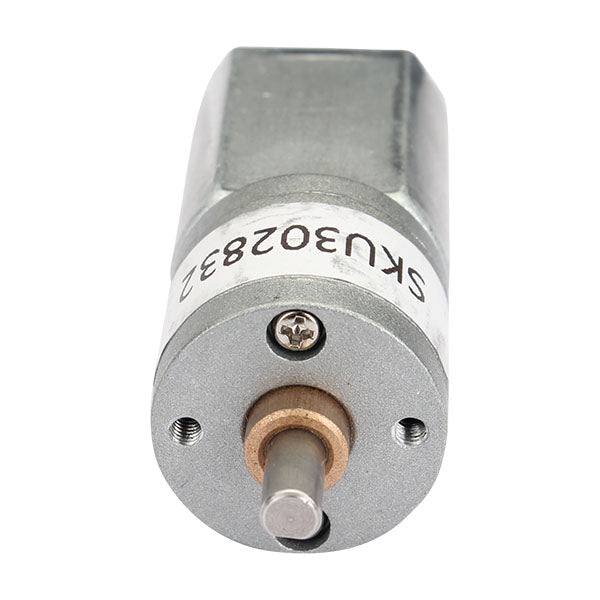

20mm DC 6V 22RPM Large Torque Gear Motor

Specification:

Voltage: DC 6.0V

No-load speed: 22rpm

Locked rotor torque: 6kg.cm

1. Standard Operating Conditions

Item	Specification
Rated Voltage	DC 6.0V
Gear Ratio	1/195
Rotation	CCW/CW
Motor Position	All position in horizontal
Temperature	0 - 30 Degree Celsius
Humidity	30% - 95%

2. Performance of Motor

Item	Specification
No-load Speed	4500 +/- 10%rpm
No-load Current	35mA (Max)
Stall Current	420mA (Max)
Stall Torque	50g.cm

3. Performance of Gear Motor

Item	Specification
Outer Speed	22 +/- 10%rpm
No-load Current	60mA (Max)
Stall Current	420mA (Max)
Stall Torque	6.0kg.cm (Max)
Rated Torque	3000g.cm
Rated Current	180mA (Max)
Rated Speed	15 +/- 10%rpm
Noise	50dB

4. Dimension

Item	Specification
The Outside Shafft Length	10.5mm
Shaft End Play	0.05 - 0.50mm
Screw Size	M2.5
Diameter of Shaft	4 x D 3.5mm
Outline Mounting Dimension	Refer to the Outline Drawing

5. Product Drawings

6. Curve Drawings

Package Included:
1 x Motor
