Description:

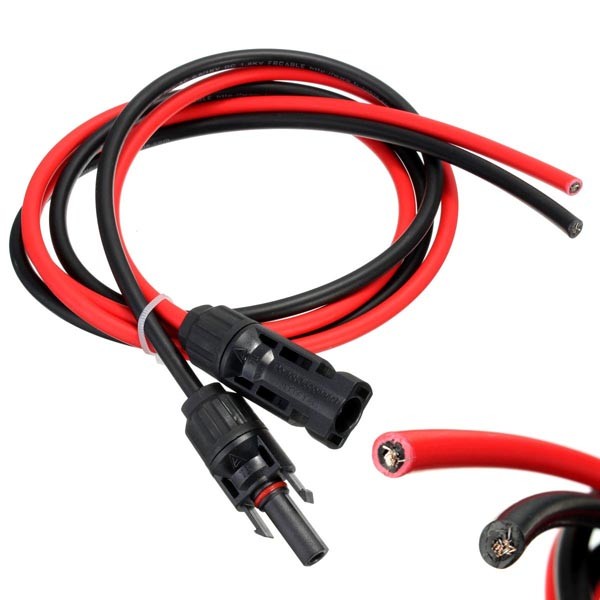

3.5 FT Black MC4 10AWG MC4 Solar Stripping Cable Connector Male Female Plug
Features:
Long service life, environmental protection.
Suitable for solar power station, pv connector and pv junction box.
Solar system and dedicated solar power cable.
Specifications:
Nominal cross section: 4mm2
Model: PV1-F4mm
Rated current: 34A
Core number: single core
Conductor: copper wire structure
Conductor: stranded diameter: 2.6mm
Insulation minimum wall thickness:0.5mm
Sheath minimum wall thickness:0.5mm
Finished wire diameter:5.8 + 0.1mm
The conductor resistance (20 ℃) :≤ 5.09 /km
Test voltage:6.5/5 kV/min
Rated temperature: -40~90 ℃
Maximum conductor temperature: 120℃
Service life: ≥25 years (-40~90 C)
Ated voltage: AC U DC:1.8kv. 0.6/1kv /U
Working environment temperature: -40~90℃
Working voltage AC/DC (KV): 0.6~1.0/1.8
Weather resistance: UV
Flame retardant: single vertical combustion (IEC60332-1)
Solar test: HD605/A1
Finished cable ozone resistance test: EN50396
Smoke density: IEC61034, EN50268-2
Halogen acid release amount: EN50267-2-1 IEC670754-1
Length: Appro 101cm
Package included:
1 x MC4 Connectors Red & Black 3.5 FT

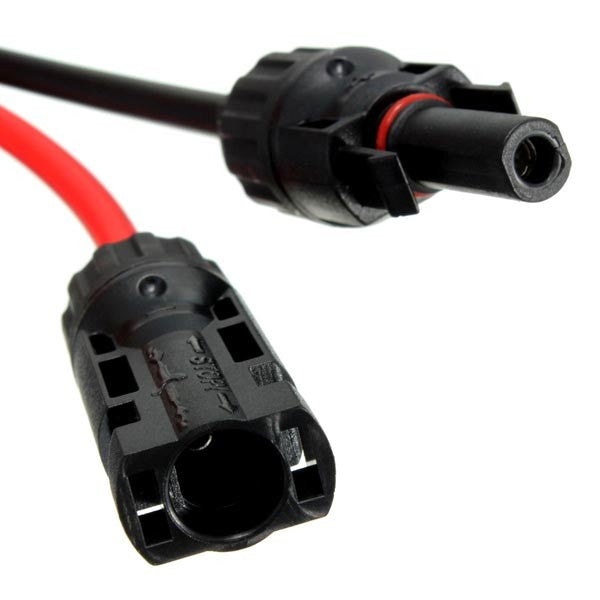

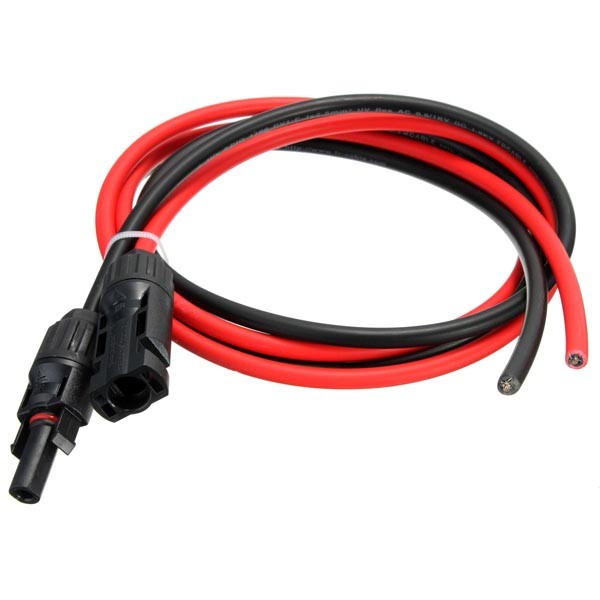

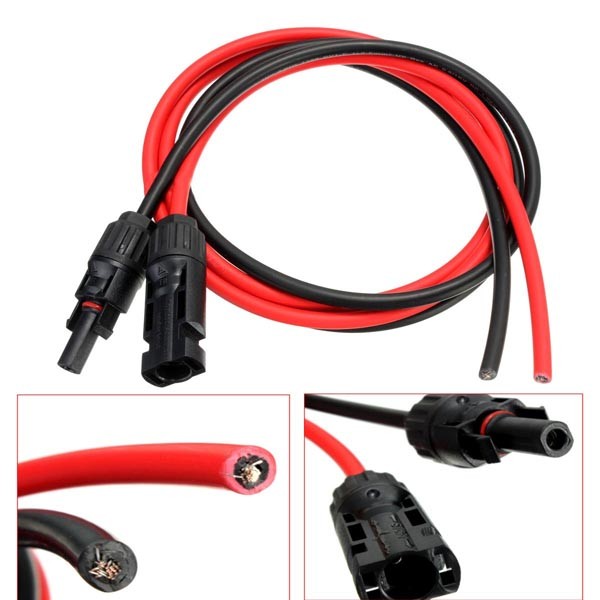

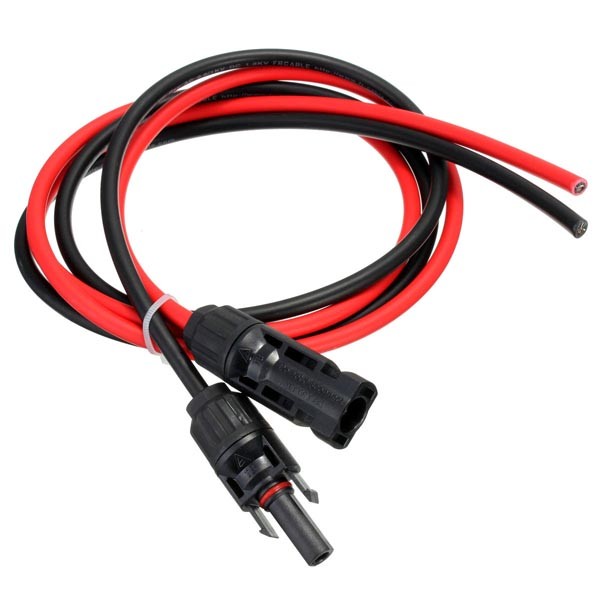

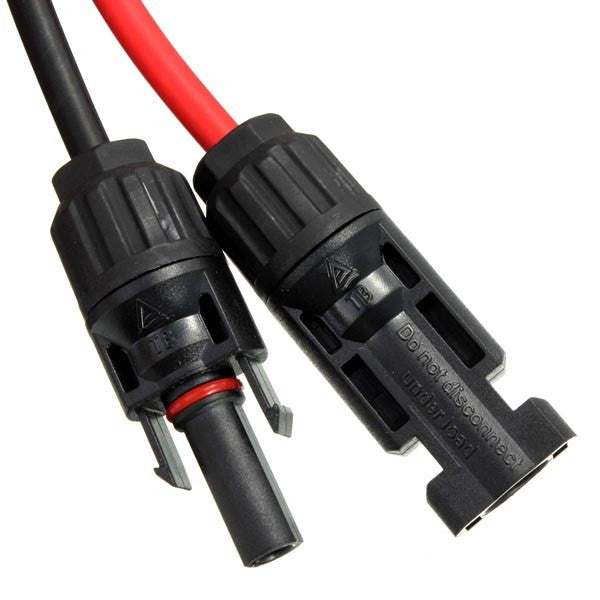

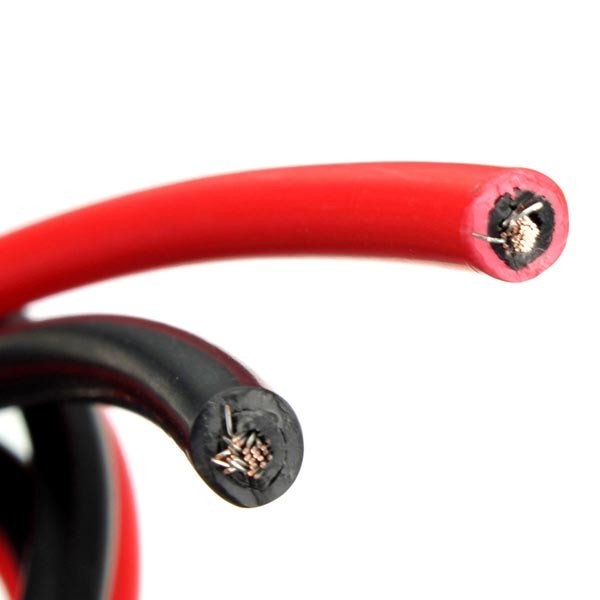

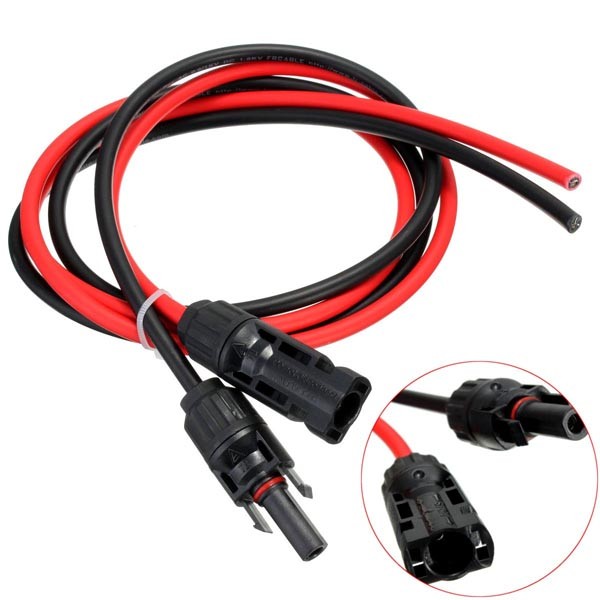

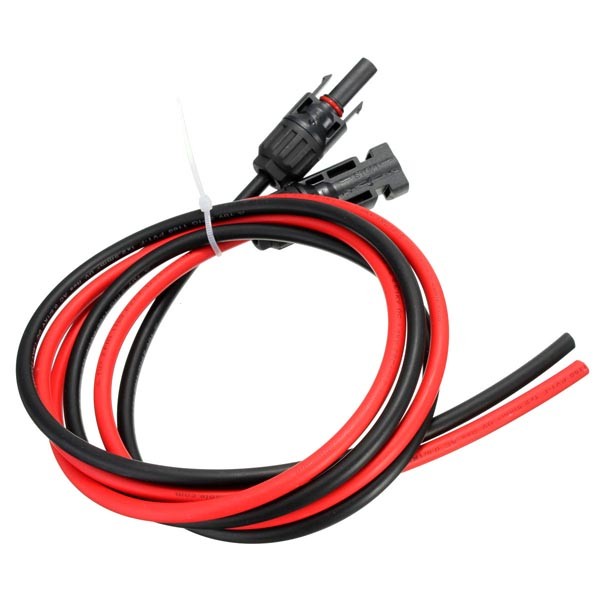

Details pictures:
