Descriptions:

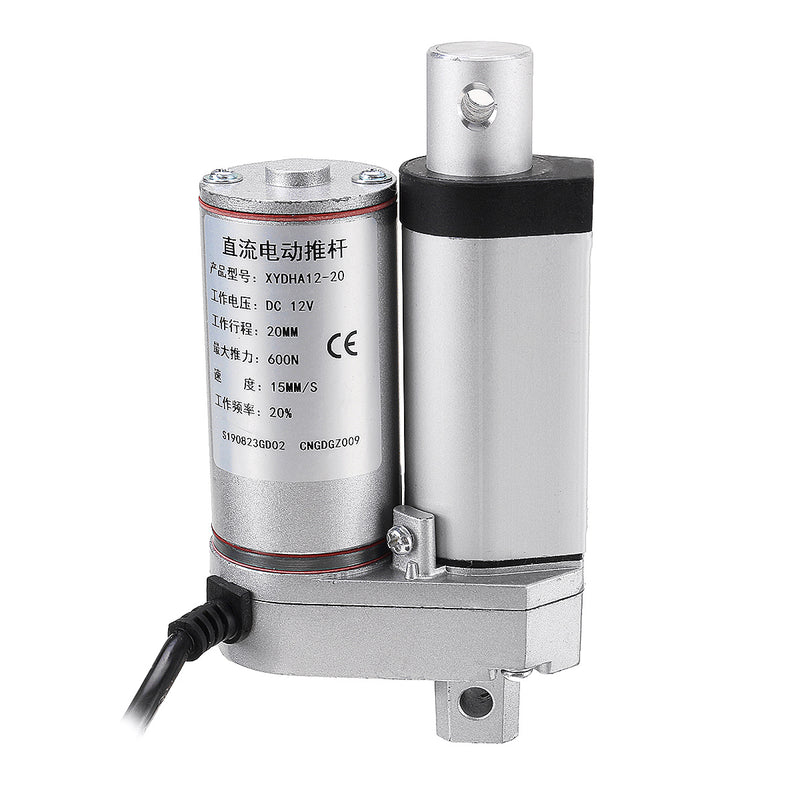

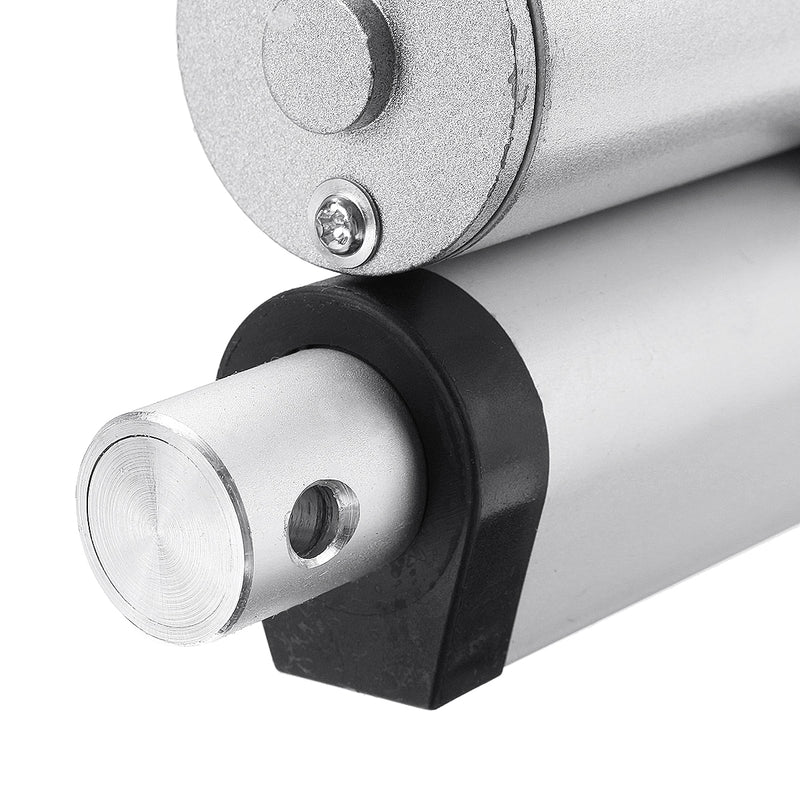

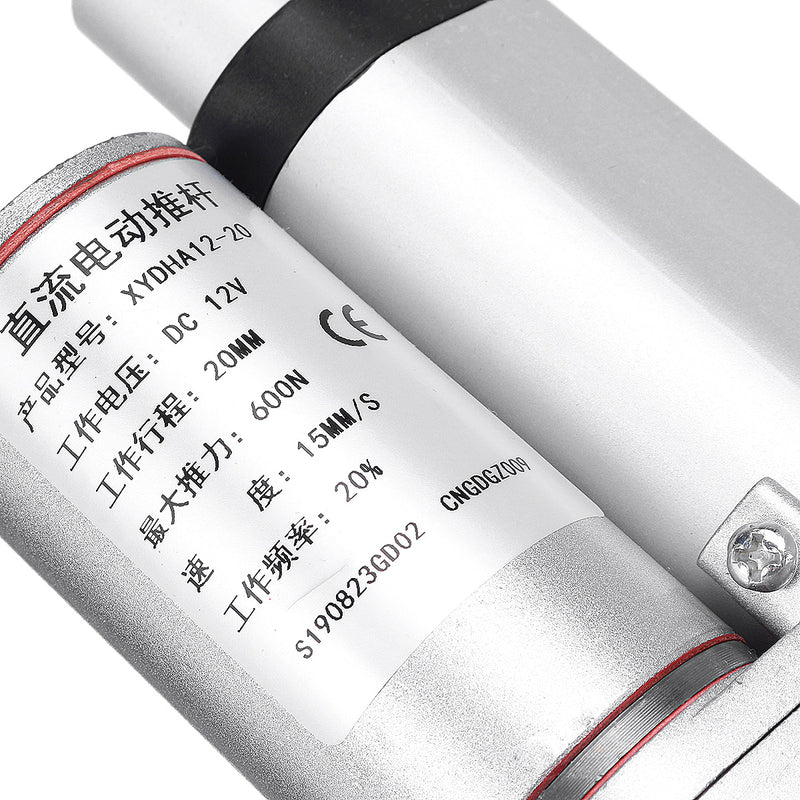

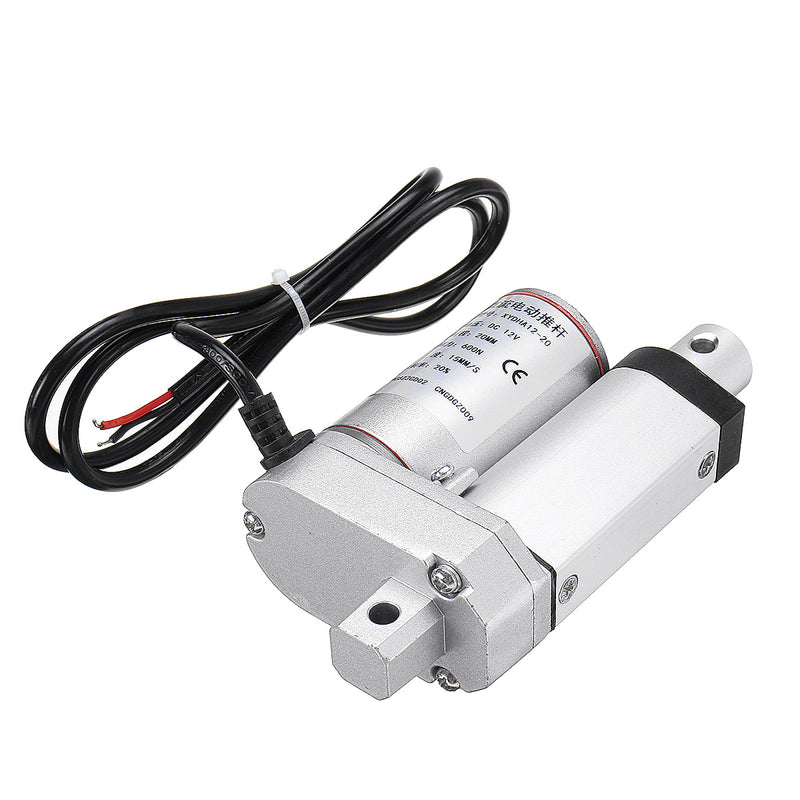

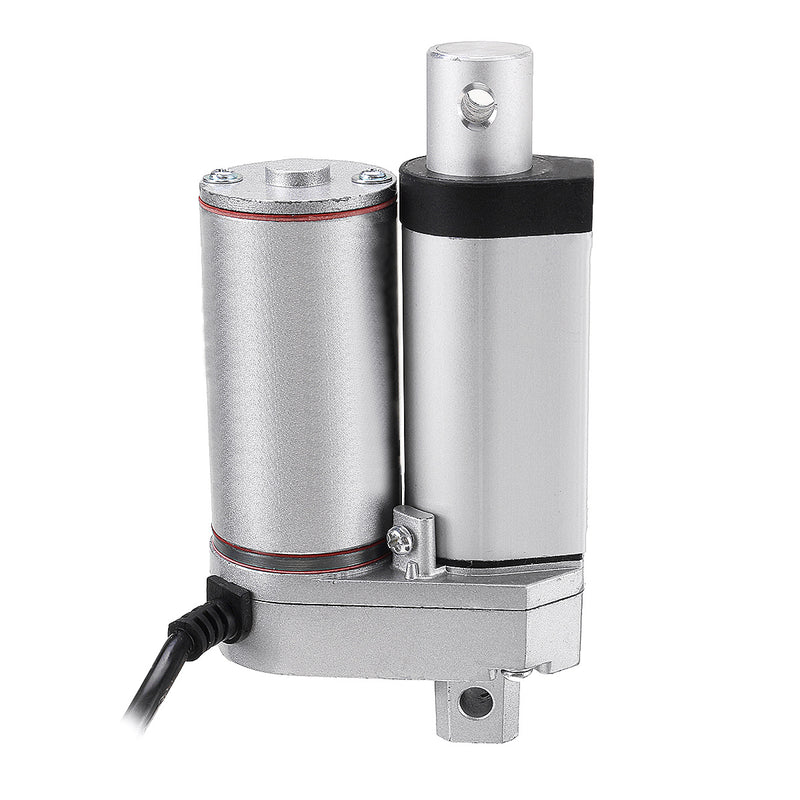

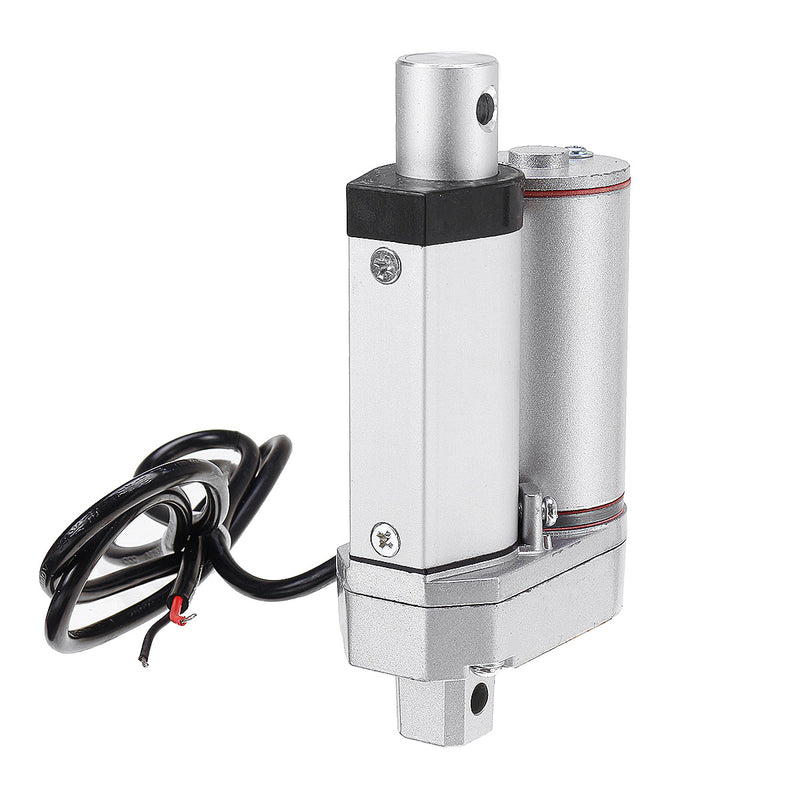

300N/600N/1500N/1100N 12V Linear Actuator Electric Motor For Auto Lifting IP54
Specifications:
Load capacity:300N/600N/1500N/1100N
Input Voltage: 12V DC
Speed:300N:30mm/s,600N:15mm/s,1100N:13mm/s,1500N:4mm/s
Stroke Length: 30mm
Working frequency: 20%
Technical Parameters:
Rated power: 30W
Ambient temperature: -20°C to +75°C
Standard protection class: IP54
Type:
A - 300N 30mm/s
B - 600N 15mm/s
C - 1100N 13mm/s
D - 1500N 4mm/s
Features:
- This miniature linear actuator is using for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications.
- It can be replaced by hydraulic, pneumatic products ideal for saving energy consumption.
- Push bar Each side contains a travel limit switch. When the telescopic bar runs to the top or to the top, it will automatically disconnect the electricity.
- The motor will not idle. Cut off the power, it can be stop at any position, with self-locking function.
- The push rod is driven by a DC motor with a screw drive. The telescopic rod can only be retracted without rotation.
- The motor is positive and negative. For example, if the positive electrode is stretched and the negative electrode is shrunk, the telescopic direction of the rod can be changed by changing it.
- Low noise design, noise level less than 42dB.
- Product features: drive other objects to push, pull, rise, drop.
- Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more.
Installation size:
(1): The center distance between the two mounting holes before and after the push rod is fully retracted, the minimum mounting distance of the push rod
(that is, the length of the push rod itself).
Below 300mm stroke L (mounting dimensions) = 105mm + S (stroke)
(2): Center distance between the two mounting holes before and after the push rod is fully extended.
(Below 300mm stroke) = 105mm + S (stroke) + S (stroke)
Packge Included:
1 × Linear Actuator Motor
