Description:

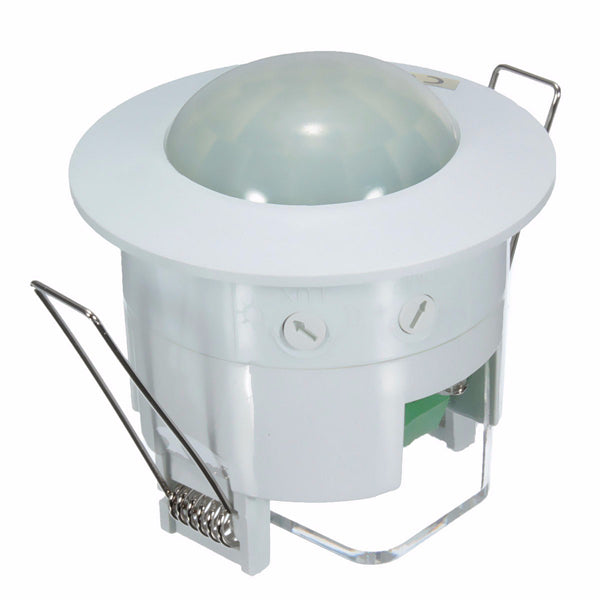

360 Degree Recessed Ceiling Occupancy Body Infrared Motion Sensor Sensitive Switch
Features:
1. The product adopts good sensitivity detector, integrated circuit.
2. Identify day and night automatically.
3. Time-delay is added continually.
4. It gathers automatism, convenient safe, saving-energy and practical function.
5. CE certification is acquired.
Specification:

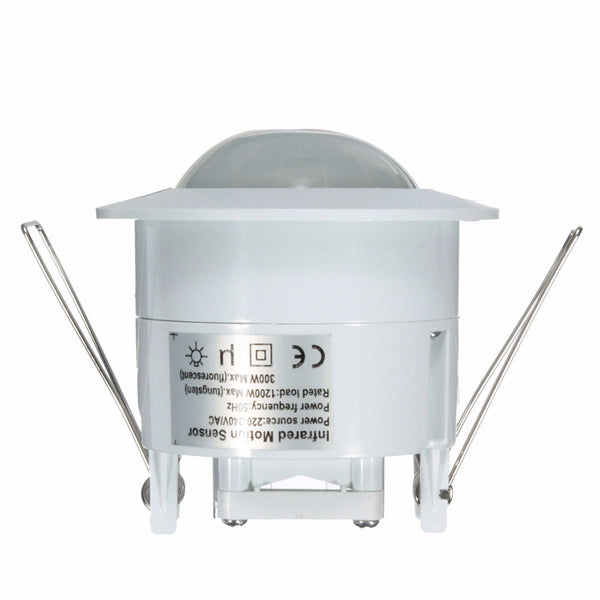

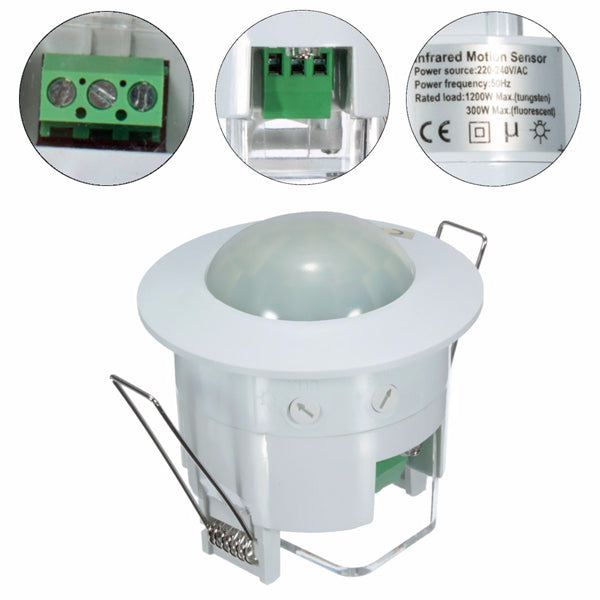

1. Power Sourcing: 220V-240V/AC
2. Power Frequency: 50Hz
3. Ambient Light: 3-2000LUX (Adjustable)
4. Time-delay adjustment: Min. 10+-3sec; Max. 7+-2min.
5. Rated Load: 1200W Max. Tungsten; 300W Max. Florescent
6. Detection Range: 360°
7. Working Temperature: -10-+40℃
8. Working Humidity: <93%RH
9. Installing Height: 2.5m-3.5m
10. Power Consumption: 0.45W (Work); 0.1W (Static)
12. Detection Motion Speed: 0.6-1.5m/s
Installation:
1. Turn off the power.
2. Removing the transparent vinyl cover what is in the bottom of the sensor.

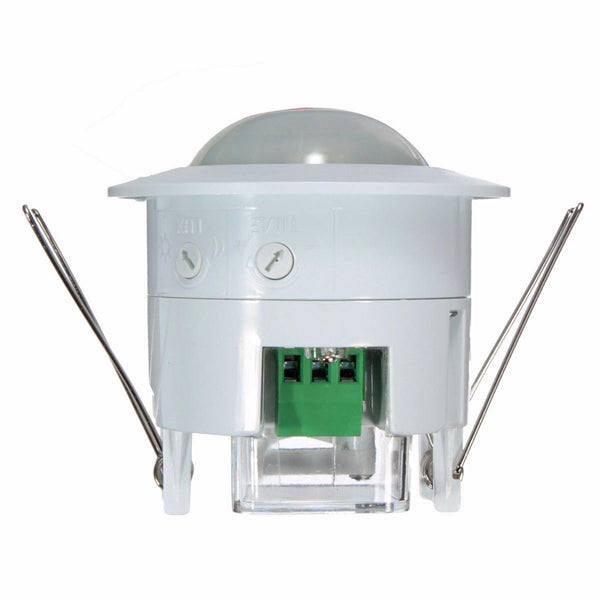

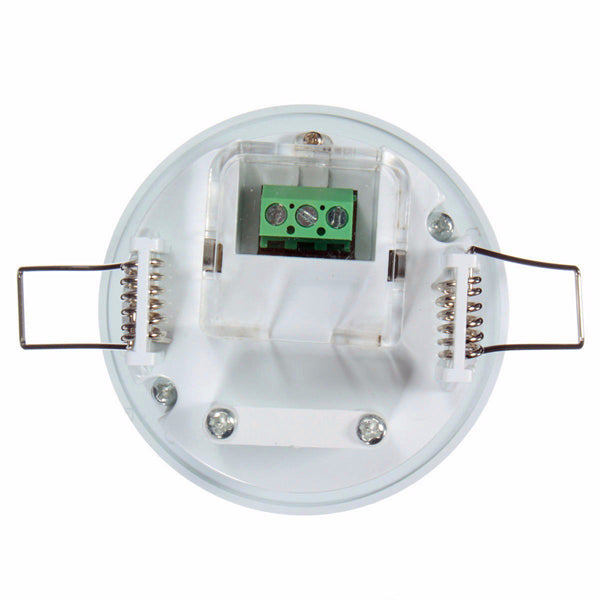

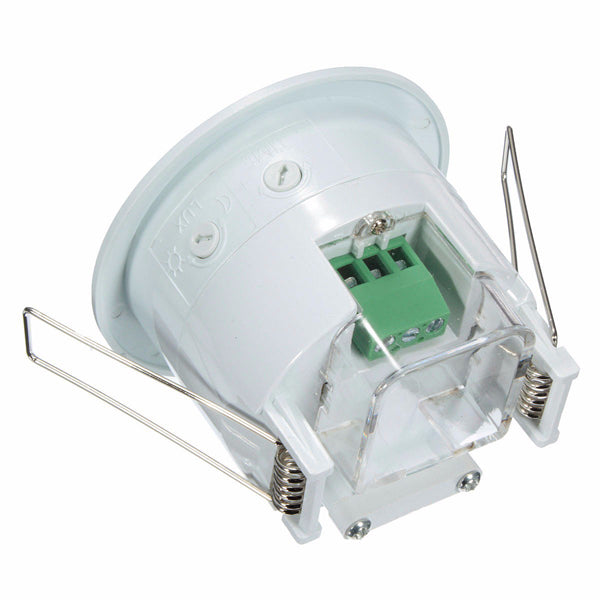

3. Loosing the screws in the connection terminal, connecting the power and rated load to connection terminal of sensor according to connection sketch map.
4. Tighten the screws; put the transparent vinyl cover into the the original station.

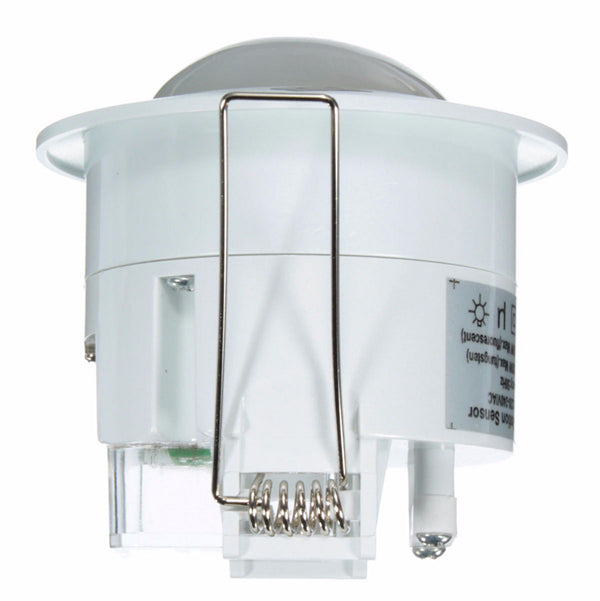

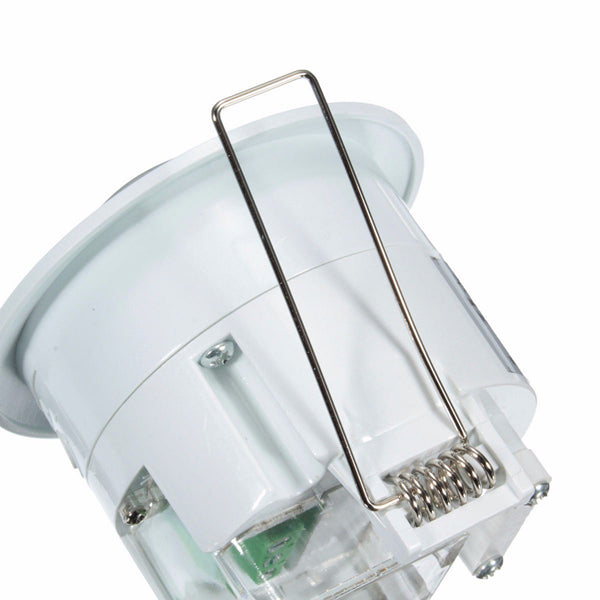

5. Folding the metal spring of the sensor to upwards, until they are in “I” position with sensor, then put the sensor into the hole or installation boa what is in the ceiling, the size is similar with item. Releasing the spring, the sensor will be set in this installation position.
Note: It should be installed by electrician or experience man.
Avoid installing it on the unrest objects.
Package includes:

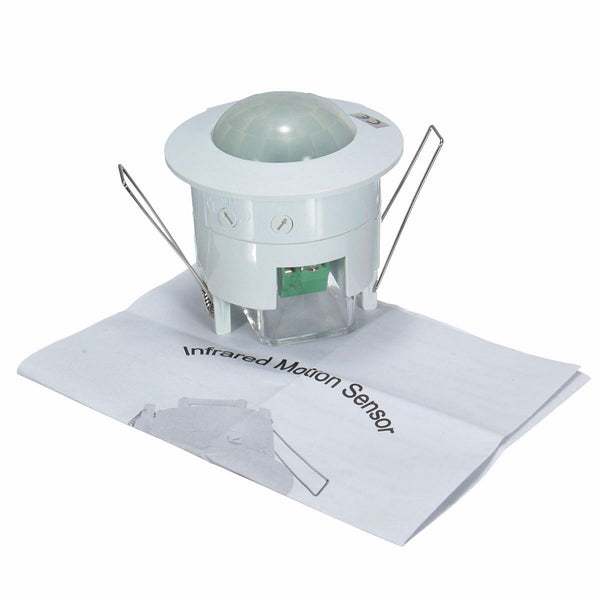

1 x Infrared Motion Sensor
1 x User Manual
