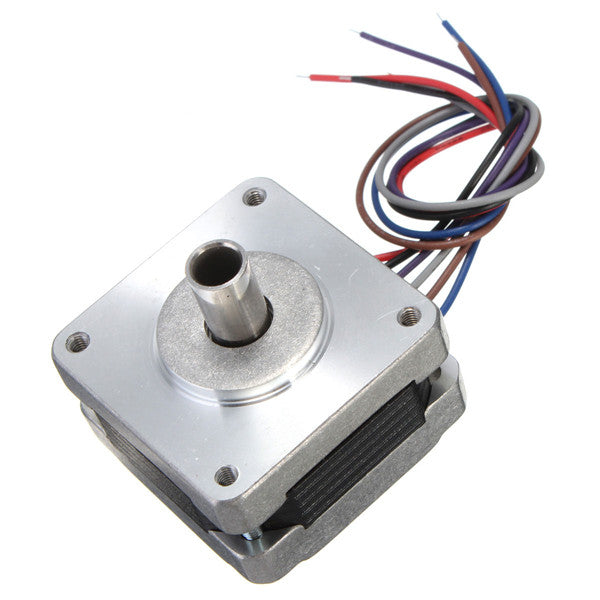

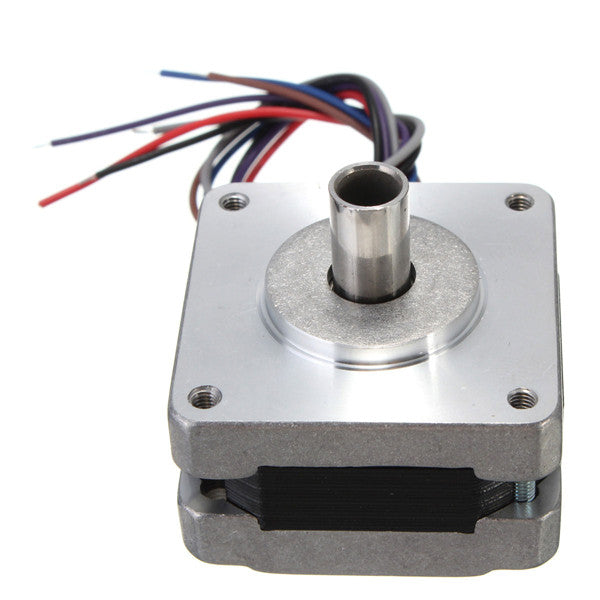

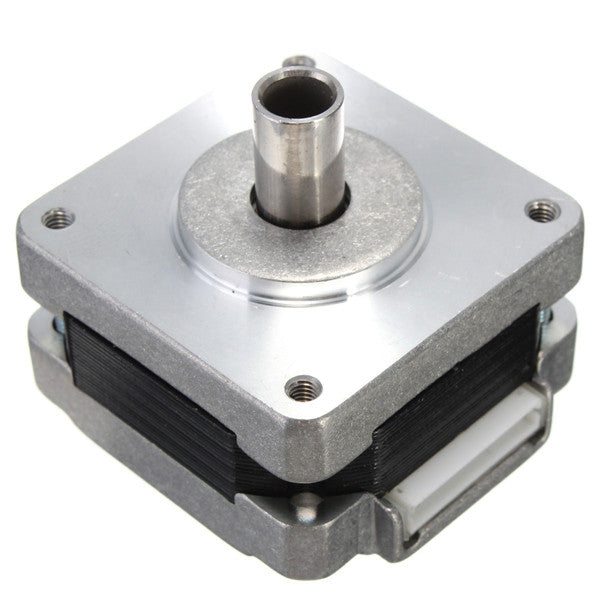

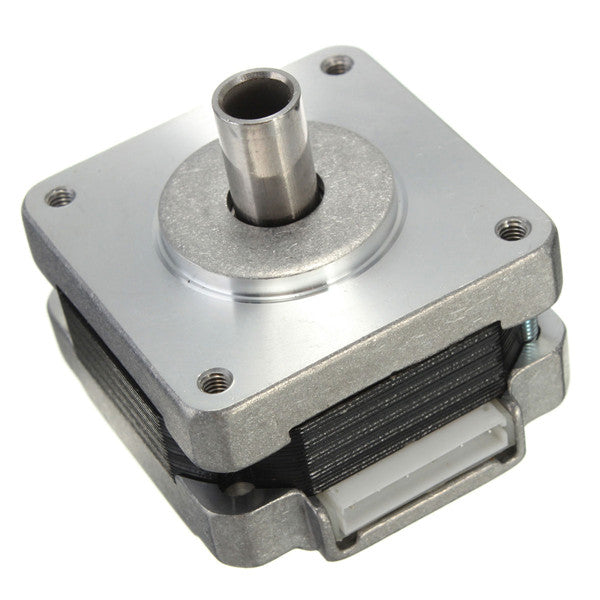

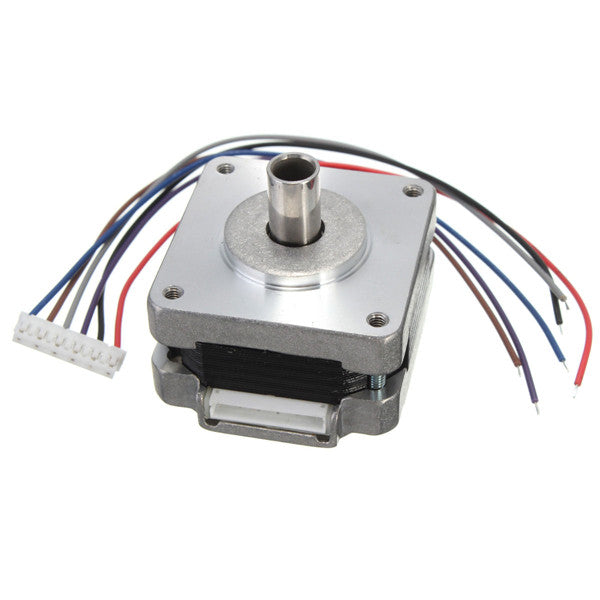

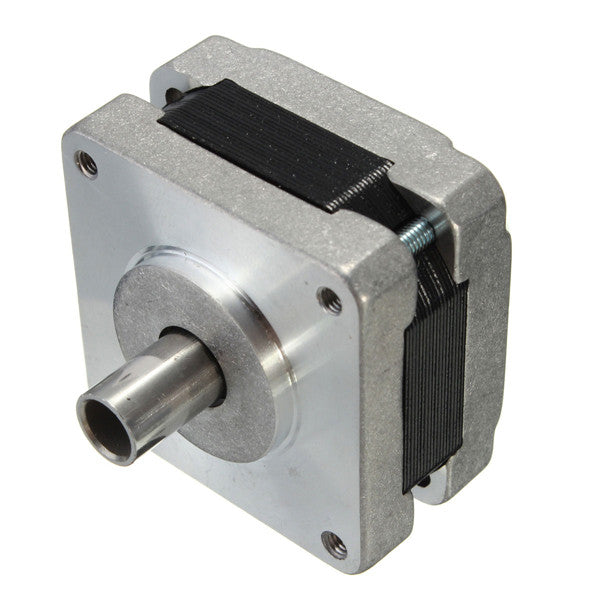

39MM Hollow Shaft Hybrid Stepper Motor 4 Phase 5 Wire Square 1.8 Degrees Stepper Motor

Description:
39MM Hollow Shaft Hybrid Stepper Motor 4 Phase 5 Wire Square 1.8 Degrees Stepper Motor

Specifications:

Length	39mm
Height	22mm
Output shaft	8 mm(middle of the through-hole diameter of 6.15mm)
Output shaft length	13mm
Step Angle	1.8 Degree
Resistance	Intermediate tap:54 ohms Both Ends: 108 ohms
Lead	5
Cable length	140mm
12V Short circuit current	Intermediate Tap:0.2 A, Both Ends: 0.1A
Rated Voltage	DC 12V
Rated Current	0.05A
Rated Power	5W
Weight	60G

Note:
Motor is a two-phase six-wire stepper motor, but inside the wiring put two phases middle of tap connected to a second
terminal, so from the outside look, it is a four-phase five-wire stepper motor.



Package included:
1x Hollow shaft Hybrid Stepper Motor
