Description:
Silicon Bronze is a copper based filler metal containing about 3% silicon and may have small percentages of manganese, tin, and zinc.
Silicon bronze is typically used for gas-tungsten arc welding and gas-metal arc welding of copper, brass, bronze, steel, galvanized steels and also cast iron.
When working with silicon bronze base metal keep the interpass temperature below 150° F to minimize hot cracking. Base metals of cast iron may need a preheat of 600° F while copper may need a 400-800° F.
The use of a small narrow weld puddle will reduce the contraction stresses and give you a faster cooling during the hot-short temperature range. May also be known as Everdur.
Specifications:
Model: S221
Color: Copper
Material: Silicon Bronze
Diameter: φ1.5mm

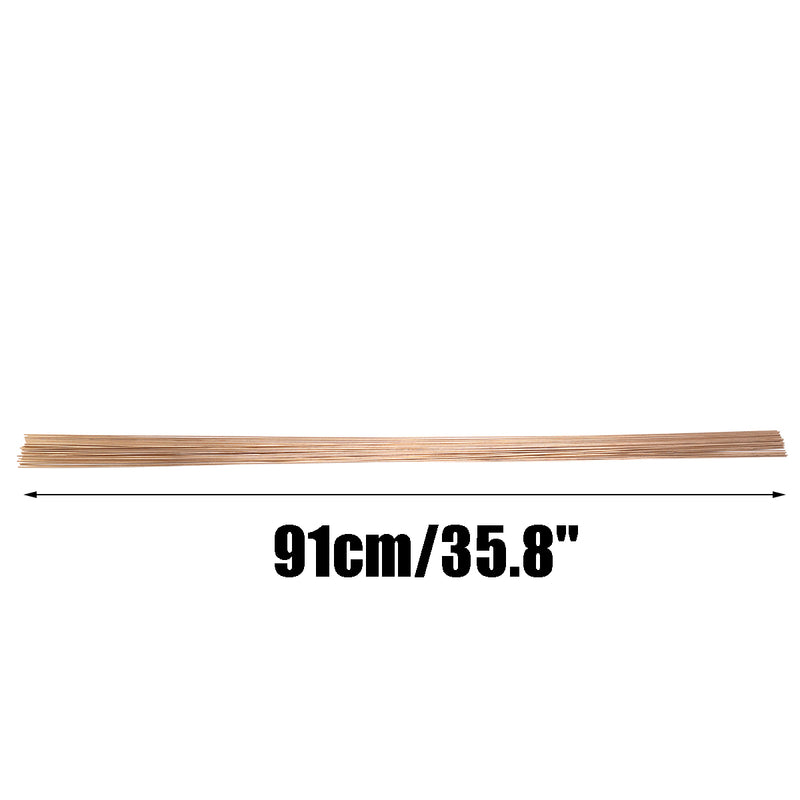

Length: 91cm/35.8"
Melting point: 965-1035℃
Typical Composition:
1.0% Zinc
1.5% Manganese
3.4% Silicon
0.5% Iron
1.0% Tin
Trace amounts of Aluminum and Lead
92.5% Copper
Properties:
Tensile Strength: 50,000 PSI
Liquidus (Melting Point): 1,880 degrees F
Purpose: silicon bronze, brass and its welding with steel, brazing of galvanized steel sheet.
Package Included:
1 x 450g Silicon Bronze Tig
Detail Pictures:
