Friendly Remind :

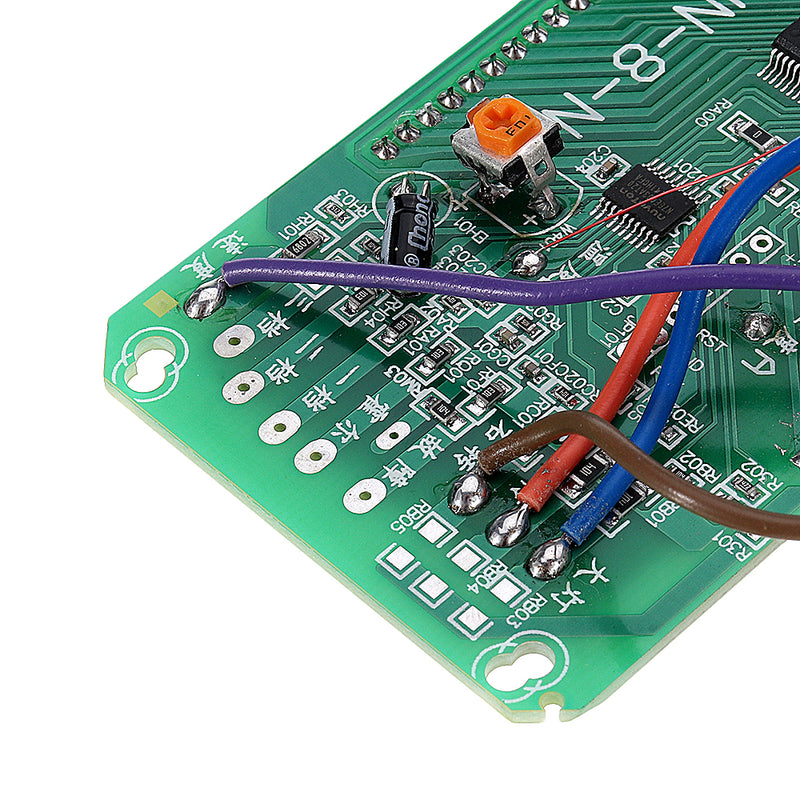

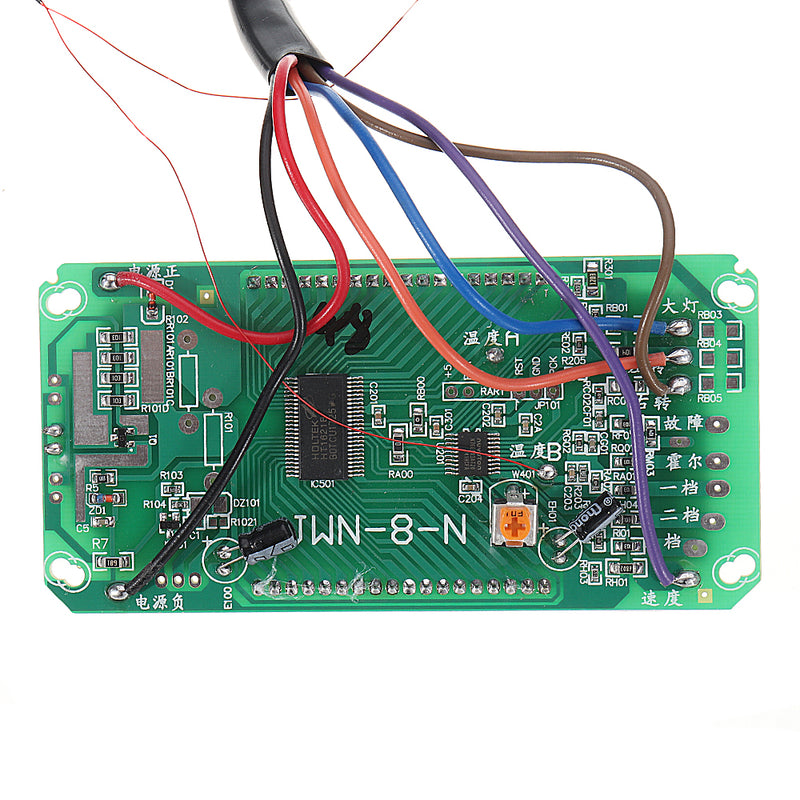

If you feel difficult or not connection, you can directly connected the positive ,negative, speed cable; headlight,left and right light can not connect.
Specifications:
Power supply: 48V 60V 72V
Working temperature: -30 - +80
Power consumption: 0.3W-0.9W
Pcb size: 105*53mm
Lcd size: 90*40mm
Screen color:white
Instructions:

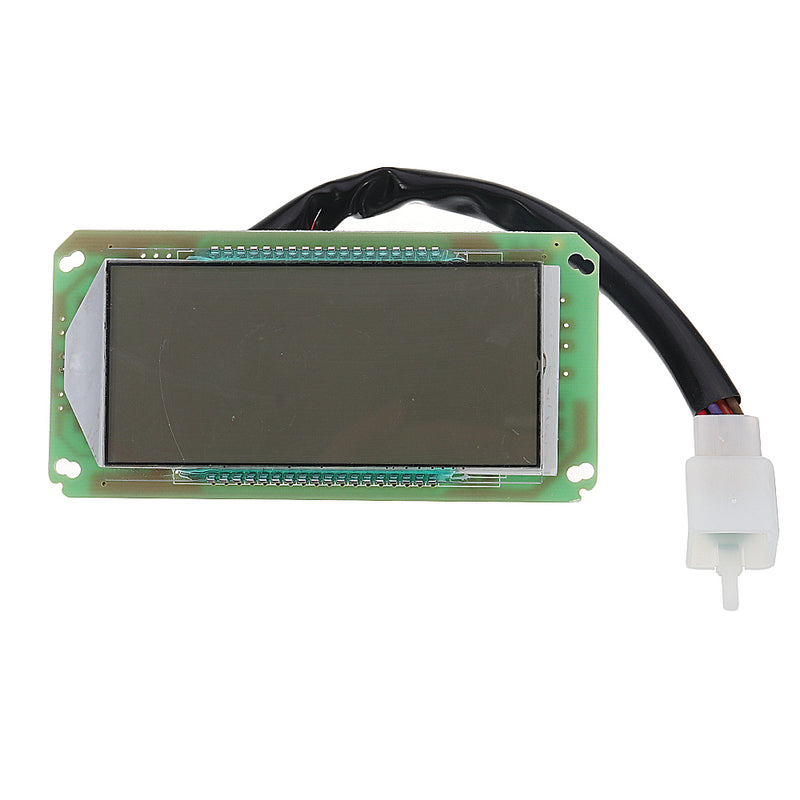

1, There is a protective film, you need to tear up the LCD before boxing.
2, Do not reverse the positive and negative power meter, please note that across the board to avoid a conductive material, in order to avoid a short circuit occurs.
3, human safety voltage of 24V, the wiring process, please power off (or wear gloves) operation!
Package includes:
1 X Electric Vehicle Speedometer Odometer
Details pictures:
