6m Outdoor Cool Patio Misting System Fan Cooler Water Mist Gardenhouse Sprayer Hot

Nozzle Material: Brass body with stainless steel core guide vanes

Nozzle Aperture: 0. 3mm

Length: 6m

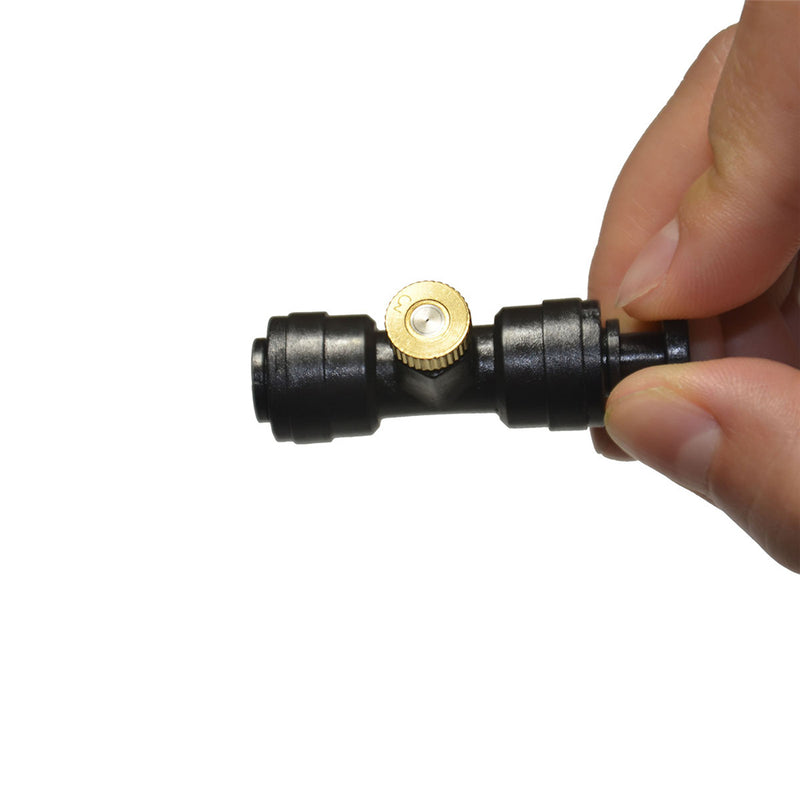

·The fine atomizing nozzle uses a brass body with a stainless steel core guide vane. The liquid forms a centrifugal vortex in the guide vane, and a fine hollow mist is sprayed from the orifice.

Can be widely used in plant humidification, cooling, disinfection, dust reduction, landscaping, salt spray test and other artificial fog, such nozzle nozzle is punched with the US precision drilling machine, the hole diameter is 0. 3 mm, well-made, cost and gas Compared with humidification, it saves 10 times or more.

·The series of nozzles do not need air assistance, the system is simple, the spray mist is fine, the atomization is sufficient, the energy saving and water saving are low, and the effect is good; the stainless steel spray film is processed by the advanced forging process, and the durability is strong. It is 2. 5 times longer than the same type of nozzle.

·This nozzle can fully utilize the pressure of the tap water for atomization. The use of a high pressure water pump is less effective.

1. It is recommended to install the atomization system at a height of 2. 5m-3m.

2. Connect the adapter to the faucet.

3. Turn on the faucet cleaning system for 1 minute to clean the system and remove impurities.

4. Screw the spray nozzle onto the tee fitting except the one at the end.

5. Turn on the faucet cleaning system for 2 minutes to ensure the system is completely cleaned.

6. Close the water and install the last nozzle onto the fitting and use the end plug.

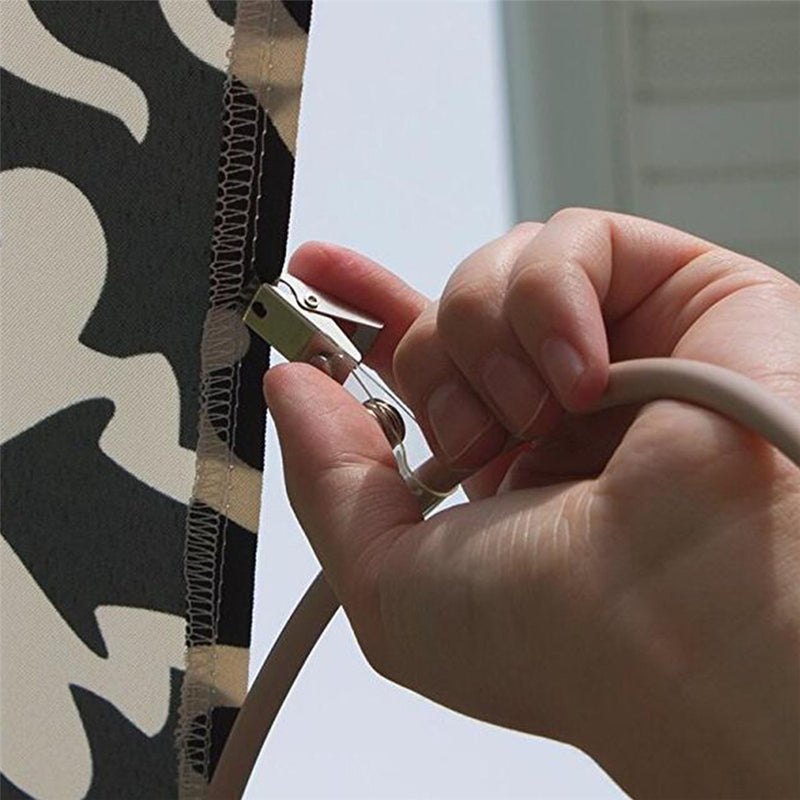

7. The atomizing pipe is fixed by a cable tie saddle clip provided.

8. Turn on the faucet until the sprayer is working and enjoy the cooling atomization system.

9. When not using the atomization system for a long time, close the nozzle and keep it dry and clean.

Application:

1. Wetting and descaling ; 2. air humidification; 3. chemical treatment; 4. chemical spraying; 5. liquid spraying; 6. leaf humidification; 7. tablet coating; 8. flue gas evaporative cooling; 9. sterilization; 10. component cooling; 11. fruit spray Wax; 12. tile glazing; 13. plant humidification; 14. salt spray test; 15. artificial fog ;16. humidification in other places, etc.

1 x 6m Tubes

1 x Faucet joint

1 x Nozzles

1 x Bases

1 x Plug

6 x Clips
