Features:

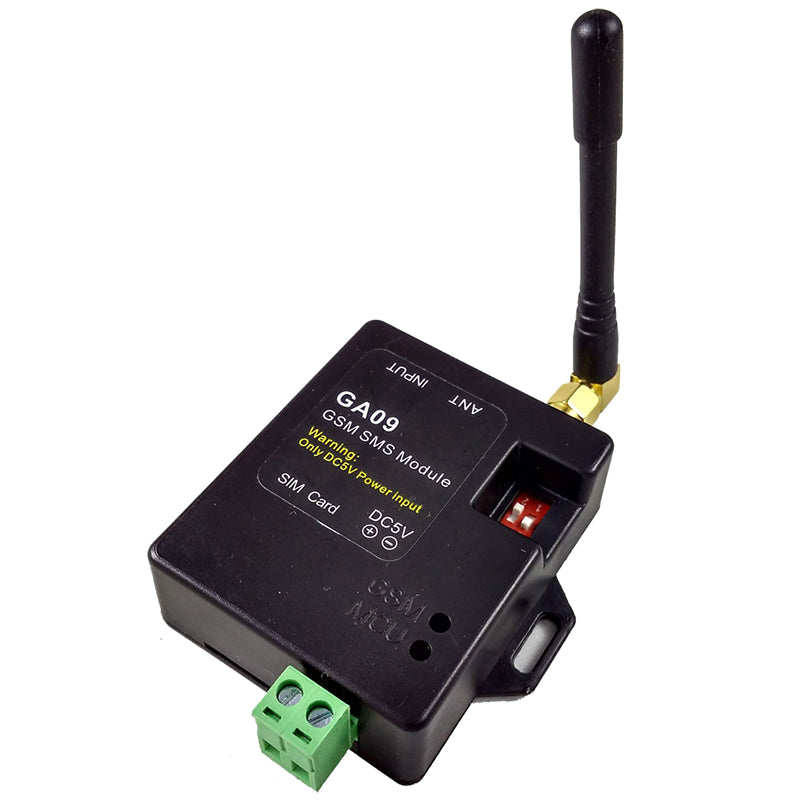

1.Eight channel GSM SMS Alarm box
2.DC5V Power input
3.SMS alarm message would be sent to maximum 6 preset mobile phones when any alarm input triggered

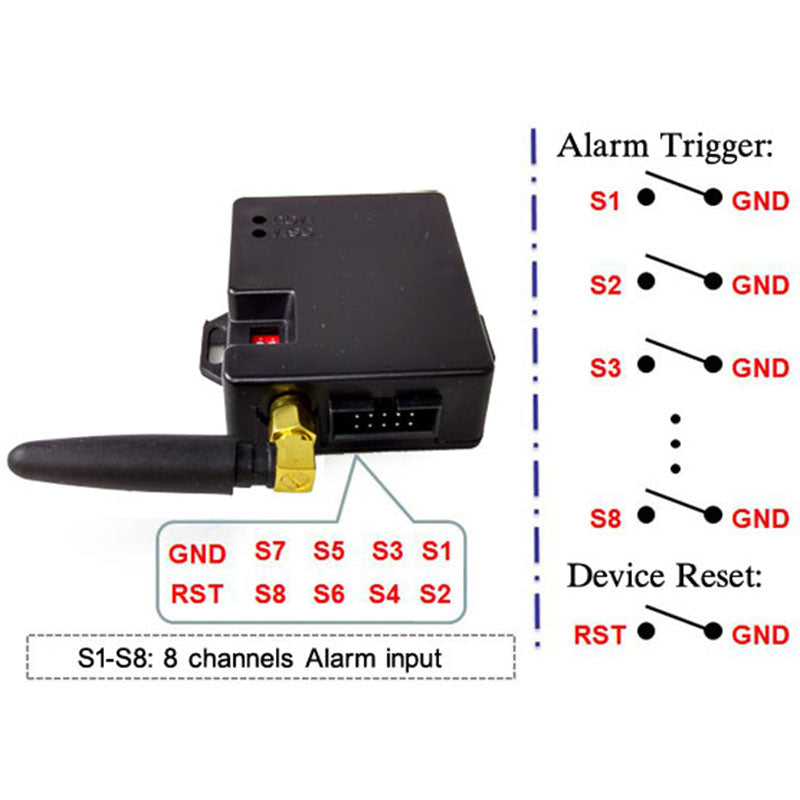

4.Any input (From S1 to S8) is shorted to GND,then will trigger the alarm
5.Alarm SMS can be customized with your Text

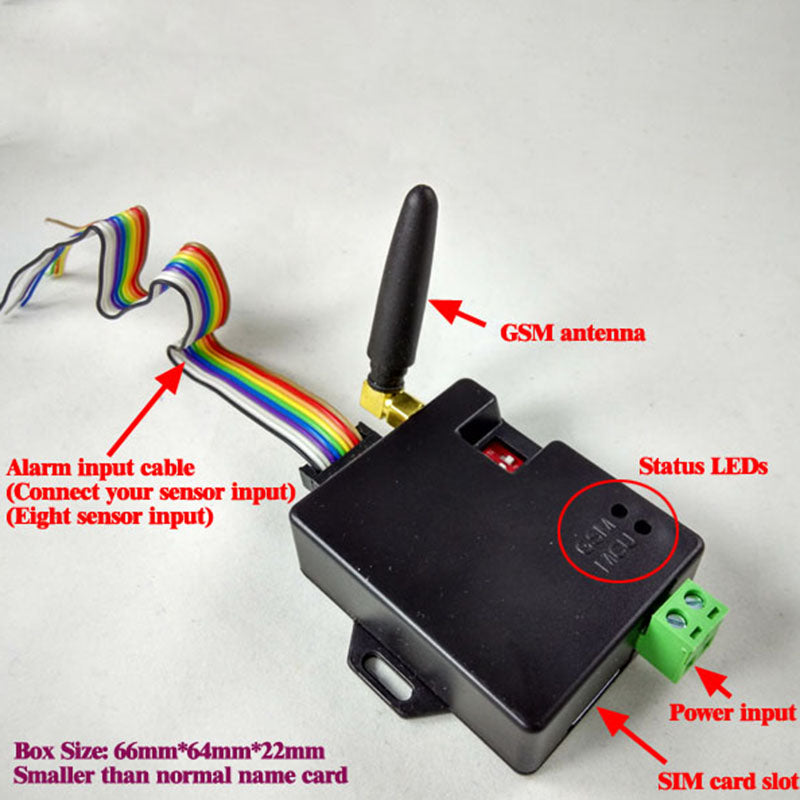

6.Very smart and slim designed gsm box , size only 66mm*62mm and only 22mm height. can be easily mounted to other target system board to add the gsm alarm features.
7.We can customized design the GSM Alarm box according to your requirments with free of charge
8.Can be used widely to connect different sensors to it. for example door magnetic switch,infrared sensor,water level sensor,temperature measurement device
Package includes:
1x GA09 alarm

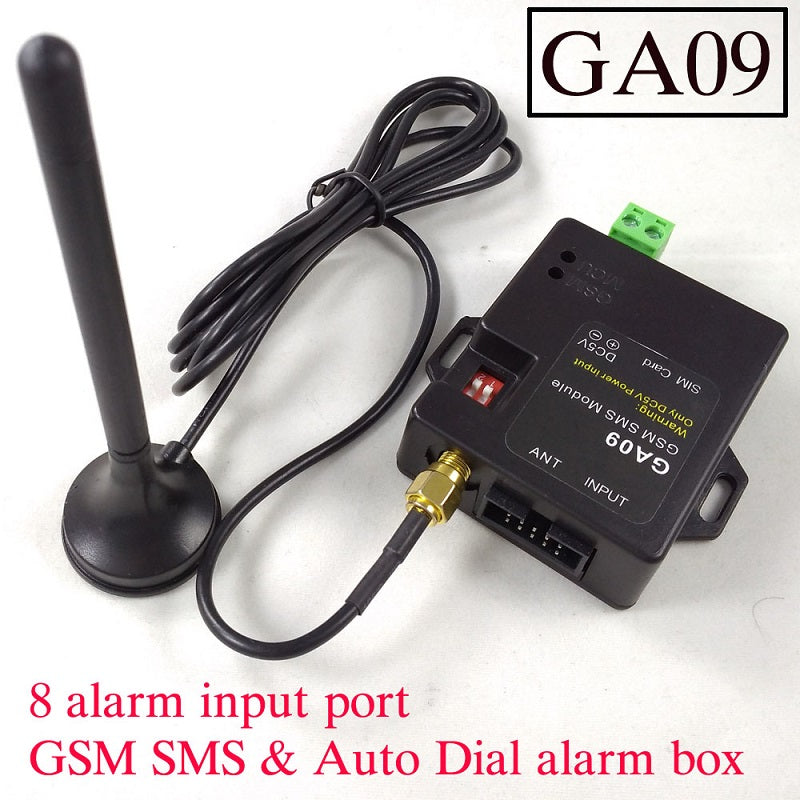

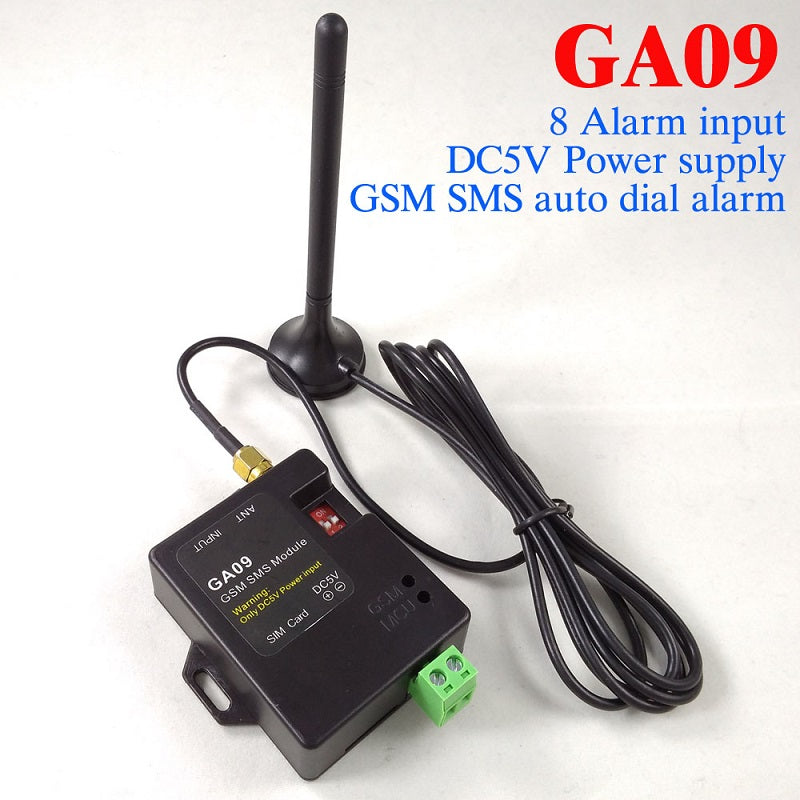

1x GSM Magnet mount antenna with 3 meters wire length
Details Pictures:
