Description:
8pcs 2-12mm Carbide End Mill 4 Flutes Tungsten Steel Milling Cutter CNC Tools Set
Specification:
Material: Carbide
Flute: 4 Flutes
Highest Cutting Hardness: HRC50
Quantity: 8pcs

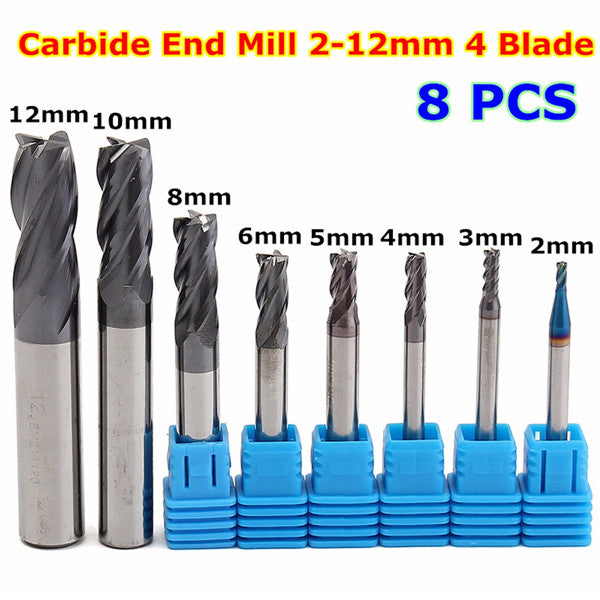

| Cutter Diameter(A) (mm) |
2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
| Shank Diameter(B) (mm) |
4 |
4 |
4 |
6 |
6 |
8 |
10 |
12 |
| Blade Length(C) (mm) |
12 |
11 |
11 |
10 |
15 |
20 |
25 |
28 |
| Total Length(D) (mm) |
50 |
50 |
50 |
50 |
50 |
60 |
75 |
75 |
Features:
- To optimize the cutting edge through the center of the design, based on the machined workpiece more smooth.
- Has a very high wear resistance and strength, exclusively for high-speed cutting of high hardness cutter versatile applications.
- Capable of 55 degrees of heat directly following a high speed roughing to fine machining, reducing the number of tool changes ahead of the machine utilization rate, save when making process to the cutting surface milling / short side milling based.
Note:
- Before using this tool, please measurement tool deflection, tool deflection accuracy exceeds 0.01MM, please correct before cutting.
- The shorter the length of the tool projecting chuck of the better, if the amount of the tool extends the projected long, please cut their own speed, feed rate or cutting the amount.
- When cutting, if the abnormal vibration or sound, cut spindle speed and depth of cut to improve the situation so far.
- Cooling the steel material to a spray or jet is the best way to apply, so that high aluminum titanium play the best results. Stainless steel, titanium alloy or heat resistant alloy recommend the use of non-water-soluble cutting fluid.
Package Included:
8pcs x Endmill
Note:
1.Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
