Description:

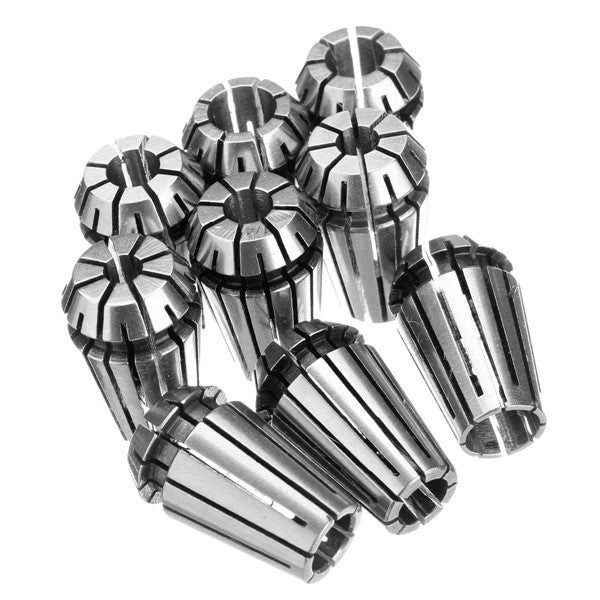

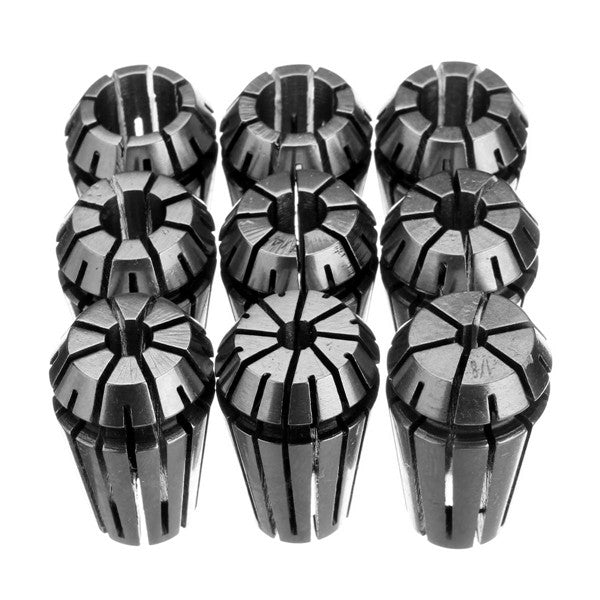

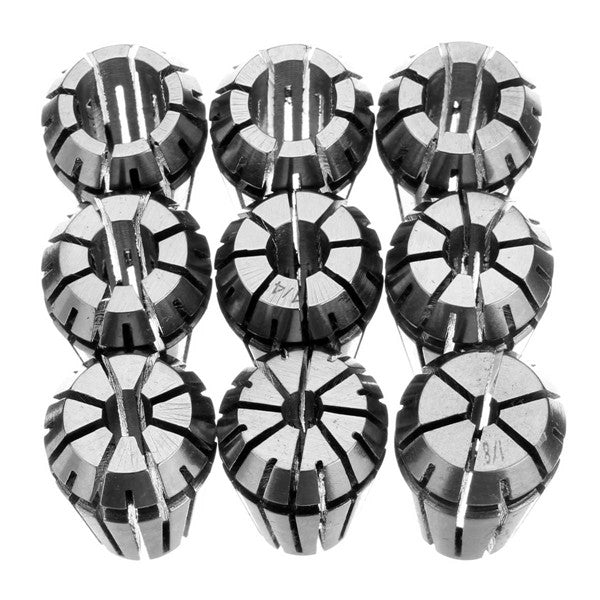

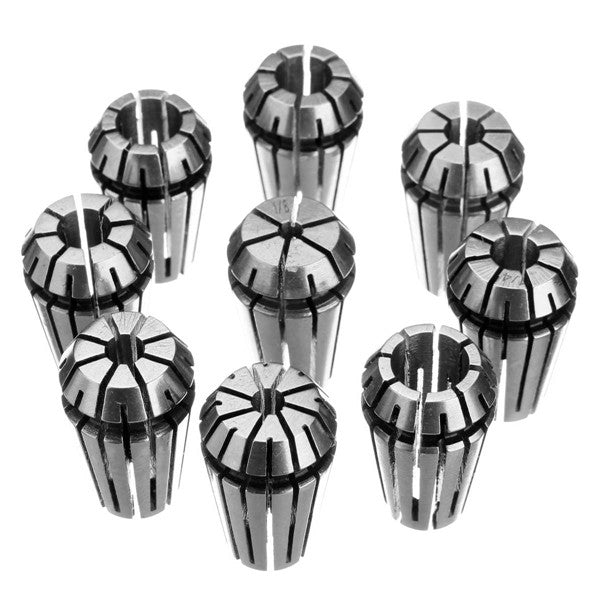

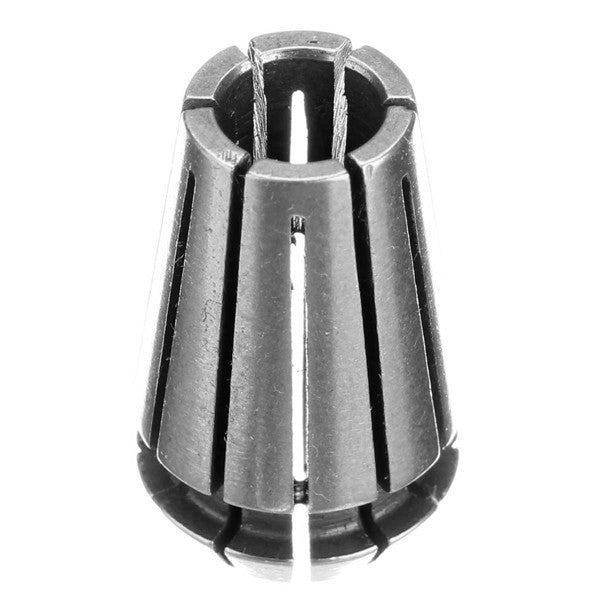

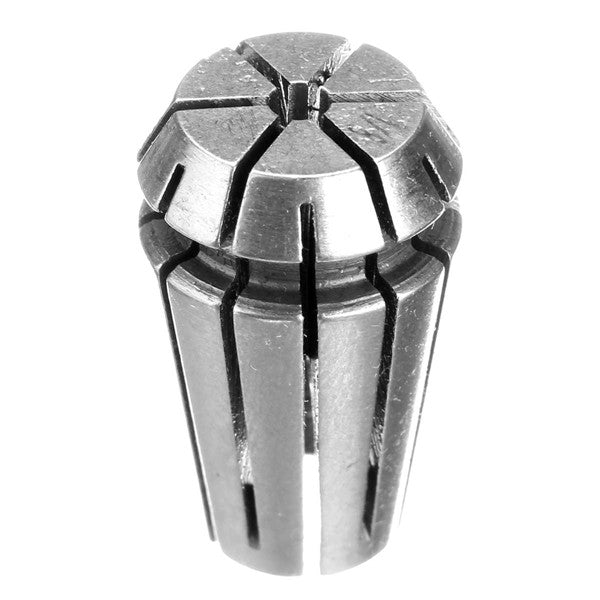

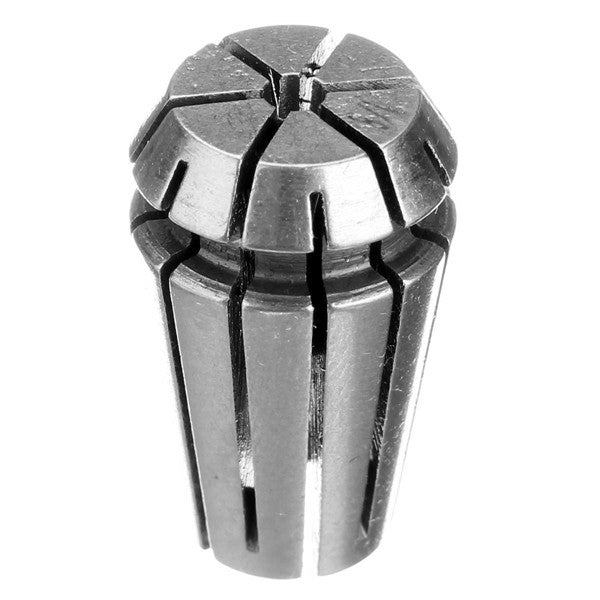

9pcs ER16 1/8 to 3/8 Inch Spring Collet Chuck Collet for CNC Milling Lathe Tool
Specification:
| Name |
ER16 collets |
| Material |
Carbon Steel |
| Run-Out Tolerance |
0.015MM(0.0006") |
| Gripping Range |
1/32" to 3/8" (1/8",5/32"3/16",7/32"1/4",9/32"5/16",11/32",3/8") |
| The largest diameter |
17mm |
| Height |
about 27.5mm |
Features:High Accuracy and Ease of Operation.
Use high-quality Carbon steel, after heat treatment, has good flexibility and abrasion resistance.
The clamping force, high accuracy, good gripping stability.
Can be for gripping the drill, boring knife, chisel, reamers and other tools.
The correct methods of mounting the collet nut:
1. Put the chuck into the pressure cap, gently turn the clamp spring, when eccentric portion of the pressure cap recessed clamp spring groove.
Along the arrow direction and use equal force to push clamp spring, can mount pressure cap.
2. Put the clamp spring and cap all together installed on the chuck body or spindle. Insert into the clamping hole after wipe the cylindrical shank,
use a wrench to tighten the pressure cap, until clip firmly the tool before use.
9 x ER16 Collets
More Details:
