Features:
Auto ranges
550V protection in Resistance,Capacitance and Frequency ranges
Large LCD display,MAX display 4000 counts
Sample rate: 3 times per second
Backlight
Data hold
Relative measurement
Polarity identification
Low voltage indication
10A high current and low current measurement
Auto power off
Main measurements:AC/DC Voltage, AC/DC Current, Resistance,Capacitance,Diode and Continuity Testing,Frequency and duty cycle.
Specifications:
♦Capacitance :4nF(±5.0%+4),40nF(±2.5%+4),400nF/4.000uF/40.00uF/400.0uF/1000uF /4000uF(±3.5%+4)
♦DC volts: 400mV/4V/40V(±0.5%+4),400V/600V(±0.8%+4)
♦AC volts: 400mV(±1.5%+4), 4V/40V/400V(±1.2%+4),600V(±1.5%+4)
♦DC current: 40mA/400mA(±1.0%+4),10A(±1.5%+4)
♦AC current: 40mA/400mA/10A(±2.0%+4 ,50-200Hz)
♦Resistance: 400Ω/4K/40K/400K/4M(±0.8%+4),40MΩ(±2.0%+4)
♦Frequency: 99.5/999.5/9.999k/99.99k/999.9k/9.999MHz (±0.08%+2)
♦Duty cycle: 0.1% to 99.9%(±0.08%+2)
♦Measurement mode: mode
♦Over range indication: OL
♦Working environment: 0~40℃, relative humidity< 80%
♦Supply power: 3V (1.5V AAA batteries * 2 Pcs)(Not included)
♦Frequency: 1Hz to 10MHz
♦Capacitance : 10pF to 4000uF
♦AC volts: 0.1mV to 750V
♦DC volts: 0.1mV to 1000V
♦AC current: 0.1uA to 10A
♦DC current: 0.1uA to 10A
♦Resistanc: 0.1Ω to 40MΩ
♦Duty cycle: 1% to 99%
♦Product size: approx. 130*65*30mm

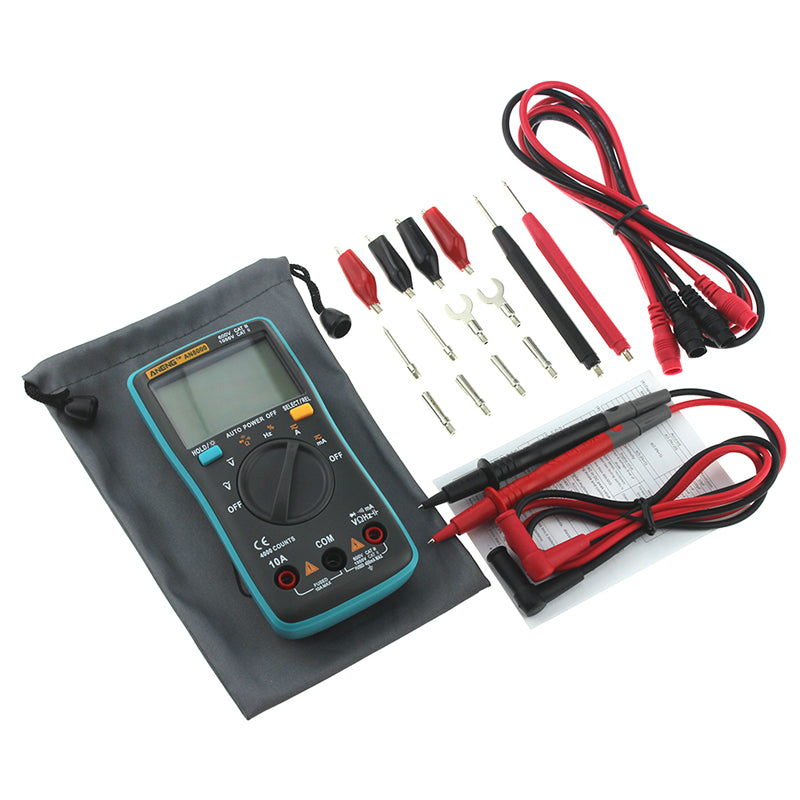

Package includes:
1 x Digital Multimeter

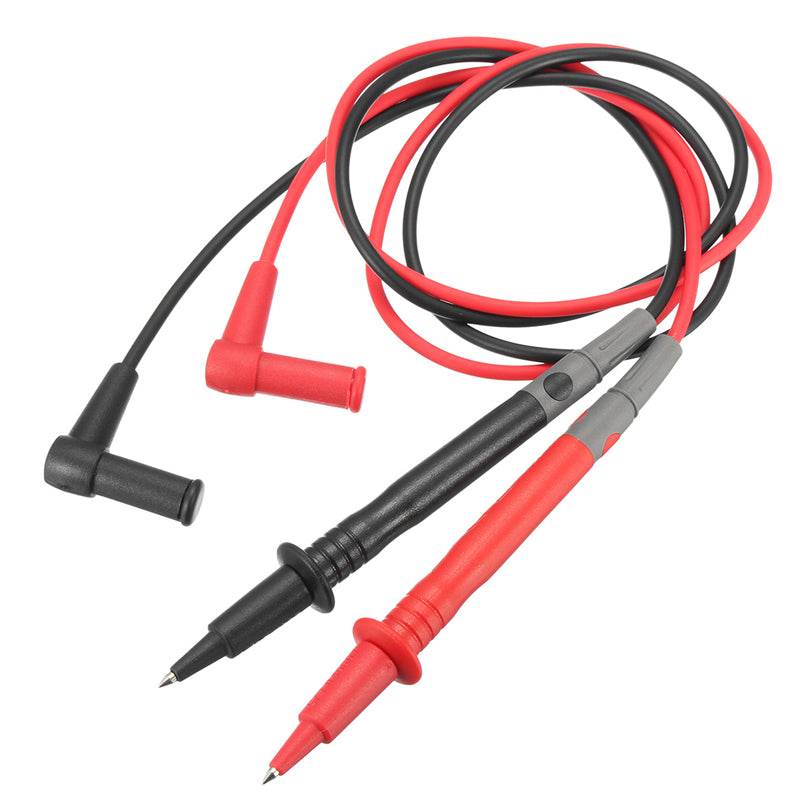

2 x Test Lead
1 x Storage Bag
1 x User Manual

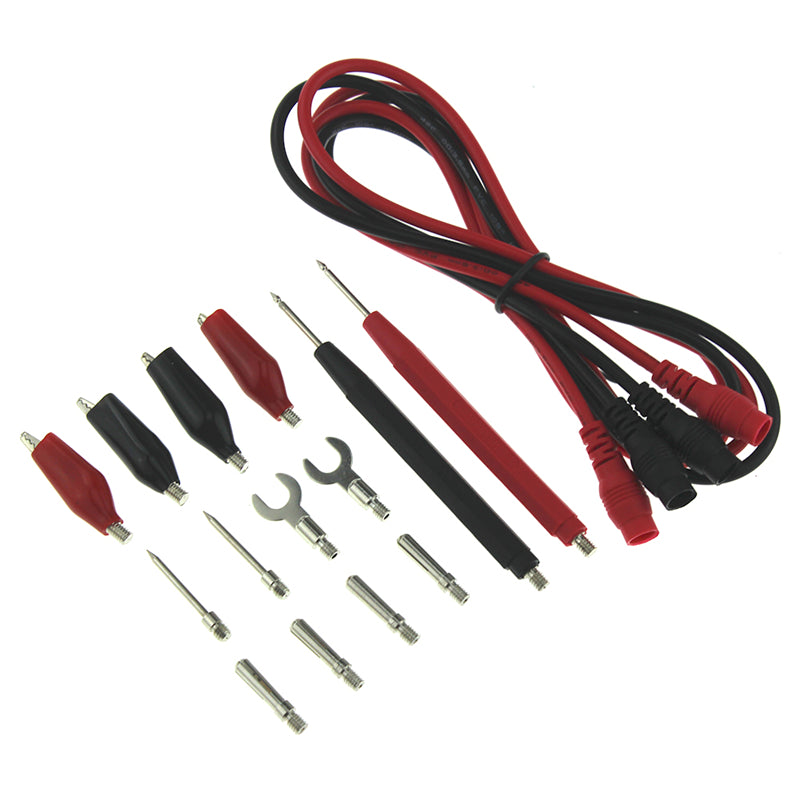

1 Set Multifunction Digital Multimeter Probe Test Leads / Alligator Clip

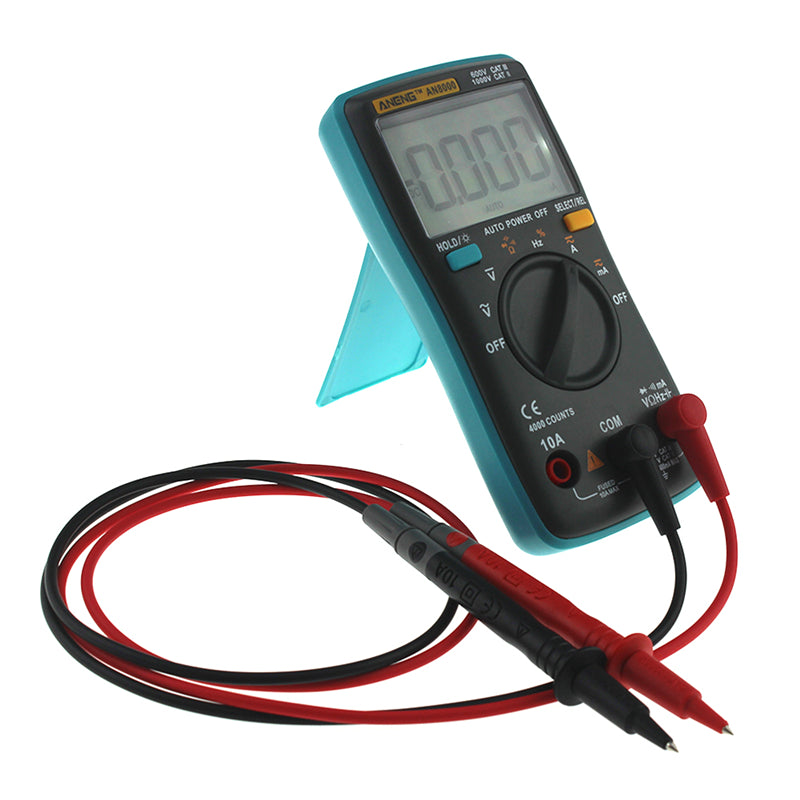

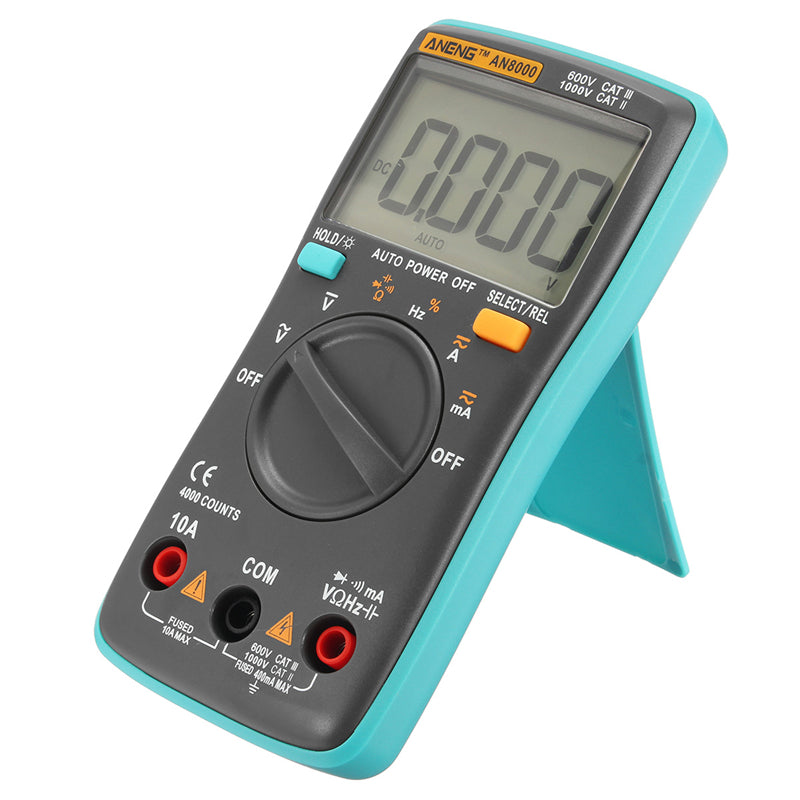

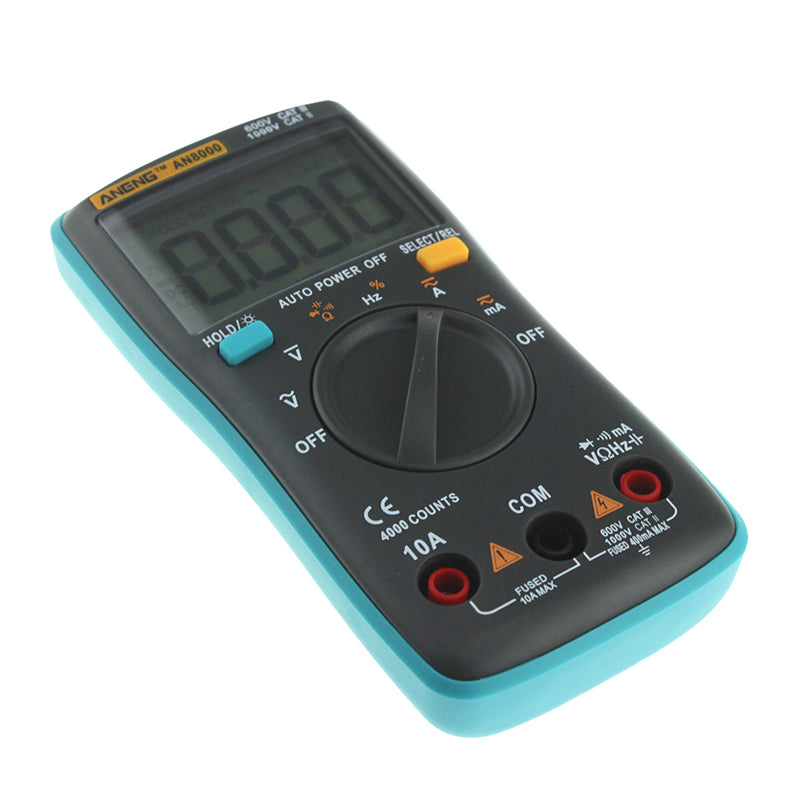

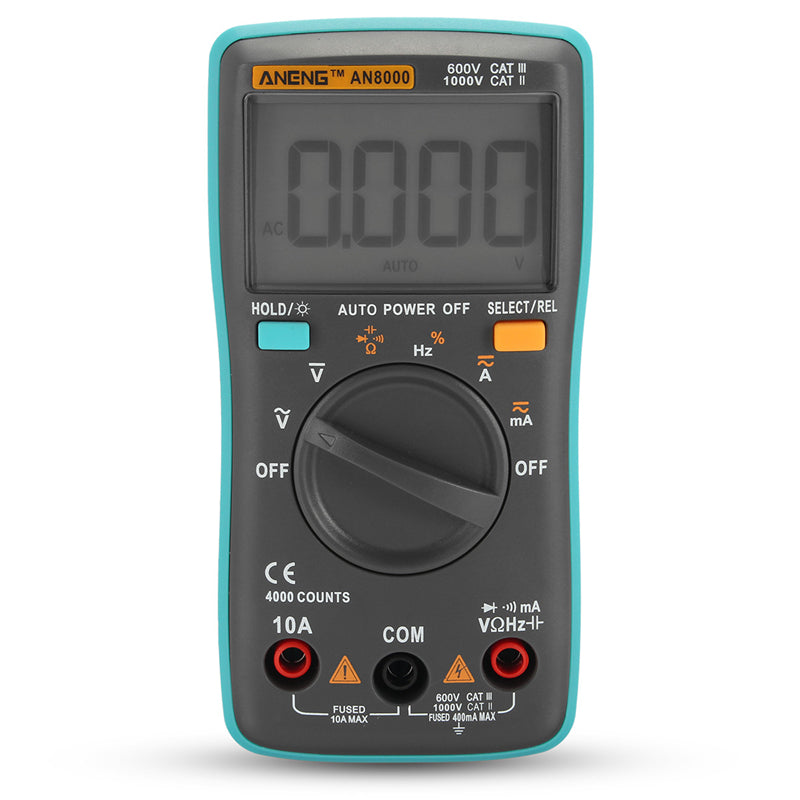

Detail pictures:
