Description:
It is a Auto-ranging digital multimeter using double-integral style A/D transform as the core.
Can be used to measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode and Continuity testing, Frequency and Etc.
The products are battery powered. they are characterized by stable function and high reliability, with the features of overload protection and LCD display for clear reading, are an ideal tools for lav, factory, radio fans and family use.
Features:
LCD display.
Max display: 2000 counts.
Polarity identification.
Measurement mode:double-integral style A/D transform.
Sample rate:3 times per second.
Over range indication:OL.
Low voltage indication.
Auto Range.
Resistance capacitance frequency file high voltage 550V protection.
Sampling rate: about 3 times per second.
Backlight display.
Data retention.
Polarity automatic recognition.
Low voltage display.
10A large current measurement, mA level small current measurement.
Automatic shutdown.
Main measurement: AC / DC voltage, AC / DC current, resistance, capacitance, diode / off measurement, frequency and duty ratio measurement.
Specification:
| Function |
Range |
Resolution |
Accuracy |
MAX.Value |
Other |
| DC Voltage |
200.0mV |
0.1mV |
±(0.8%+5) |
1000V |
|
| 2.000V |
0.001V |
| 20.00V |
0.01V |
| 200.0V |
0.1V |
±(1.0%+8) |
| 1000V |
1V |
| AC Voltage |
2.000V |
0.001V |
±(1.2%+5) |
750V |
40Hz-400Hz |
| 20.00V |
0.01V |
| 200.0V |
0.1V |
| 750V |
1V |
±(1.5%+5) |
| DC Current (μA) |
200.0μA |
0.1μA |
±(1.2%+5) |
2000μA |
|
| 2000μA |
1μA |
| DC Current (mA) |
20.00mA |
0.01mA |
200mA |
| 200.0mA |
0.1mA |
| AC Current (μA) |
200.0μA |
0.1μA |
±(1.5%+5) |
2000μA |
40Hz-400Hz |
| 2000μA |
1μA |
| AC Current (mA) |
20.00mA |
0.01mA |
200mA |
| |
|
Resistance
|
200.0Ω |
0.1Ω |
±(2.5%+5) |
20MΩ |
|
| 2.000kΩ |
0.001kΩ |
±(1.0%+5) |
| 20.00kΩ |
0.01kΩ |
| 200.0kΩ |
0.1kΩ |
| 2.000MΩ |
0.001MΩ |
| 20.00MΩ |
0.01MΩ |
±(2.5%+5 |
| Diode |
√ |
| Continuity |
√ |
| General Specifications |
| Dimension |
130 x 65 x 32mm |
| Weight |
130g |
| Battery Type |

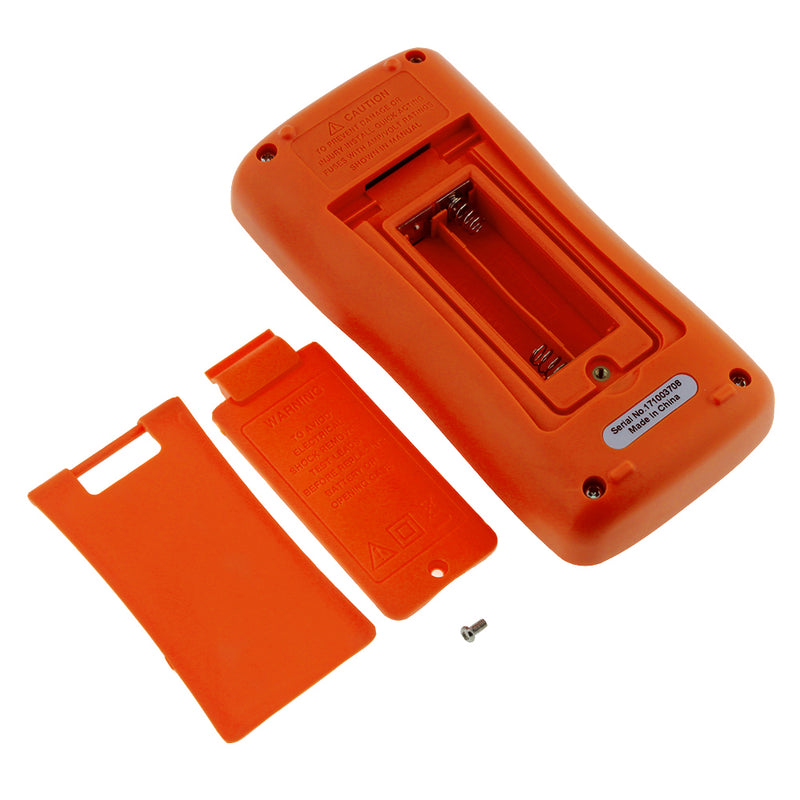

2 x 1.5V AAA Battery (NOT included) |
| Warranty |
One years |
| Environmental Specifications |
| Operating |
Temperature |
0~40℃ |
| Humidity |
<75% |
| Storage |
Temperature |
-20~60℃ |
| Humidity |
<80% |
| Safety Specifications |
| EN 61010-1: 2010; EN 61326-1: 2013; FCC Part 15 Subpart B: 2016 |
Special note: (when the digital multimeter is in the millivolt position, the value jumps.)
Millivolts value jump is a normal phenomenon.
The display of the multimeter MV gear is not 0, mainly the following.
1: If the ambient temperature and humidity in the air change too much.
2: There is a strong electric field or magnetic field interference around.
3: The multimeter itself has failed.
When the MV gear of multimeter appears to be non-zer'o, it can be judged as follows:
Dial the multimeter to the mV position.The corresponding input hole is inserted into the red and black pen line.Directly connect the red and black test leads.At this time, the multimeter displays "0000" to judge that the non-return phenomenon of the multimeter is due to environmental factors. The non-return to 0 in this state does not affect the use of the multimeter, but it is recommended to eliminate environmental interference factors so as not to affect the measurement accuracy and produce erroneous measurements result.

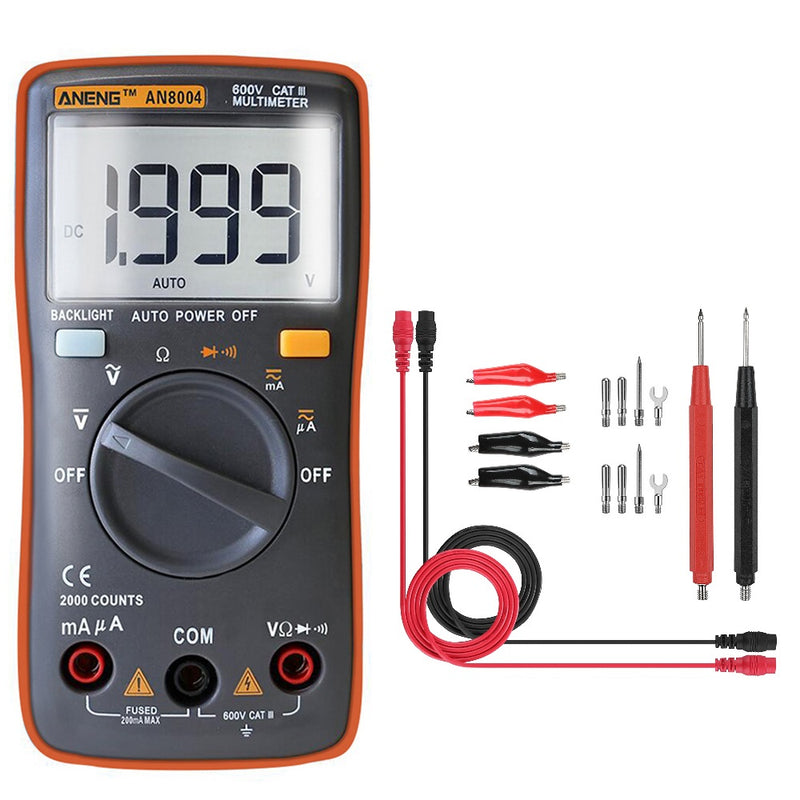

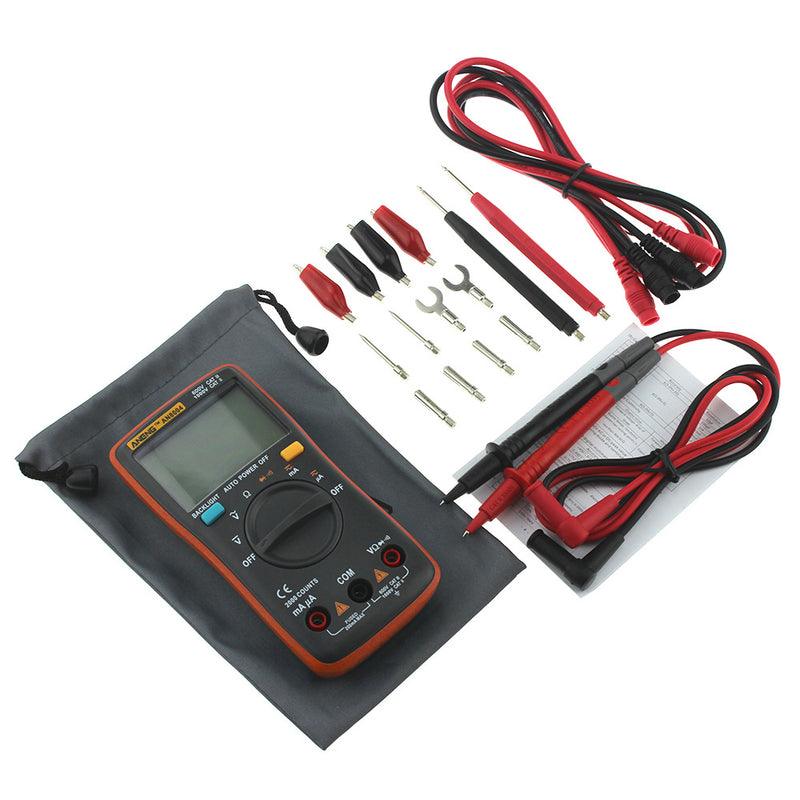

Package inlcuded:

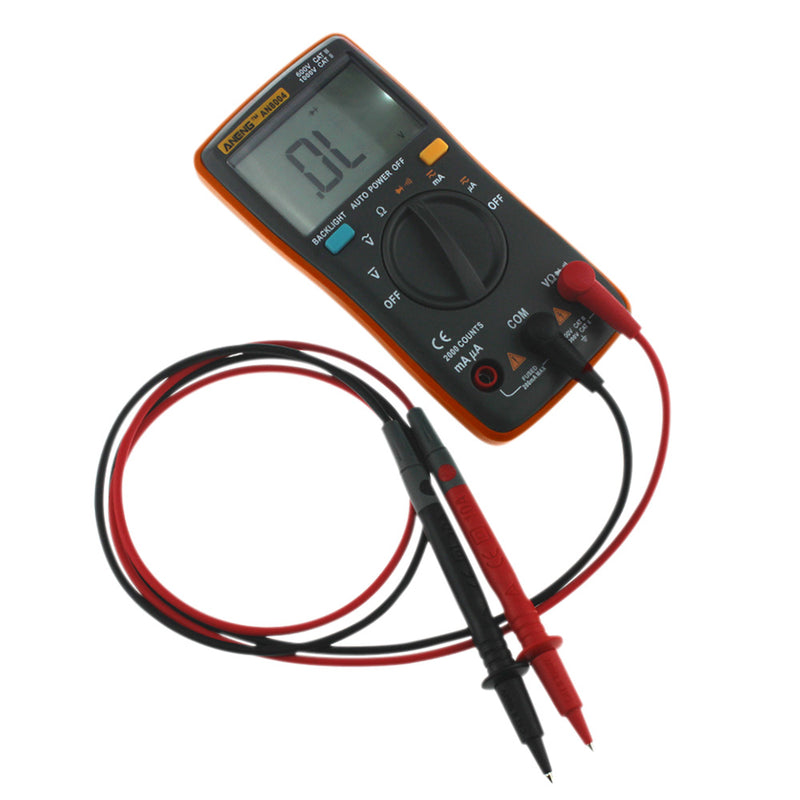

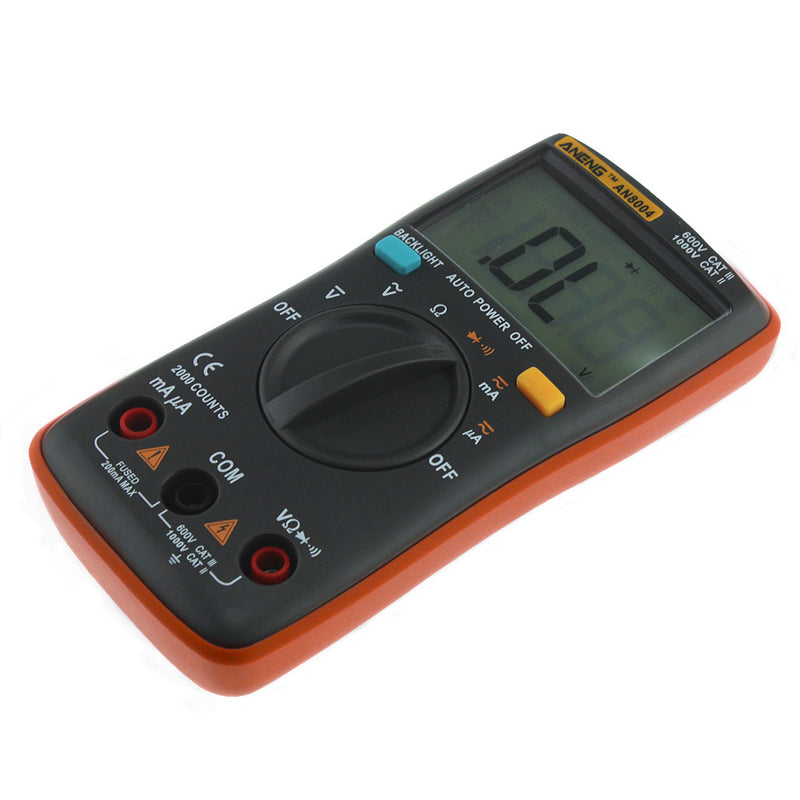

1 x ANENG AN8004 Digital 2000 Counts True RMS Multimeter
1 x English User Manual
1 x Electronic Probe

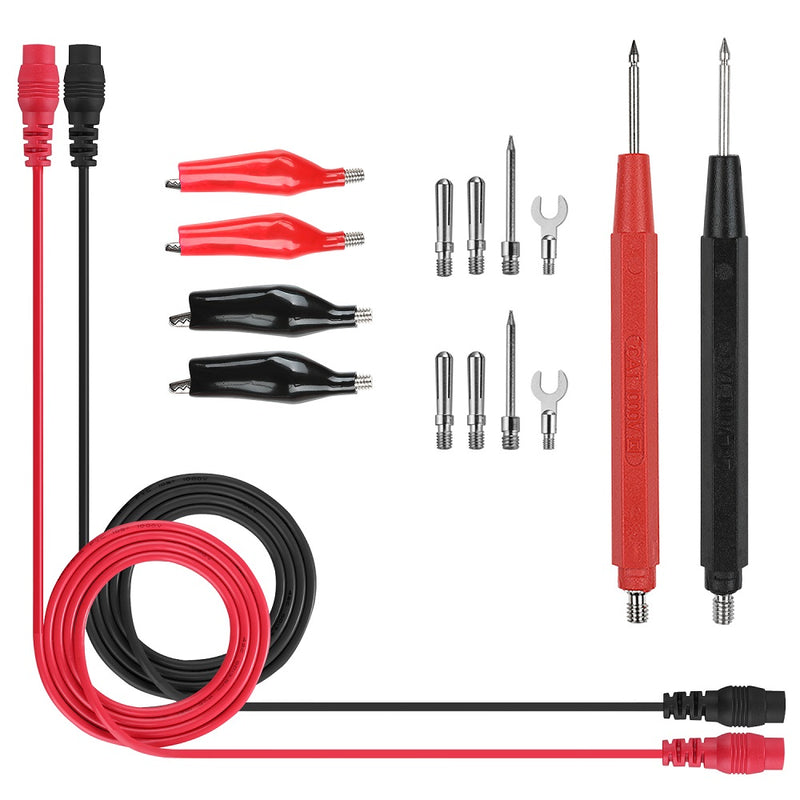

1 x Test Lead Set
1 x Portabel Bag

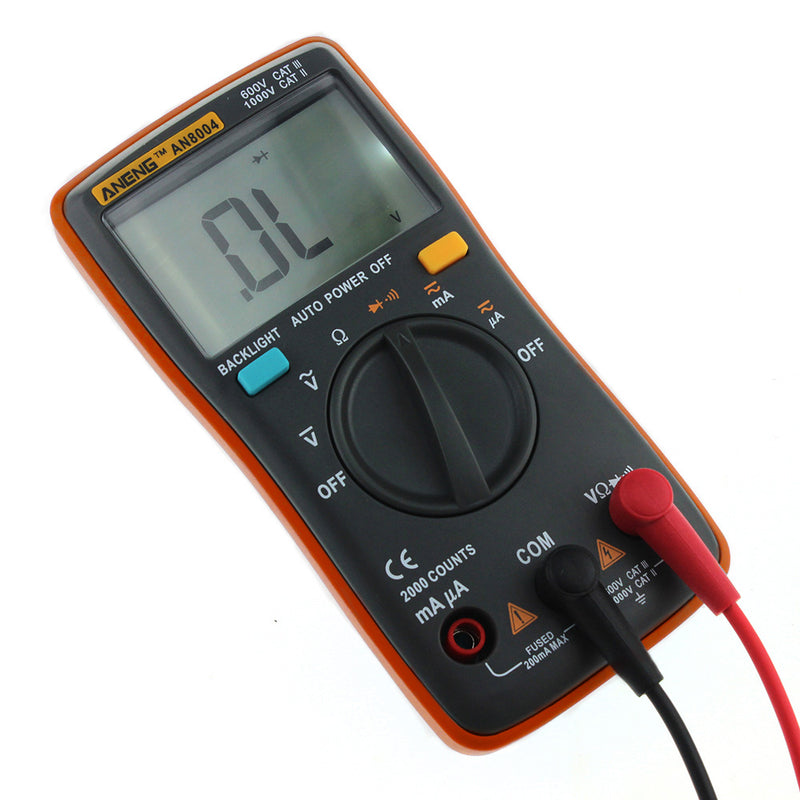

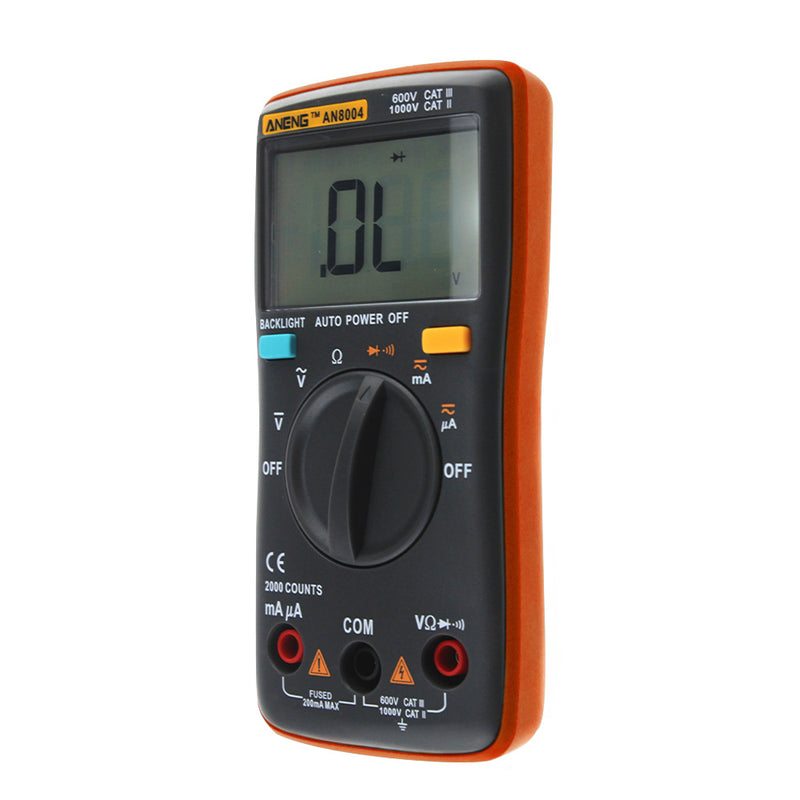

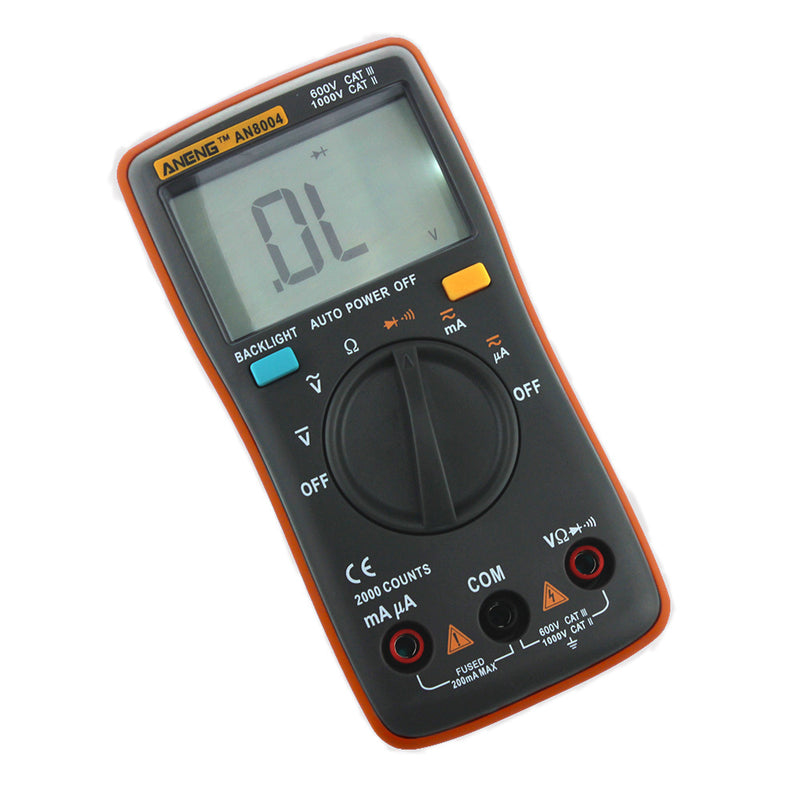

Detail Pictures:
