Description:
AN8203 is a battery-powered, ture-rms, auto-ranging digital multimeter with a 3999 counts. It can be used to measure AC/DC voltage, resistance, capacitance, frequency, duty cycle, diode, and continuity.
Features:
3999 Max. Display.
Auto/Manual range.
Symbol display, more convenient to use.
Metallic screen board with stronger antimagnetic and anti-interferential function.
Full protection, anti-high voltage circuit design.
Specifications:
AC Voltage: 400mV/4/40/400/600V (1.2%+4)
DC Voltage: 400mV-600V (0.5%+4)
Capacitance: 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF (1.0%+15)
Frequency: 0.01Hz - 9.999MHz (0.1%+2)
Resistance: 0.1Ω - 40MΩ (2.0%+4)
Duty cycle: 1% to 99% (0.1%+2)
Capacitance: 0.001nF to 9.999mF (5%+5)Display: 3999 counts (LCD)
Ture RMS: Yes
Data Hold: Yes
Low Battery Indication: Yes
Auto Power Off: Yes
Update Rate: 3 times/s
Dimension: Approx. 120mm x 80mm x 20mm / 4.9 x 3.15 x 0.79in
Weight: Approx. 110g

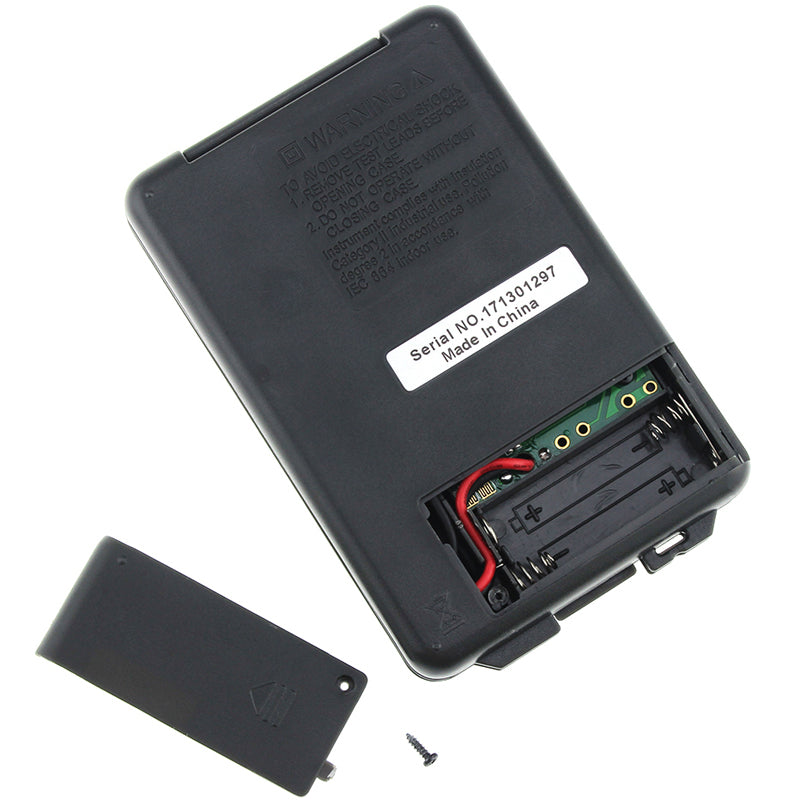

Powered by 2 x 1.5V batteries (NOT included)
note: AC/DC Current can not test.

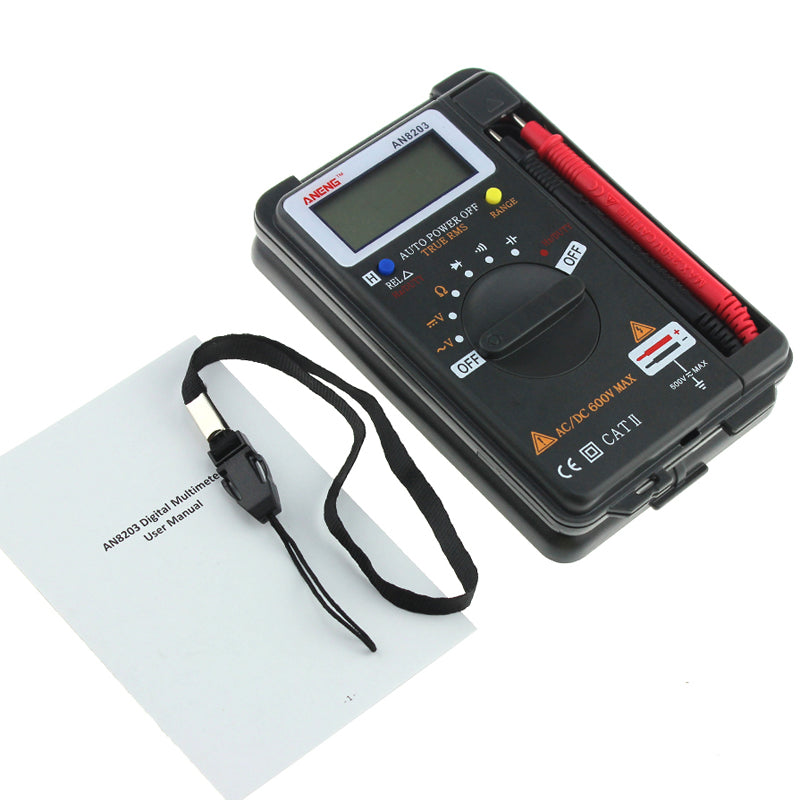

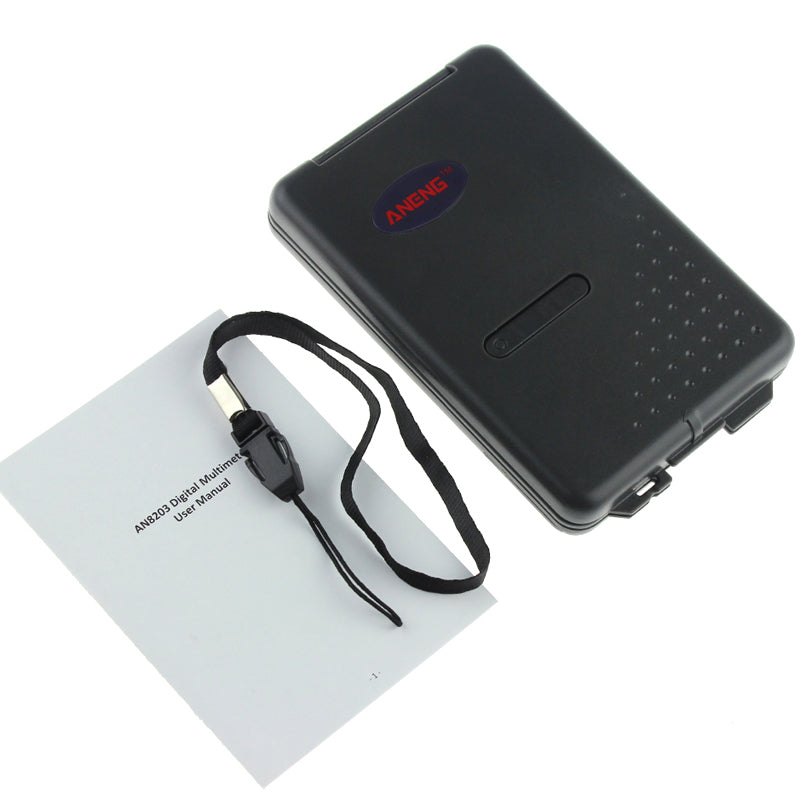

Packge Included:
Handheld Pocket Digital Multimeter
1 x Manual

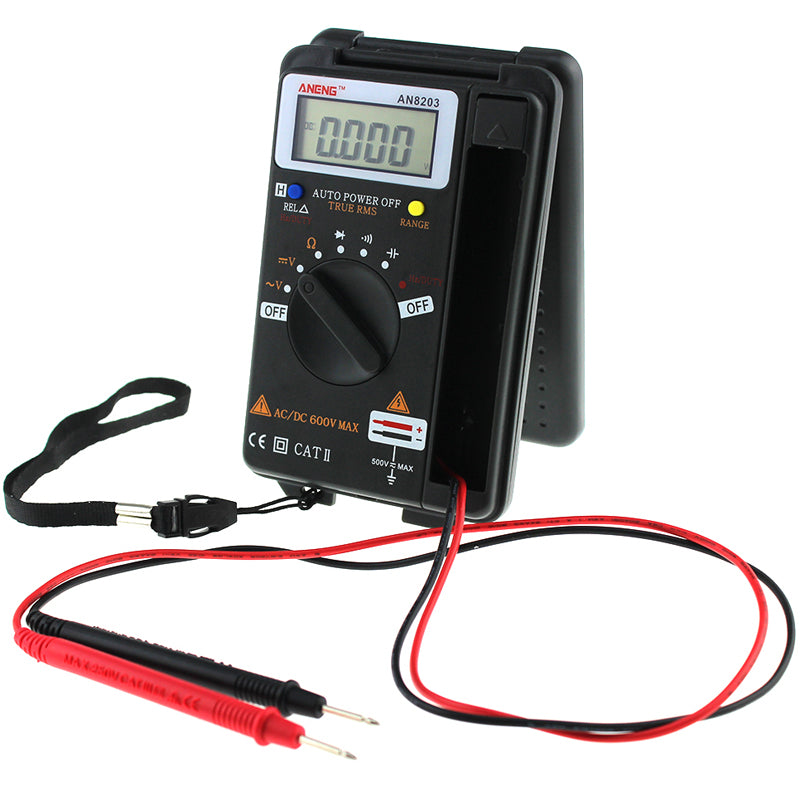

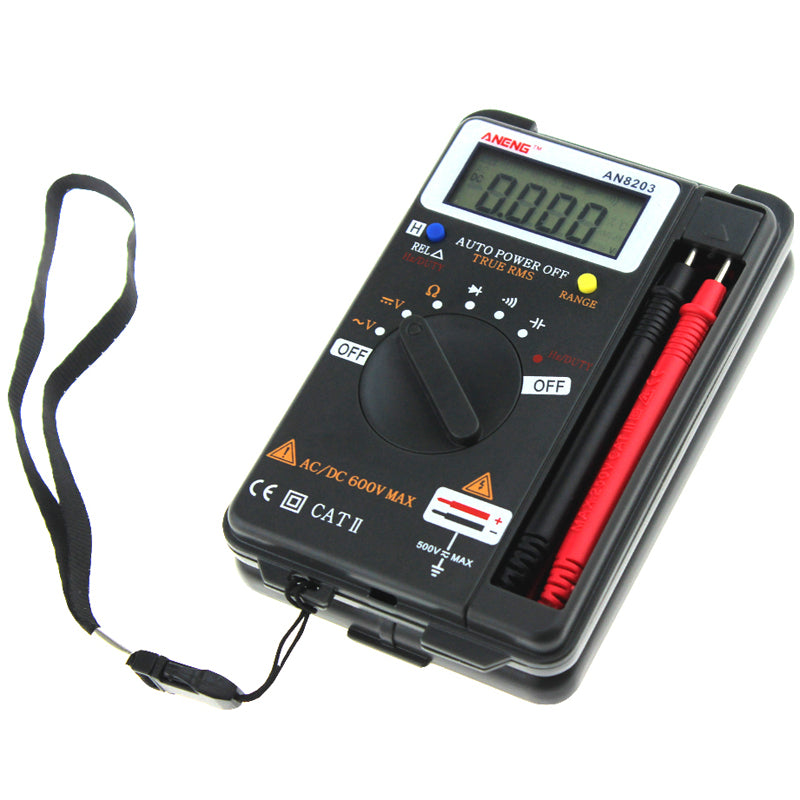

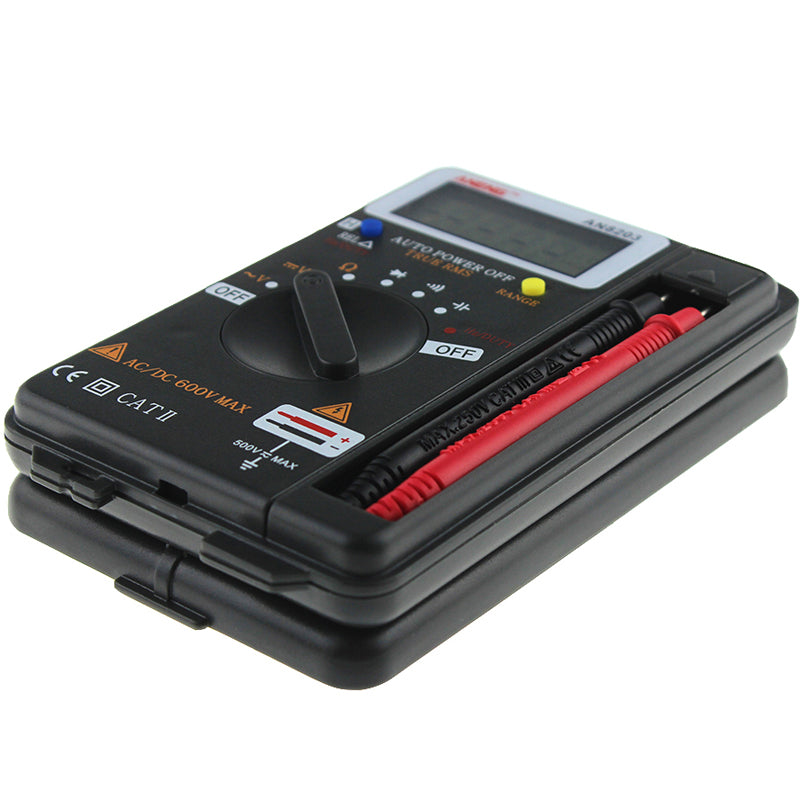

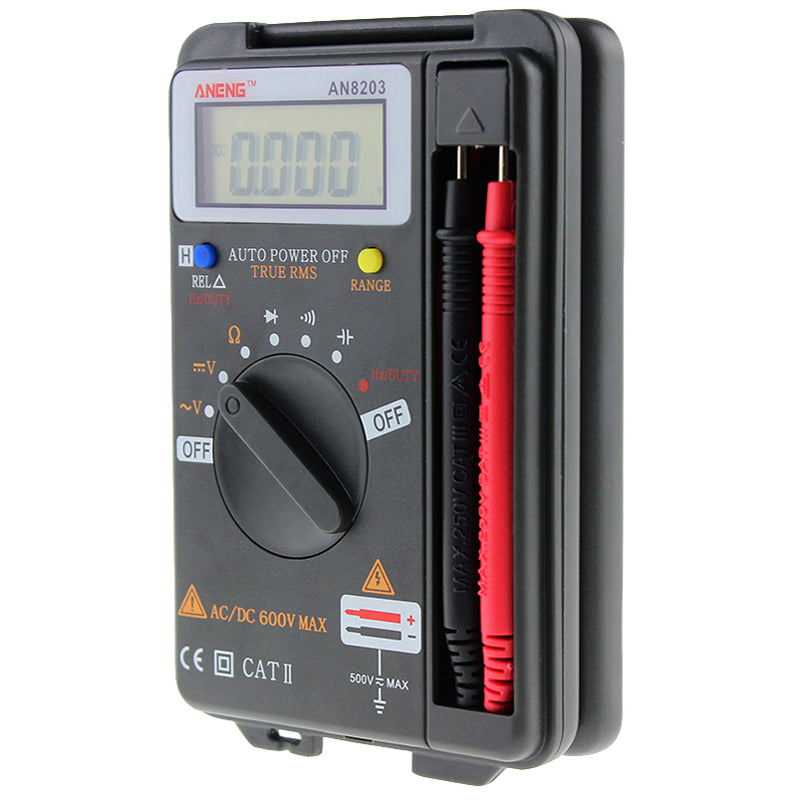

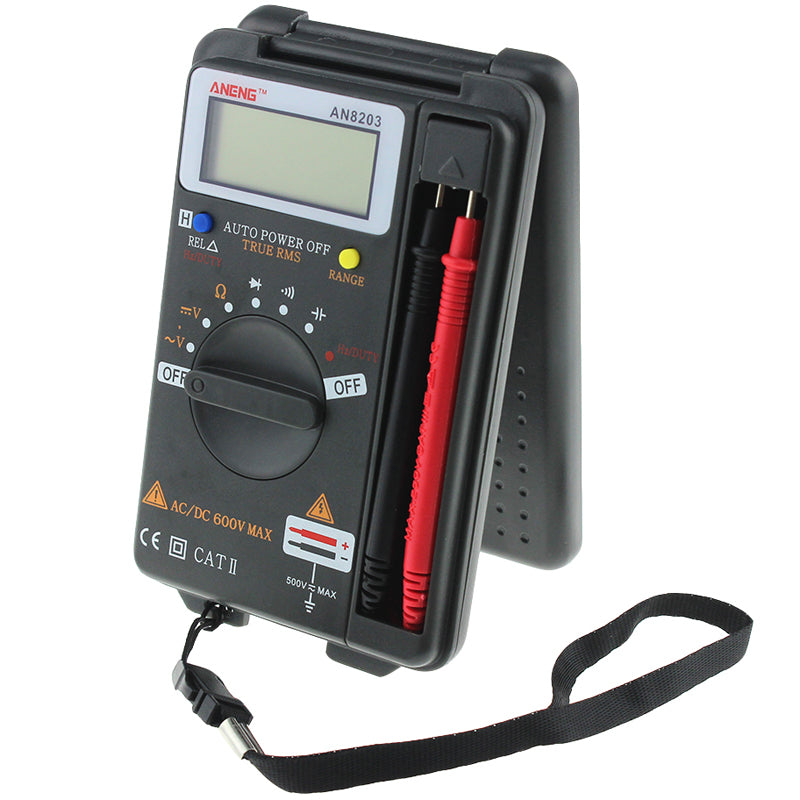

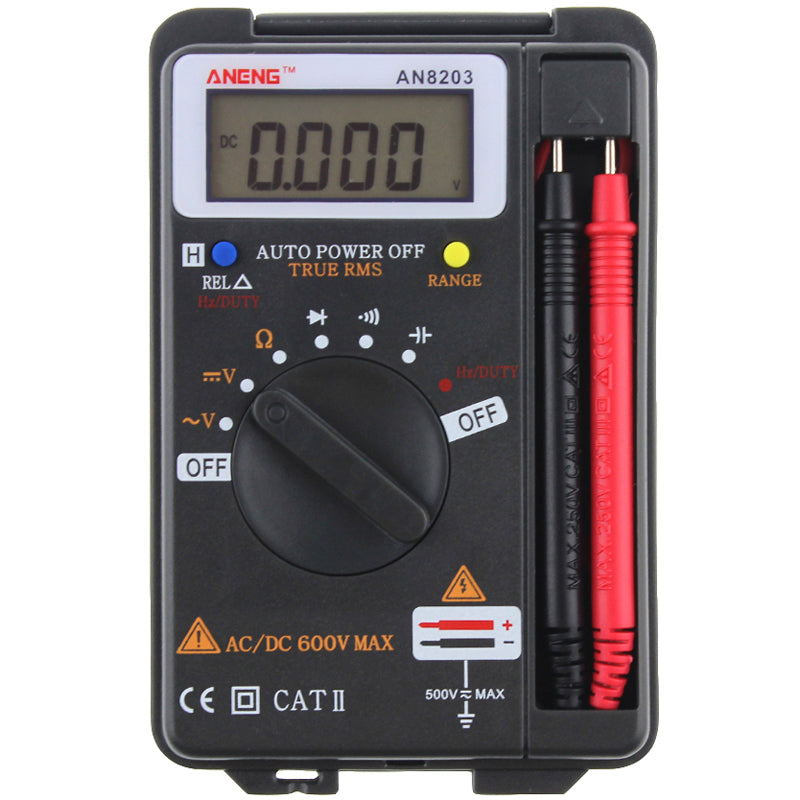

Detail Pictures:
