Support AC Current,AC Voltage,DC Current,DC Voltage Measurement
Features:
1. Display: liquid crystal display (LCD);
2. Maximum display: 4000 (3 3/4) bit automatic polarity display;
3. Measurement method: double integral A/D conversion;
4. Sampling rate: about 3 times per second;
5. Over range display: The highest position shows “OL”;
6. Low voltage display:symbol appears;
7. Working environment:(0~40)°,relative humidity<80%;
8. Power: AAA 1.5V battery (Batteries excluded)
9. Volume (size): 165×64.5×31mm (L×W×H);
Specifications:
DC voltage (DCV):4V-40V-400V-600V ±(0.5%+3)
AC voltage (ACV): 4V-40V-400V-600V ±(1%+3)
AC current(ACA):4A-40A-400A-600A ±(2.5%+8)
DC current(DCA):60A-600A ±(2.5%+30)
Resistance: 4kΩ-40'kΩ-400kΩ-4MΩ-40MΩ ±(0.5%+3)
Frequency measurement: 4Hz-40Hz-400Hz-4kHz-40,kHz-400kHz-1MHz ±(0.1%+2)
Capacitance measurement:4nF-40nF-400nF-4μF-40μF-400μF-4mF ±(2%+5)

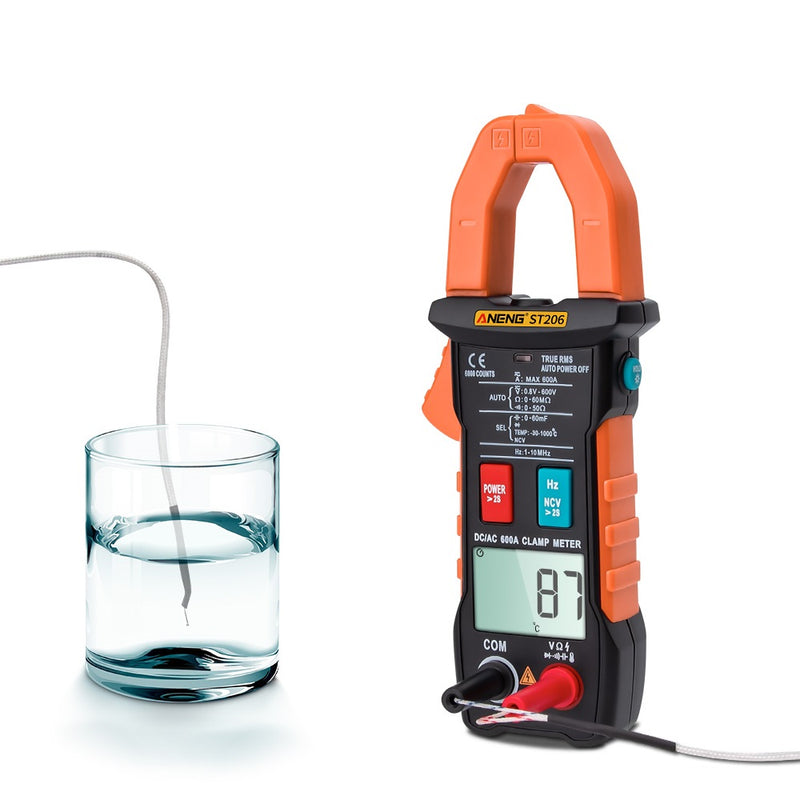

Temperature measurement : -30~1000° / 22~1832° ±(2.5%+5)

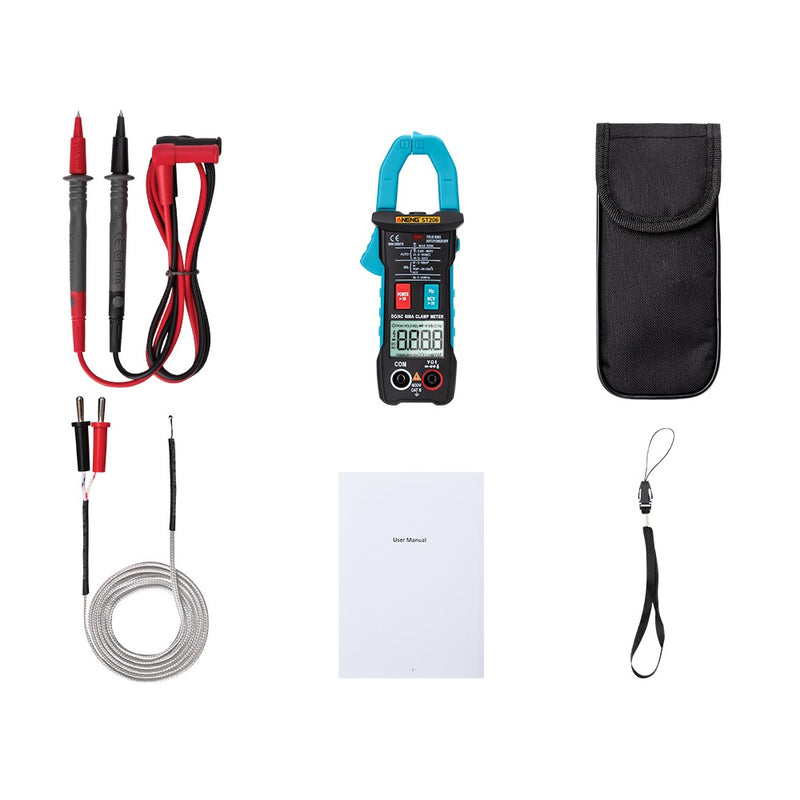

Package Includes:
1 * Instruction Manual
1 * Multimeter
1 * Pair of test leads
1 * Temperature probe
1 * Storage Bag
Details Pictures:
