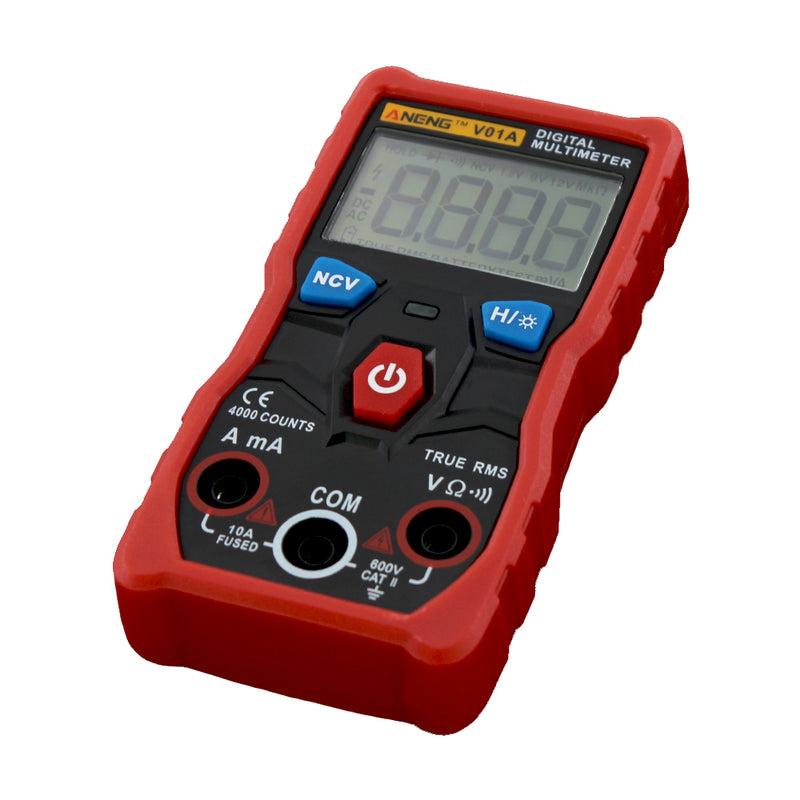

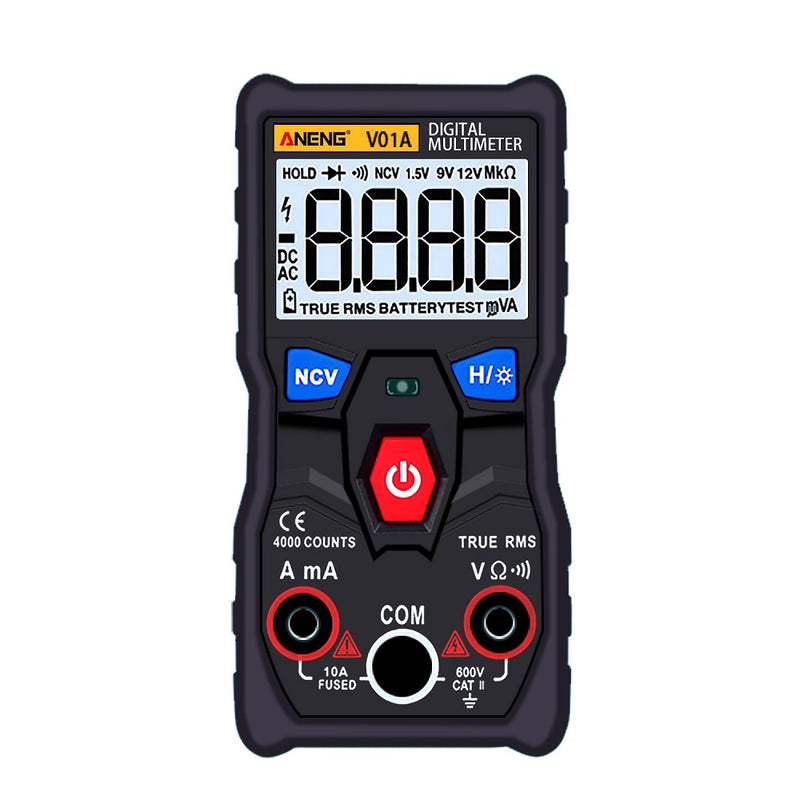

ANENG V01A Digital True RMS Multimeter Tester Autoranging Automotriz Multimeter With NCV Data Hold L

ANENG V01A Digital True RMS Multimeter Tester Autoranging Automotriz Multimeter With NCV Data Hold L

Name: ANENG V01A Digital True RMS Multimeter Tester Autoranging Automotriz Multimeter With NCV Data Hold L
Brand: Banggood
SKU: U2I-BG-1348532
Price: 4,078.00 INR
Availability: InStock

SKU: U2I-BG-1348532

Share this product

ANENG V0XA Series

V01A: AC and DC voltage, AC and DC current, resistance, frequency, buzzer, NCV, etc.

V02A: AC and DC voltage, with battery measurement (can not measure current) measuring battery by current will have higher Accuracy, resistance, frequency, buzzer, NCV, etc.

V03A: AC and DC voltage, AC and DC current, resistance, frequency, buzzer, NCV, etc., diode measurement, capacitance measurement

V04A: AC and DC voltage, AC and DC current, resistance, frequency, buzzer, NCV, etc., diode measurement, capacitance measurement, temperature measurement

Specification:

This product is a battery-powered, auto-ranging, true RMS digital multimeter with a 4000 counts LCD display.

General Specifications
Display	4000 counts	Ture RMS	√
Ranging	Auto	Data Hold	√
Material	ABS+PVC	Backlight	√
Update Rate	3 / s	Flashlight	√
Low Battery Indication	√	Auto Power Off	√
Electrical Specifications
Function	Range	Resolution	Accuracy	Max
DC VOLTAGE(V)	4.000V/40.00V	0.001V/0.01V	±(0.5 +3)	600V
DC VOLTAGE(V)	400.0V/600V	0.1V	±(0.5 +3)	600V
AC VOLTAGE(V)	4.000V/40.00V	0.001V/0.01V	±(1.0 +3	600V
AC VOLTAGE(V)	400.0V/600V	0.1V/1V	±(1.0 +3	600V
AC mA	999.9mA	0.1mA	±(1.0 +3)	9.999A
AC A	9.999A	0.001A	±(1.0 +3)	9.999A
DC mA	999.9mA	0.1mA	±(2.0 +4)	9.999A
DC A	9.999A	0.001A	±(2.0 +4)	9.999A
Resistance	4.000kΩ	0.001kΩ	±(1.5 +3)	40MΩ
	40.00kΩ/400.0kΩ	0.01kΩ/0.1kΩ	±(0.5 +3)
	4.000MΩ	0.001MΩ	±(0.5 +3)
	40.00MΩ	0.01MΩ	±(1.5 +3)
Continuity	√
NCV	√
Frequency response at AC modes	40Hz~1kHz
Battery	2 x AAA (not included)

► Blue ANENG V01A Digital True RMS Multimeter

► Orange ANENG V01A Digital True RMS Multimeter

► Green ANENG V01A Digital True RMS Multimeter

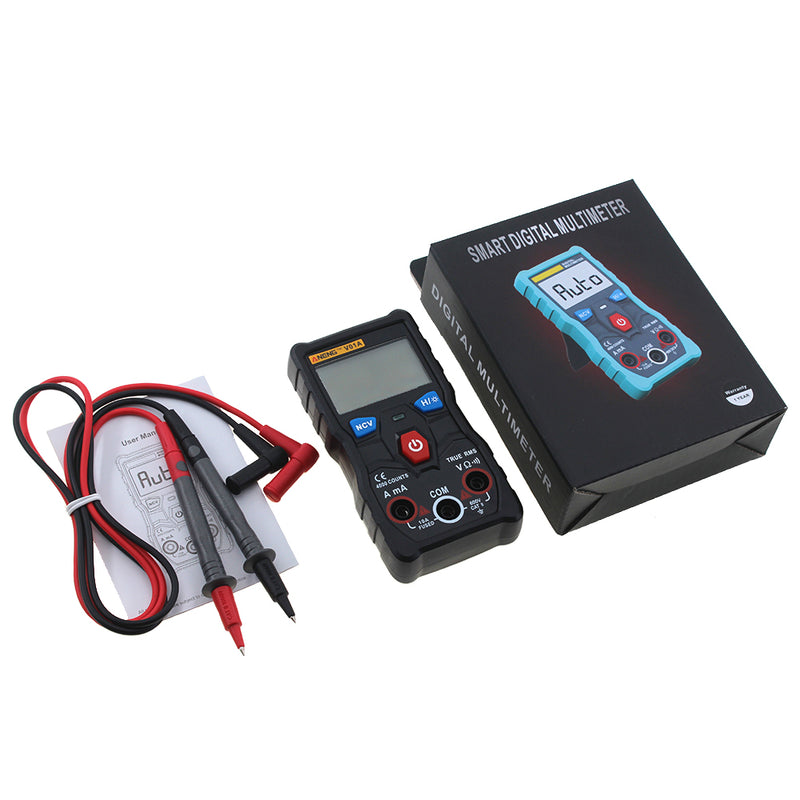

Package Includes:

1 x Digital Multimeter
1 x Test leads
1 x English user Manual
1 x Color box

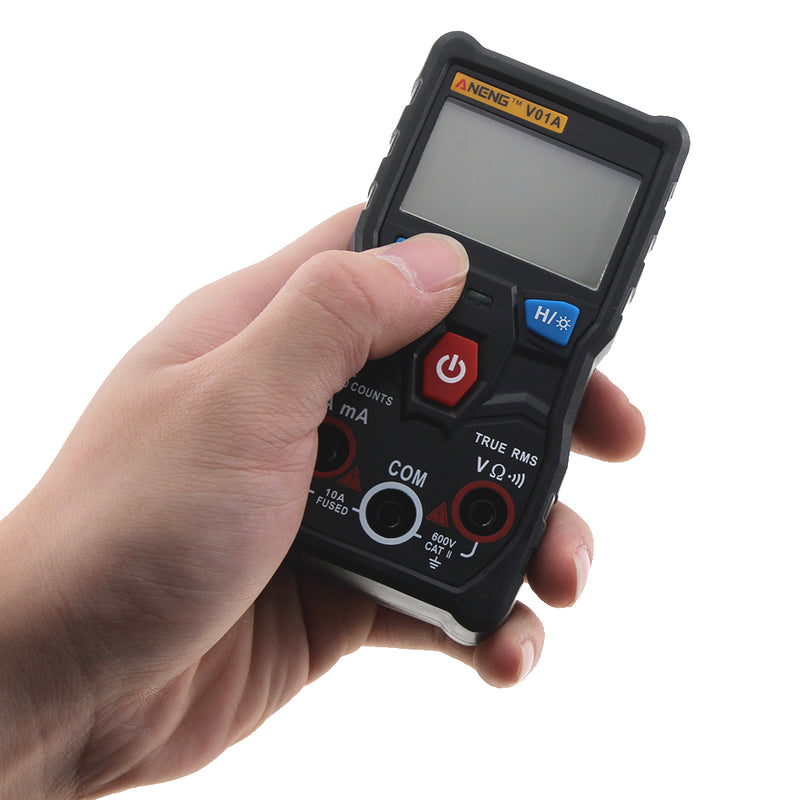

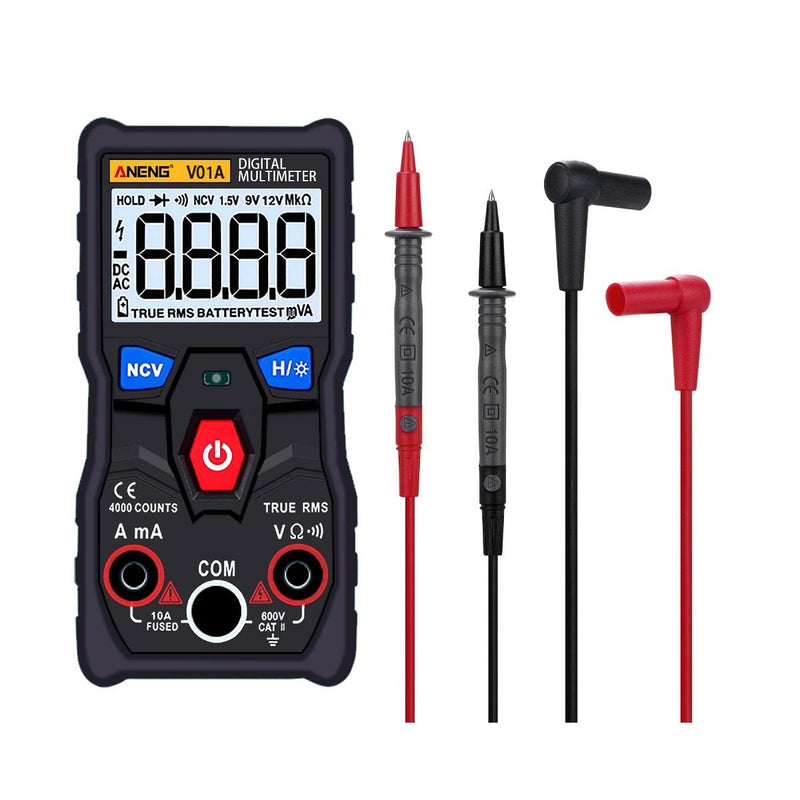

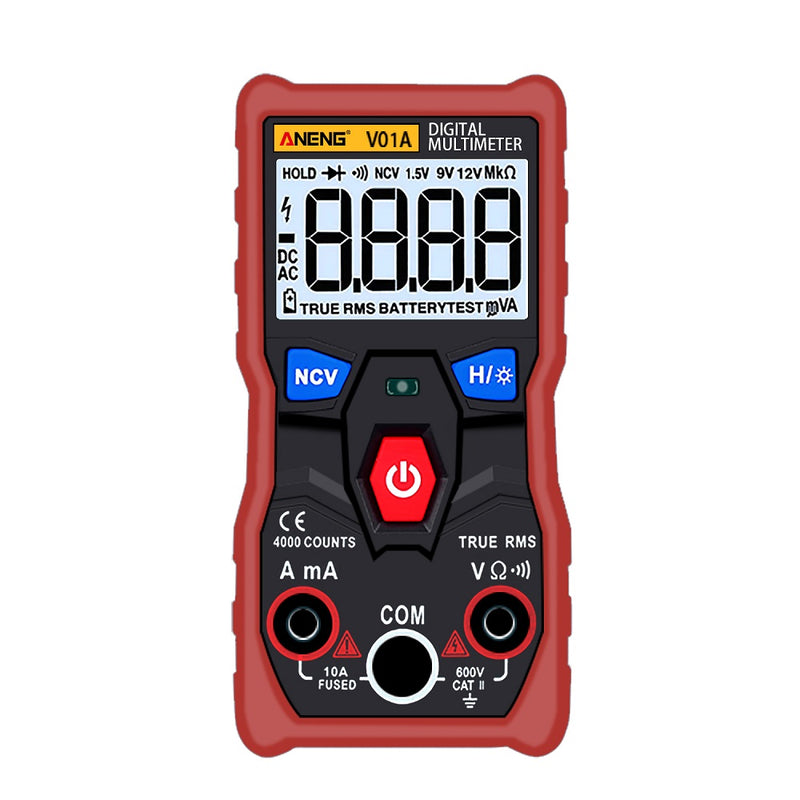

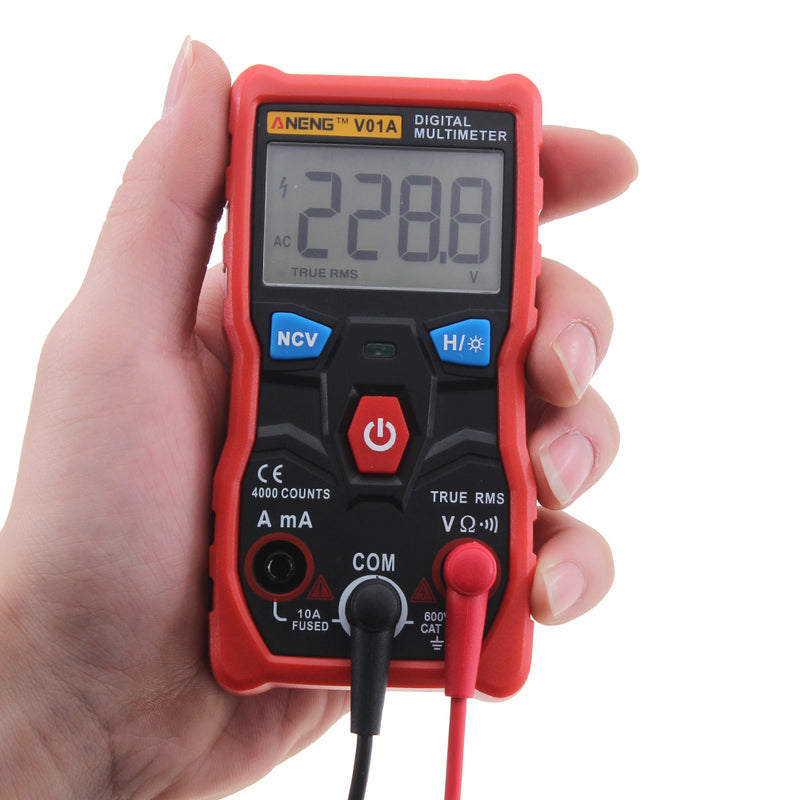

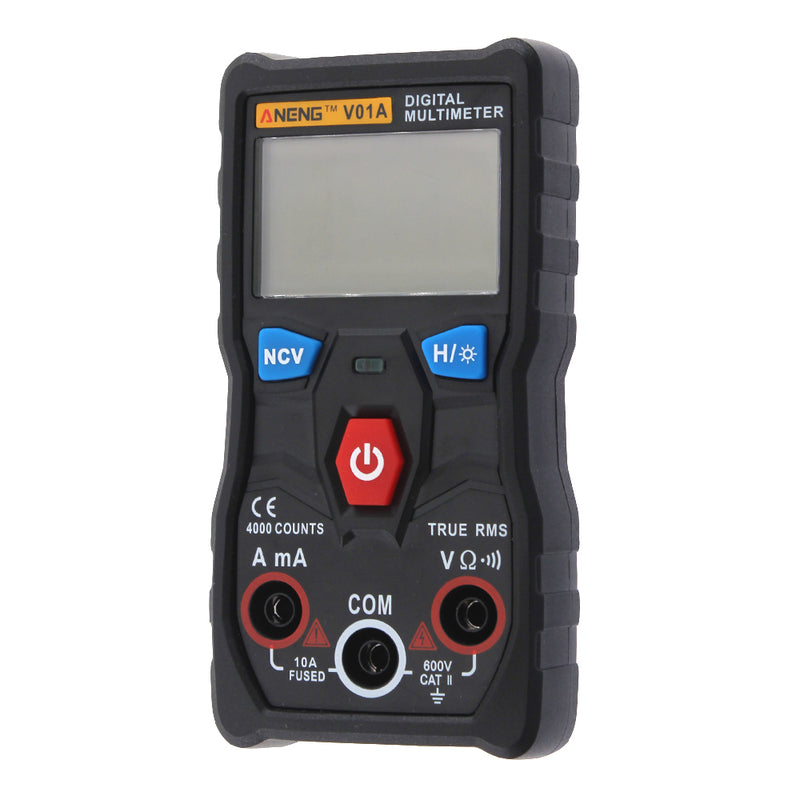

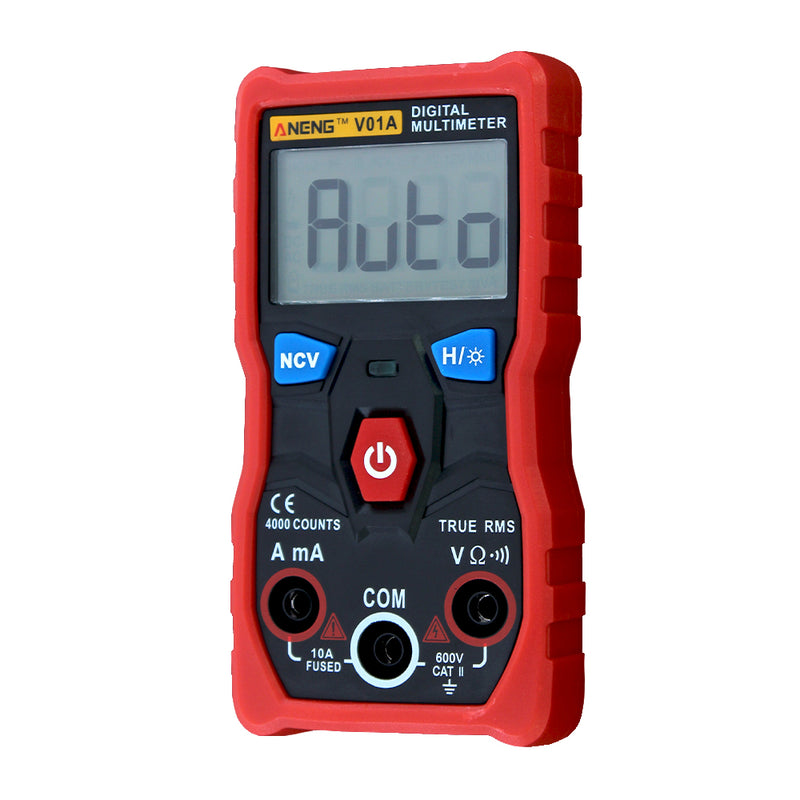

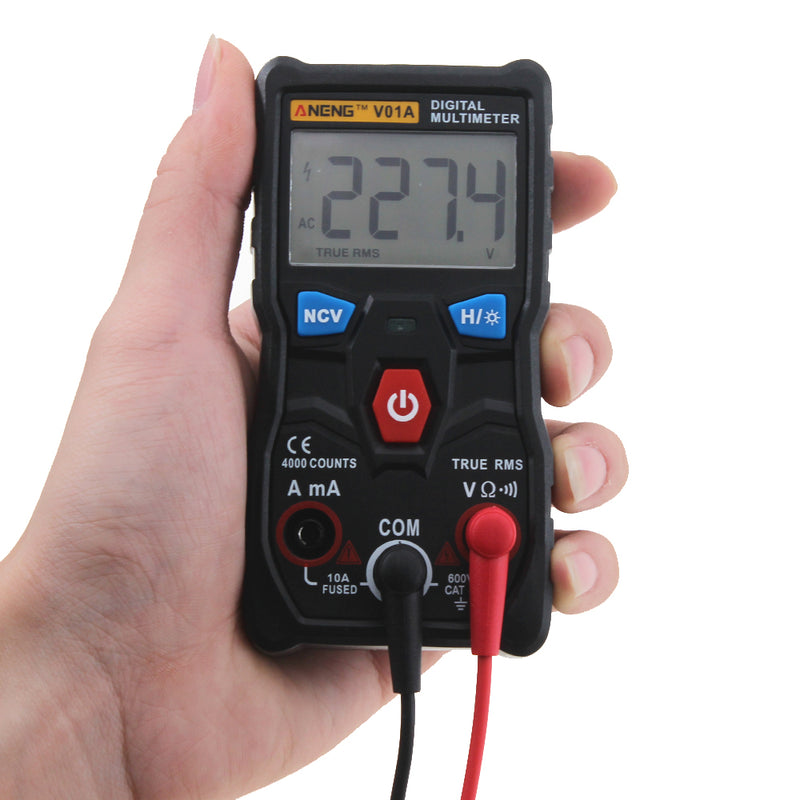

Detail Pictures:
