Features:
This Heavy-Duty general purpose multimeter features a Clear, easy to read LCD display, with blue back Light.
Overload Protection on all ranges.
Housed in a rugged rubber boot with integral stand.
Low Battery Voltage Indication.
Portable & Compact Design.
Data Hold Function & Diode Test Facility.
20 Position Rotary Switch.
Measures AC & DC Voltage, DC Current, Resistance, Audible Continuity, Diode/Transistor Verification Mode.
Specification:DC Voltage: 200mV 2V 20V 200V 600V
AC Voltage: 200V / 100mV, 600V / 1V
DC Current: 200μA 2mA 20mA 200mA 10A
Resistance: 200Ω 2kΩ 20kΩ 200kΩ 2MΩ
Transistor hFE Test: NPN & PNP 0~1000 1b=10mA Vce=3V

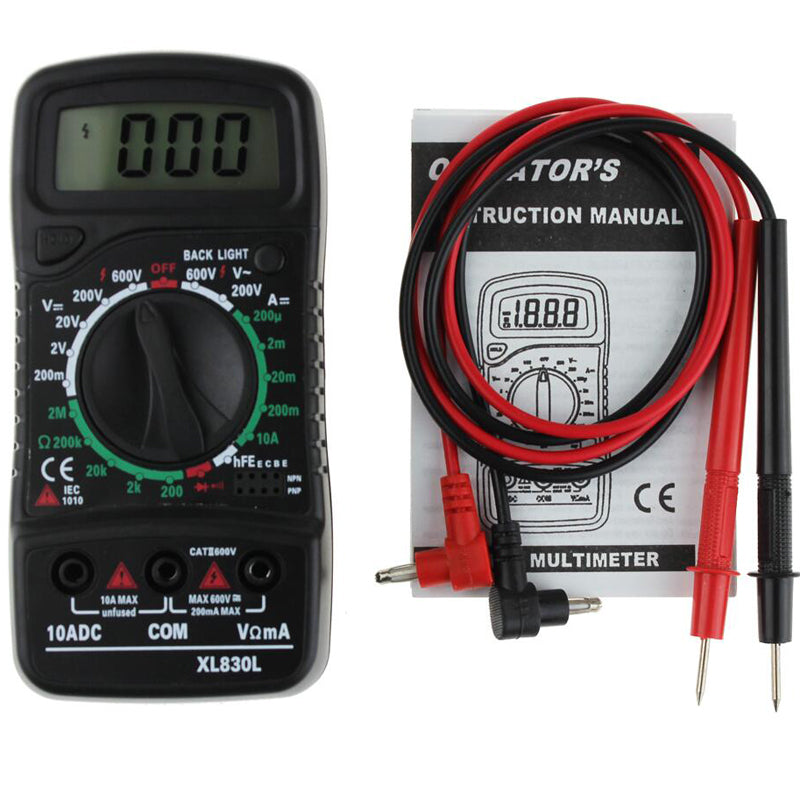

Package included:

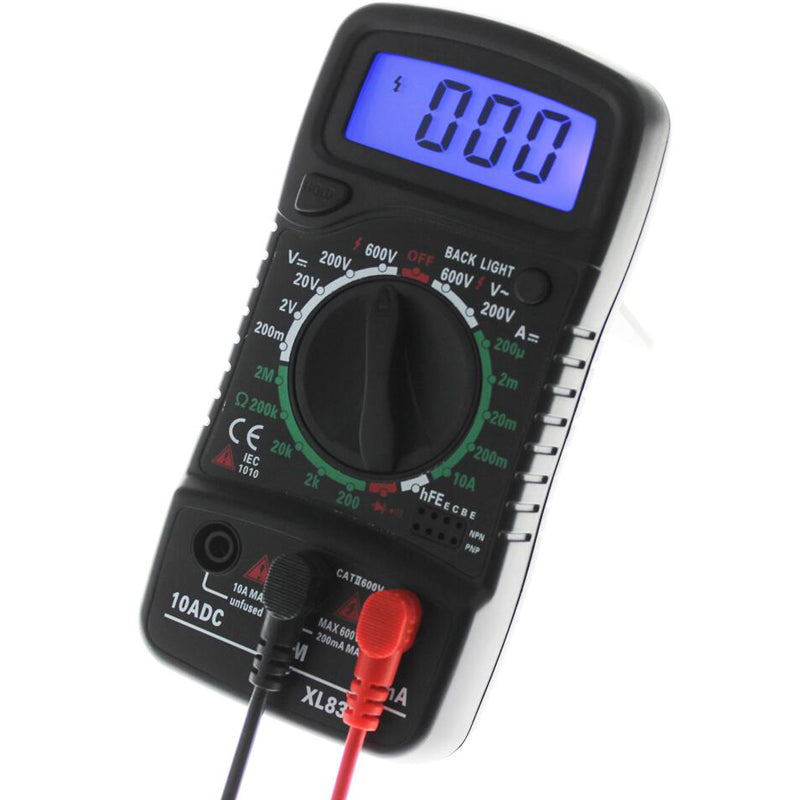

1 x ANENG XL830L Digital LCD Multimeter (Battery is not included)
2 x Test Probe
1 x English User Manual

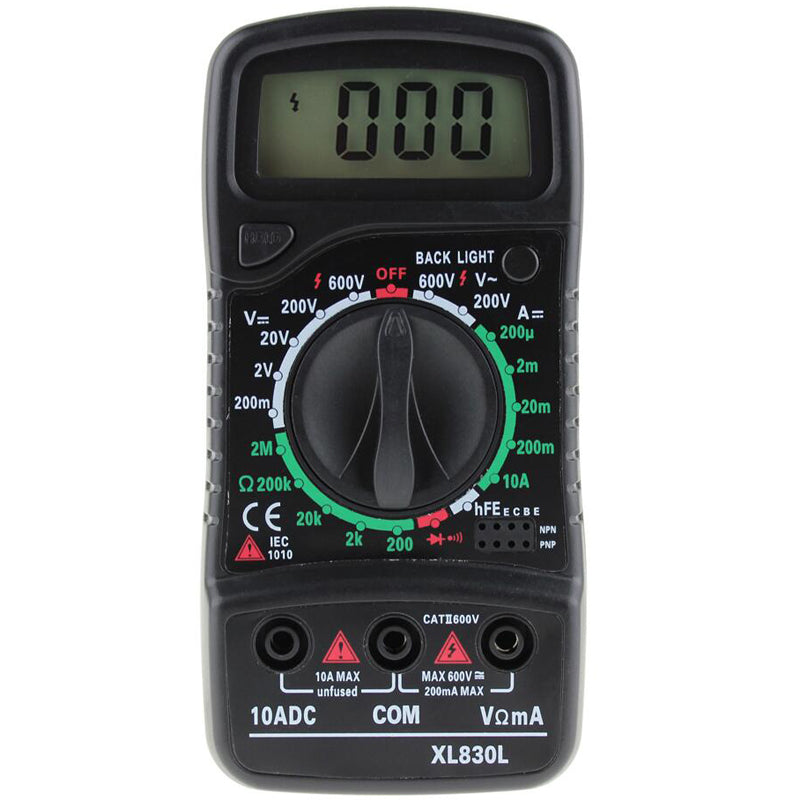

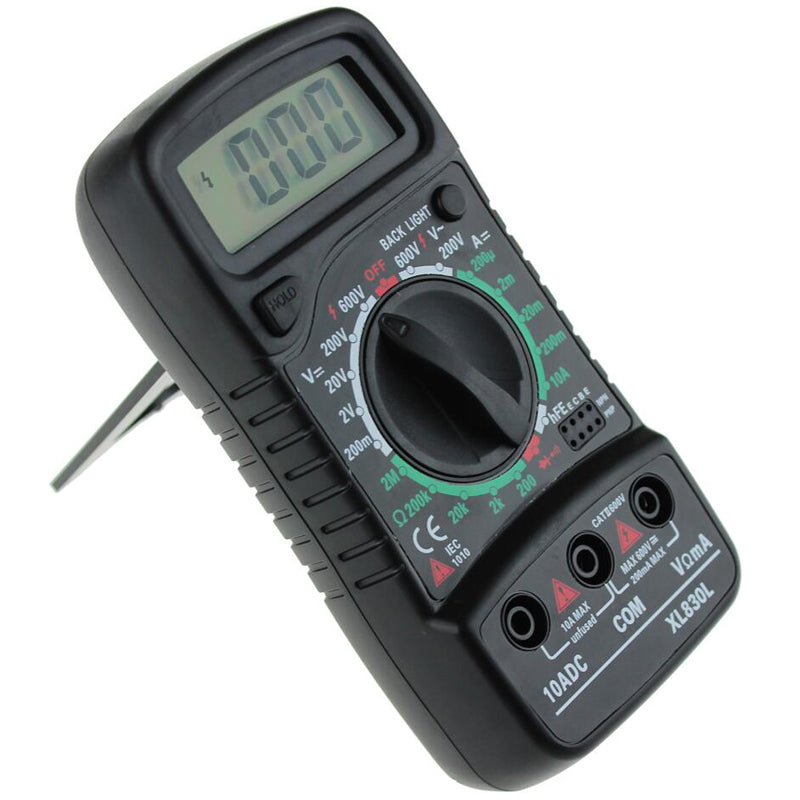

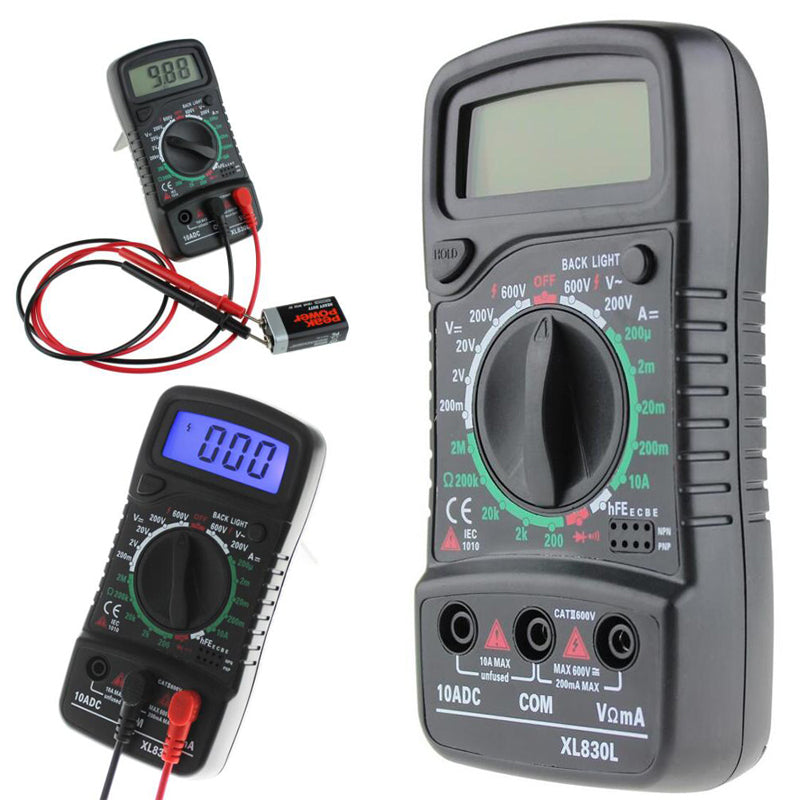

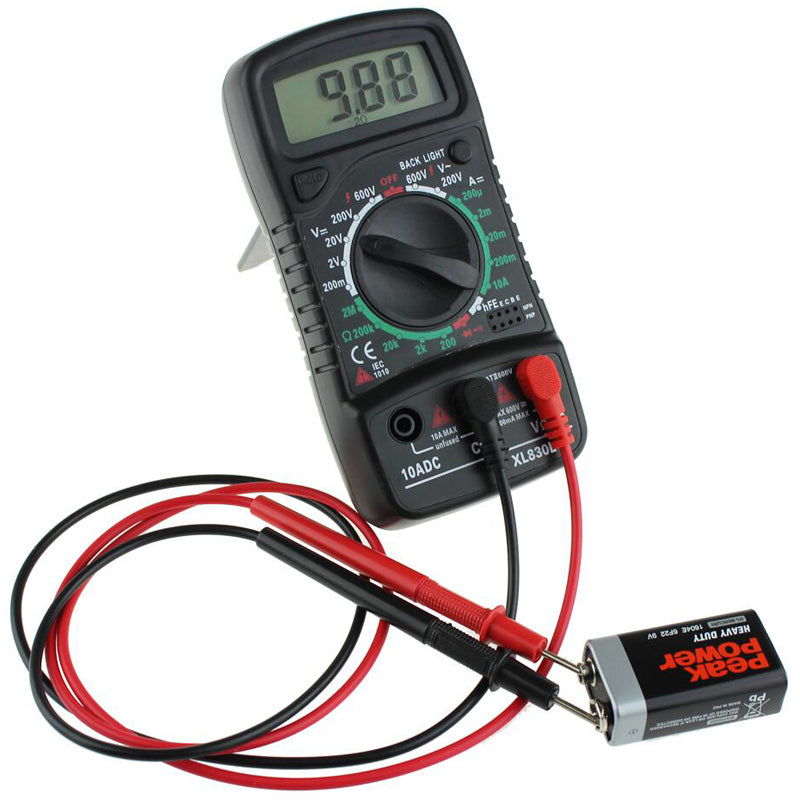

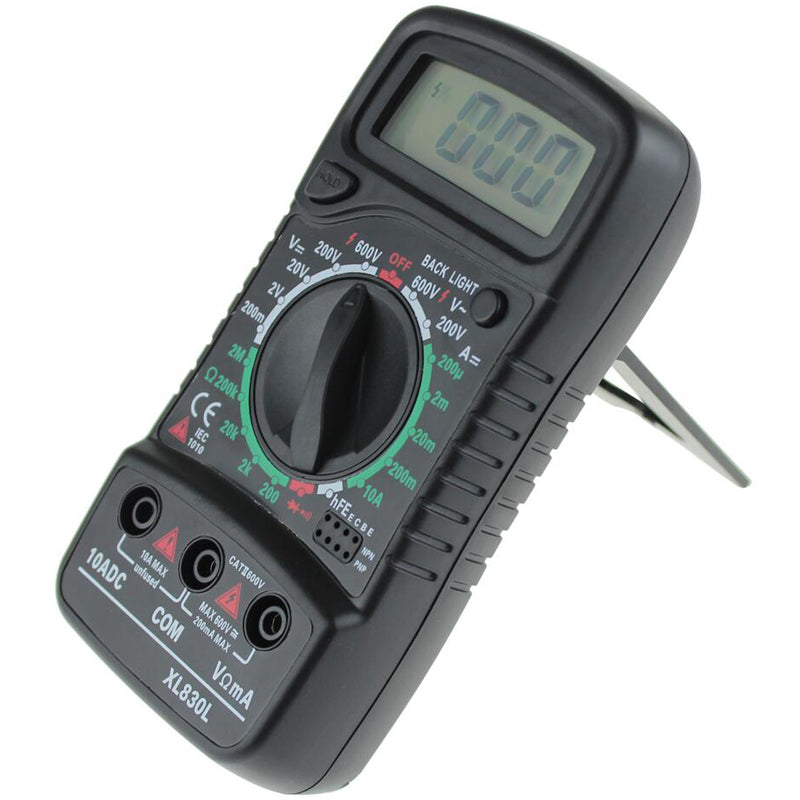

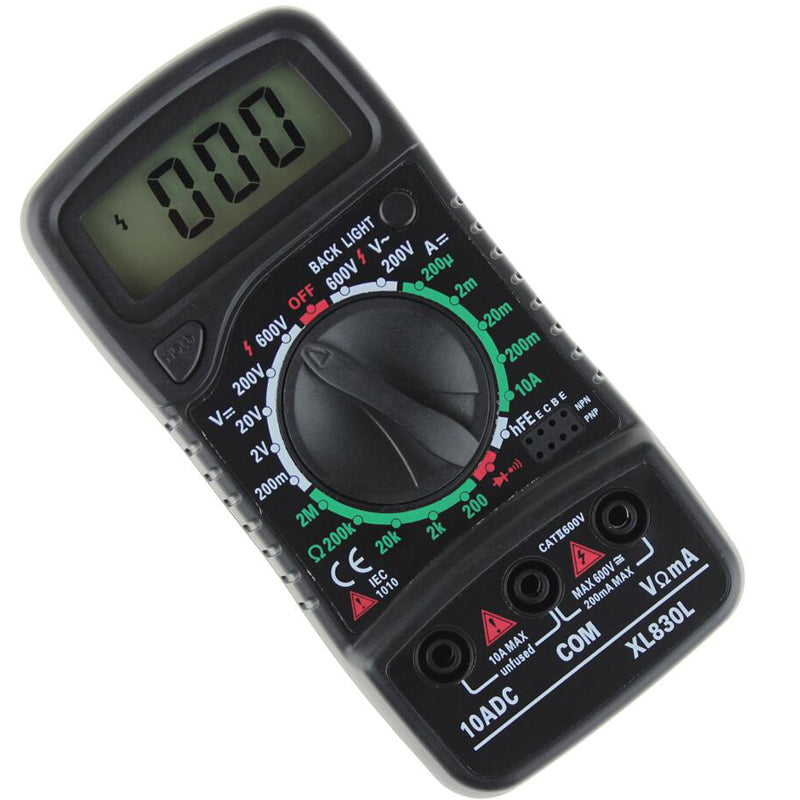

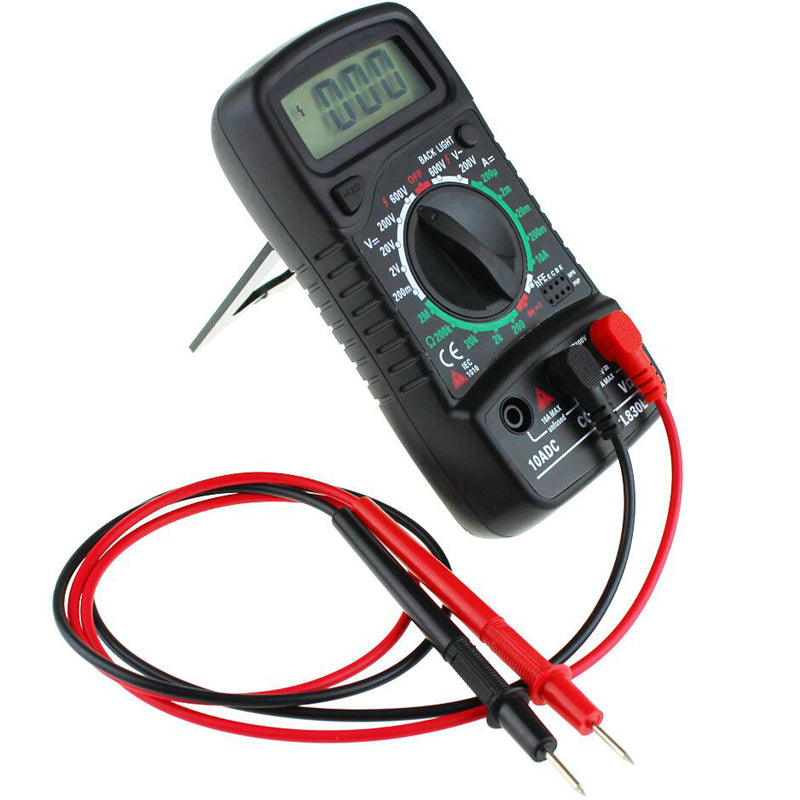

Detail Pictures:
