Specifications
Size: 82x56x160mm
Waterproof: IP44
Working water pressure: 0.2 - 0.8 Mpa
Working water temperature: 1 - 40 ℃
Inlet thread: 3/4 inch internal thread
Outlet thread: 3/4 inch external thread
Battery: 2x1.5V AA battery (Battery is not includes)
Features
1. When the battery is installed, the product automatically turns on and enters the default irrigation program.
2.30 seconds without key operation, the screen automatically turns off and the product goes to sleep. Press any key to light up the screen again.
3. Large LCD display at a glance.
4. Button operation is simple and convenient.
5. Intelligent timing, set the irrigation program according to your needs.
6. Battery power prompt design.
Note
1. This product is for outdoor use only and is not allowed to be dismantled.
2. In order to ensure the normal operation of the product, horizontal or inverted installation is prohibited.
3. This product is waterproof and dustproof to IP44. Do not soak in water or rain.
4. Working water pressure: 0.2Mpa-0.8Mpa. The product itself does not generate pressure, the pressure of tap water is used; there is tap water or a source of pressure, and the product can be discharged normally.
5. Working water temperature: 1-40C. Before the winter freezes, please drain the water in the product water pipe to avoid cracking.
6. This product is only suitable for 2 pcs 1.5V AA alkaline batteries; when replacing the battery, please ensure that the battery compartment is dry.
7. When the battery is low, please replace the battery in time to avoid affecting the normal operation of the product.
8. Please clean the stainless steel filter regularly to avoid blockage; if it is damaged, please replace it in time.
9. When the product is in working condition, please caution children not to play this product.

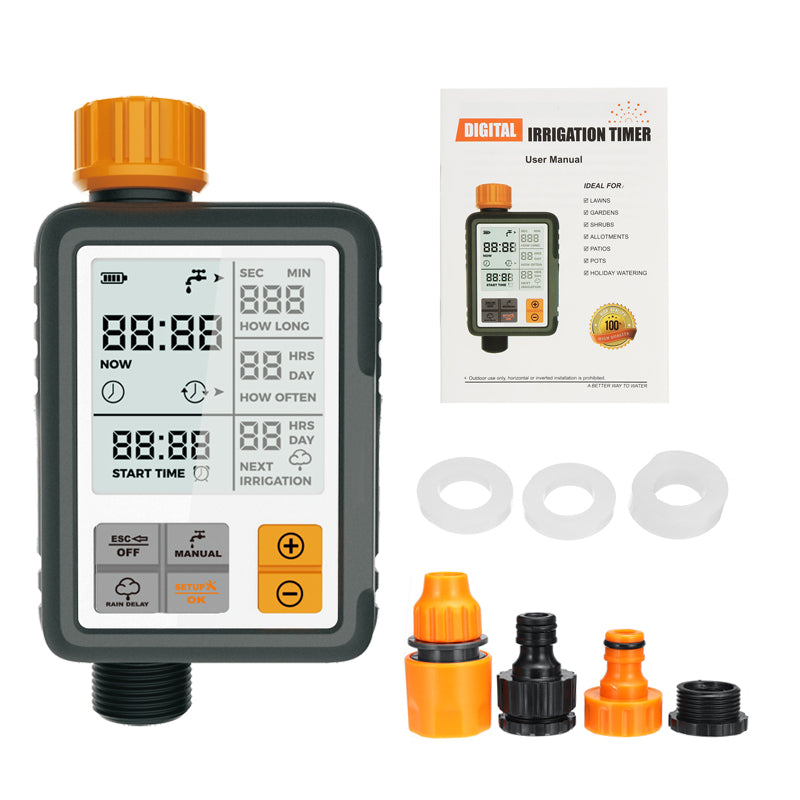

Package includes:
1x Digital irrigation timer
1x User manual
4x Connector
3x Gasket
