Features:
Measure AC current (minimum 1mA by jaws)
Measure DC current microamps μA (minumum 0.1μA by terminals)
Measure AC and DC voltage
Measure frequency
Low impedance voltage measurement
Measure resistance, continuity and capacitance
Measure temperature
Live check function
V-alert measurement
Clamp on frequency function
Auto range, Auto power off, data hold, back light
Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards
Over-voltage protection class CAT III 300V, CAT II 600V, pollution degree II
Specifications:
Display: 6000 counts
AC current: 6A/60A/200A 0.001A/0.01A/0.1A ±(3.0%+10counts)
DC current(μA by terminals): 0-200μA ±(0.8%+5counts)
DC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3counts)
AC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3counts)
Low impedance LOZ: Max 600V Resolution 0.1V
Resistance:
600Ω/6kΩ/60kΩ/600kΩ/6MΩ 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ/0.001MΩ ±(1.0%+3counts)
60MΩ 0.01MΩ ±(1.2%+20counts)
Capacitance: 600µF/6000µF 0.1µF/1µF ±(4.0%+3counts)
Frequency: 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts)
Frequency(by jaws): 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts)
Buzzer: If the resistance is less than 30Ω, the continuity beeper sounds
Temperature: -20℃~500℃/-4℉~932℉ 1℃/2℉ (2.0%+2counts)
Jaw Capacity: 20mm
Power: 1.5V (AAA) x 2 (not included)
Size: 179mm x 67mm x 36 mm
Weight: 137g

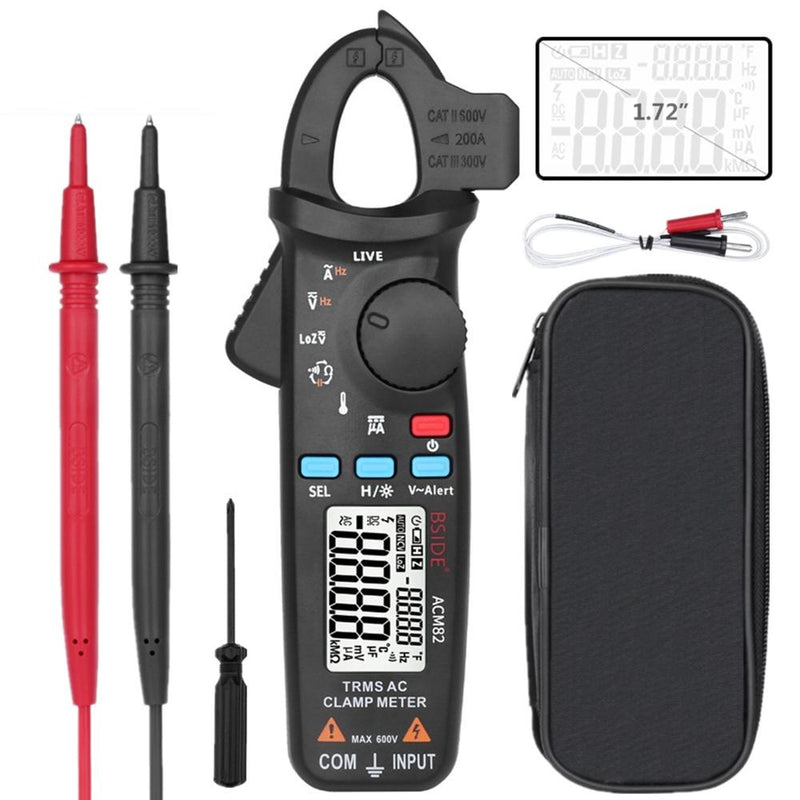

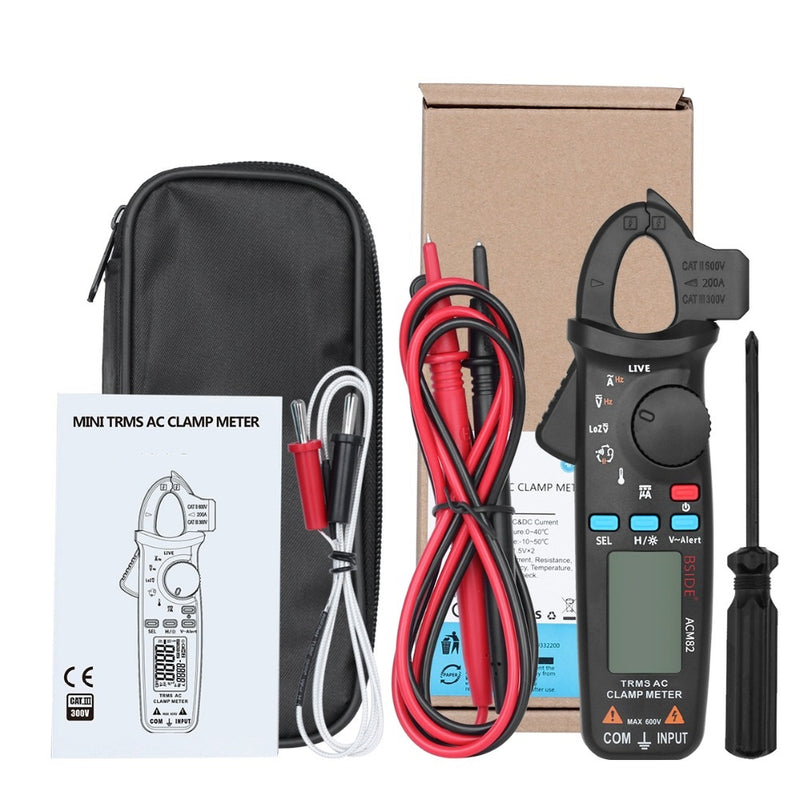

Package Includes:
1 x Digital Clamp Meter
1 x Test Leads
1 x Thermocouple
1 x Screwdriver
1 x Carrying Case
1 x User Manual
Note:
The batteries are not included in the package due to Aviation Security Check. Sorry for any inconvenience caused.
Details Pitures:
