Descriptions:

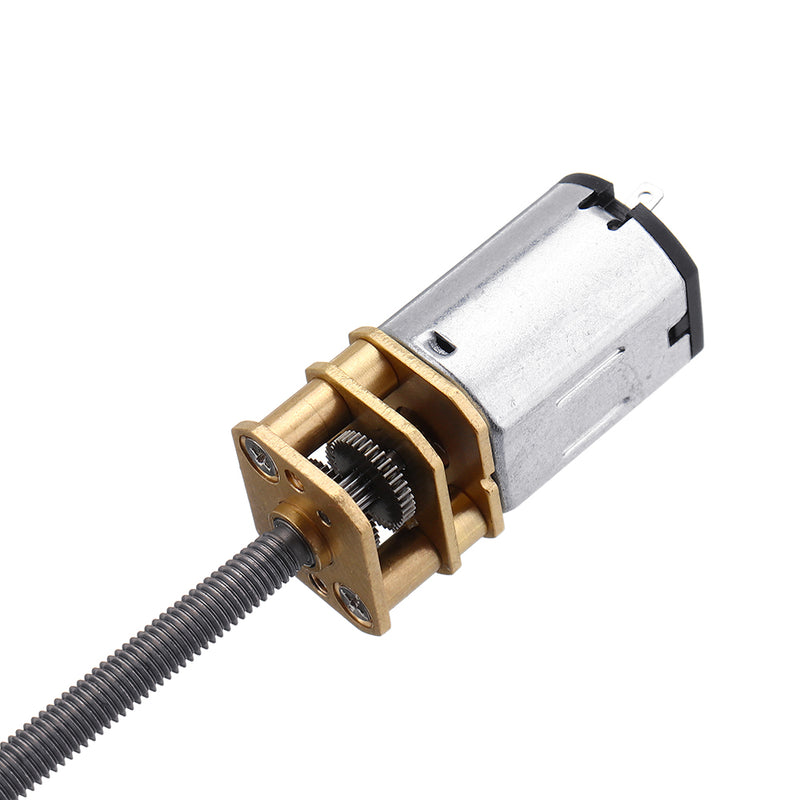

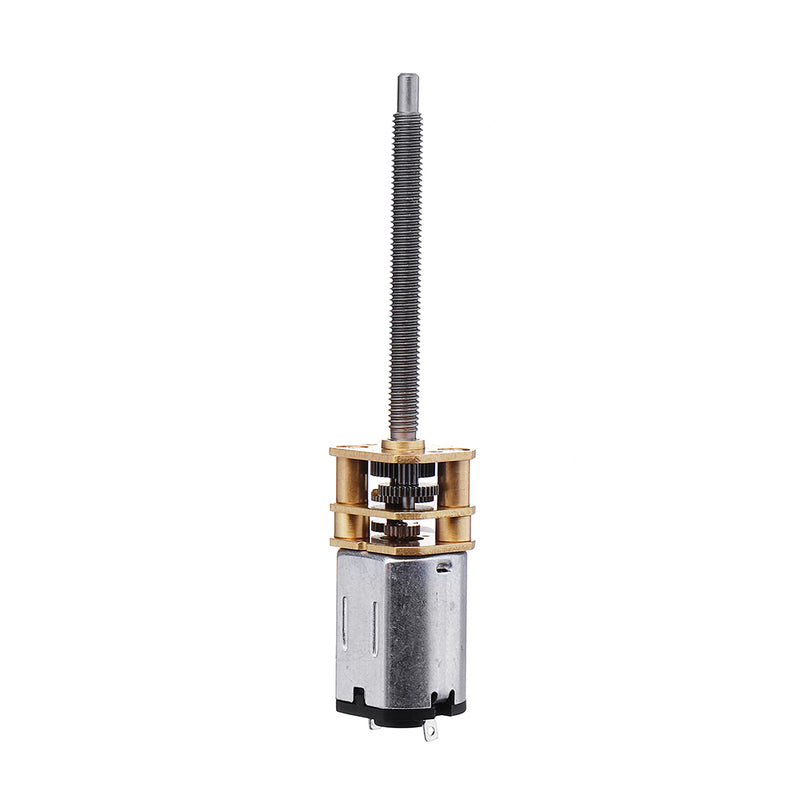

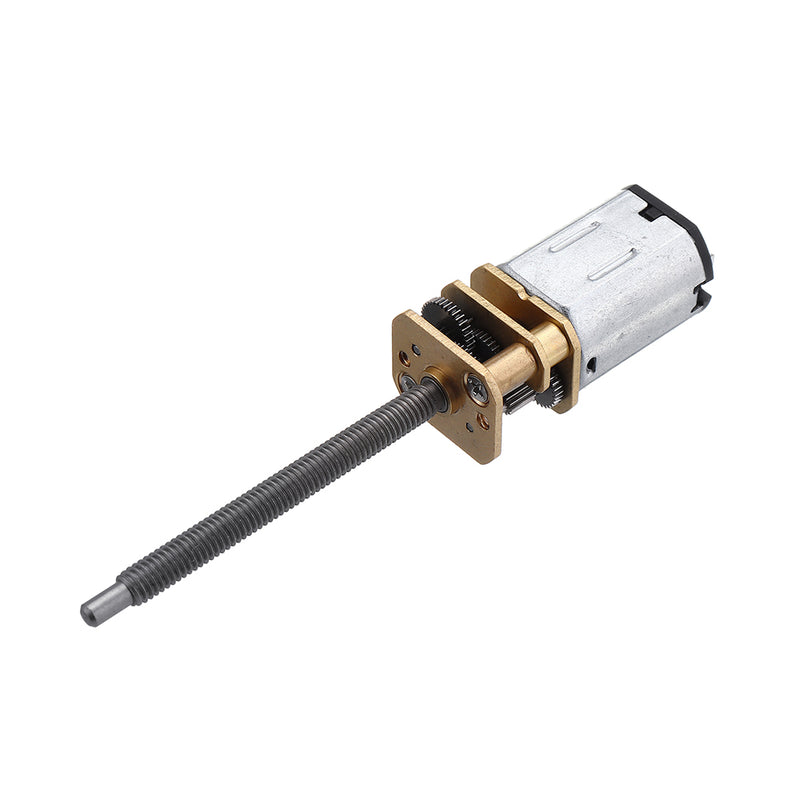

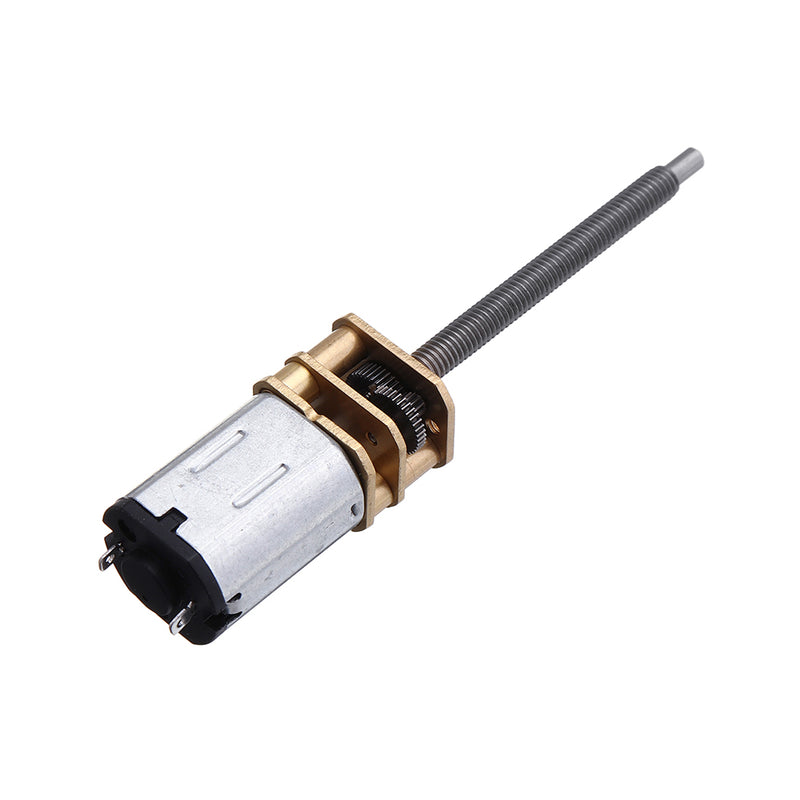

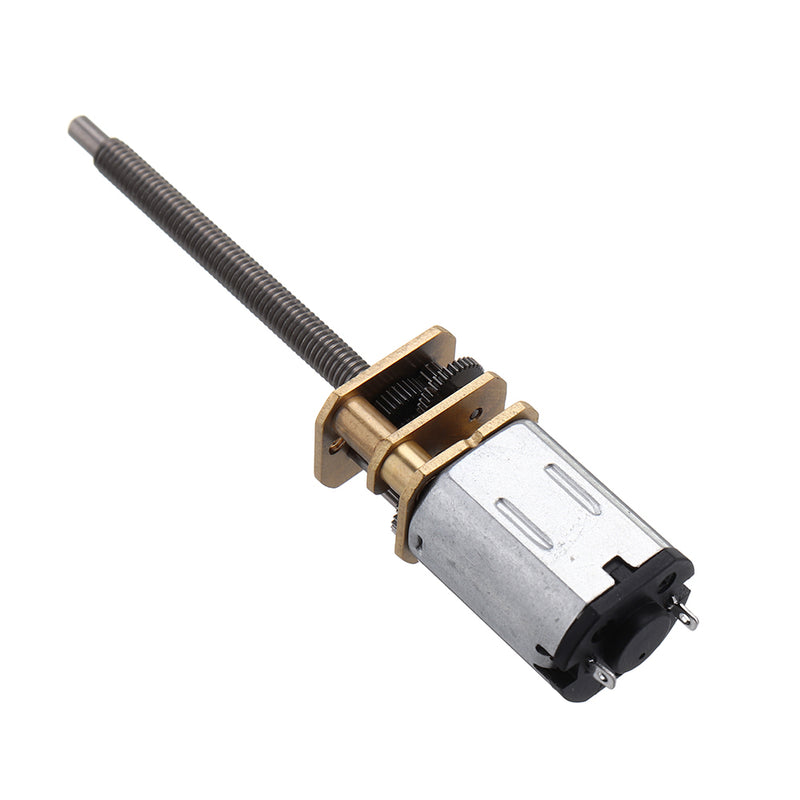

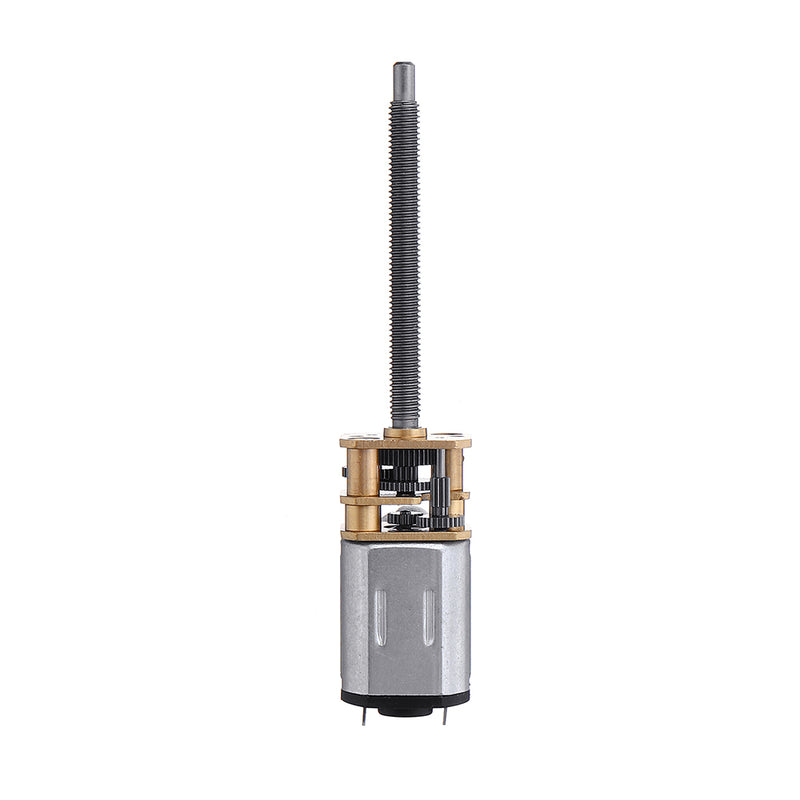

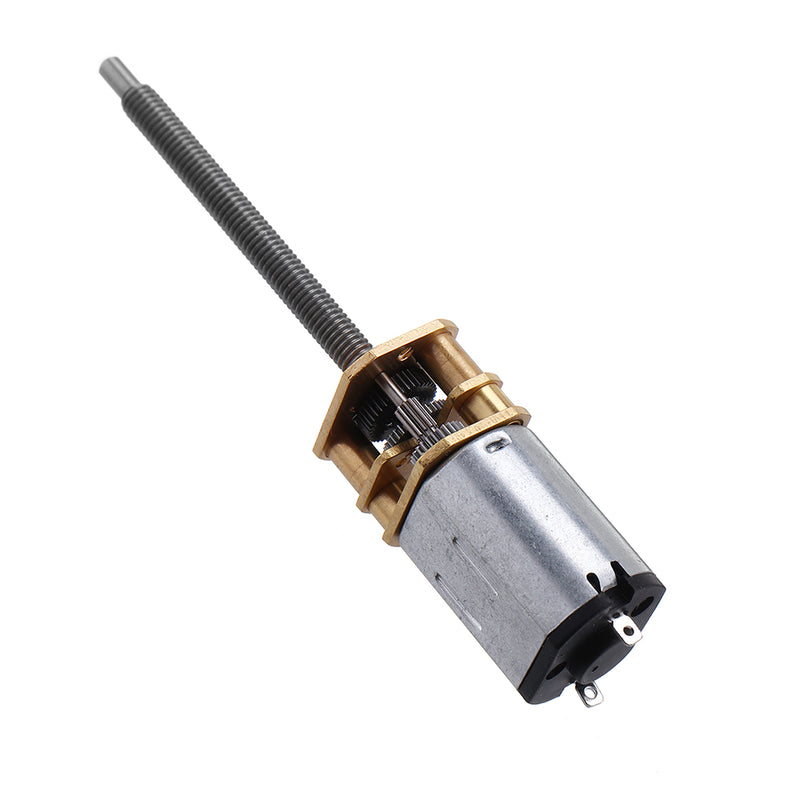

Chihai CHF-GM12-N20VA screw reduction gear motor reduction ratio 1:50
Specifications:
Brand: Chihai Motor
Voltage: DC 6.0V/12.0V
Size: 12 x 10mm
Length: 26mm

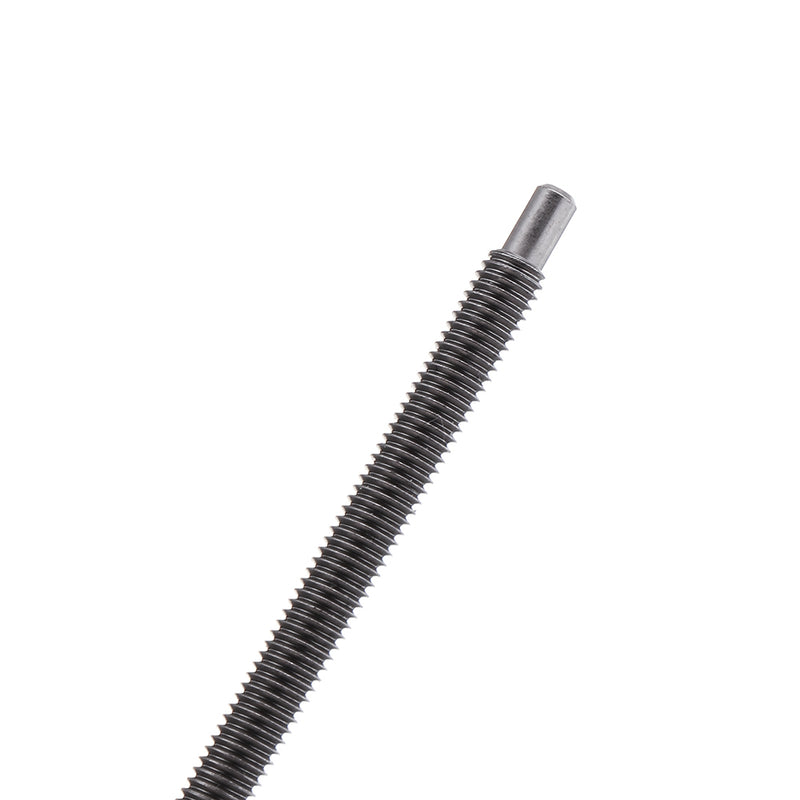

Shaft Diameter: M4 x 0.5 screw thread
Output Shaft Long: About 55mm
Weight: About 12g
| Reduction ratio |
1:50 |
| Voltage (V) |
6.0 |
12.0 |
| Model |
A05 |
| No-load current (mA) |
≤30 |
≤40 |
| No-load speed (rpm) |
155 |
300 |
| Rated torque (Kg.cm) |
0.10 |
0.20 |
| Rated torque (N.m) |
0.01 |
0.02 |
| Rated speed (rpm) |
60 |
165 |
| Rated current (A) |
≤0.08 |
≤0.1 |
| Locked-rotor current (A) |
≤0.2 |
≤0.3 |
| Locked-rotor torque (Kg.cm) |
0.20 |
0.40 |
Features:- Stainless steel support shaft ensures stable linear drive;
- Large torque, adjustable, positive and negative;
- Low energy consumption and low noise;
- Powerful, durable and long life;
- Special landing gear geared motors for mini fixed-wing aircraft;
- For wireless control models and some small appliances, high-demand geared motors, beauty equipment, instrumentation, electric slides, electric pan/tilt, etc.
Package Included:
1 x Reduction Gear Motor
