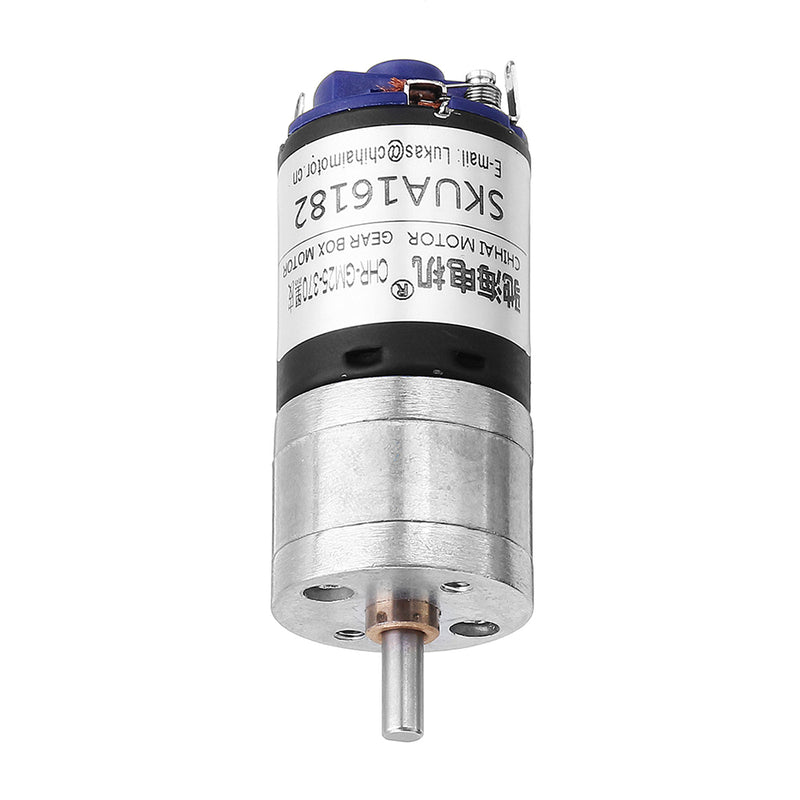

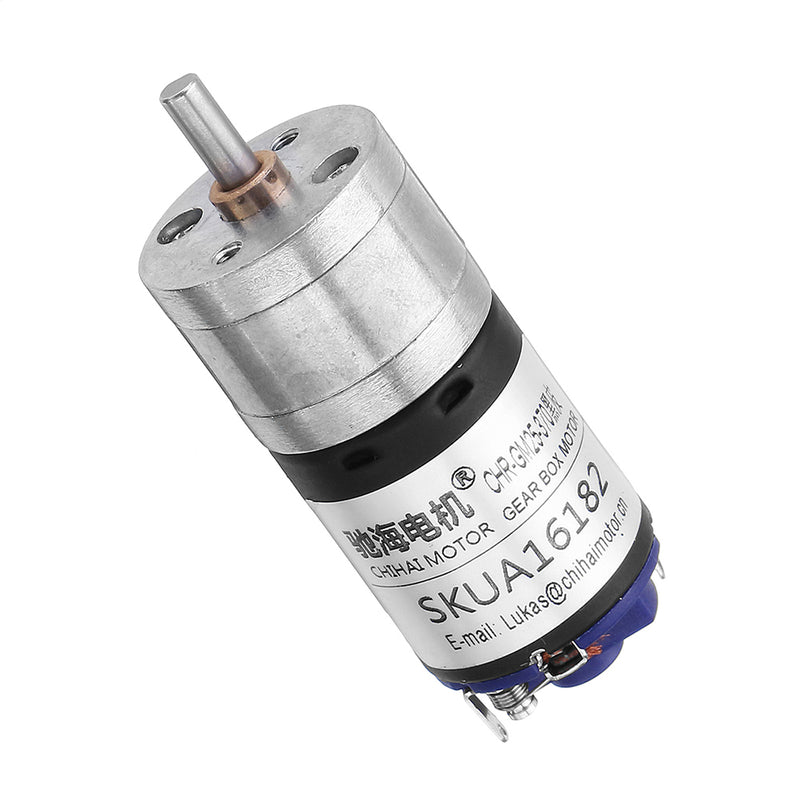

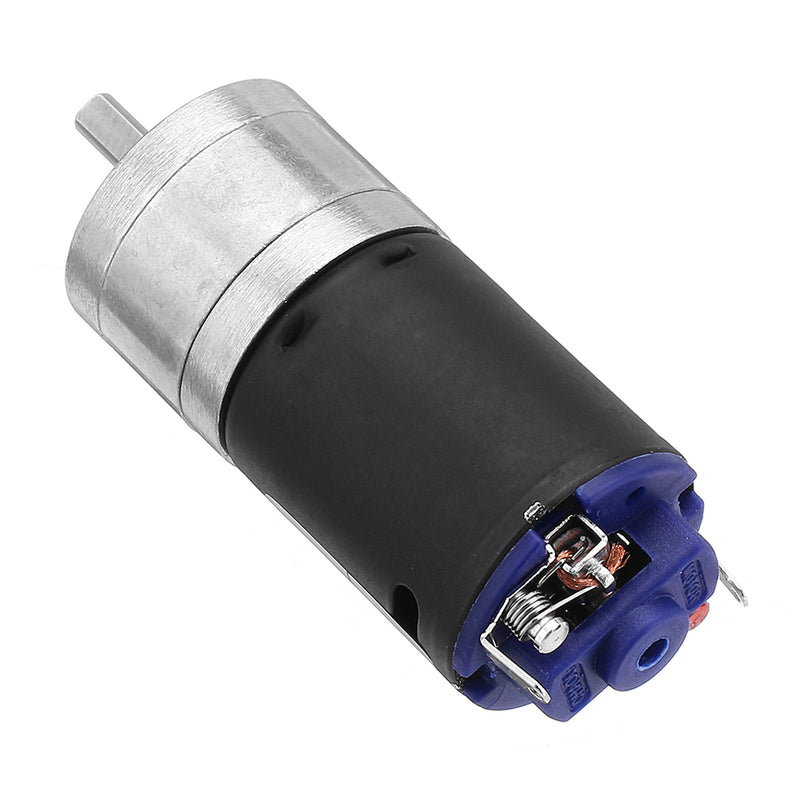

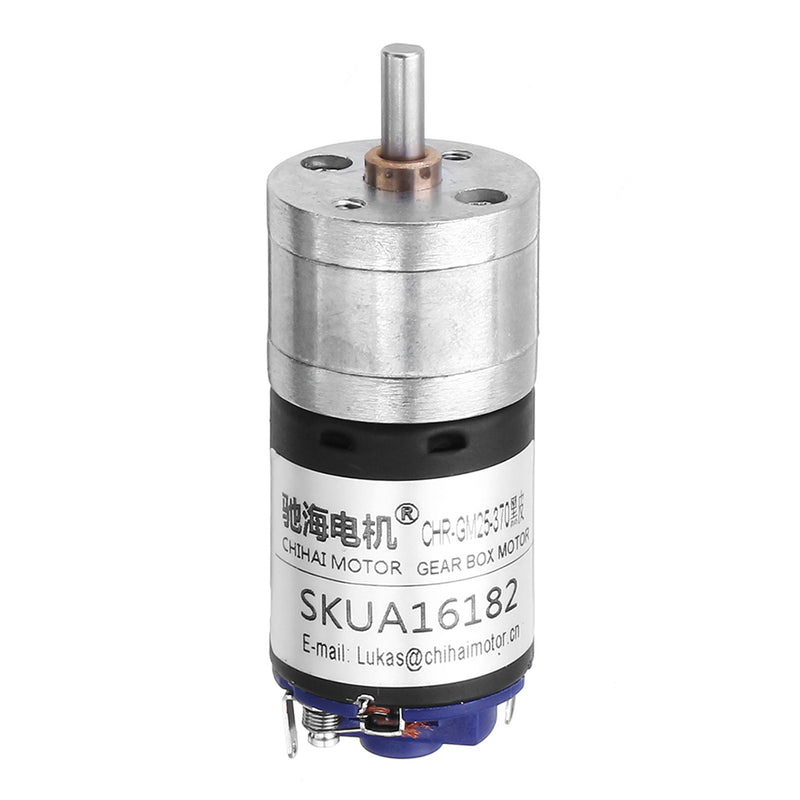

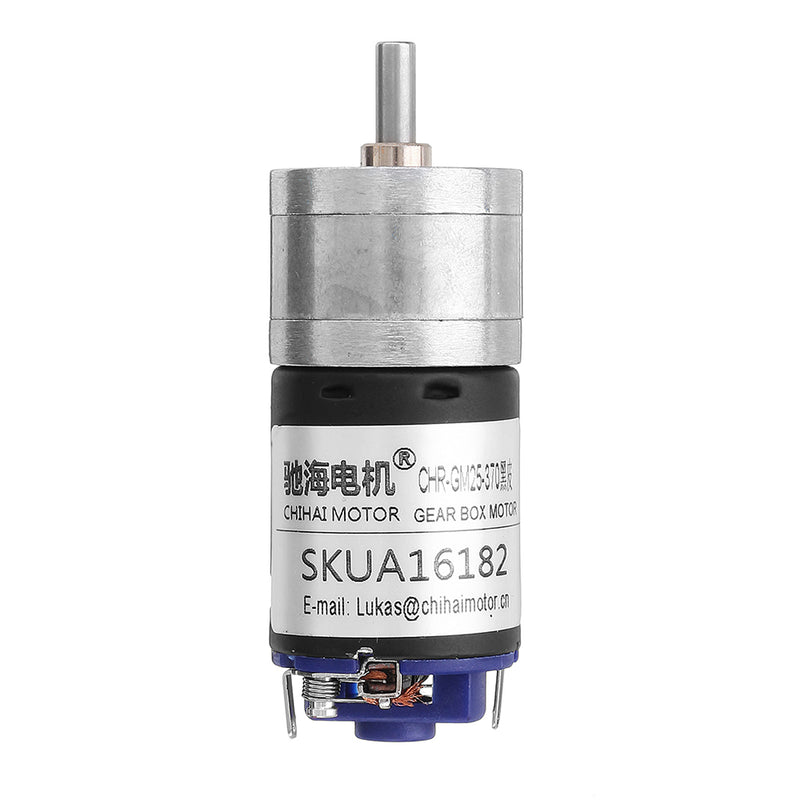

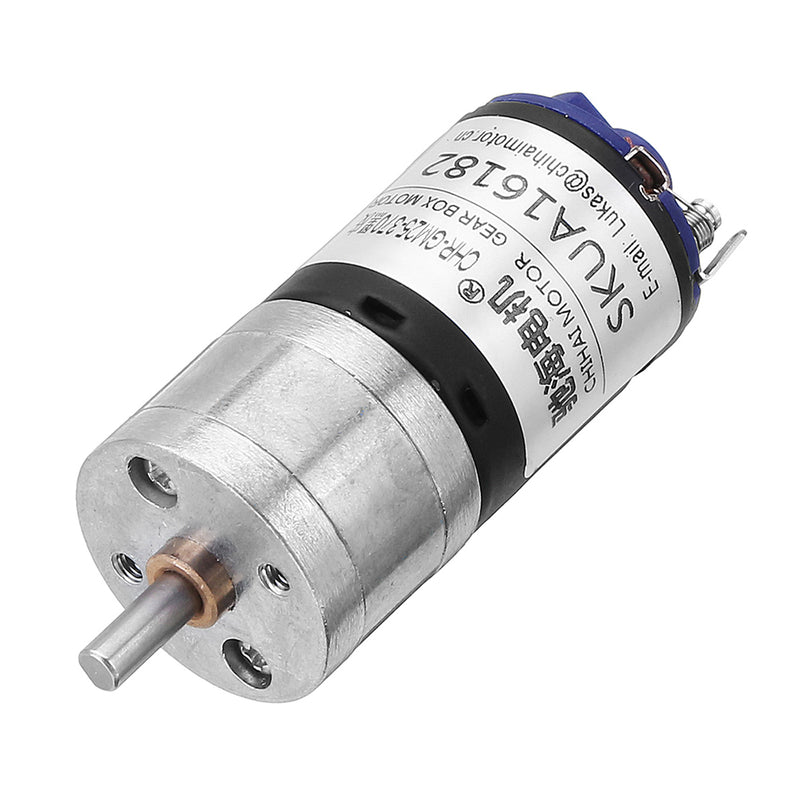

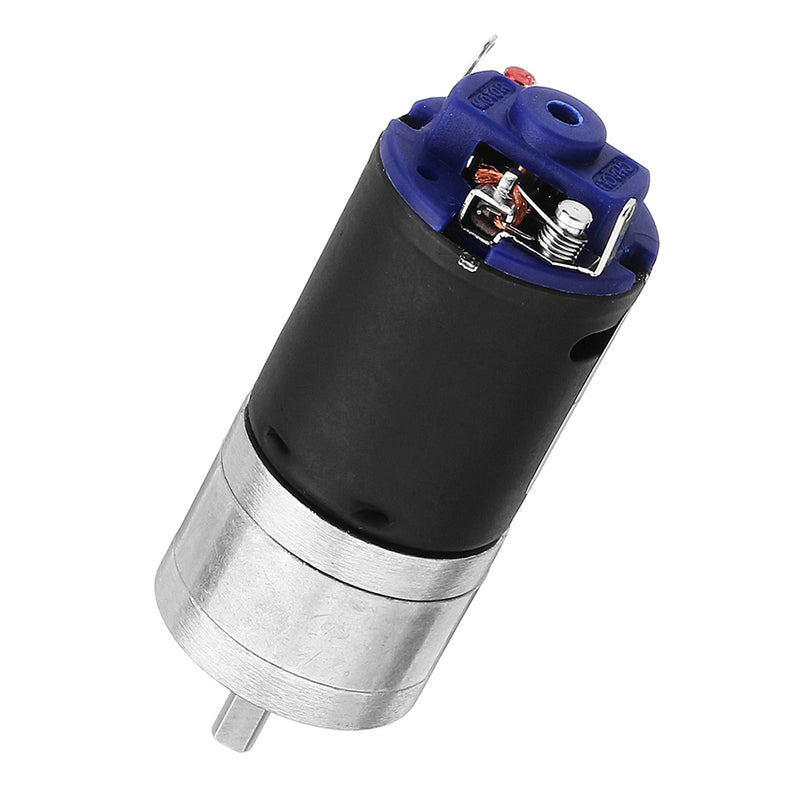

Description:CHIHAI GM25-BK370 12V 2000rpm DC motor, high speed strong magnetic reduction motor.
Specification:
| Type |
CHR-GM25-BK370 |
| Shaft diameter |
4mm, D type |
| Voltage max |
DC 1.5-12V |
| Working voltage |
12V |
| Power max |
26W |
| Reduction ratio |
1:10 |
| No load speed |
2000RPM |
| No-load current |
≤600A |
| Rated torque |
1.1kg.cm(0.10N.m) |
| Rated torque max |
8.0kg.cm(0.8N.m) |
| Rated speed |
1580RPM |
| Rated current |
≤2.7A |
| Plug the plug to turn the current |
≤16.0A |
| Speed reducer length |
19.0L |
| Application |
Office equipment, robot, camera rocker arm, home appliances. |
Features:1. Pure copper wire winding: the rotor part adopts pure copper group with small resistance and strong conductivity,
which increases the motor torque.

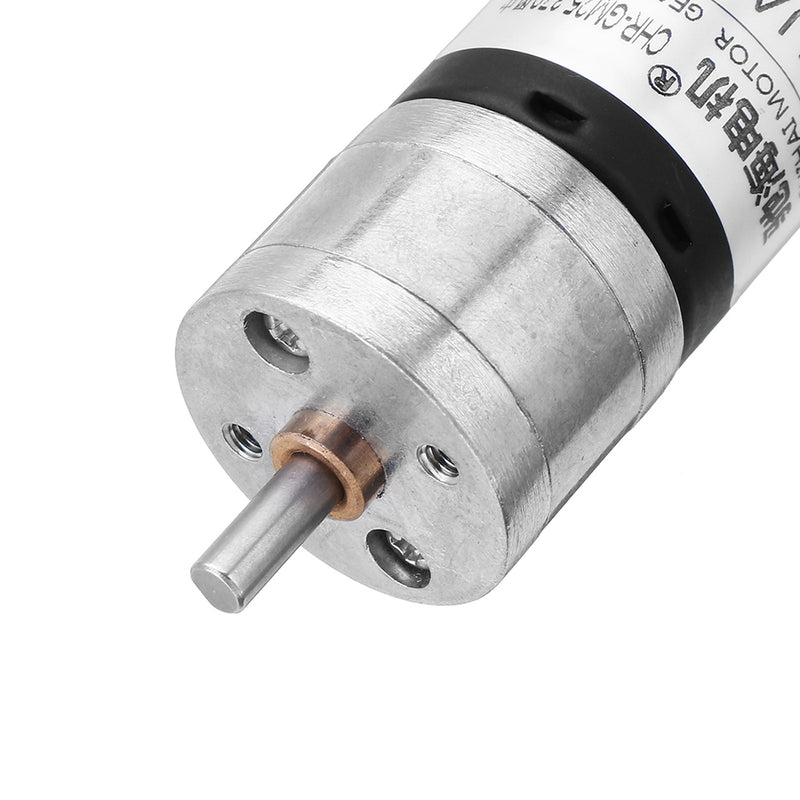

2. D type shaft : D type outlet shaft is more convenient for installation and is not easy to slip, saving installation time.

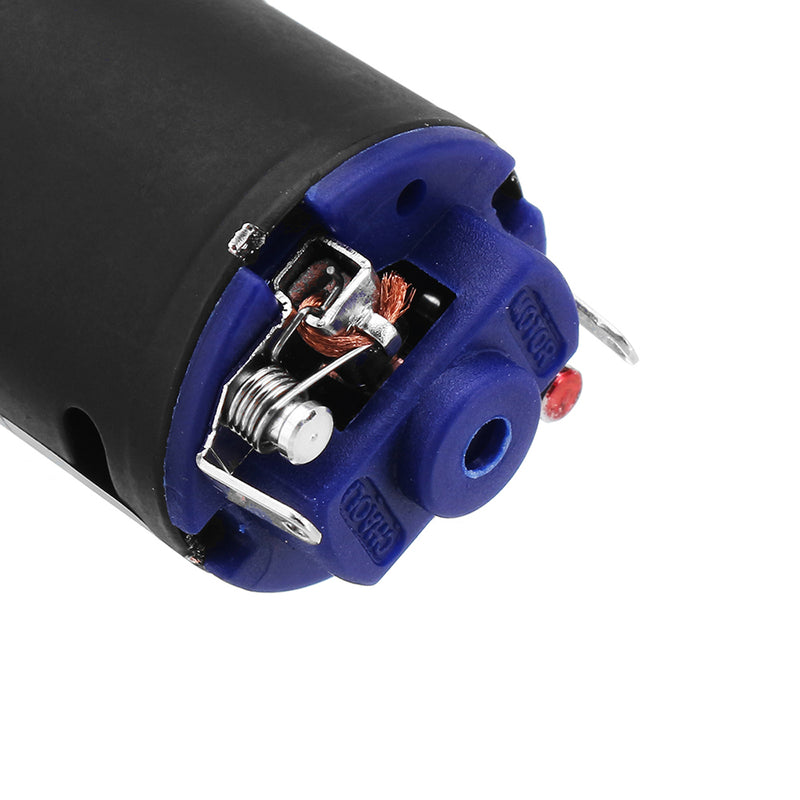

3. Extended carbon brush: tool type extended carbon brush, replaceable.
4. Long life, high torque, adjustable, low noise, positive and negative turn, stable.
Package Included:1 X DC motor
