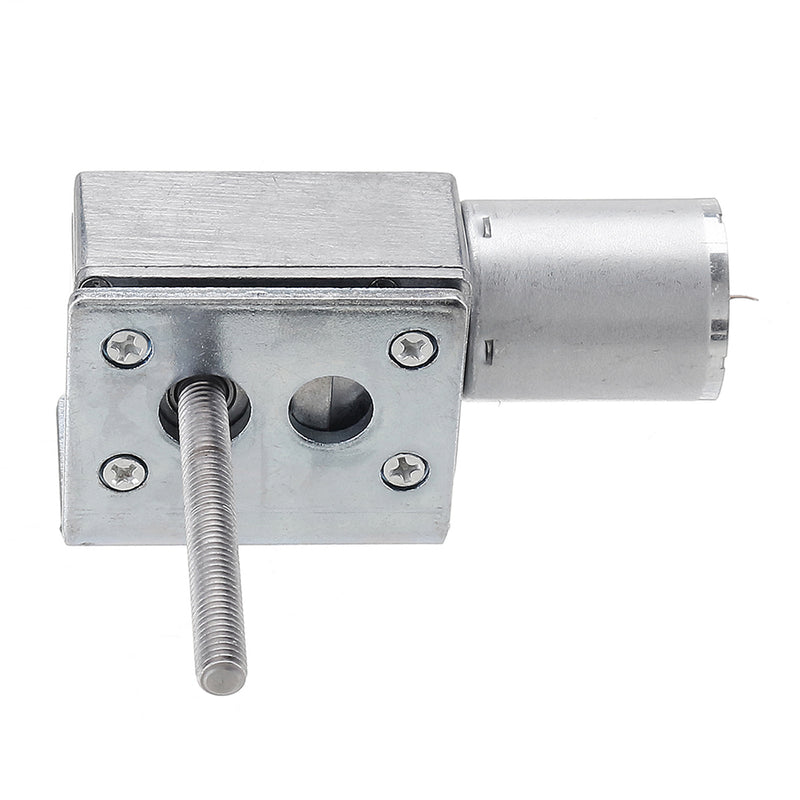

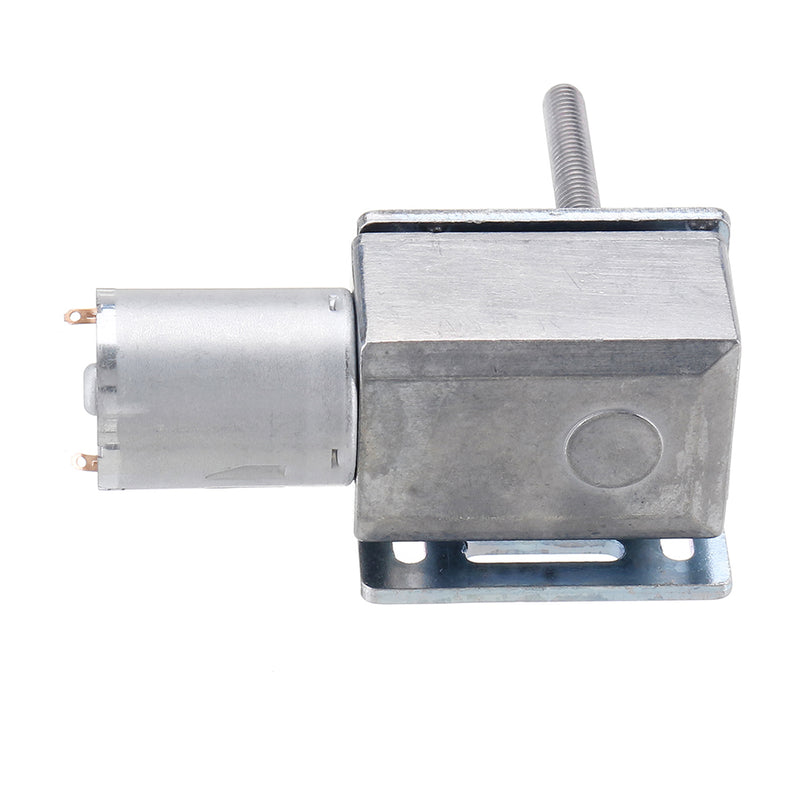

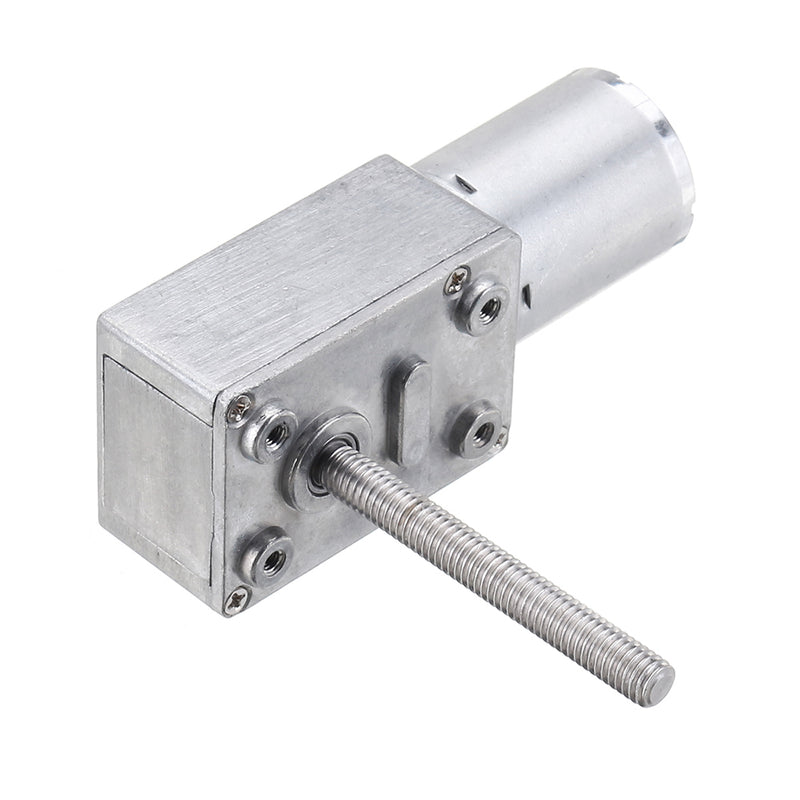

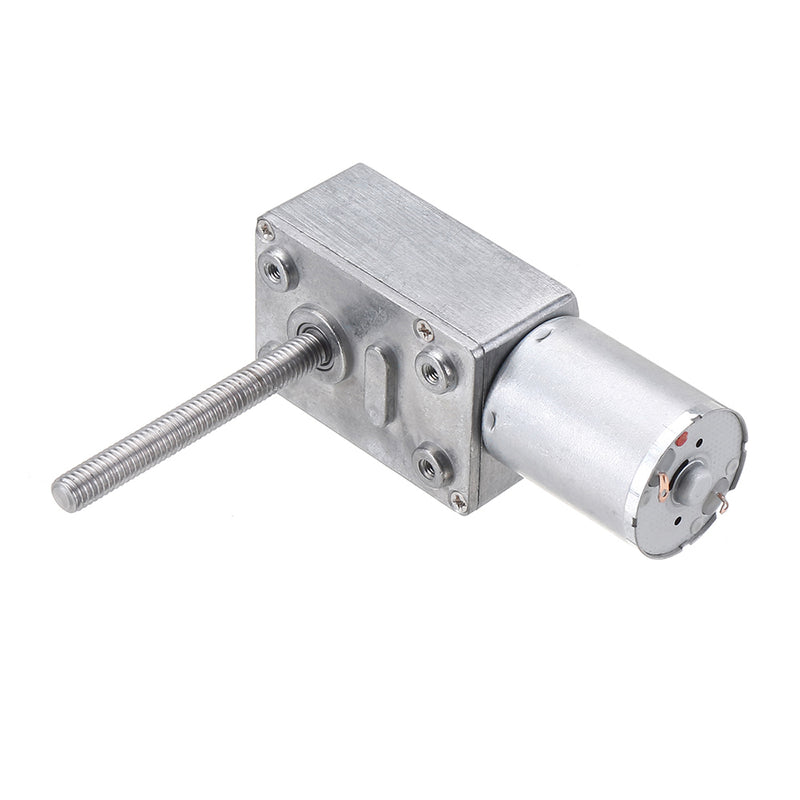

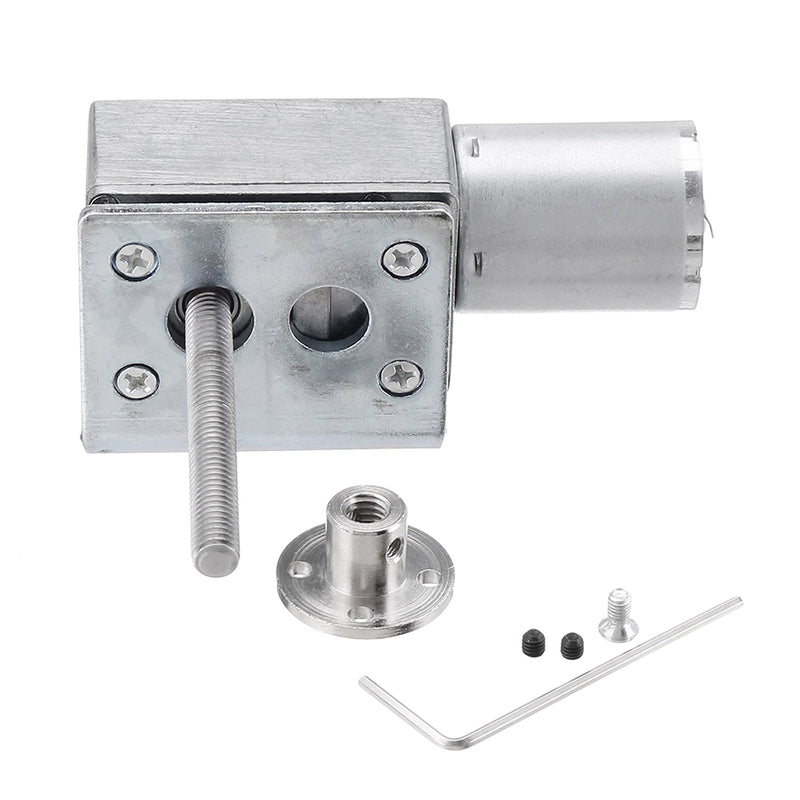

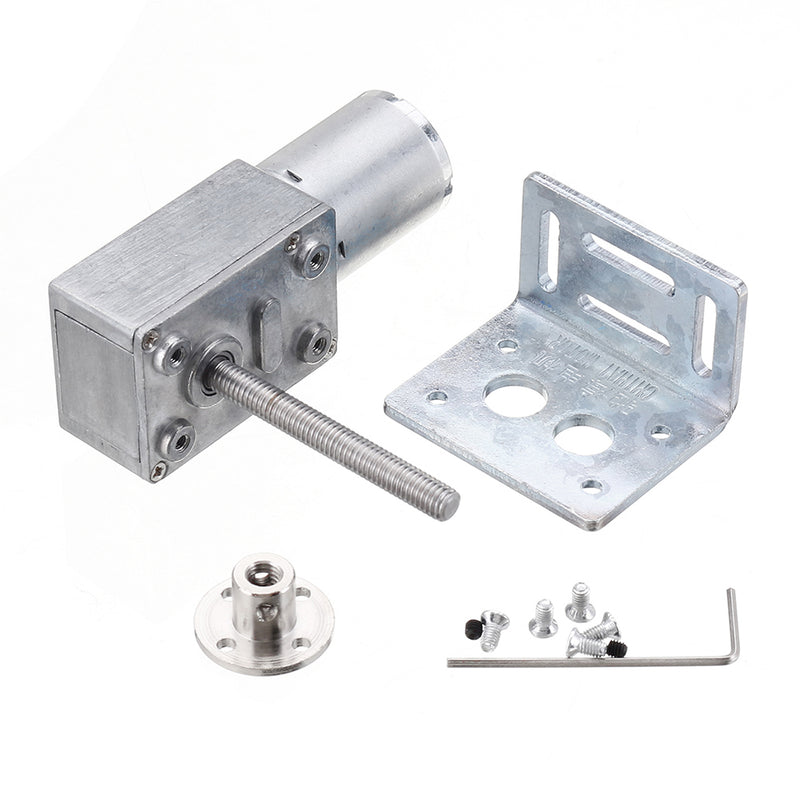

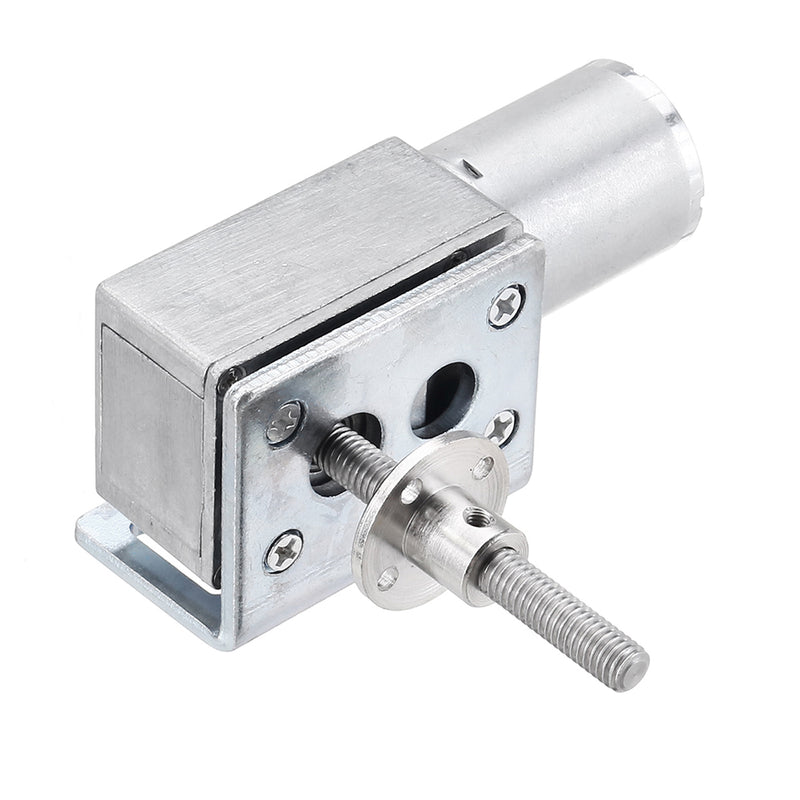

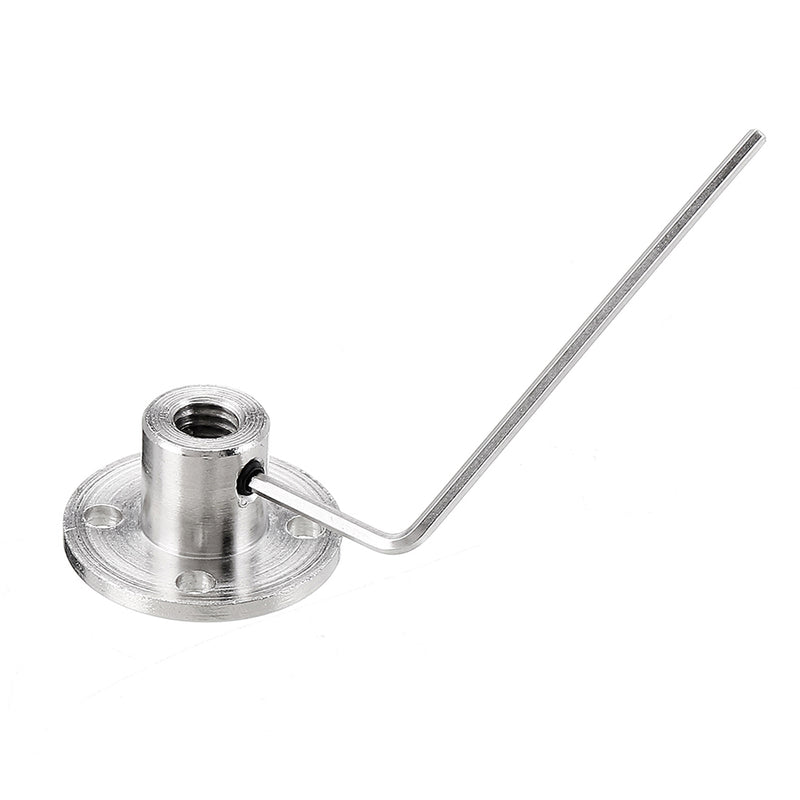

Description:CHIHAI CHW-GW4632-370 DC 24V 75rpm 1:158 Reversible high torque turbo, worm reducer gear motor with bracket and nut.
Specification:
| Type |
CHW-GW4632-370 |
| Shaft diameter |
M6 |
| Shaft length |
55mm |
| Voltage |
DC 1.5V-2.4V |
| Working voltage |
24V |
| Power max |
12W |
| Reduction ratio |
1:158 |
| No-load current |
≤150A |
| No load speed |
75RPM |
| Rated torque |
6.0kg.cm |
| Rated speed |
53RPM |
| Rated current |
≤0.7A |
| Locked-rotor torque max |
≤35.0kg.cm |
| Plug the plug to turn the current |
≤2.0A |
| Application |
Office equipment, robot, camera rocker arm, home appliances. |
Features:1. Worm gear reduction drive, power off self - locking force.
2. Pure copper winding: the rotor is made of pure copper, with small resistance and strong conductivity, which increases the torque of the motor.
3. Thread tapping axis: M6 national standard thread tapping axis, the length can be customized.
4. All metal gear, positive and reverse turn, adjustable speed.
5. Low consumption, energy saving, high torque, low noise, durable, stable power.
Package Included:1 X Worm reducer gear motor
