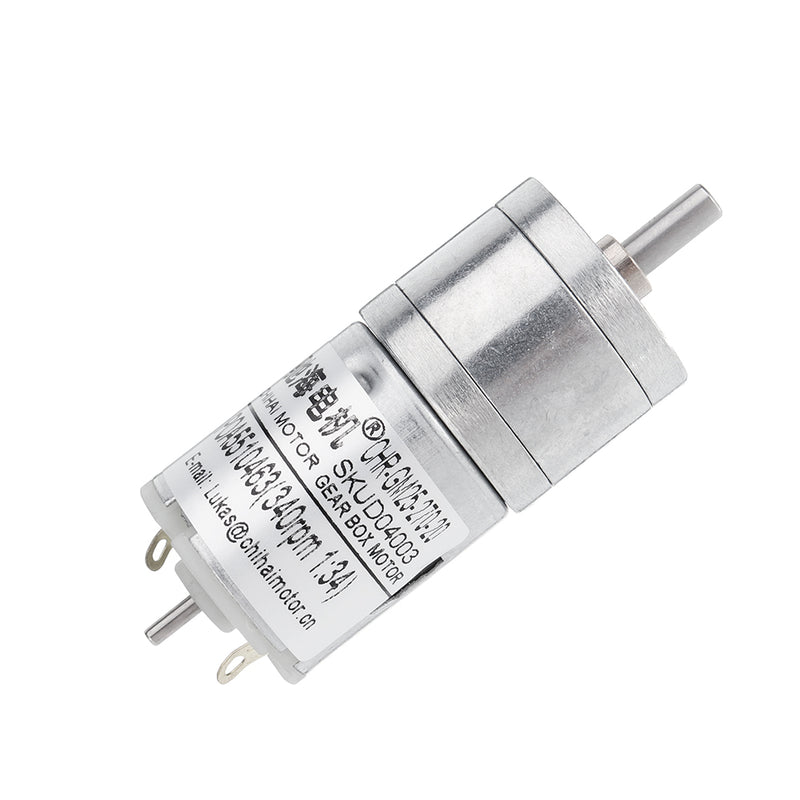

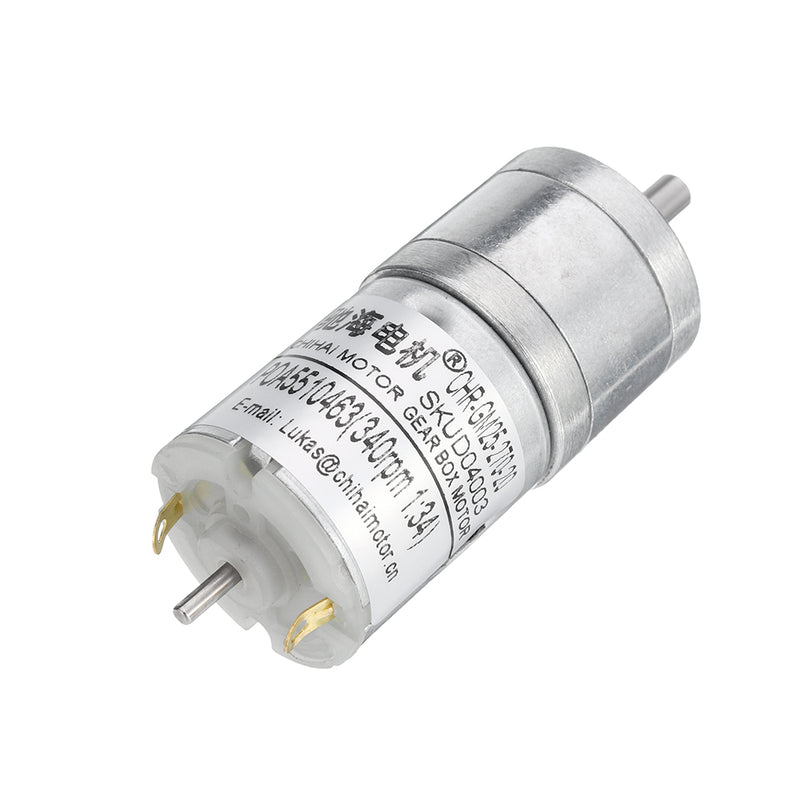

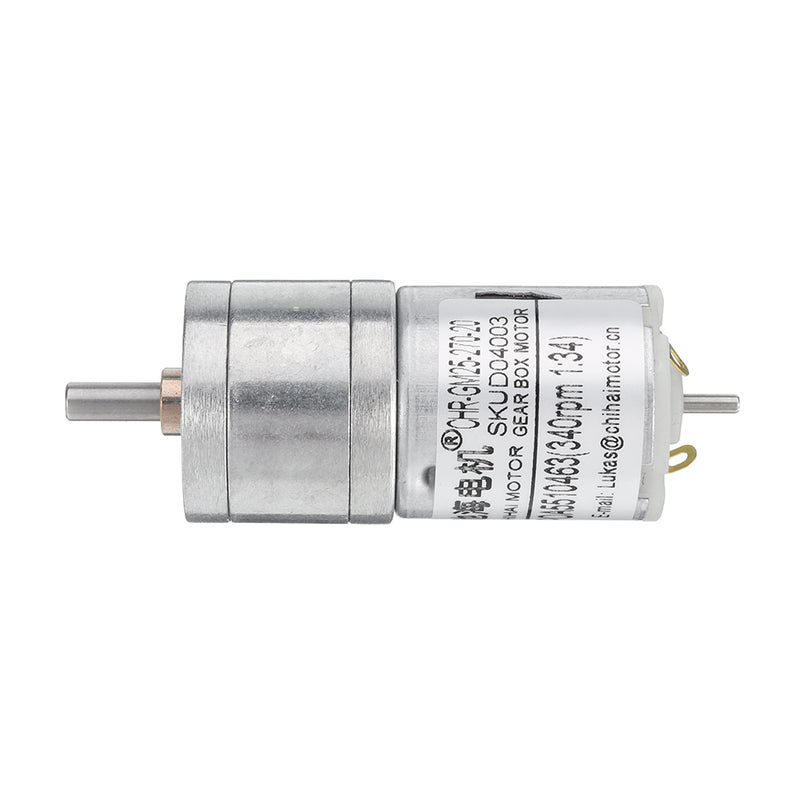

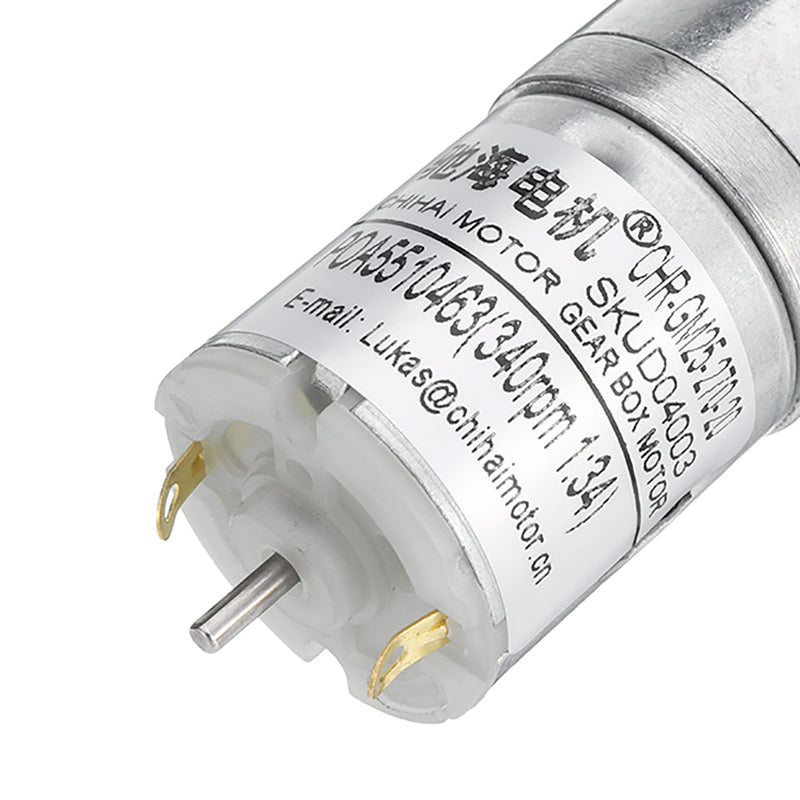

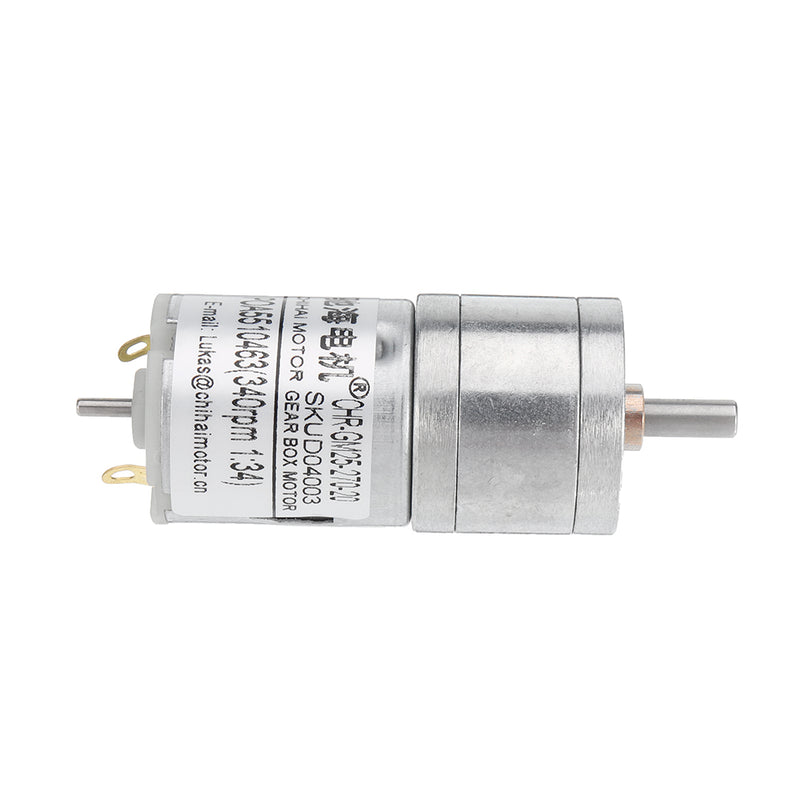

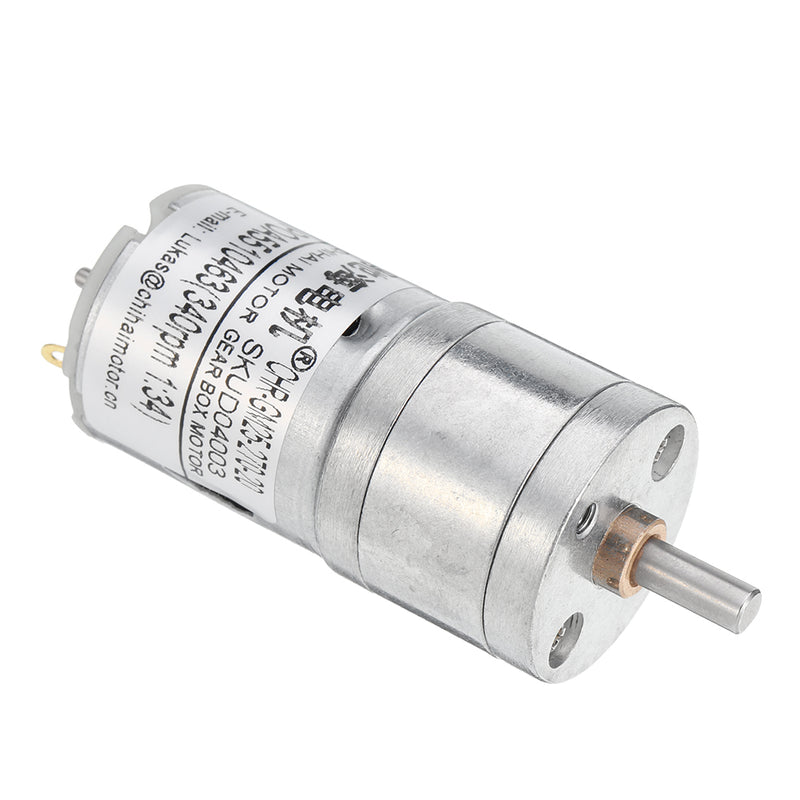

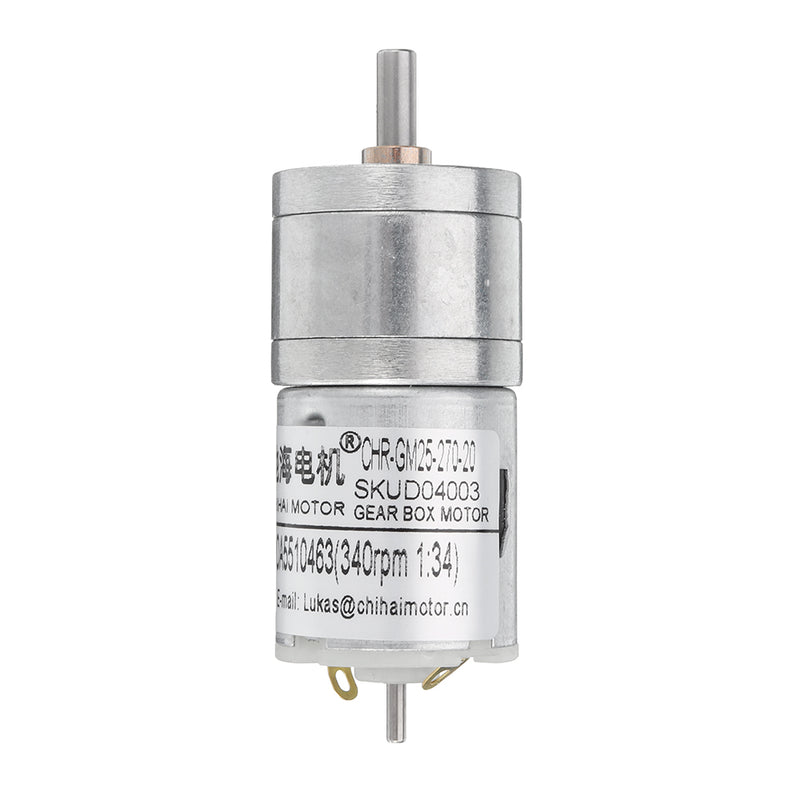

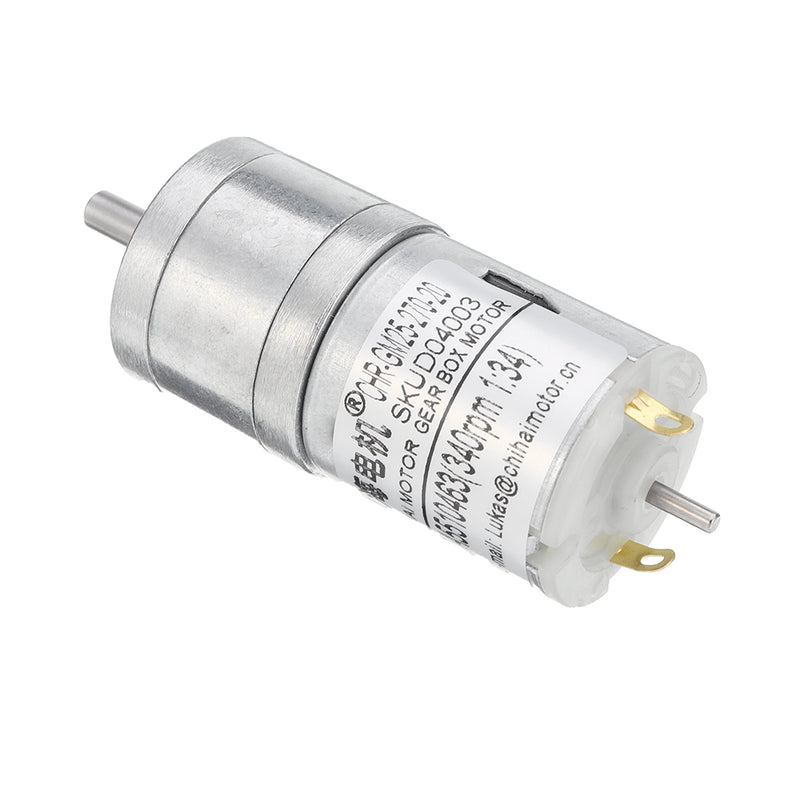

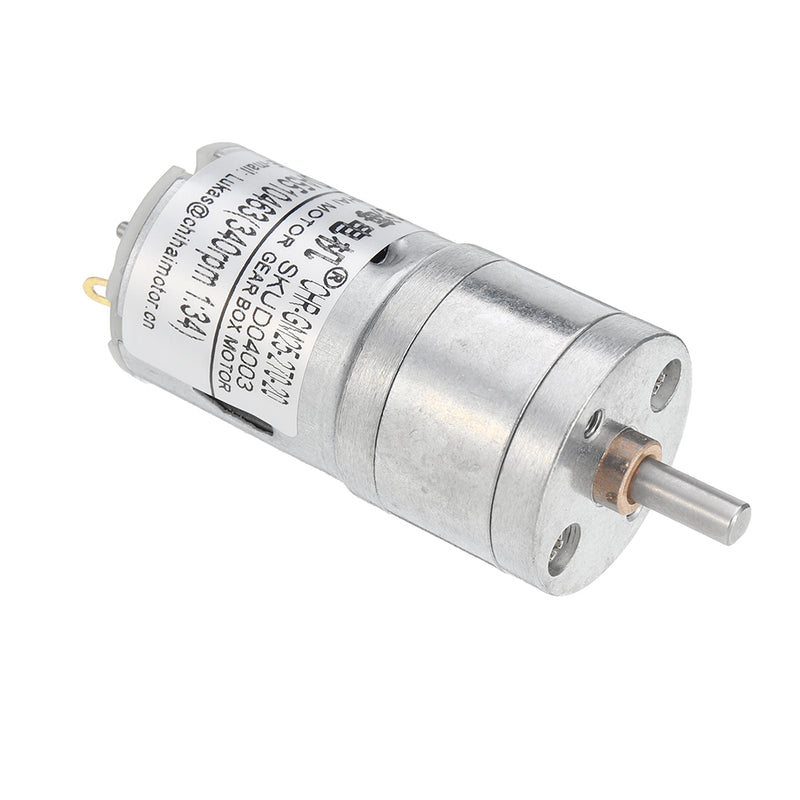

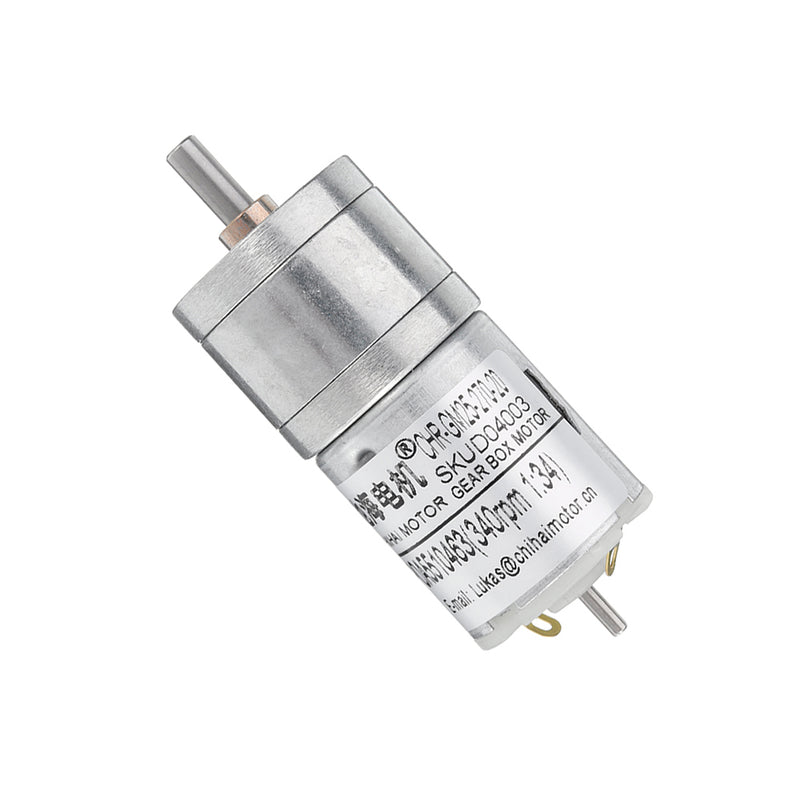

Description:Chihai DC 7.4V 340rpm 550rpm Reduction Motor DC Geared Motor
Specification:Model: CHR-GM25-270-20
Weight: 67g
Quantity: 1pcs
| Type |
A |
B |
| Voltage |
DC 7.4V |
DC 7.4V |
| No-load speed |
340rpm±10% |
550rpm±10% |
| No-load current |
≤150mA |
≤150mA |
| Rated load |
0.7kg.cm |
0.5kg.cm |
| Rated speed |
2300rpm±10% |
3800rpm±10% |
| Rated current |
0.9A max |
0.9A max |
| Rated power |
2.0W |
2.0W |
| Stall torque |
≥2.4kg.cm |
≥1.6kg.cm |
| Stall current |
≤2.5A |
≤2.5A |
| Ratio |
1:34 |
1:20 |
Features:Metal gear reduction mechanism, strong magnetic torque.
High strength, high efficiency, and low thrust conversion loss.
Small resistance and strong conductivity.
Package Included:1 x Reduction Motor
