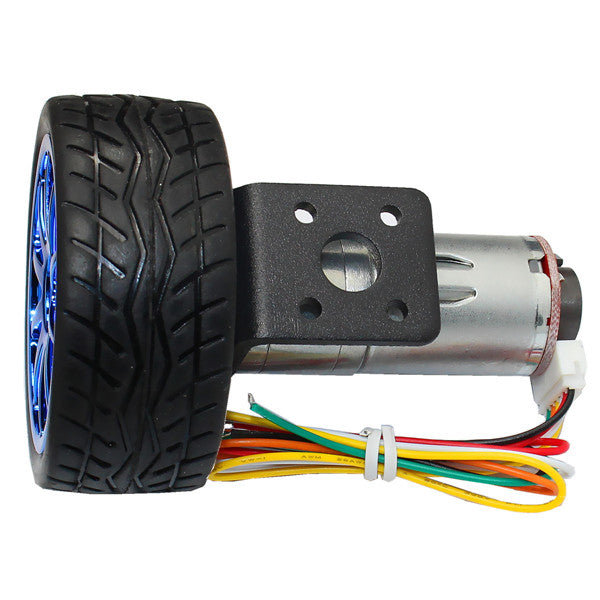

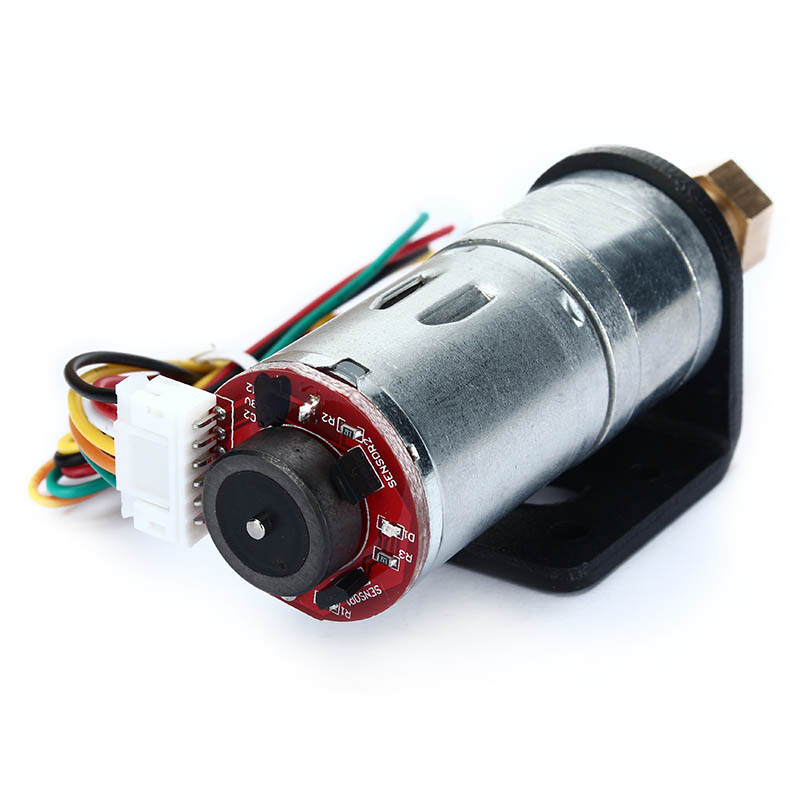

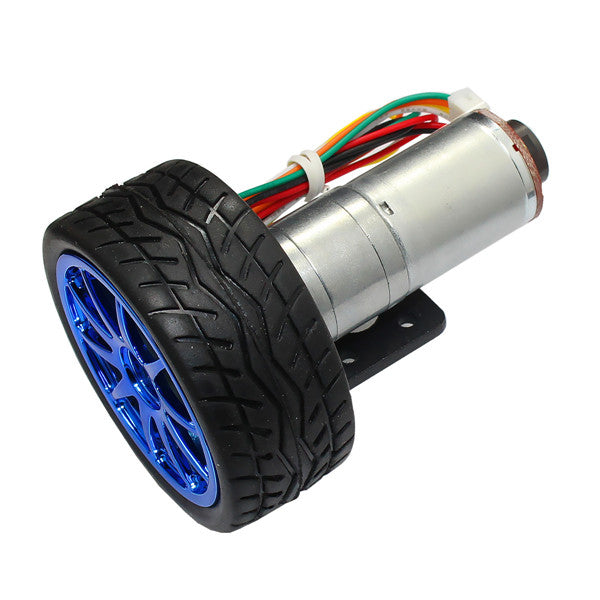

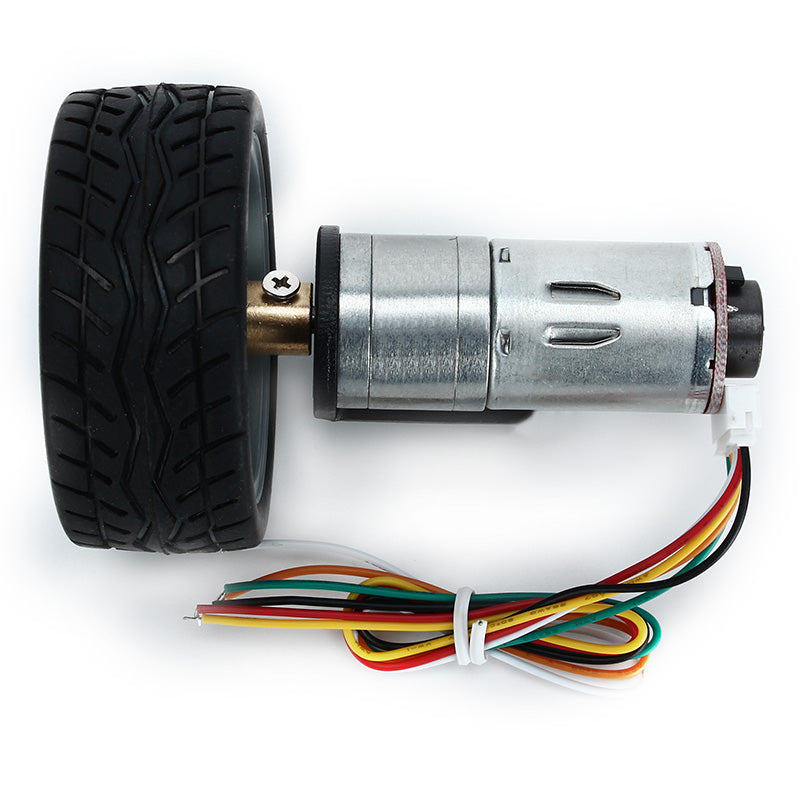

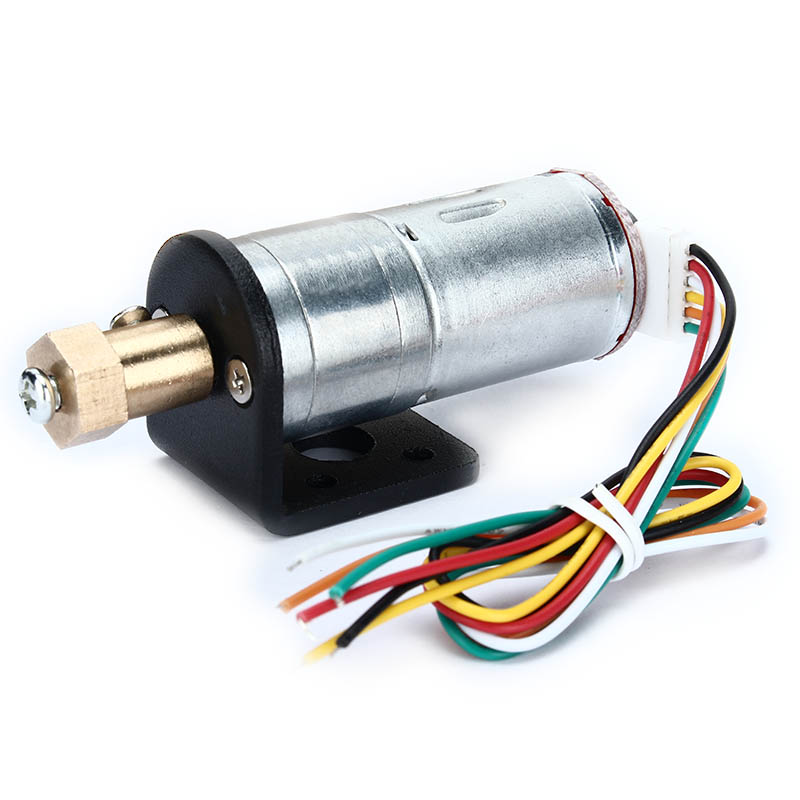

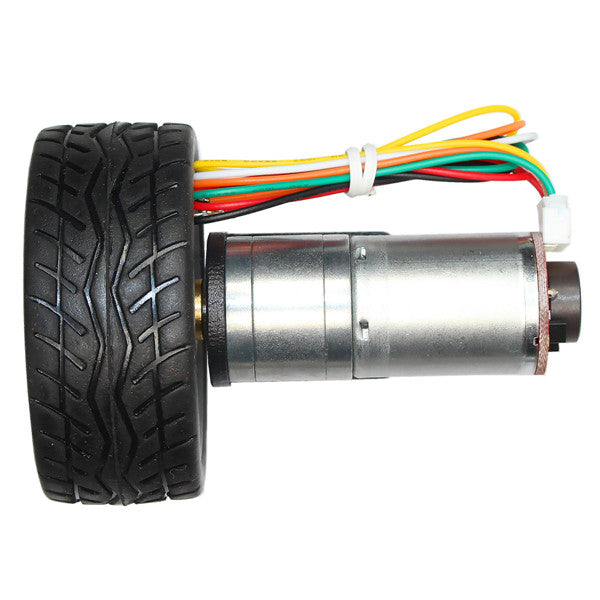

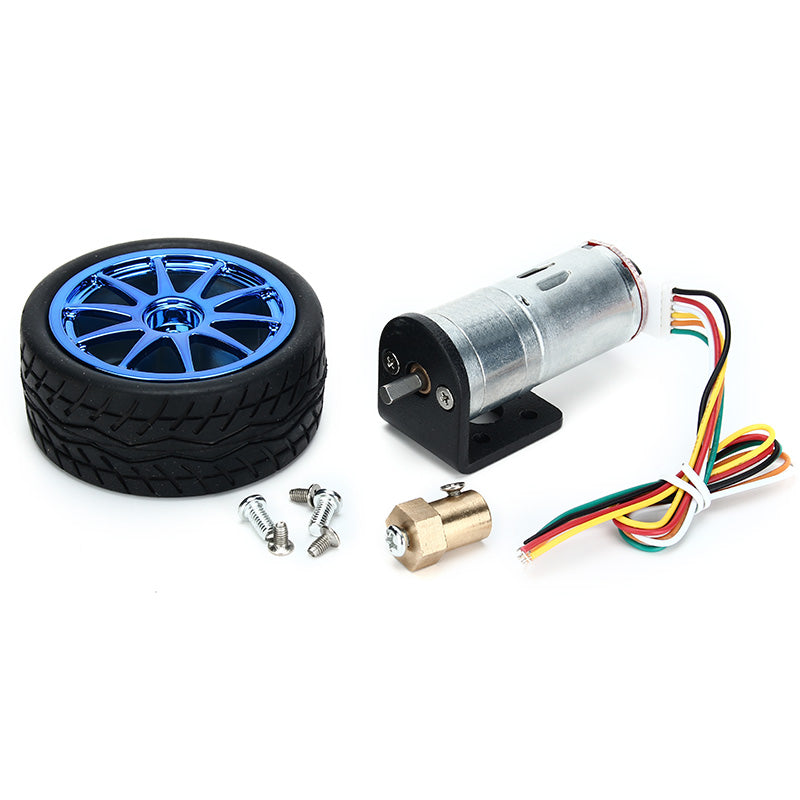

CHIHAI MOTOR 6V 210RPM Encoder Motor DC Gear Motor with Mounting Bracket and Wheel

Description:
6V 210RPM Encoder Motor DC Gear Motor with Mounting Bracket and Wheel

Different speed encoder motors are available. Product ID: 1016183

Specification:

Voltage	DC 6.0V
Speed	210RPM
Shaft diameter	4mm
Length	12mm
Encoder motor end	11 signals
Terminal connection length	20cm

Rated Voltage	DC 6V
No-load Speed	210RPM 0.13A
Max Efficiency	2.0kg.cm/170rpm/2.0W/0.60A
Max Power	5.2kg.cm/110rpm/3.1W/1.10A
Stall Torque	10kg.cm 3.2A
Retarder Reduction Ratio	1 :34
Hall Resolution	Hall x Ratio 34.02 = 341.2PPR

Outline Drawing:

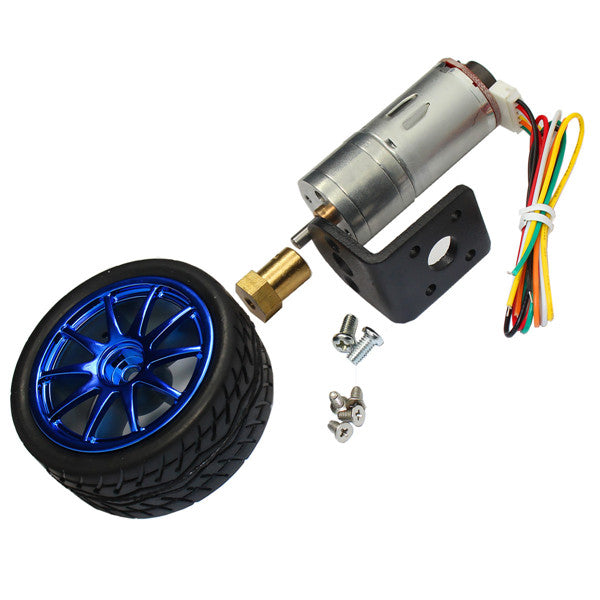

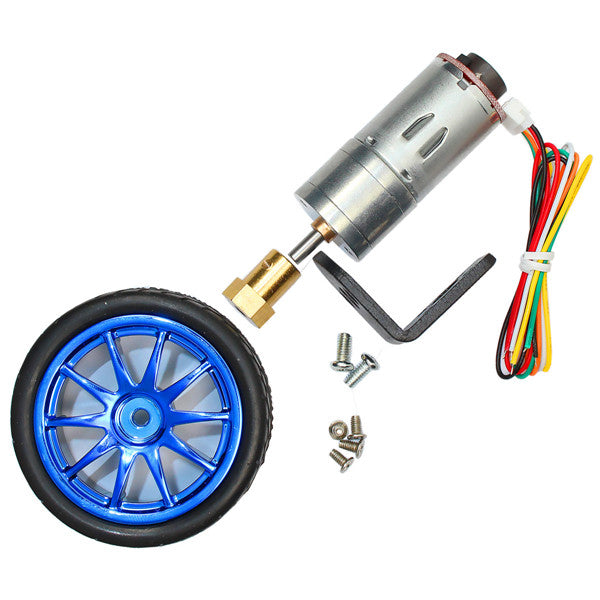

Package Included:
1 x Encoder Motor
1 x Mounting Bracket
1 x Wheel

More Details:
