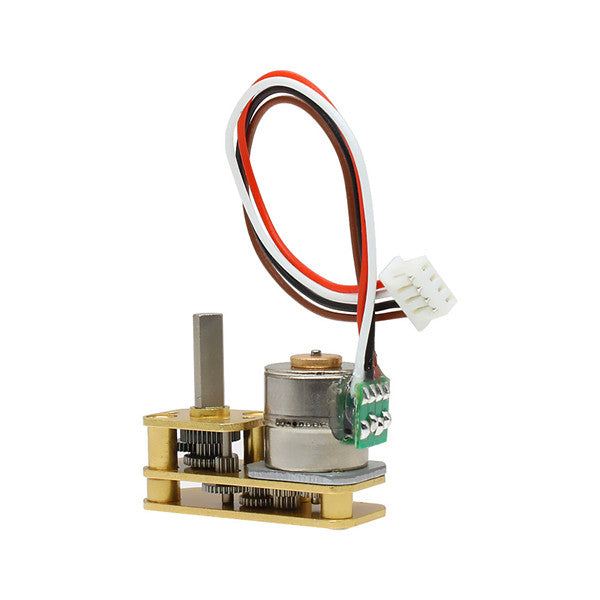

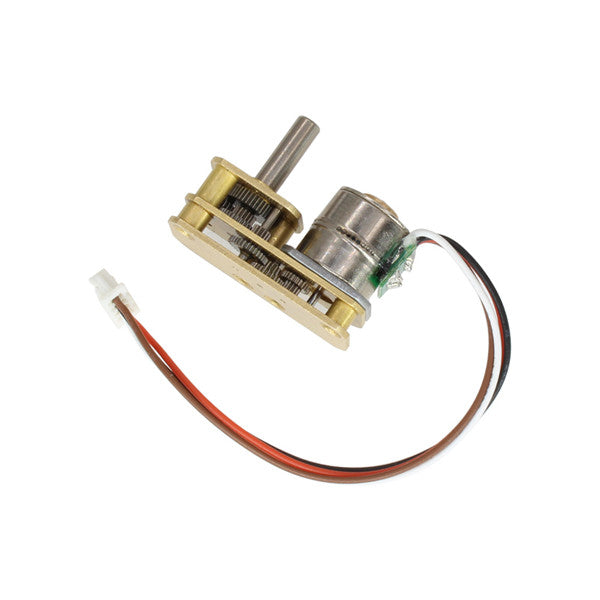

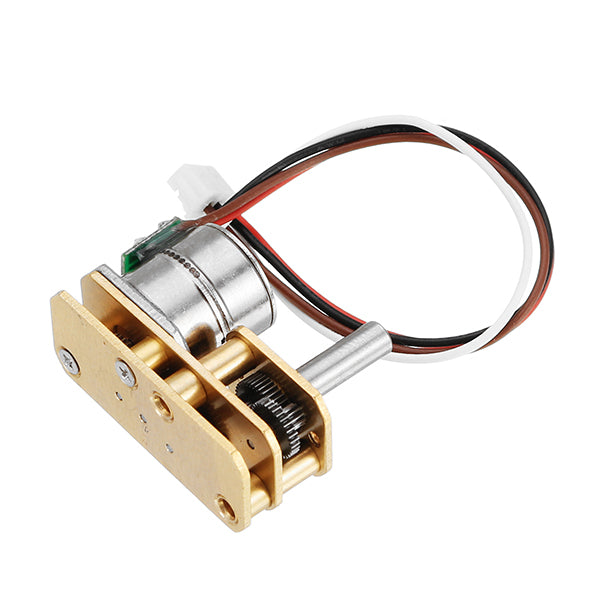

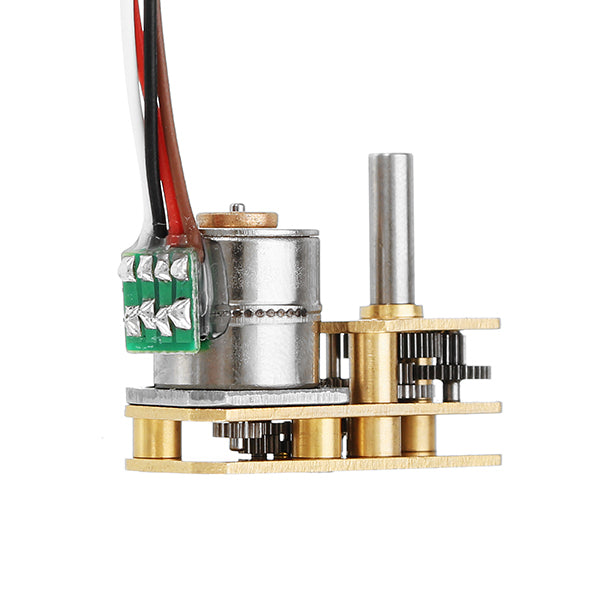

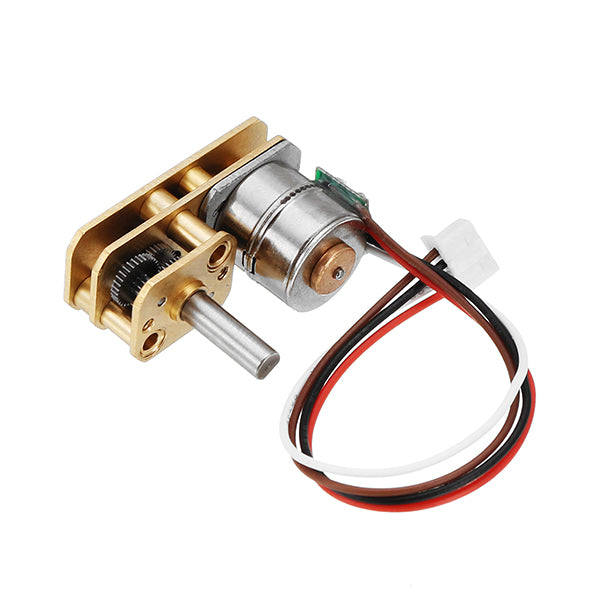

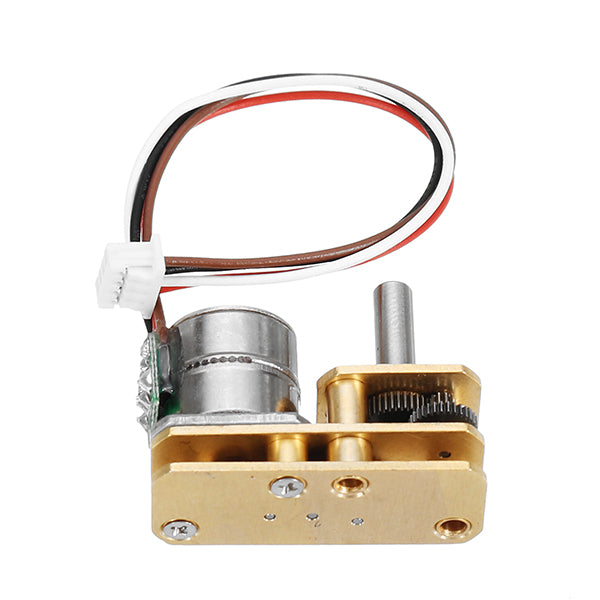

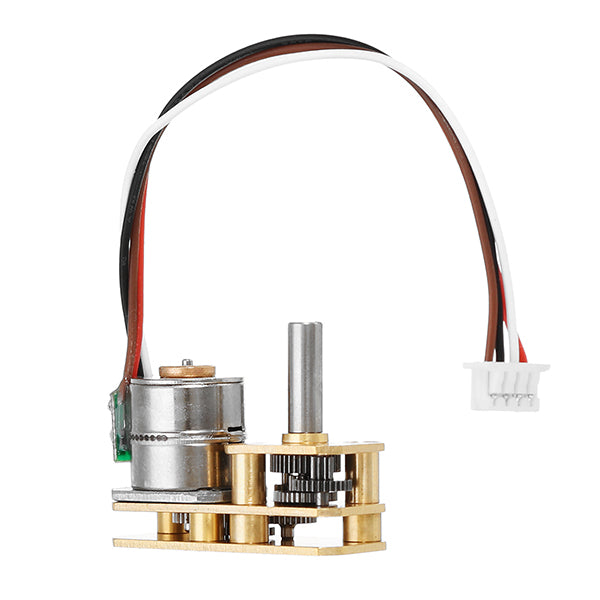

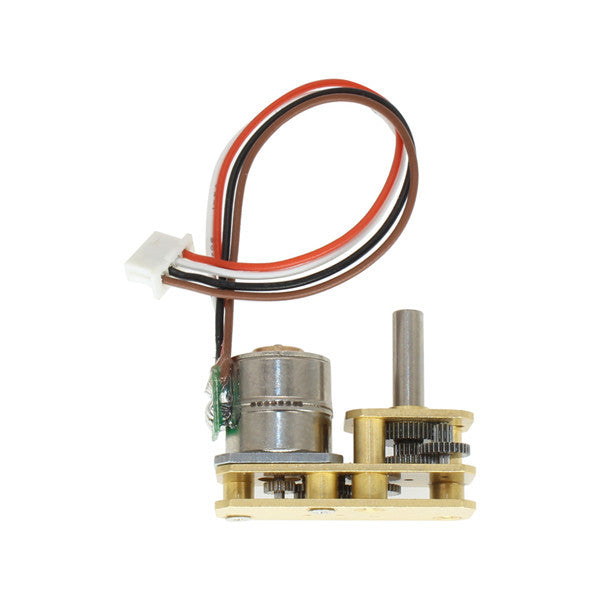

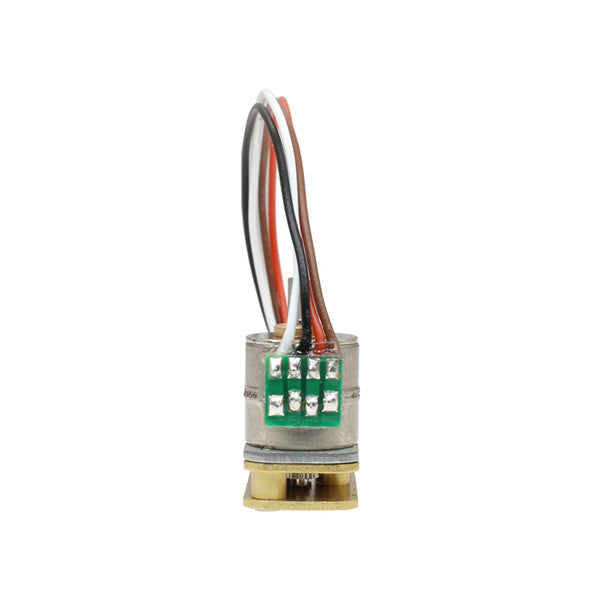

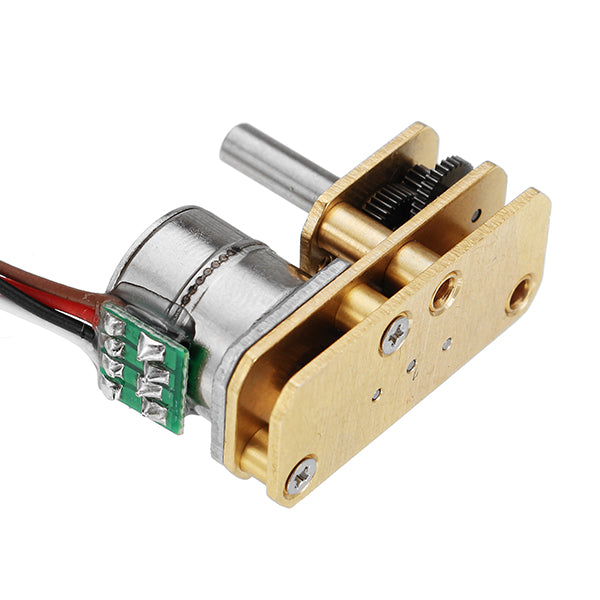

Description:CHIHAI MOTOR DC 5V Brushless Motor 2 Phase 4 Wire Stepper Motor
Specification:
| Model |
CHS-GM1024-10BY |
| Working voltage |
DC 5V |
| Phase |
2 phase 4 wire |
| Reduction ratio |
1:100 |
| Step angle |
0.18° |
| Phase current |
128mA/phase |
| Phase resistance |
39±7%ohm/phase |
| Phase inductance |
14.3mH/phase |
| Holding torque |
1.10kgf.cm |
| Pull out torque |
0.30kgf.cm |
| Max starting frequency |
More than 1200pps |
| Response frequency |
More than 900pps |
Features:2 phase 4 wire motor with metal gear.
Can be positive and negative rotation.
Can adjust speed.
UEW copper wire, 1.25-4pin.
Package Included:1 x Stepper Motor
