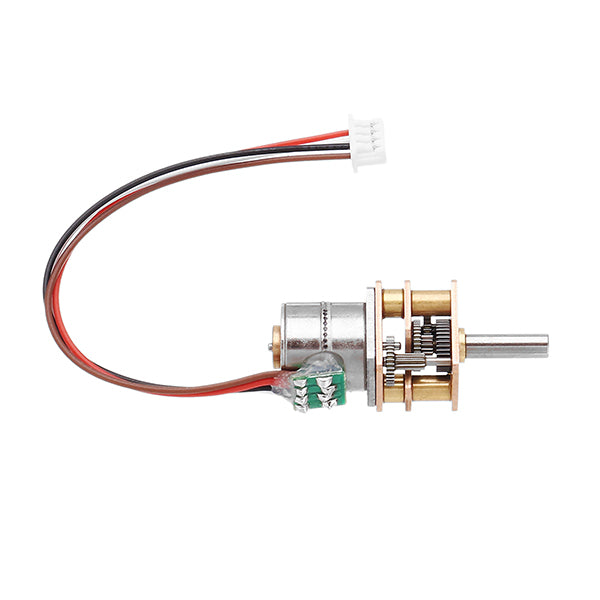

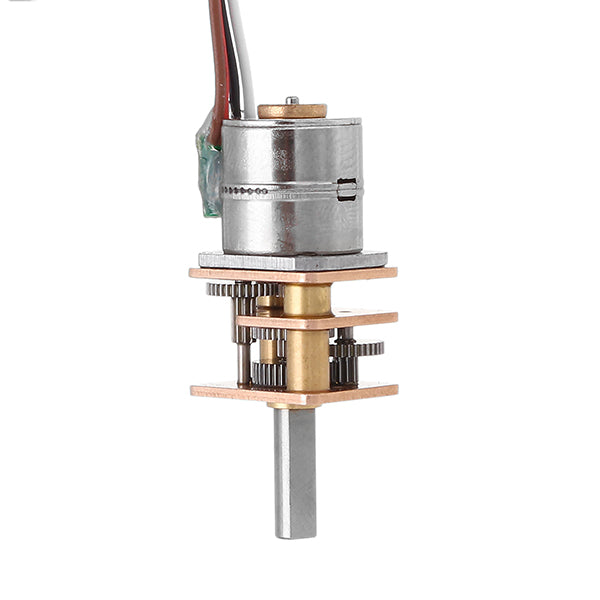

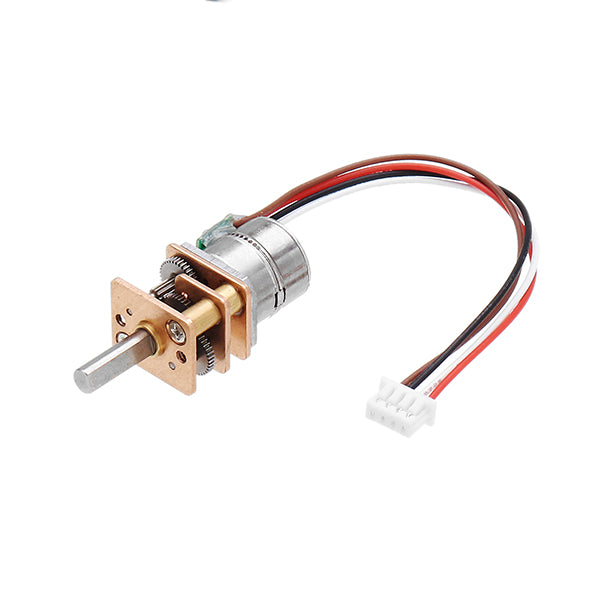

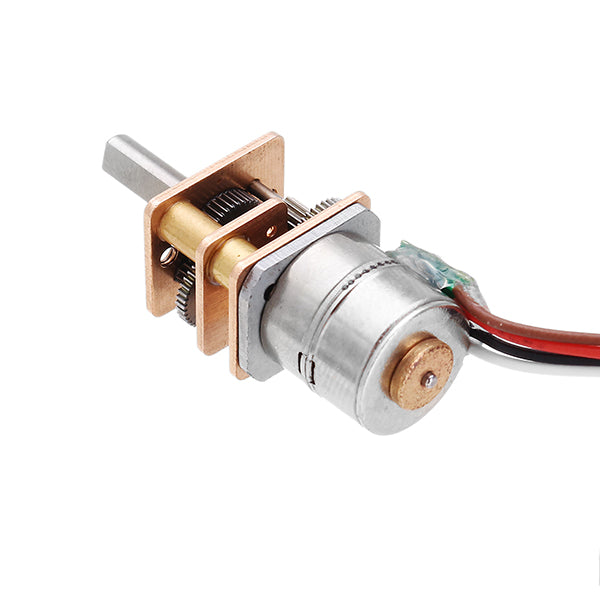

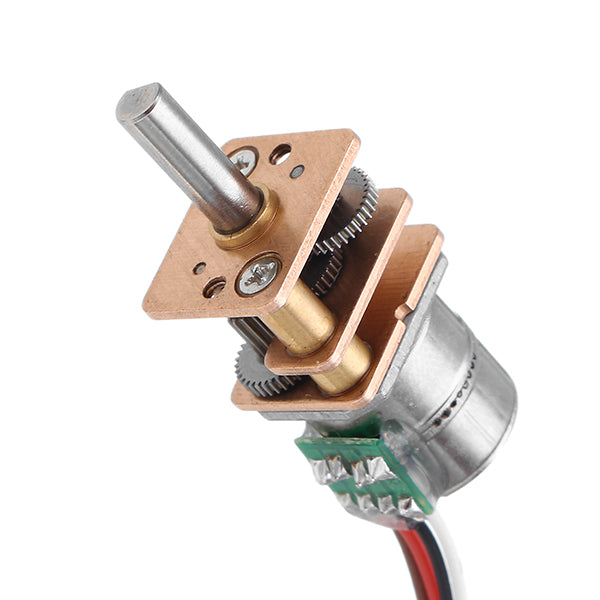

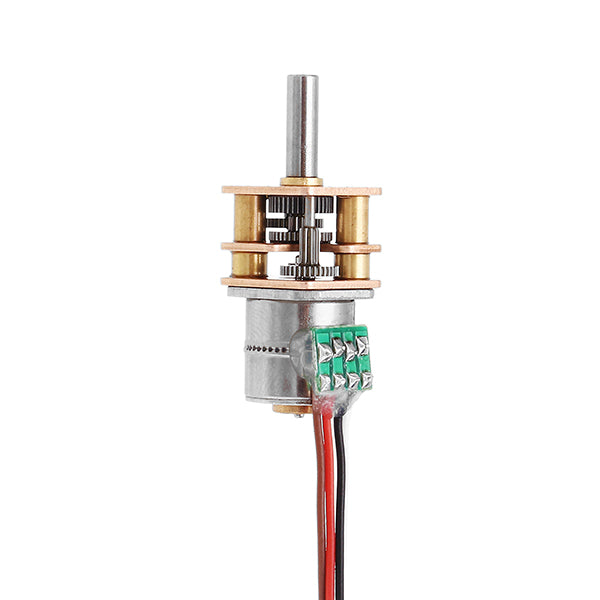

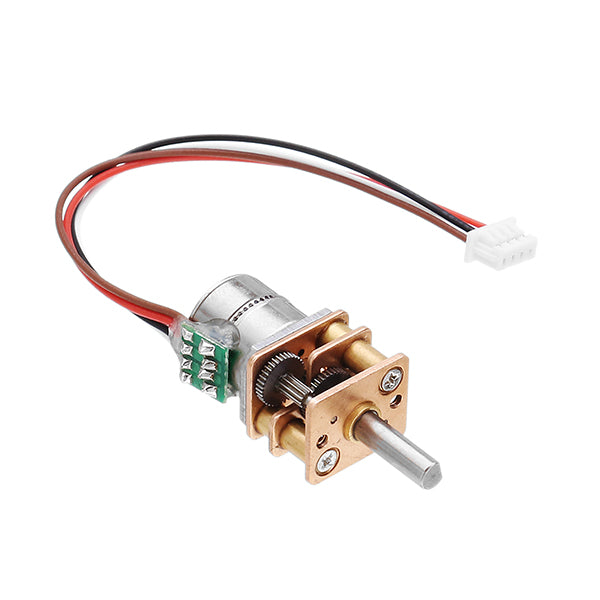

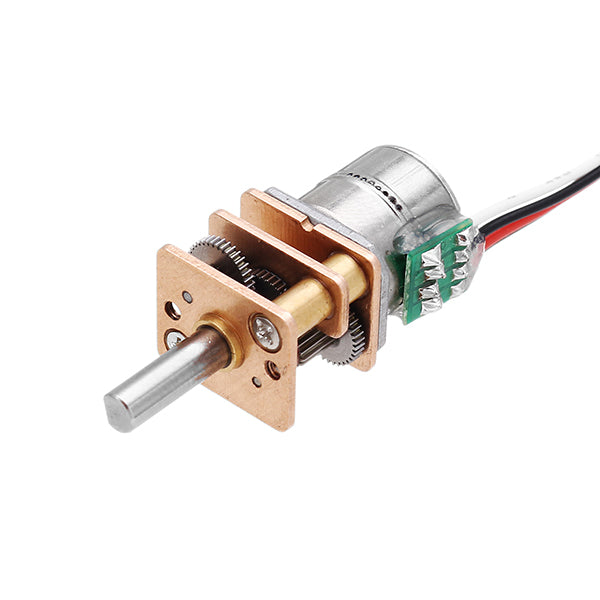

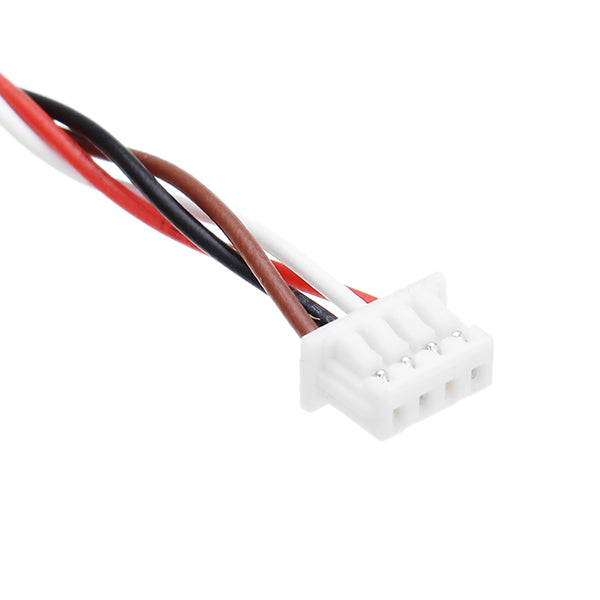

Description:Chihai Motor DC 5V Electric Brushless Gear Reduction Motor Stepper Motor
Specification:
| Model |
CHS-GM12-10BY |
| Voltage |
DC 5V |
| Reduction ratio |
1:100 |
| Phase |
2 phase 4 wire |
| Step angle |
0.18° |
|
Phase current
|
128mA/phase |
| Phase resistance |
39±7%ohm/phase |
| Phase inductance |
14.3mH/phase |
| Holding torque(kgf.cm) |
1.20 |
| Pull out torque |
0.30 |
| Max starting frequency |
More than 1200pps |
| Response frequency |
More than 900pps |
Features:2 phase 4 wire motor.
Durable and long service life.
Package Included:1 X Gear Reduction Motor
More Details:
