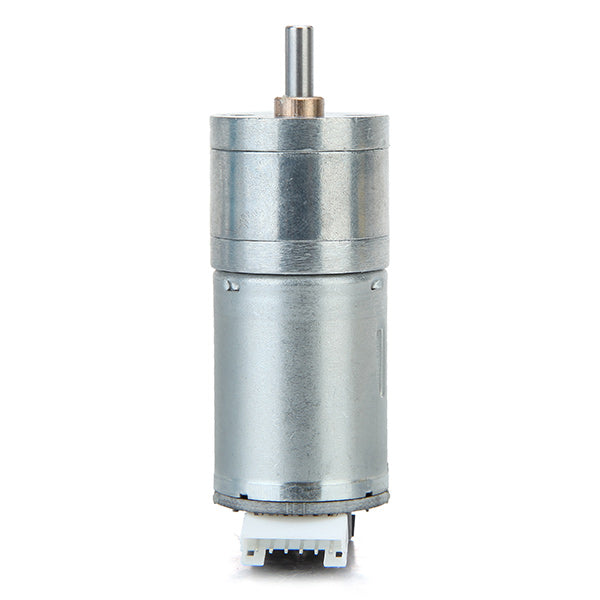

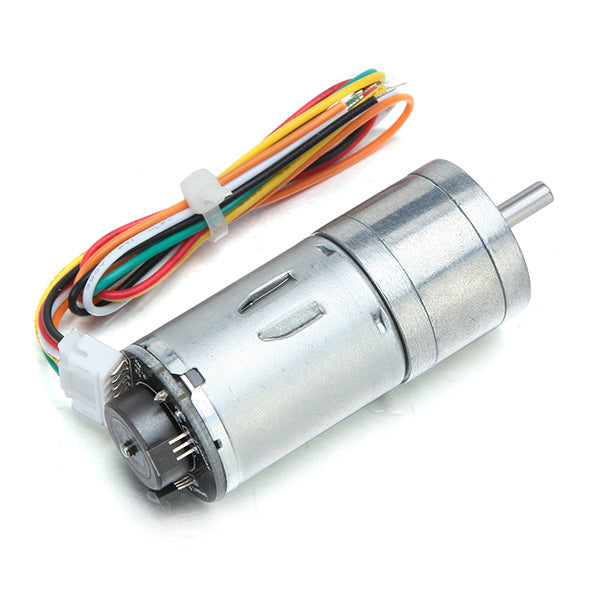

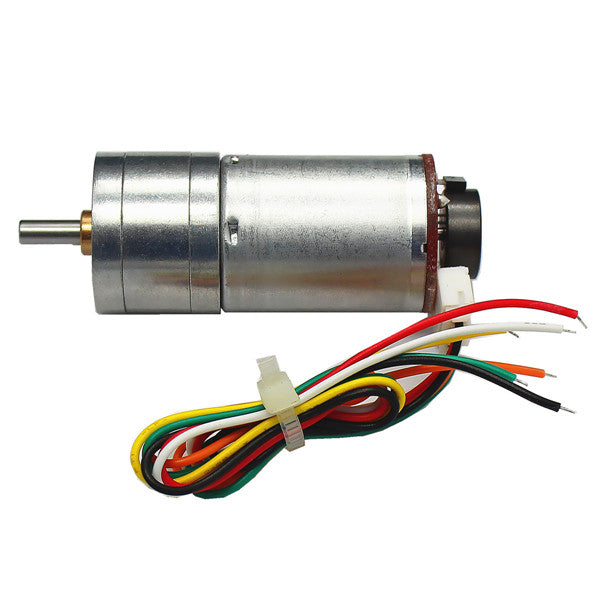

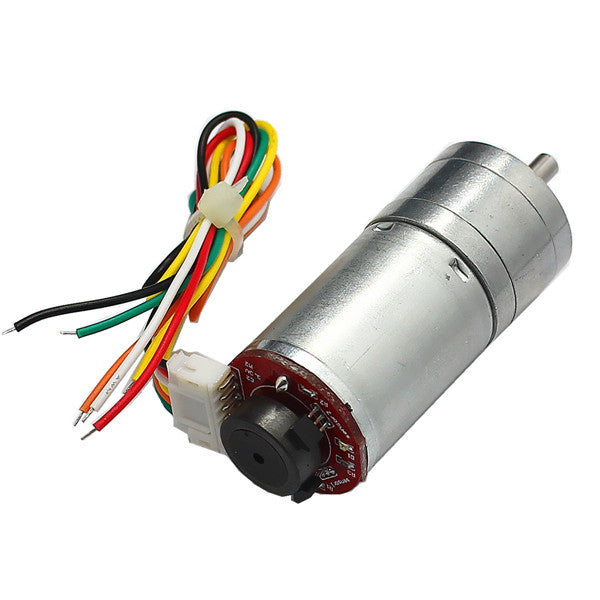

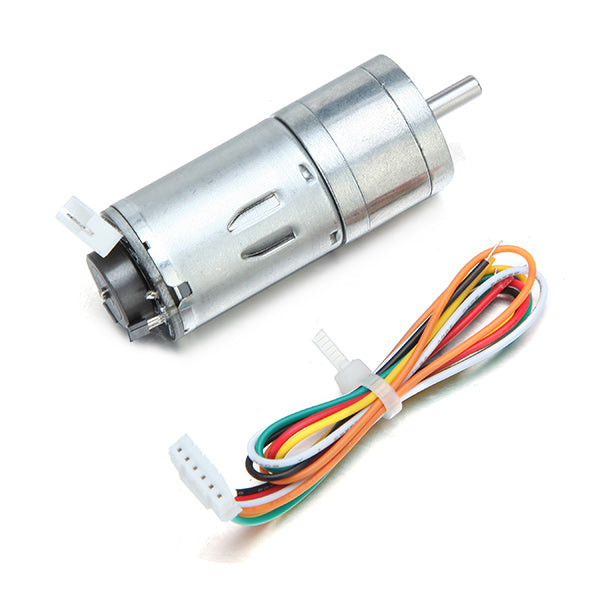

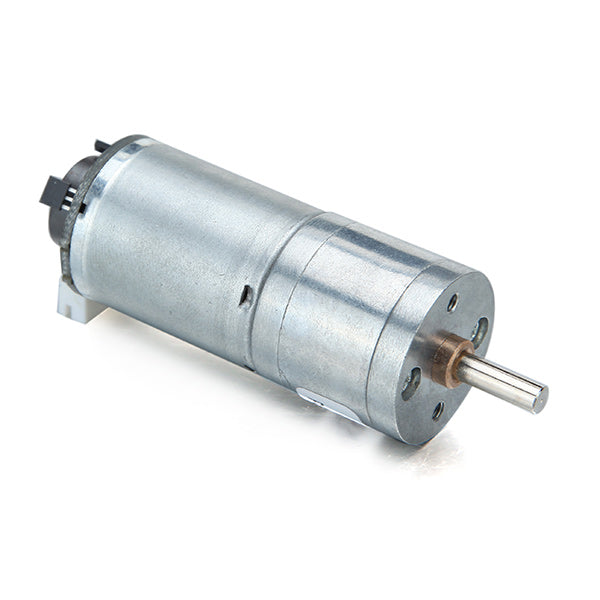

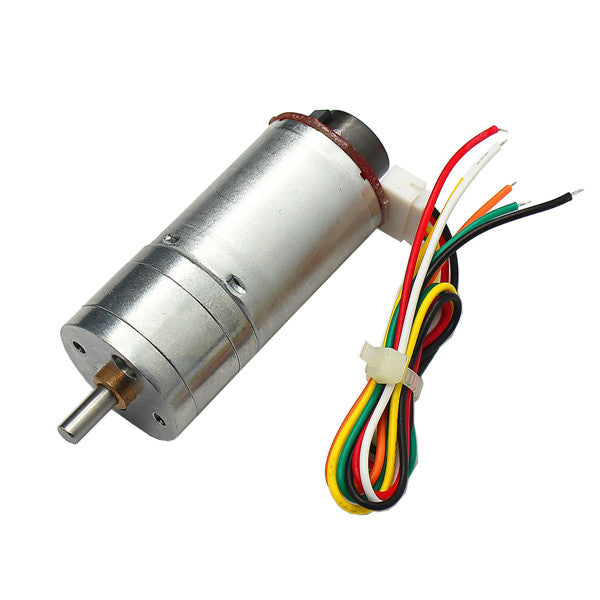

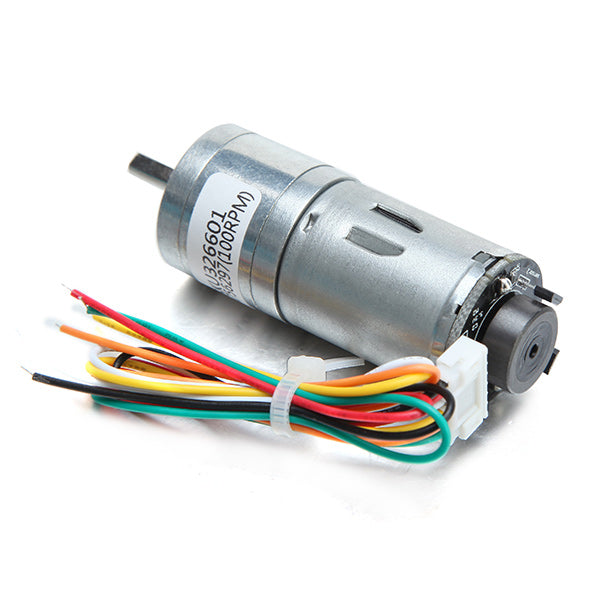

CHIHAI MOTOR GM25-370 DC Gear Motor 6V 100/210/300RPM Encoder Motor

Description:
CHIHAI MOTOR 6V 100/210/300RPM Encoder Motor DC Gear Motor

Fixed Support Mounting Bracket for This Encoder Motor: Product ID: 1044065

Specification:
Brand: CHIHAI MOTOR
Model: GM25-370
Voltage: DC 6.0V
Speed: 100/210/300RPM
Shaft diameter: 4mm
Length: 12mm

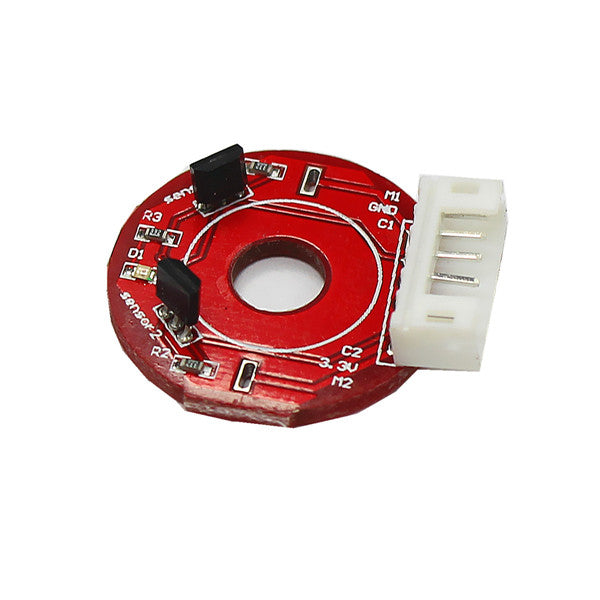

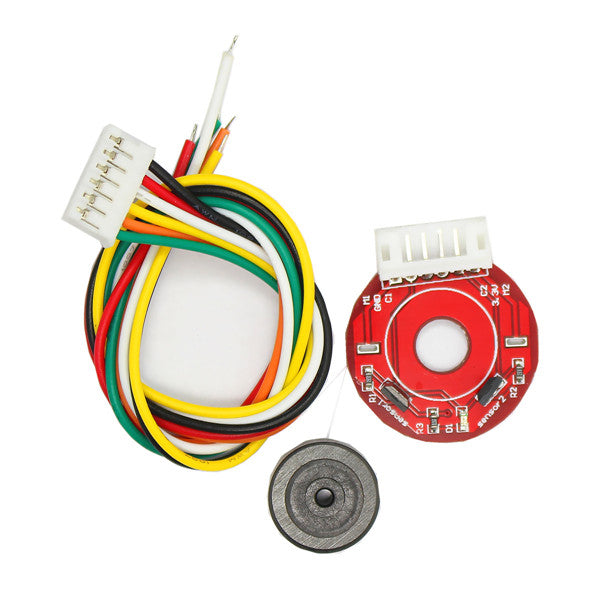

Encoder motor end 11 signals
Terminal connection length 20cm

Rated Voltage	DC 6V	DC 6V	DC 6V
No-load Speed	100RPM 0.13A	210RPM 0.13A	300RPM 0.1A
Max Efficiency	1.0kg.cm/80rpm/1.7W/0.5A	2.0kg.cm/170rpm/2.0W/0.60A	0.7kg.cm/245rpm/1.2W/0.4A
Max Power	3.0kg.cm/55rpm/2.8W/1.0A	5.2kg.cm/110rpm/3.1W/1.10A	1.8kg.cm/160rpm/2W/0.8A
Stall Torque	6.5kg.cm 3.0A	10kg.cm 3.2A	3.6kg.cm 2.7A
Retarder Reduction Ratio	1 : 75	1 :34	1 : 20
Hall Resolution	11 x Ratio 74.83 = 823.1PPR	Hall x Ratio 34.02 = 341.2PPR	11 x Ratio 20.4 = 224.4PPR

Outline Drawing:



Note:
Please note that the package includes one motor only.
100/210/300RPM is available.

Package Included:
1 x Encoder Motor

More Details:
