Description:
This oscilloscope probe is a high quality piece of test equipment designed to make probing and measurement a much easier task. In addition, this probe adopts injection molding style ground wire for prolonging its service life and ensuring reliable contact.
Features:
Adjusting tool: Adjust the compensation capacitor to ensure that the probe matched with oscilloscope.
BNC connector: Compatible with all oscilloscopes with a NBC mount.
Compensation capacitor adjustment hole for 1KHZ square wave calibration.
Marker rings: Attach the matched color rings onto the probe cable and shaft identify different channels.

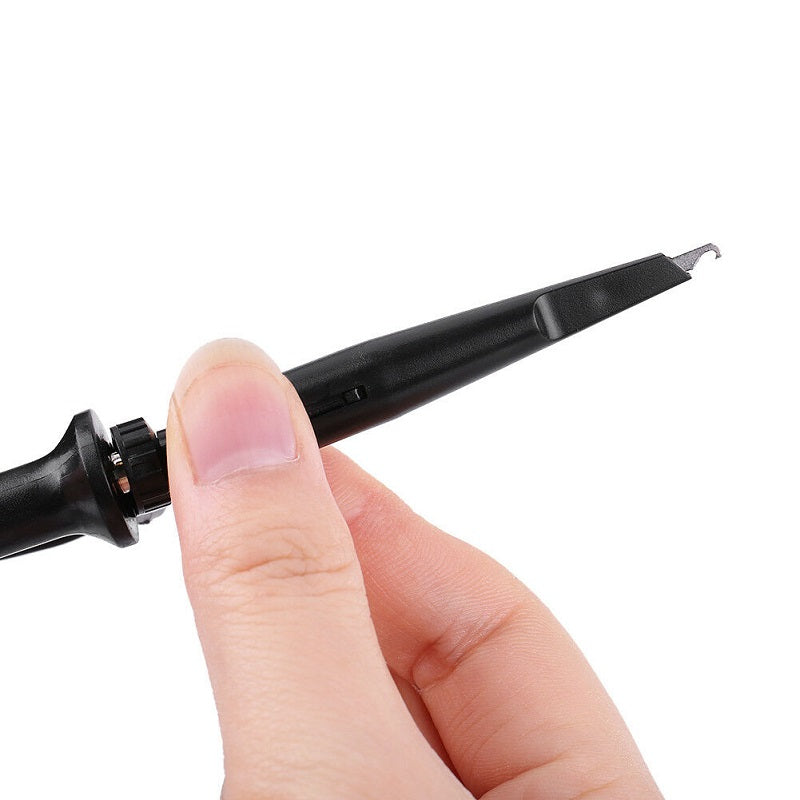

Hook tip: New designed retractable hook can fasten groove firmly, no need to worry about hook falling off, which will cause poor contact.
Specifications:
Model: P7100
Connector type: BNC
Broadband: 100MHZ
Attenuation: 1:1 /10:1
Rise time: 3.5NS
Input resistance: 1X: 1MΩ±2%; 10X: 10MΩ±2%
Input capacitance: 1X: 85pF - 135pF; 10X: 14pF - 18pF
Compensation range: 10pF - 35pF
System bandwidth: 60MHz 100X; DC-100MHz
Input voltage: 1X: 300 working voltage(Vp-p); 10X: 600 working voltage(Vp-p)
Cable length: 130cm / 51.18inch
Temperature range operation: -10℃ ~ 50℃
Package weight: 76g

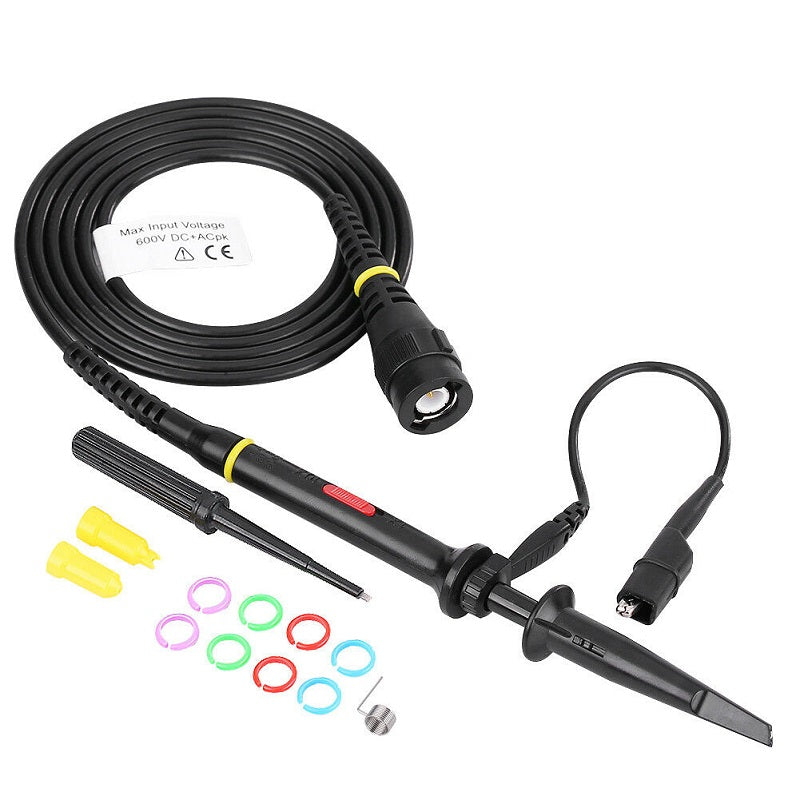

Package Includes:
1 x Probe
1 x User manual
1 x Bag of Accessories (including adjusting tool*1, hook*1, 12cm ground wire with clip*1, marker ring*8, positioning sleeve*2 )

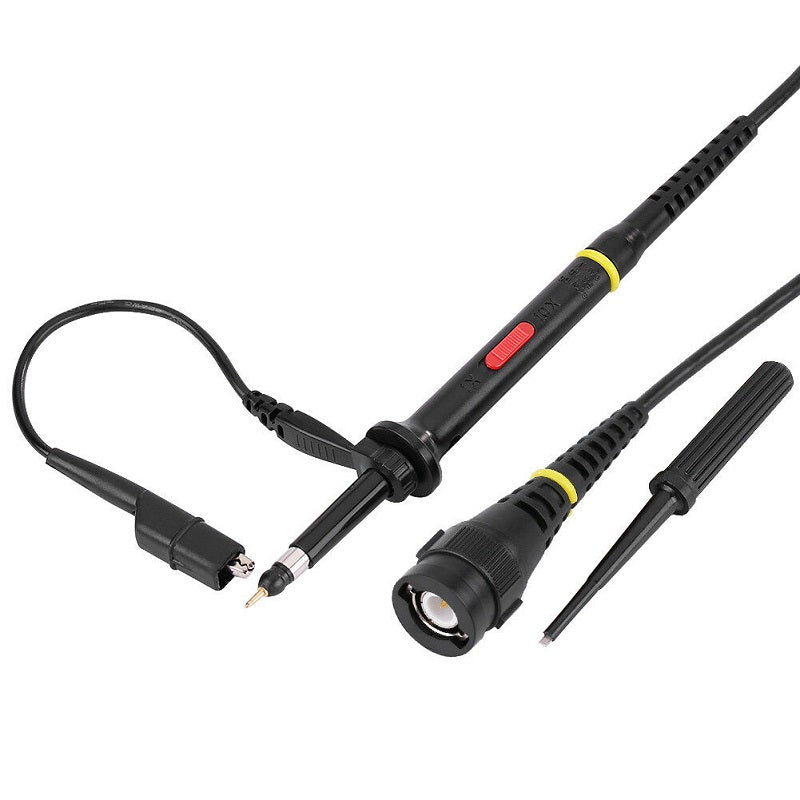

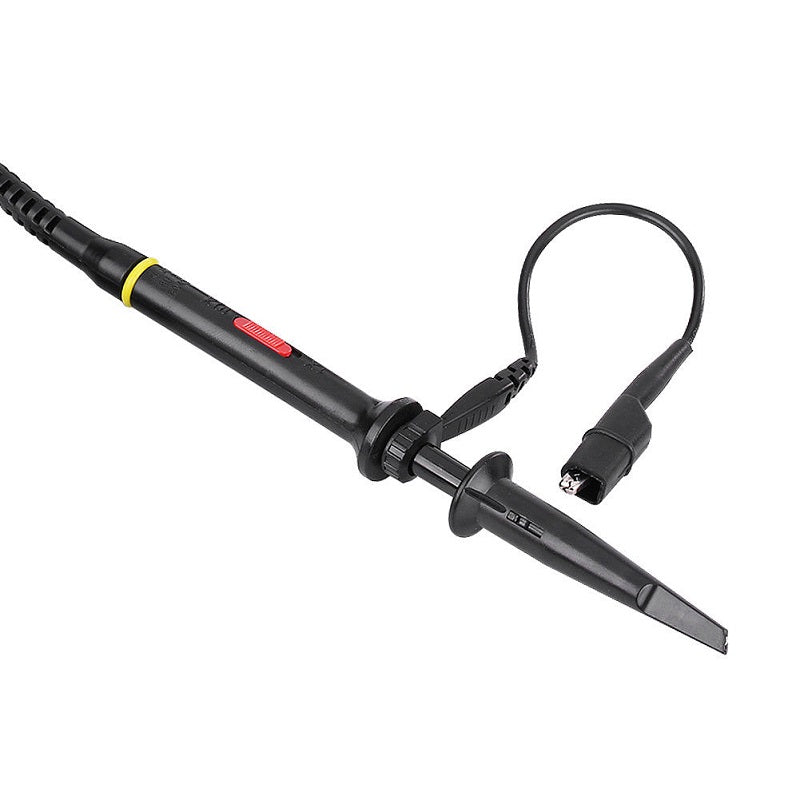

Details Pictures:
