Description:

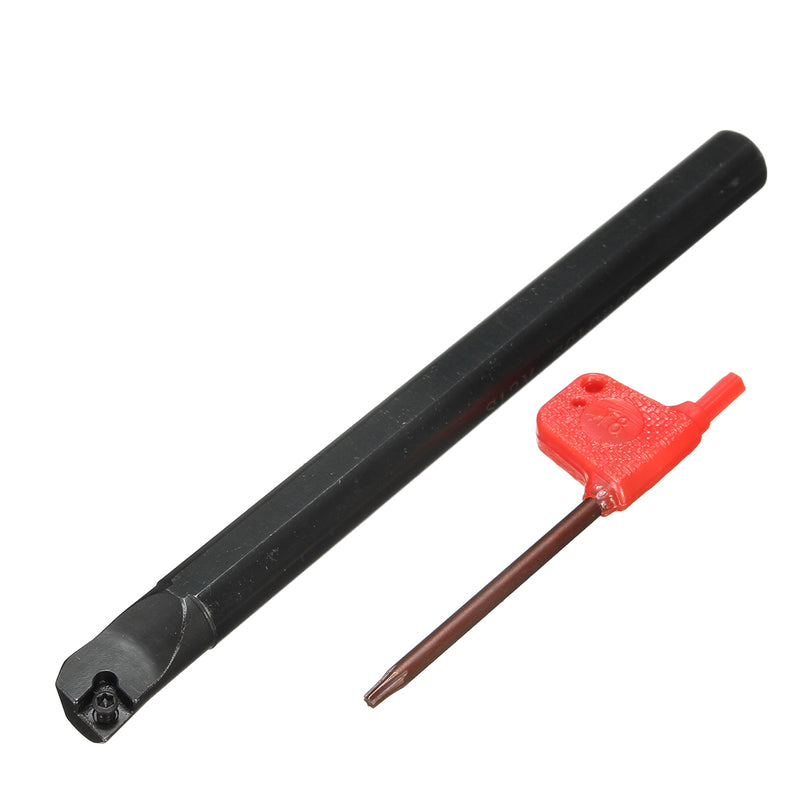

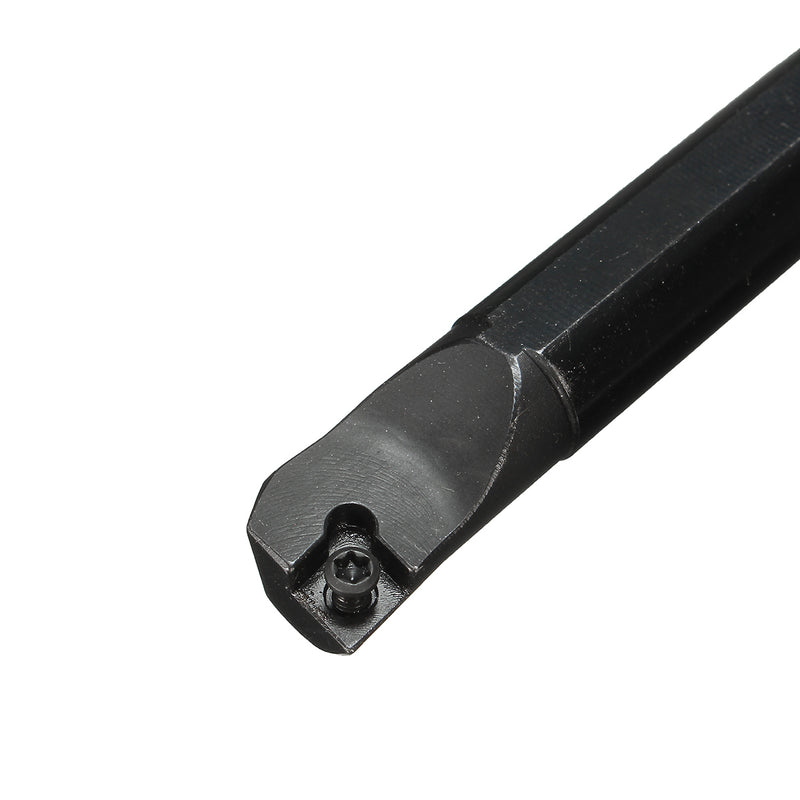

S06K/S07K/S08K/S10K/S12M-SCLCR06 Lathe Turning Tool Holder Boring Bar For CCMTSpecifications:

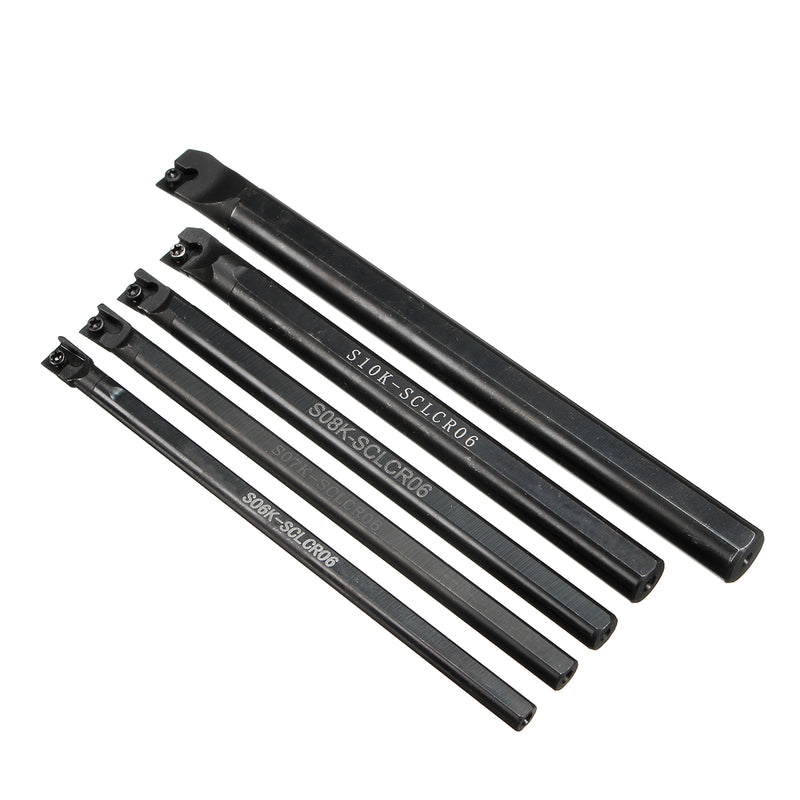

Model: S06K-SCLCR06,S07K-SCLCR06,S08K-SCLCR06,S10K-SCLCR06,S12M-SCLCR06
Material: Steel
| Model |
Shank Diameter |
Overall Length |
Lead Cutting Angle |
Direction |
| S06K--SCLCR06 |
6mm/0.23'' |
123mm/4.84'' |
95 Degree |
Right Hand |
| S07K--SCLCR06 |
7mm/0.27'' |
| S08K--SCLCR06 |
8mm/0.31'' |
| S10K--SCLCR06 |
10mm/0.39'' |
| S12M-SCLCR06 |
12mm/0.46'' |
148mm/5.82'' |
Insert: CCMT060204 (Insert is not included)
T8 Wrench: 82mm
Suitable For: Semi-finishing, finishing
Features:- High grip strength, impact resistance and strong, clear speed advantage in cutting off a large margin and processing;
- To maintain tight tolerances unmatched performance;
- Practical and a variety of processing environments, even in very dirty environments such as cast iron also has good features;
- User clamping and convenient way to replace, only a wrench to complete the replacement of the knife blade and pad;
- Accessories steel is good, long life, reducing the user cost of the tool.
Note:Open the tool case carefully
To avoid injury do not touch shape edge
Use safely precaution such as guards and eye protection before using the tool
Exchange a tool when it occure problems such as a noise vibration and a flame
Package Included:1 x Holder
1 x Wrench
