Features:
Hunt function: Quickly find a pair of lines you need in many lines.
Line-line functions: Quick test line open circuit, short-circuit and line sequence.
Type of line finding: Live line finding, anti-interference line finding, shielded line, four-core line, two-core line, telephone line, etc.
Sensitivity adjustment: The sensitivity can be adjusted as needed.
Lighting function: Intelligent induction flashlight.
Line status testing: Qualitative testing of some basic conditions of the line
Bell flow signal detection: Check whether there is bell flow signal.
Open circuit or short circuit test: Can test the open circuit or short circuit of the lines.
Line DC level detection: Can determine whether there is is DC level in the line, and positive and negative polarity judgment.
Specification:
Model: SML-869BTS
Battery type: 9V laminated battery (NOT included)
Transmitter current: ≤10mA
Receiver current: ≤30mA
Signal transmission format: Multi-frequency pulse & Modulation signal
Max line finding distance: 3km
Working environment: -10~50°C, 20~70%RH
Transmitter size: 130*58*28mm / 5.1*2.3*1.1in
Receiver size: 195*36*30mm / 7.7*1.4*1.2in
Weight: Approx. 295g / 10.4oz

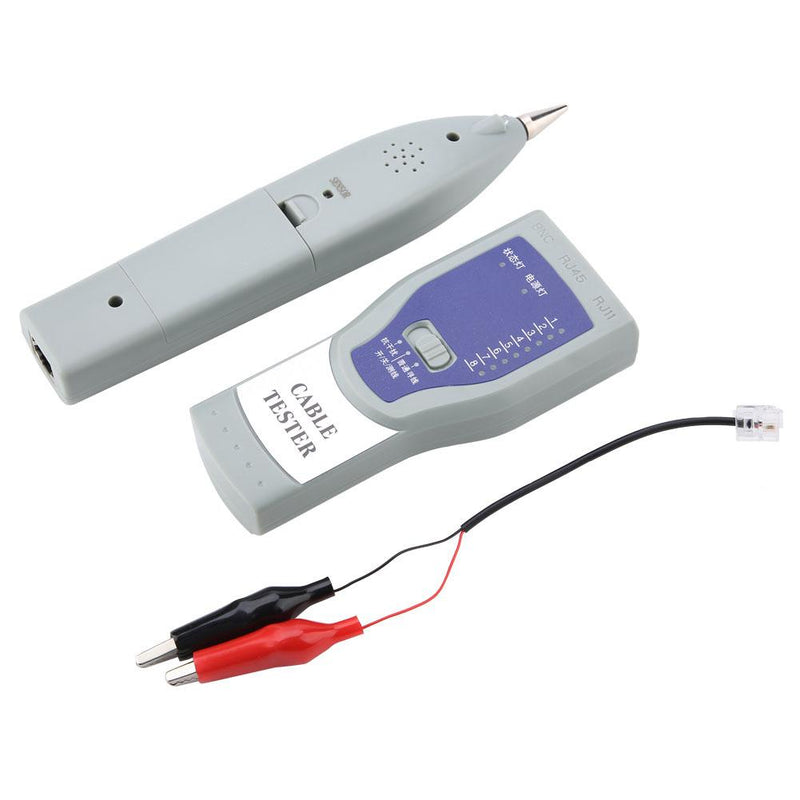

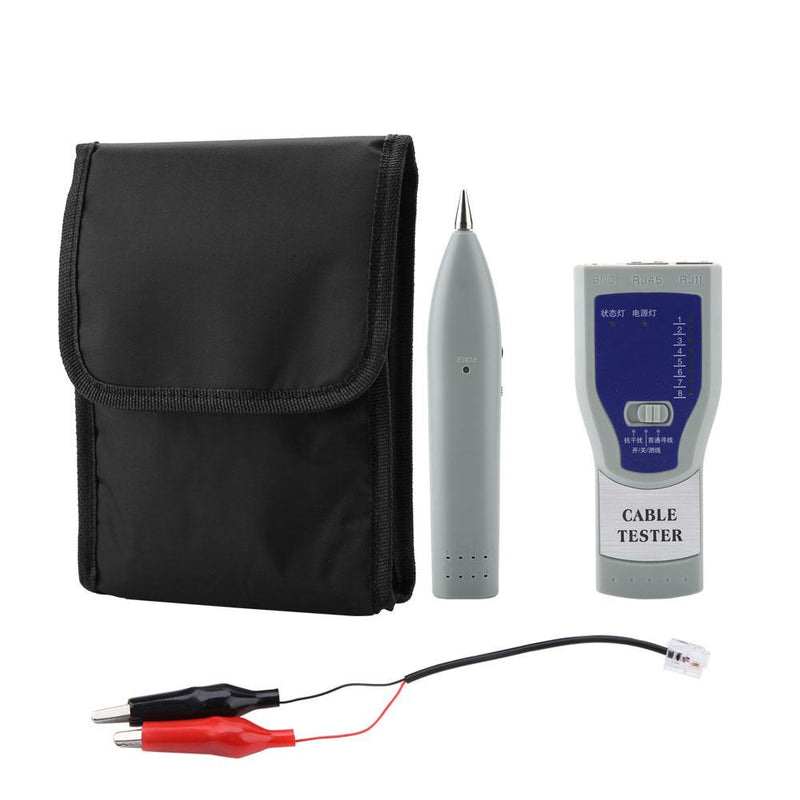

Package includes:
1 x Transmitter
1 x Receiver
1 x Clamp Cable
1 x Black Bag
Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thanks for your understanding.

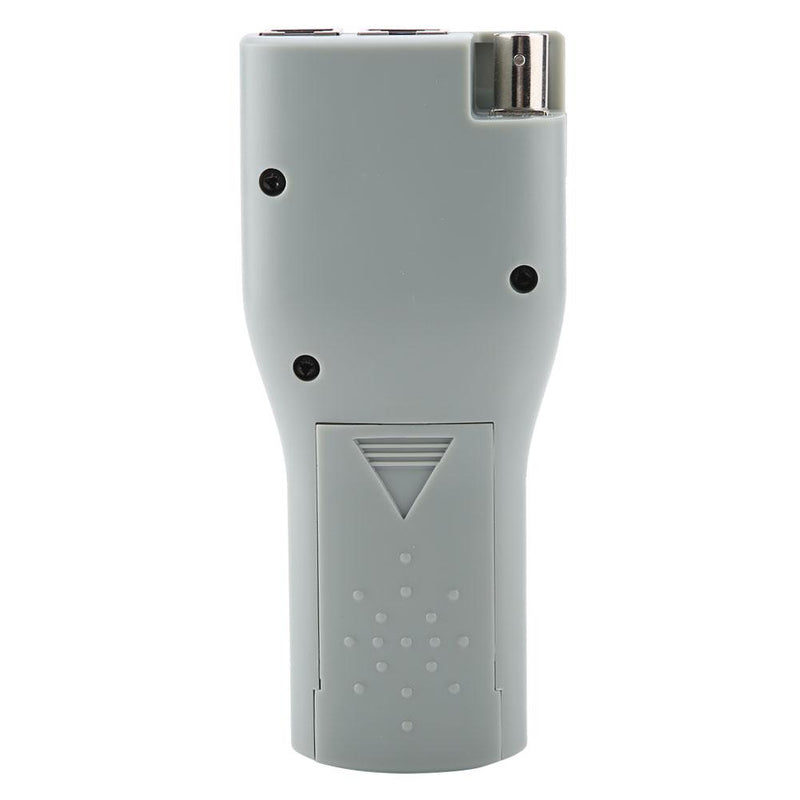

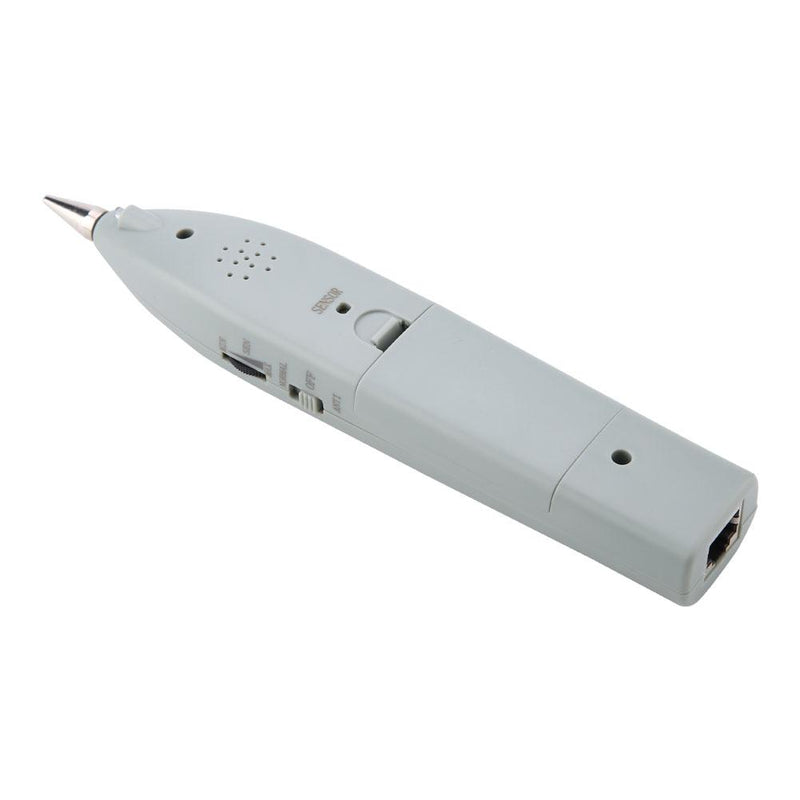

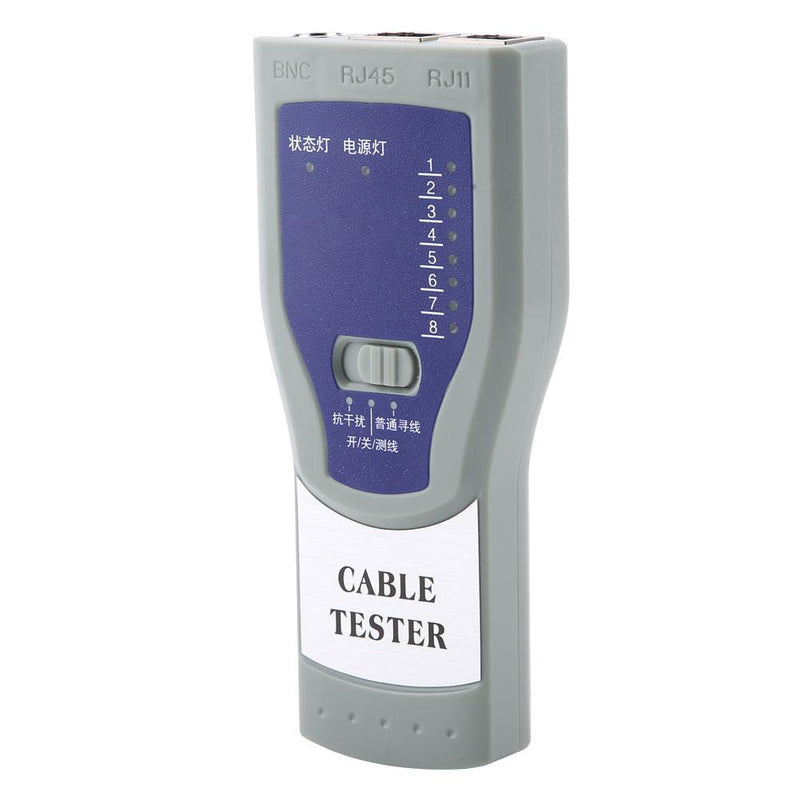

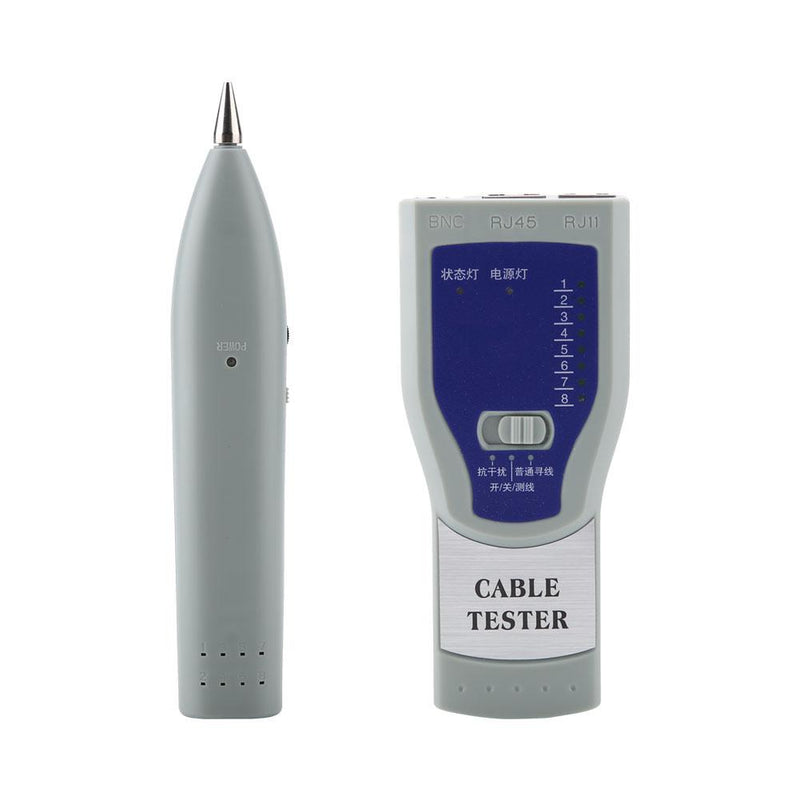

Details pictures:
