Specifications:
| Material |
ABS |
| Color |
Green |
| Rated Voltage |
4.8V |
| Rated Power |
0.5-1.5W |
| Alarm Sound |
68-120dB |
| Coverage Area |
5-15㎡ |
| Effective Distance |
Up to 8M (according to weather and environment) |
| Detection Angle |
110° Level (according to weather) |
| Ultrasonic Frequency |
15-75KHZ |
| Power Consumption |
Working = 15mA / Standby ≤ 10uA |
| Solar Panels |

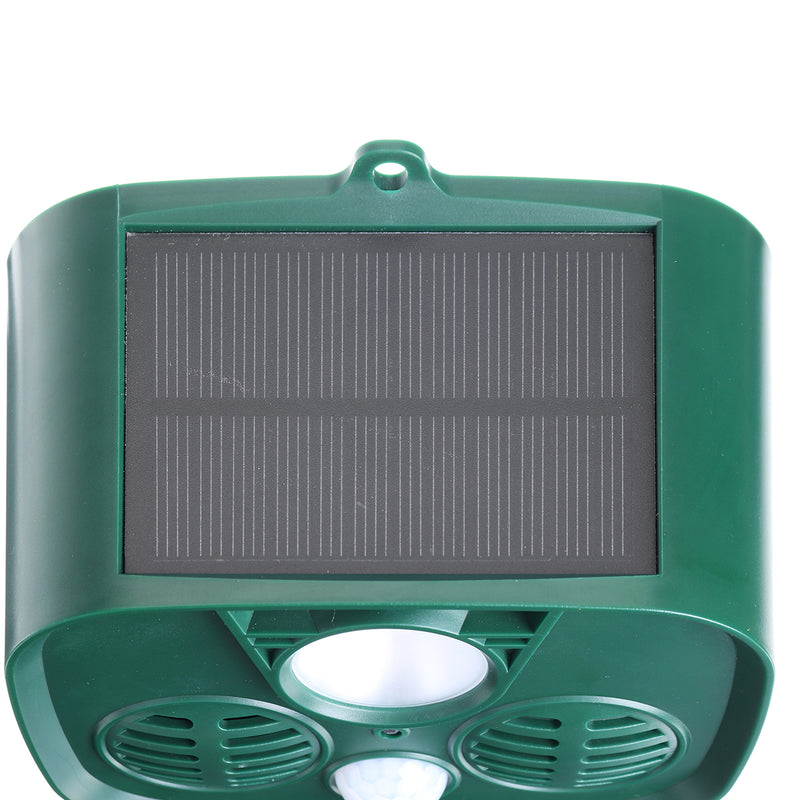

5.5V Amorphous Silicone Solar Panel |
| Power Supply |
Solar Panels + 4* 2/3 AA Ni-MH Rechargeable Batteries (300mAh) |
| Functions |
Alarm + LED Flashing Repeller + Ultrasonic |
| Product Size |
14 x 8.7 x 43.1 cm / 5.51 x 3.43 x 16.97 inch (appr.) |
Features:
● It uses solar power to recharge the batteries so it is always working.
● It is weather-proof allowing it to work all year-round and in virtually all weather conditions.
● A portable design product that can be installed anywhere in your home, garden, or courtyard.
● This alarm repeller is designed for permanent service allowing you to install it once and let it work.
Operations:

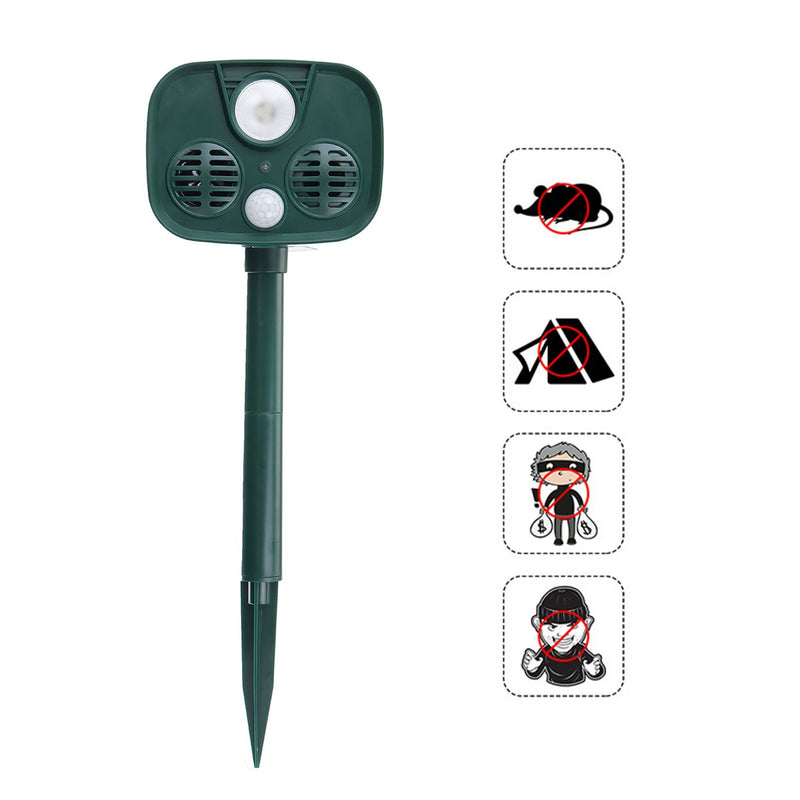

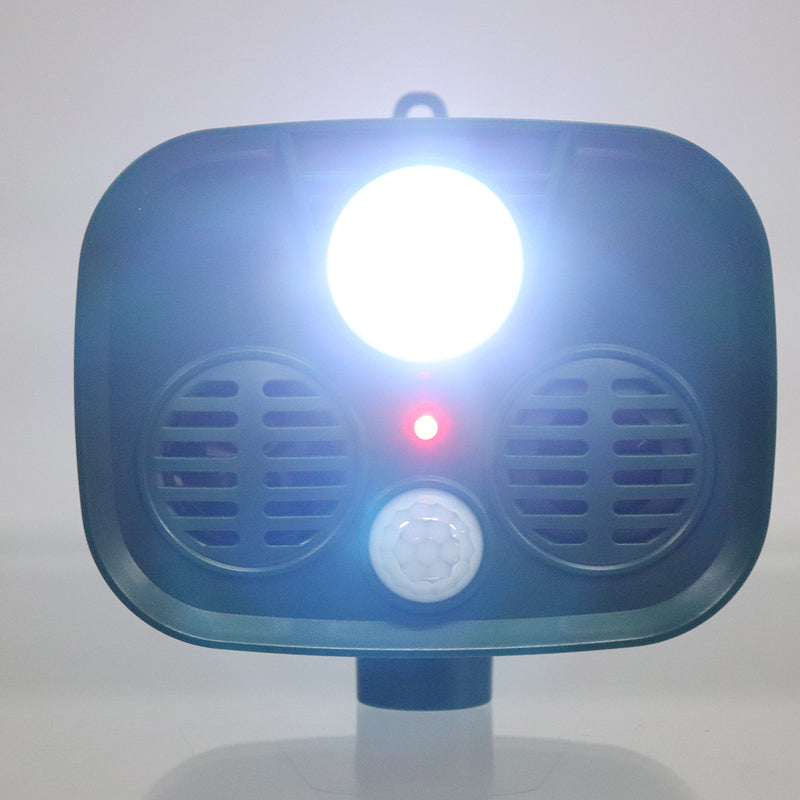

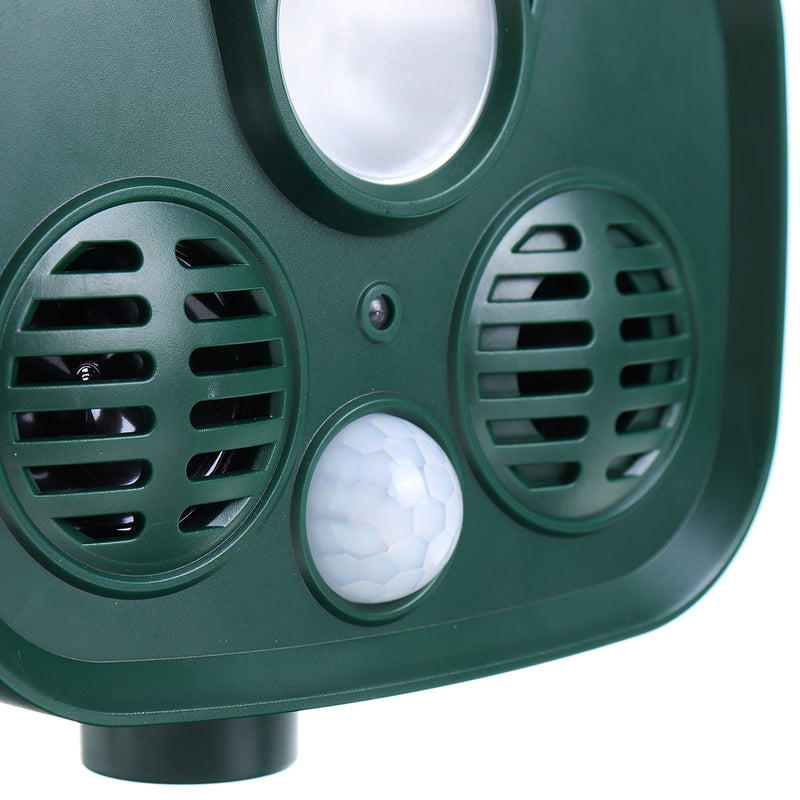

● Turn power switch to ''ON'' : Ultrasound LED Flash Animal Repeller - The passive infrared sensor (PIR) detects motion and triggers the ultrasonic speaker emitting a tone that people cannot hear but chases away common outdoor pests like dogs, cats, deer, raccoons, mice, skunks, squirrels and more. Also start the flash repeller.
● Turn power switch to ''ALARM'' : Ultrasound LED Flash Animal Repeller + Intrusion Alarm Function - Infrared sensing head detects moving objects and triggers 120 dB alarm sound and ultrasonic sound and strong light at the same time to prevent bad people and large dangerous animals from invading and being driven away to protect your personal safety.
Assemble & lnstall:
1. Unpack the unit completely and confirm that parts are present.
2. The PIR repeller is designed to be left ON continuously. It uses four 2/3 AA size NI-MH rechargeable batteries.
3. Once turned ON, the red-LED light and ultrasonic signal will activate for 15 seconds. Among the time, there is sound waves for 2.5 seconds at the beginning. At the same time, the white-LED lights flash blasting. Following this activation, the unit will move to stand-by mode.
4. The unit is now ready for installation. The location should allow adequate sunlight To keep the batteries fully charged.Be sure that the area needing protection is within the effective range of the repeller.
5. For best results, keep the repeller head roughly 9-10 inches above ground.

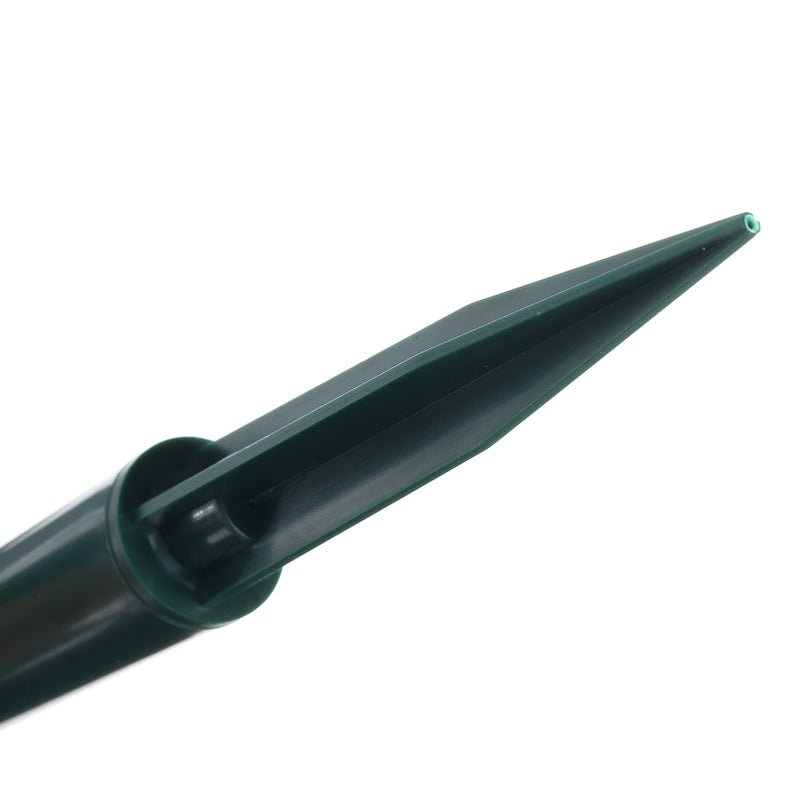

6. Take acre not to stress or break the repeller when installing in hard ground. It is a good idea to prepare the ground for the ground stake to avoid damage to the unit.
7. When the PIR sensor detects motion, red-LED light will be lit up. The ultrasonic signal and the white-LED lights will run for 15 seconds. Following this, the repeller will return to stand-by mode.
8. When the device is working and the PIR sensor detects motion, the device will run for other 15 seconds in the next time.
Caution:
● Do not immerse repeller in water.
● Do not cover-up the PIR sensor.
● Allow the alarm repeller to operate continuously for best results.
● To clean the repeller, use a damp-soft cloth and mild soap with water. Do not use harsh chemicals or abrasive cleaning agents that may damage the repeller.
● Always check for underground utilities, cables or wires before digging or installing! Failure to check could result in personal injury, property damage or even death.

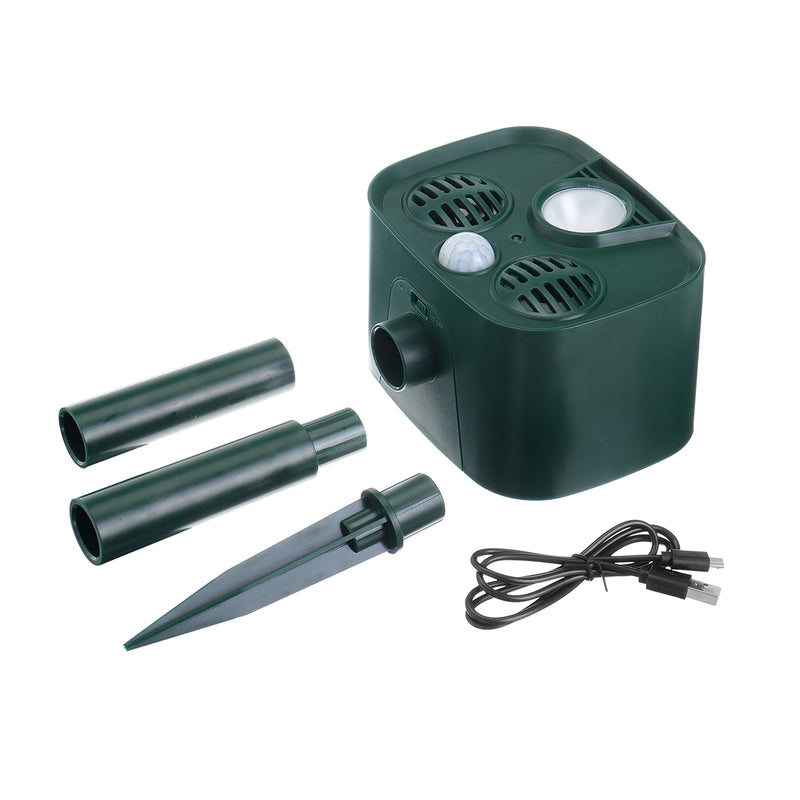

Package Included:
1 x Ultrasonic Solar Pest Repeller (with battery)
1 x USB Cable
1 x Instructions
(Please read and understand these instructions and keep this manual for future reference.)
