Features:

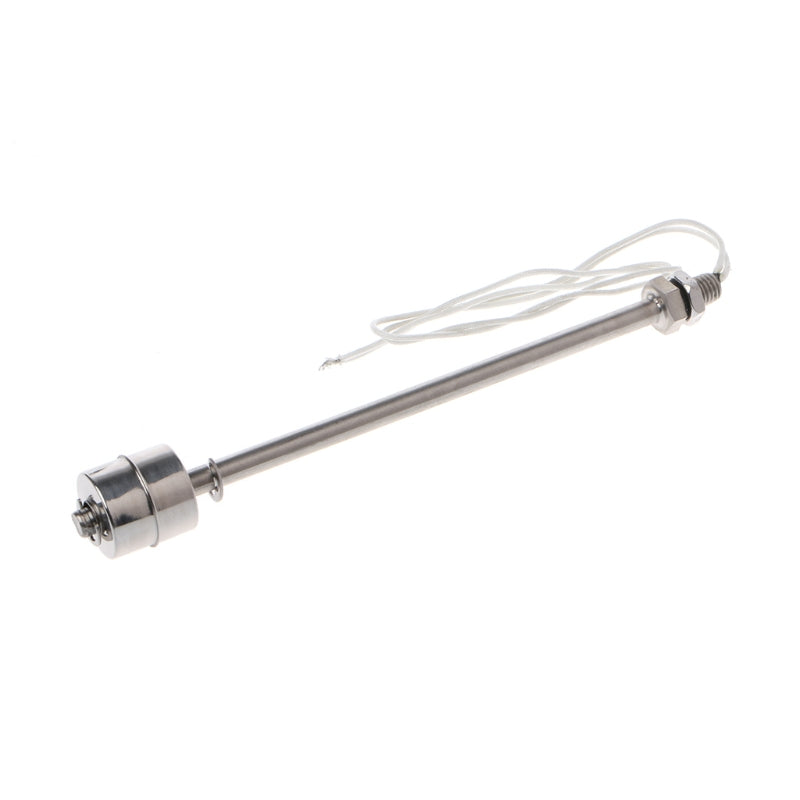

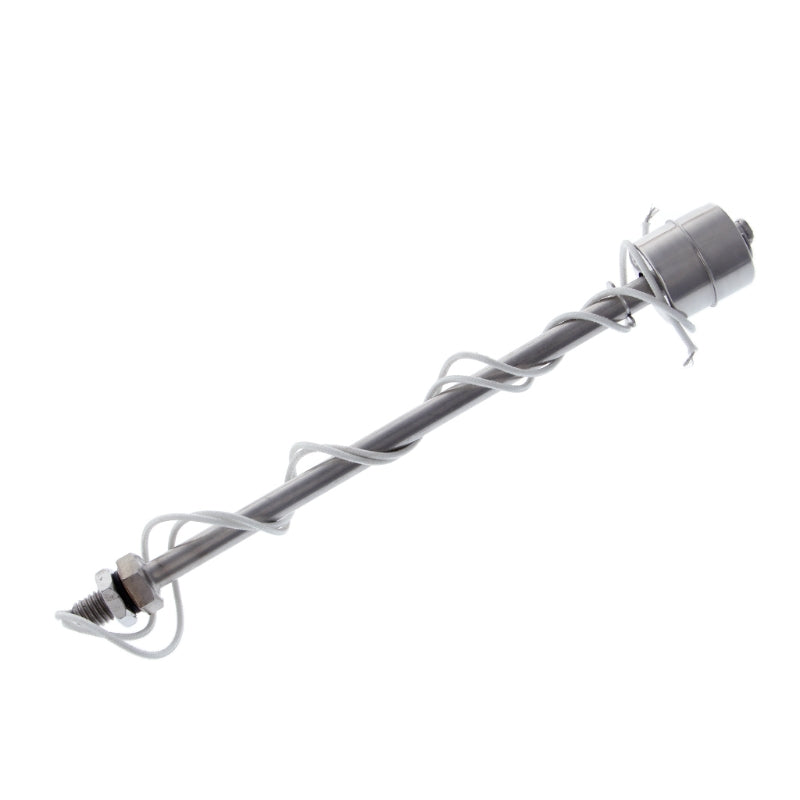

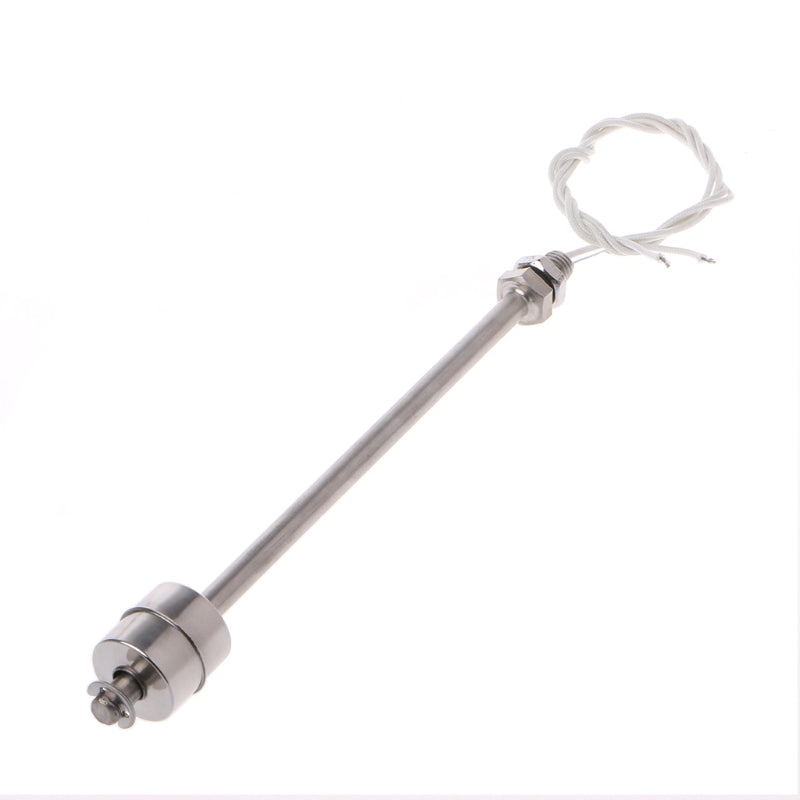

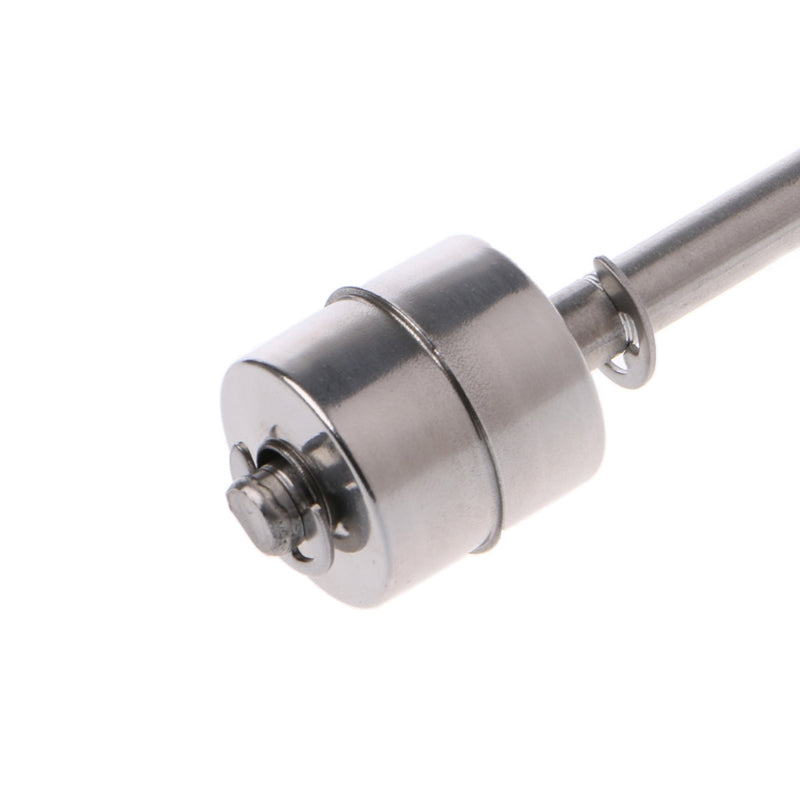

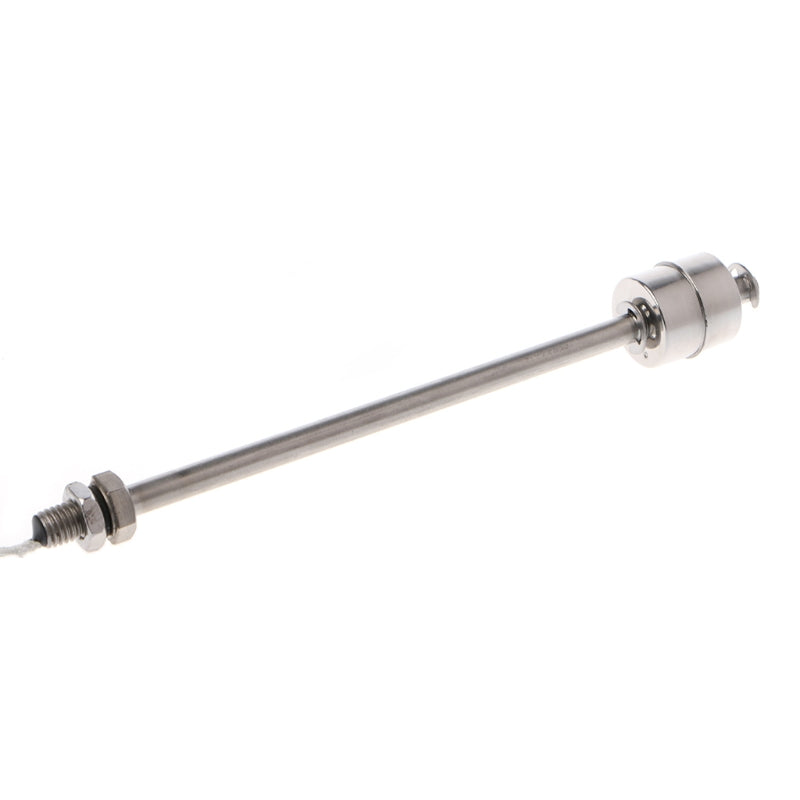

This is a mini stainless steel float switch,contains no for mercury.
Light weight and simple working principle,high reliability.
This float switch is a device used to sense the level of liquid within a tank,
the switch may activate a pump,an indicator,an alarm,or other device.
This float switch is a simple structure,easy installation liquid level controller.
It does not have a complex circuit,will not be disturbed,as long as the material selection,
liquid,pressure or temperture can be used in any environment.
The versatility of this vertically monted sensor means that it can be installed either at the top
or base of your tank,depending on whether you for wish to detect the water's rise or fall.
The float level switch is widely used in electronic,electrical,chemical,water treatment,
drainage and other walks of life level control and alarm
Specification:
Material: Stainless Steel
Color: Silver
Max Contact Rating: 10W
Max switching voltage: 100V DC
Max switching current: 0.5A
Max breakdown voltage: 220V DC
Max carry current: 1A
Max contact resistance: 100mΩ
Max temperature: -30~+125°
Thread Dia(Approx): 10mm
Cable Length: Approx 350mm/13.78"
Size: 21.5x2.4cm/8.46x0.94inch
Quantity: 1 Pc
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Includes:
1x Floating Switch
Details Pictures:
