Features:VSWR. Forward and reflected power direct digital readout, without any calibration.
Maximum measurable power range up to 100W.
3 seconds check your antenna SWR , also check your radio RF power watt.
Easy to install handheld Radio.
Specification:
| MAX. Power in |
100 WATT |
| V.S.W.R |
1.00~19.9 |
| Frequency Range |
COVER:100MHz~520MHz |
| Insertion Loss |
< 0.15dB(VHF) , < 0.25dB(UHF) |
| Temperature |
0C~70C |
| Battery Build -in |
Li-ion Battery |
| Size(WHIT OUT SMA |
25*25*60 (mm) |
| Measurable power range |
0.5-100W |
| Maximum power |
100W Accuracy: mean + / - 5% |
| Power in |
5V (micro usb) |
| Interface (in and out ) |
SMA female |
| Impedance: |
50Ω |
| Weight |
160g |
Package included:1 x SW-33 Power & V.S.W.R Meter
1 x User's Manual
1 x USB Charger Cable
1 x USB AC Adapter 100-240V
1 X SMA MALE TO SMA MALE ADAPTOR

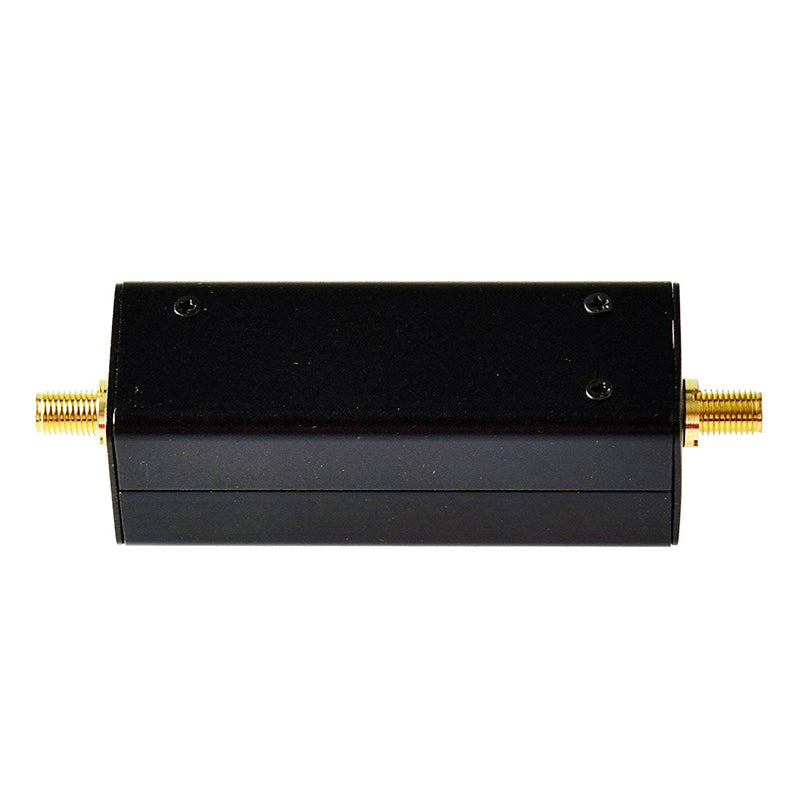

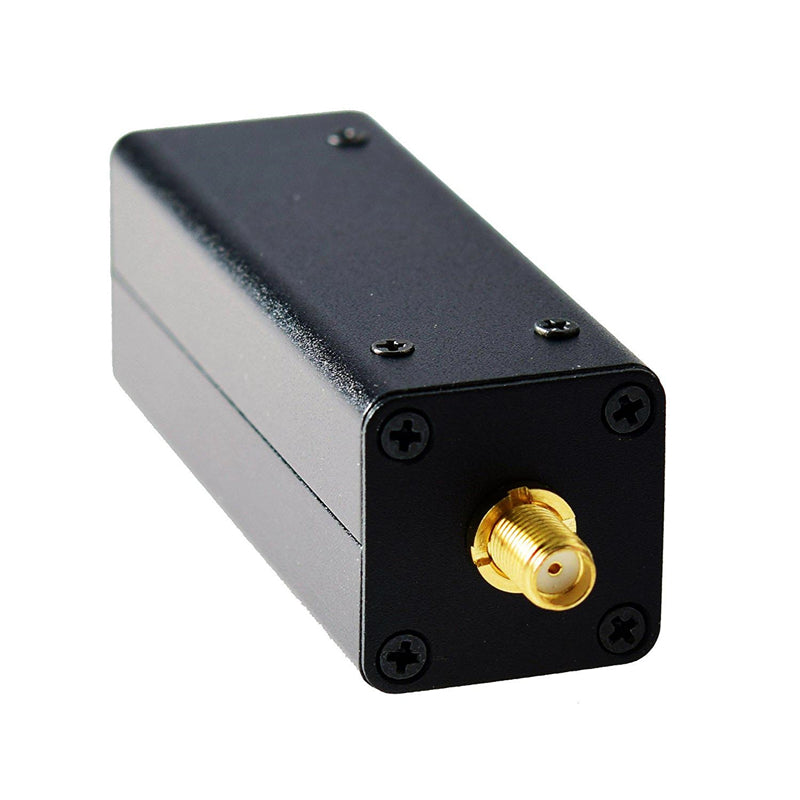

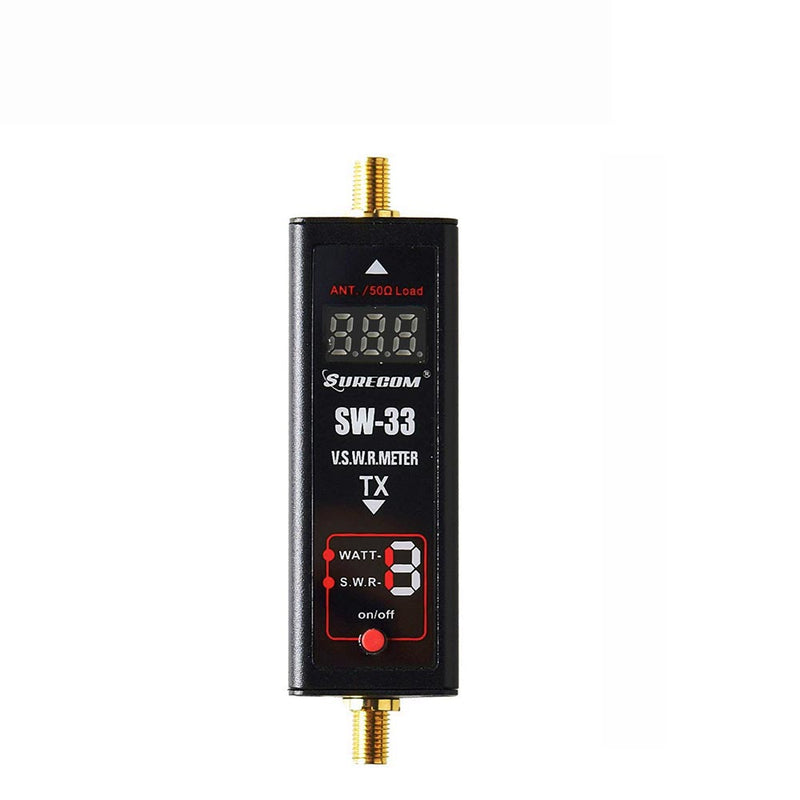

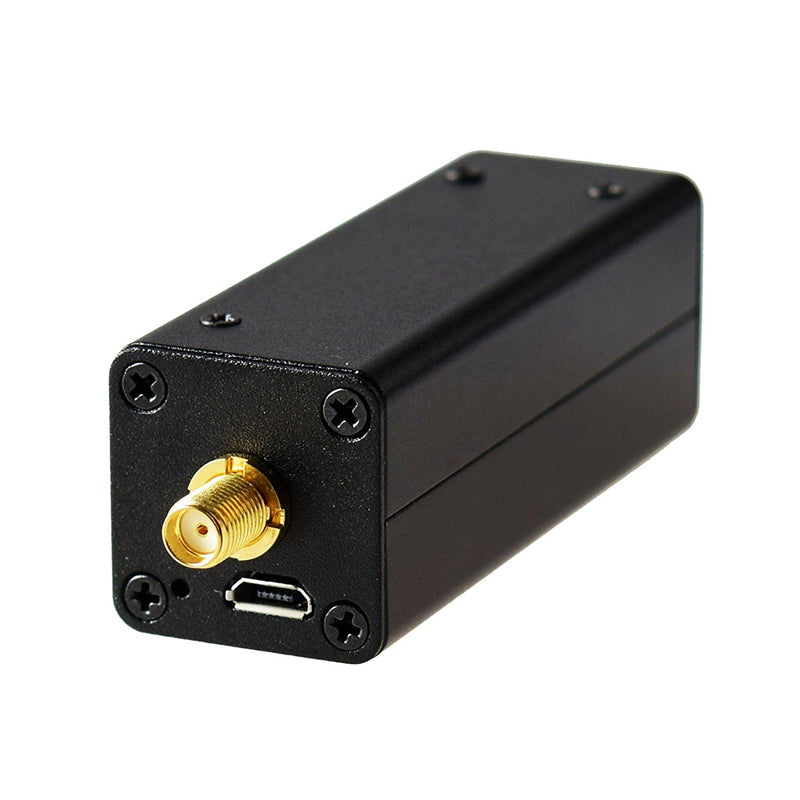

Details pictures:
