Features:Ultra-portable tools for advanced electricians. AC DC power can be tested quickly, accurately and safely without damaging the insulation on the line surface.
NCV measurement, the gear position is adjusted to the NCV, when the non-contact voltage sensing area is close to the circuit to detect the AC voltage, the clamp meter will display the buzzer alarm sound of different frequencies according to the detected voltage intensity.
Maximum display: 5999. Compared to similar products, has a precision of 0.01uA for a larger measuring range.
LCD display: clear reading, backlit function, clear reading in dark environments.
Flashlight illumination: for easy measurement in dark environments.
Double protection: High-quality shell + peripheral rubber double protection, high temperature and cold resistance, not easy to aging, cracking, prolonging the service life.
Portable design: The instrument is equipped with a pen device on the back for easy storage and carrying, and has a hook hole for easy instrument placement and measurement.
Shrinking bracket: retractable support frame on the back, effectively assisting measurement, improving efficiency and meeting different angles.
Manual/automatic integration: TA801B can be manually dialed for measurement. Can also be dialed to the automatic gear to meet your needs in different occasions.
Specification:Measurement method: Manual/Automatic
NCV measurement: Yes
True RMS: Yes
Backlit display: Yes
Max. display: 5999
On-off alarm: Yes
Diode measurement: Yes
Numerical value lock: Yes
Low voltage display: Yes
Auto power off: Yes
Intelligent anti-burn: Yes
Input resistance: 10MΩ
Sampling rate: about 3 times per second
Power: 2* 1.5V AAA battery (not included)
Size: 148x70x42mm/5.8x2.8x1.7in

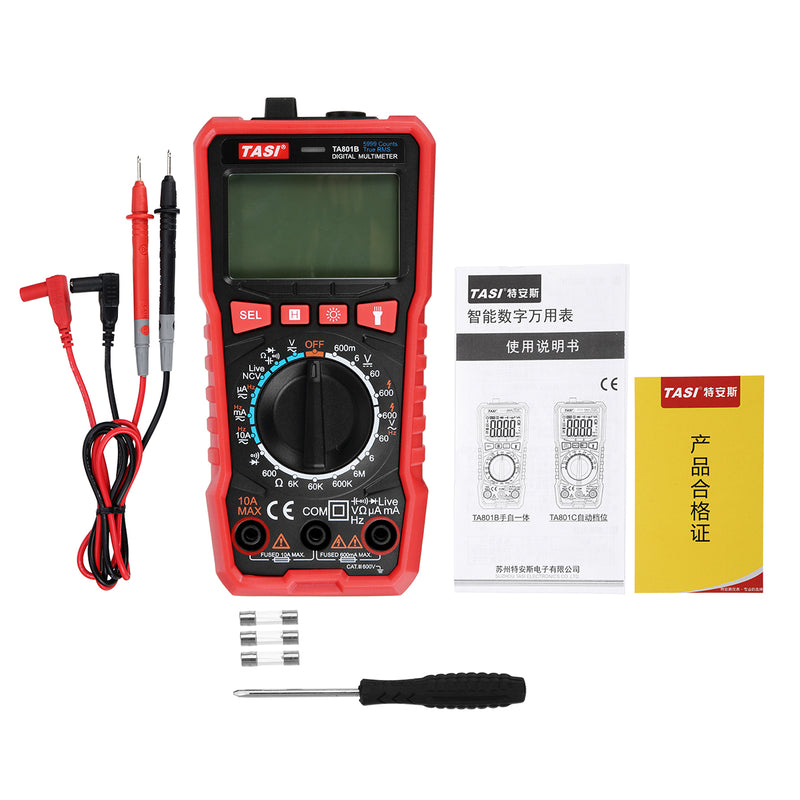

Package included:1 x Multimeter
1 x Meter Pen
1 x Screwdriver
3 x Fuse
1 x User Manual

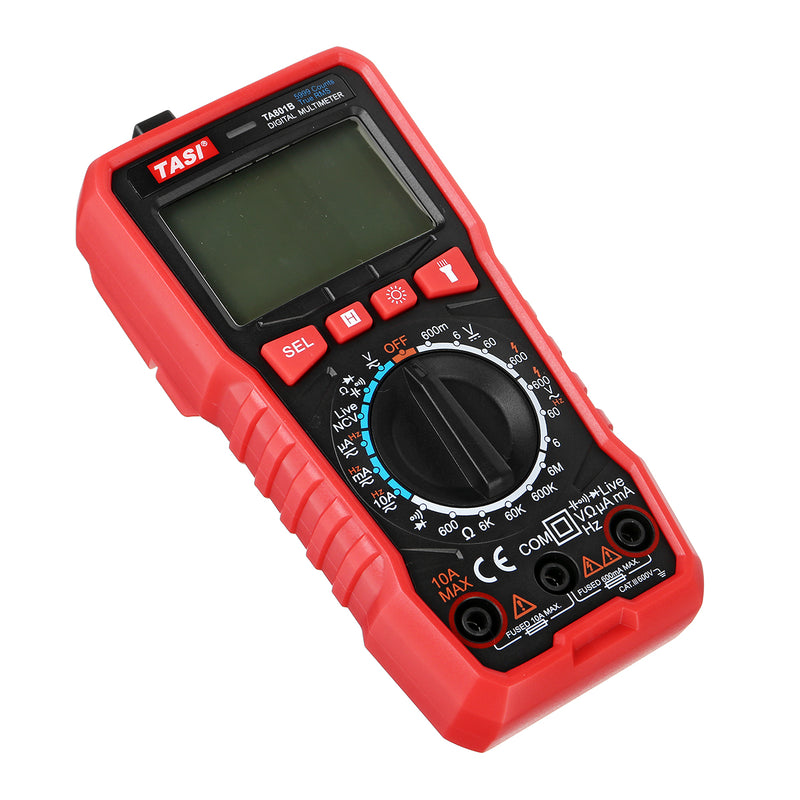

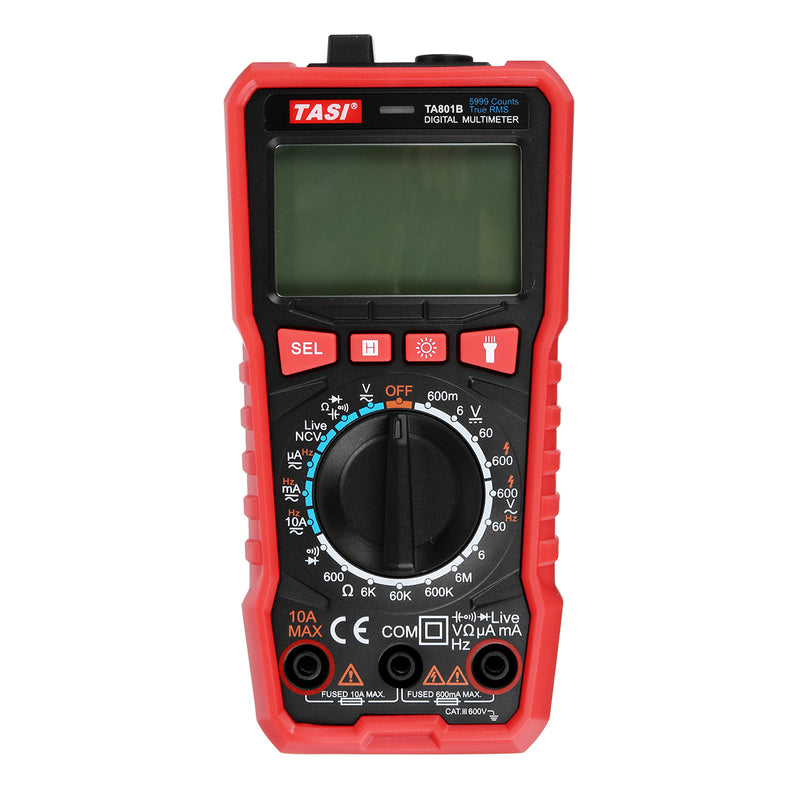

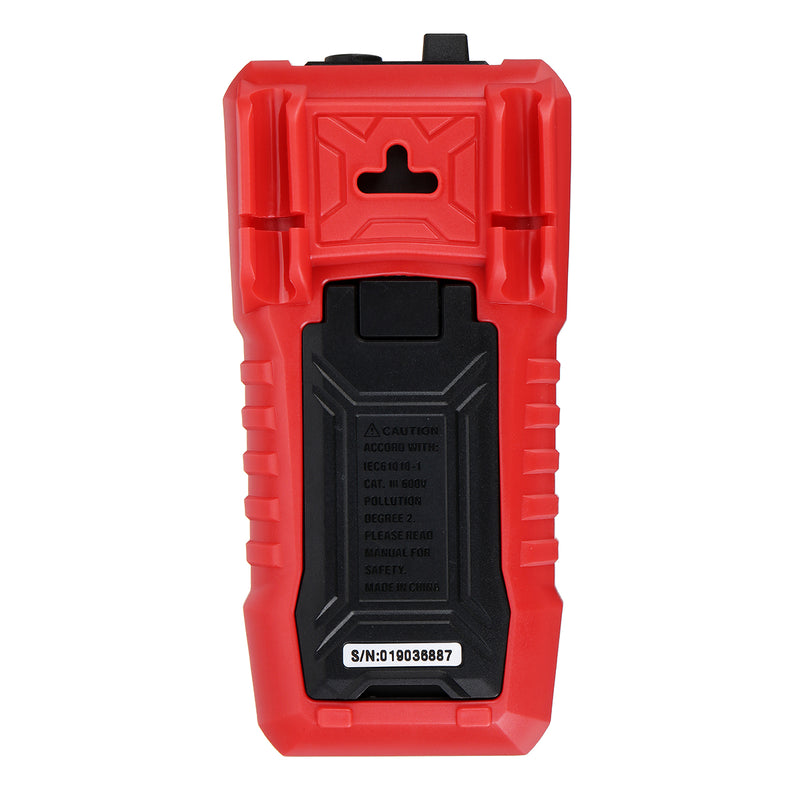

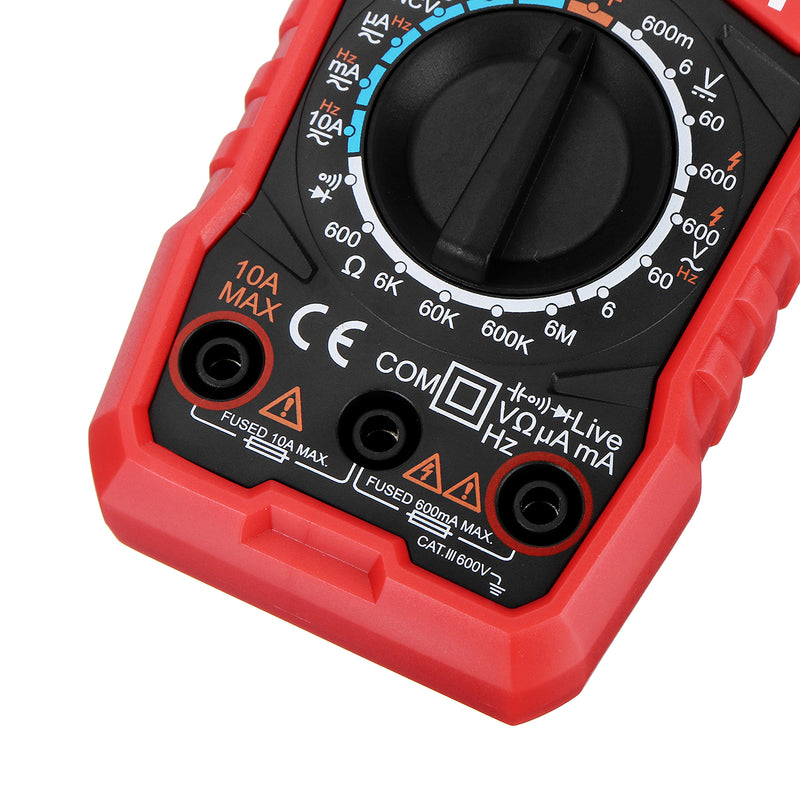

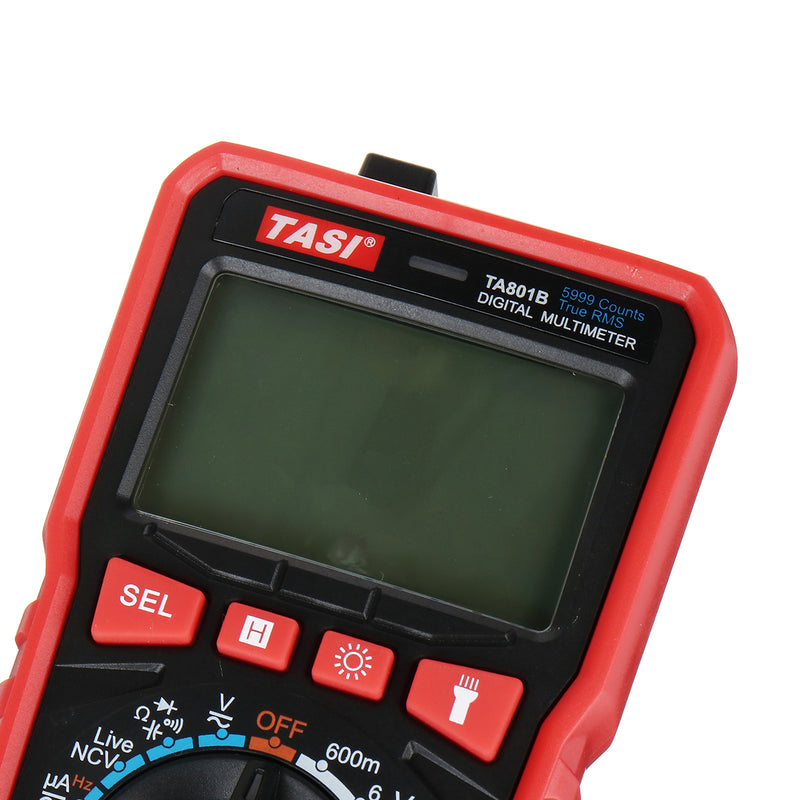

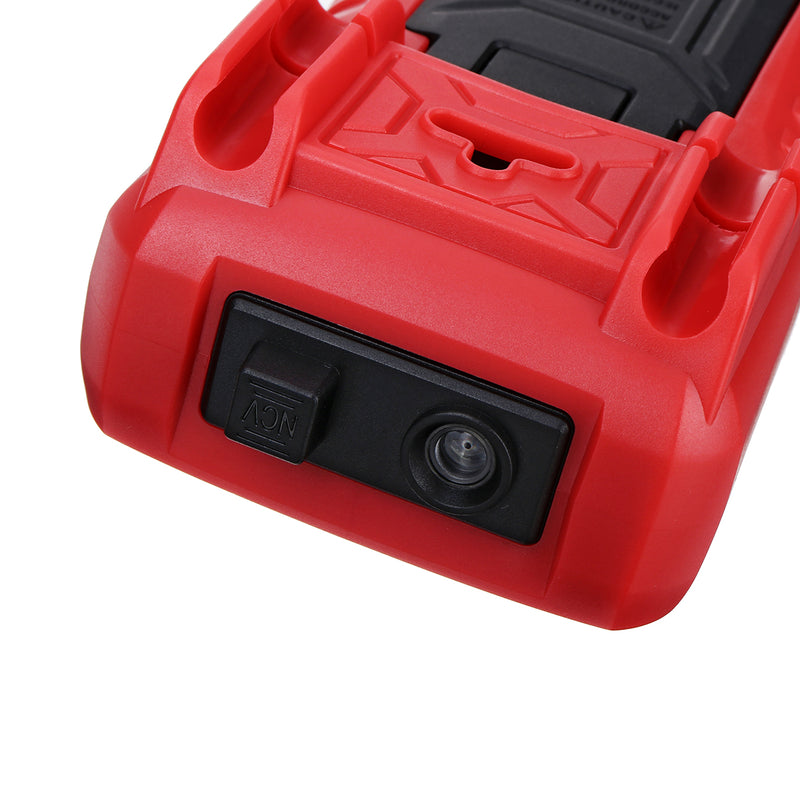

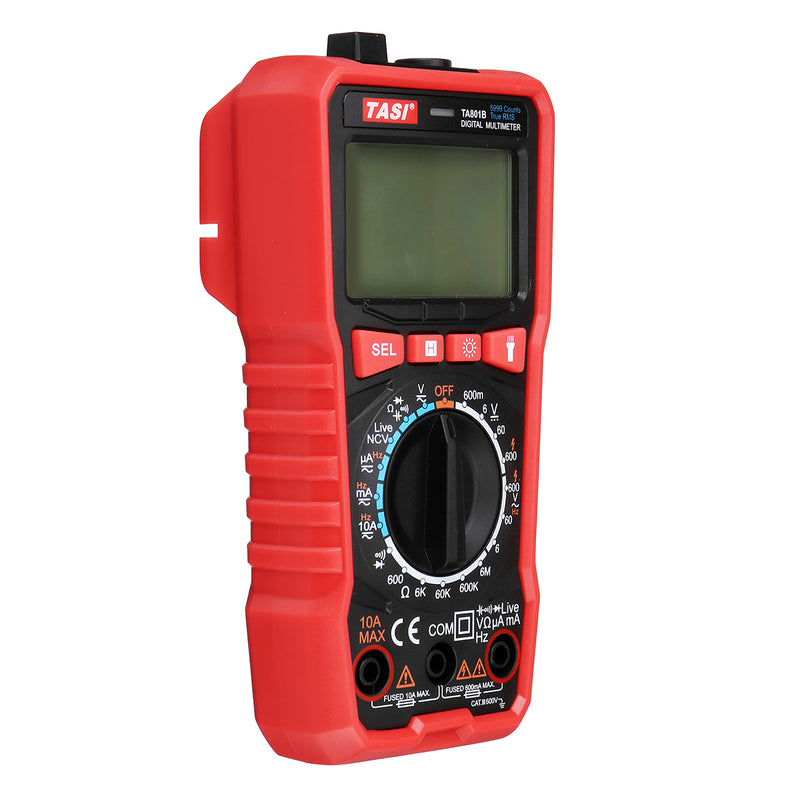

Details pictures:
