Description : Vichy VC99 Auto Range Professional Digital Multimeter Tester Feature :
Large LCD Screen display, Clear Reading.
Streamline Design enhances comfortability when you hold it.
Advance in antimagnetic & anti-jamming performance.
None Operation & Auto Outage Design.
Fully Protection : Effectively prevent multimeter broken due to overwhelm.
Available to measure Relative Value, Frequency & Dirty Ratio.
Bring more test function and more accuracy data for your electronics work !~ It is a professional and classic multimeter that all electrican and electronics hobbists are worth to have one!~
| Basic function |
Range |
Basic accuracy |
| DCV |
600mV/6V/60V/600V/1000V |
±(0.5%+4) |
| ACV |
6V/60/600/1000V |
±(0.8%+6) |
| DCA |
600uA/6000uA/60mA/600mA/6A/20A |
±(0.8%+3) |
| ACA |
600uA/6000uA/60mA/600mA/6A/20A |
±(1.5%+10) |
| Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
±(0.8%+5) |
| Capacitance |
40nF/ 400nF/4uF/40uF/400uF/2000uF |
±(3.5%+8) |
| Frequency |
100Hz/1kHz/10kHz/100kHz/1MHz/60MHz |
±(0.5%+4) |
| Centigrade temperature |
-40°C~1000°C |
±(0.75%+3) |
| 0°F~1832°F |
±(1.2%+3) |
| Special function |
VC99 |
| Diode test |
√ |
| hFE test |
√ |
| Continuity test |
Approx. less than 30Ω±10Ω |
| Low battery indication |
Approx less than 2.4V |
| Duty cycle measuring |
√ |
| Data hold |
√ |
| Auto power off |
Approx.15minutes |
| Analog bar |
√ |
| Function protect |
√ |
| Input impendence |
10MΩ |
| Sampling rate |
3times/s |
AC frequency resp
onse |
40-400Hz |
| Operation way |
Manual or auto range |
| Max. display |
6000 |
| LCD size |
65x41mm |
| Battery |
3V AAA×2 |
| Power dissipation |
Quiescent current approx. 2mA |
General characteristic
| Color |
Body : dark grey, holster : orange |
| Weight |
290g(including battery) |
| Meter size |
185 x 93 x 35mm |
| Standard accessory |
Test leads, English manual, TP01 temperature probe, Battery |
| Packing |
English Retail Gift box |
Notification for brand VICHY changing to Vici
Dear Customers,
From May.1, 2014, our products using “VICHY” brand will be gradually replaced by brand “Vici”. The logo in showing on the meter will be VICI

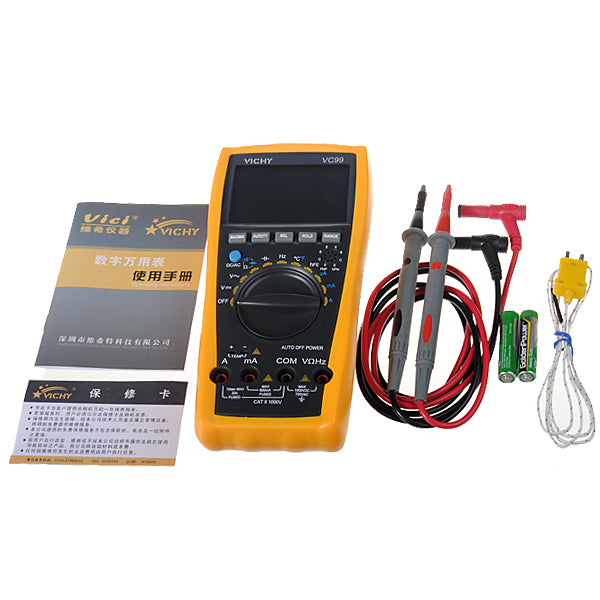

Package Includes : 1 x Vichy
VC99 Digital Multimeter (Note: Brand will send as
Vichy or
Vici, they are the same except the Brand name
. thanks:)1 x Temperature Probe
2 x Test Leads
1 x User Manual
Batteries are included for your convenient work : )

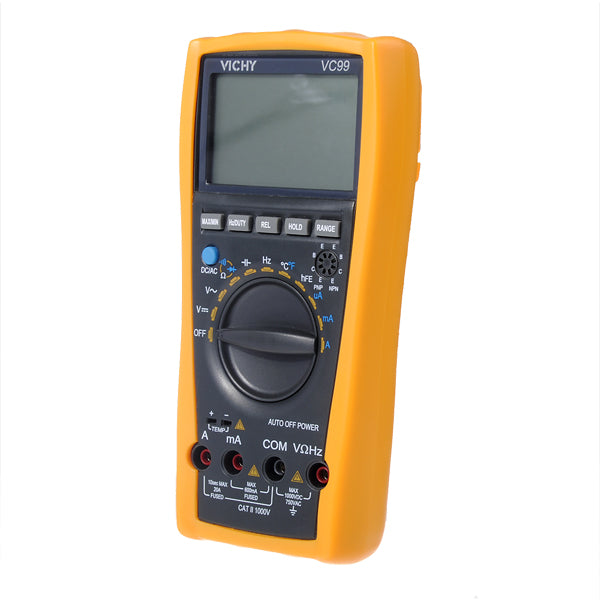

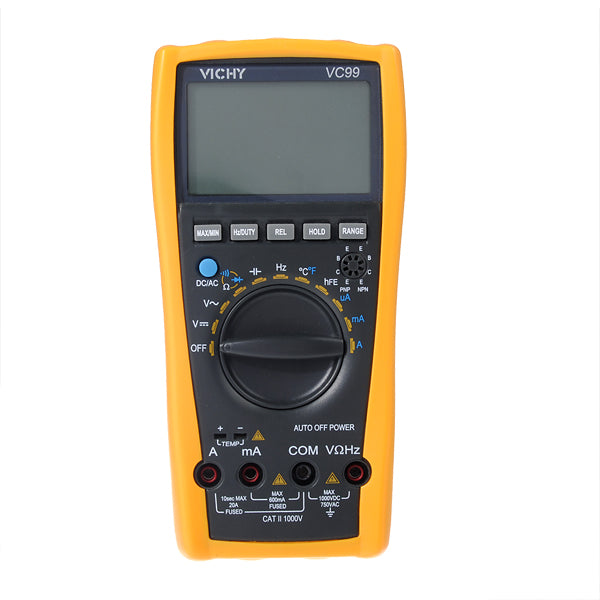

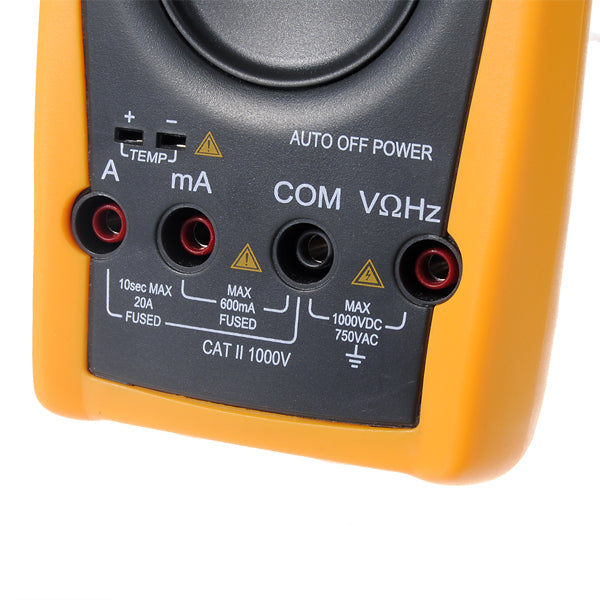

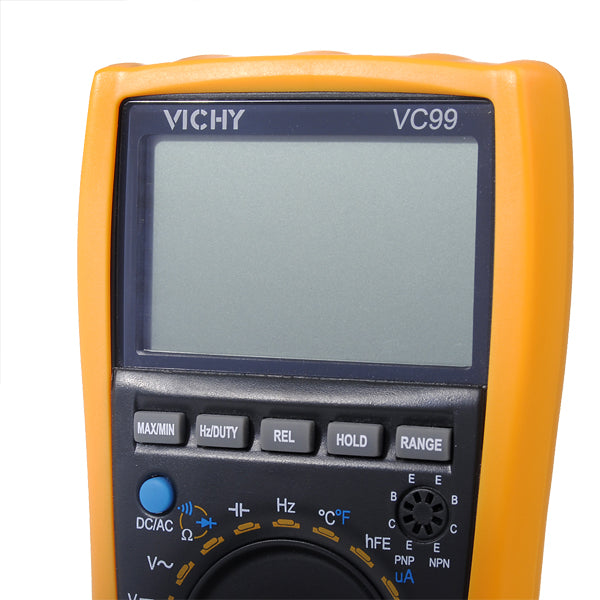

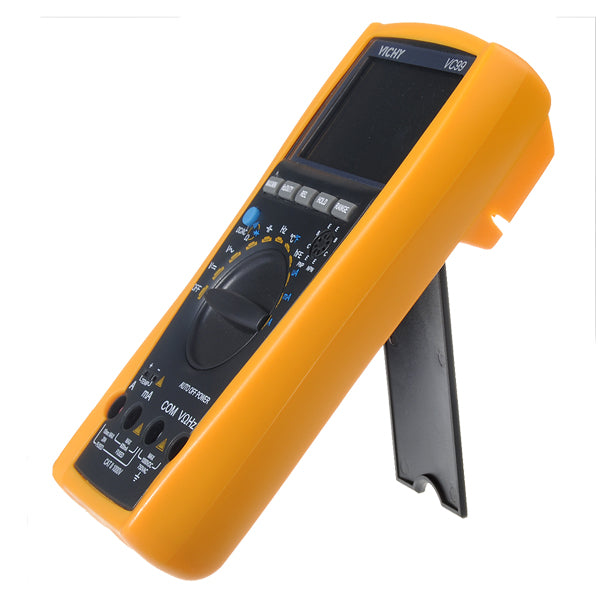

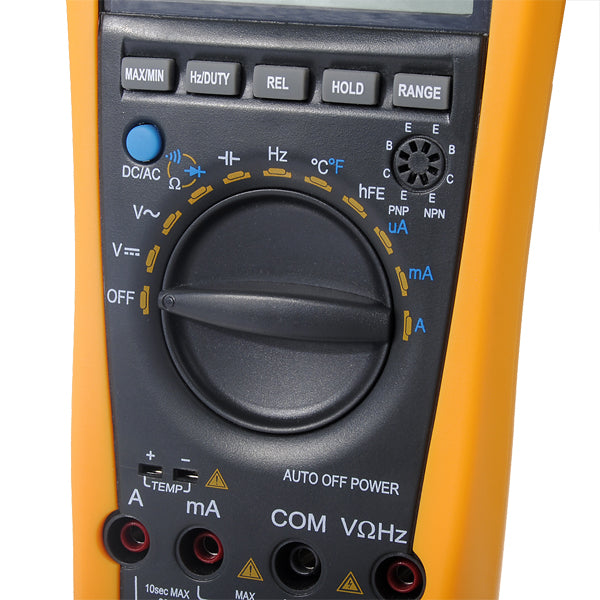

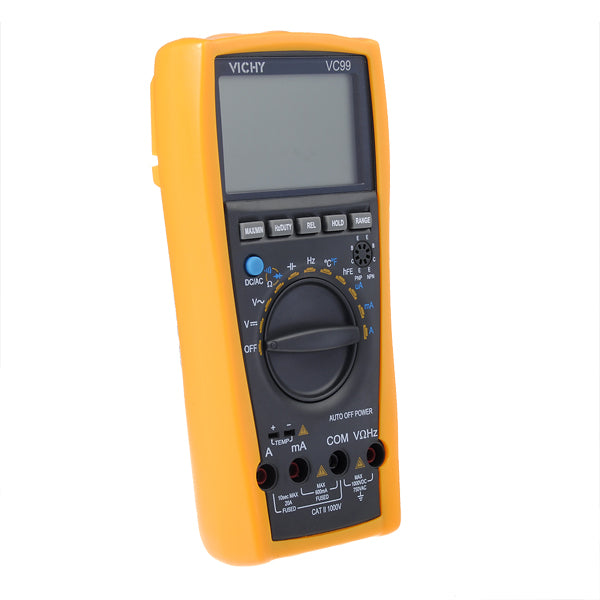

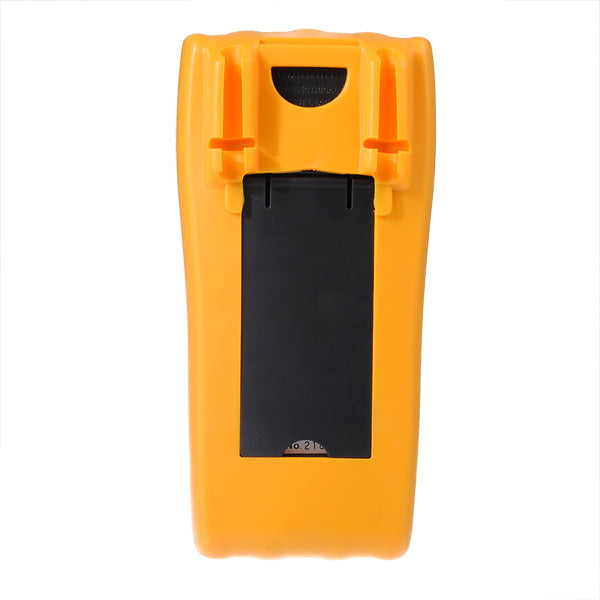

Detail Pictures :
,,,,,,,,
