1.Description:
XY-APWM signal generator is a device that provides electrical signals at a variety of frequencies, square wave, and output levels.It is used as a signal source or excitation source for testing.Widely used in production practice and technology.
2.Features:
1>.LCD high definition display
2>.Support amplitude adjustment
3>.Support frequency adjustment
4>.Support duty cycle adjustment
5>.High precision detection
6>.Support power-down memory function
7>.1-Channel PWM output
8>.Dual Precision Mode
9>.Supports lock function to avoid misoperation
10>.Support enable output
11>.ABS shell
3.Parameters:
1>.Product name: XY-APWM PWM Signal Generator
2>.Model: XY-APWM
3>.Work Voltage:DC 3.3V-12V
4>.Frequency range(Normal mode):1Hz~150KHz
5>.Frequency range(Precise mode):1Hz~15KHz
6>.Frequency accuracy:2%
7>.Duty cycle accuracy:1% at Normal mode
8>.Duty cycle accuracy:0.1% at Precise mode
9>.Duty cycle range:0.00%-100%
10>.Output Current:About 5-30mA
11>.Output amplitude:Adjustable
12>.Work Temperature:-40℃~85℃
13>.Work Humidity:0%~95%RH
14>.Size:79*43*26mm
4.Set Work Mode:
1>.There is two work mode so it have two frequency range.
2>.Normal mode:Frequency range 1Hz~150KHz.Duty cycle range 000%-100%. Duty cycle accuracy 1%.Output amplitude range is DC 1V~24V.
3>.Precise mode:Frequency range 1Hz~15KHz.Duty cycle range 0.00%-100%.Duty cycle accuracy 0.1%.Output amplitude range is DC 1V~24V.
4>.Keep press button ‘ON/OFF’ for 5 second to switch to Normal mode and Precise mode.
5.Button description:
1>.Long press means need keep press for more than 3second.
2>.Short press button ‘ON/OFF’ to enabled/disabled PWM output.
3>.Keep press button ‘ON/OFF’ for 2 second to lock parameters and display lock symbol at the same time then these parameters can not be set and avoid misoperation.Press 2 second again to release lock function.
4>.Keep press button ‘ON/OFF’ for 5 second to switch to Normal mode and Precise mode.
5>.Short press button ‘SET’ to switch display set parameters for frequency and duty cycle and amplitude.Then press button ‘UP’ and ‘DOWN’ to set parameter value.
6>.Keep press button ‘SET’ for 2 second to set system parameters for ddn/dup/Fdn/FUP/Adn/AUP/dEF.Then press button ‘UP’ and ‘DOWN’ to set system parameter value.
6.Use steps:
1>.Connect to power supply.
2>.Set Normal mode and Precise mode.
3>.Set parameters for frequency and duty cycle and amplitude.
4>.Set system parameters for ddn/dup/Fdn/FUP/Adn/AUP/dEF if need set.
5>.Keep press ‘ON/OFF’ for 2second to lock set parameters.
6>.Test.
7>.Press button ‘ON/OFF’ to turn on or off PWM output.
8>.Remove power and connect load to use module.
7.Application:
1>.Square wave signal generator, generating square wave signal for experimental development
2>.Used to generate a square wave signal that controls the motor driver
3>.Generate adjustable pulses for use by the MCU
4>.Dimmer
5>.Speed governor
8.Note:
1>.It’s 1-channel PWM output signals.
2>.Its maximum output current is 30mA.Therefore it cannot directly drive high-power devices.
3>.Please read use manual and description before use.
9.Package:
1>.1pc XY-APWM PWM Signal Generator

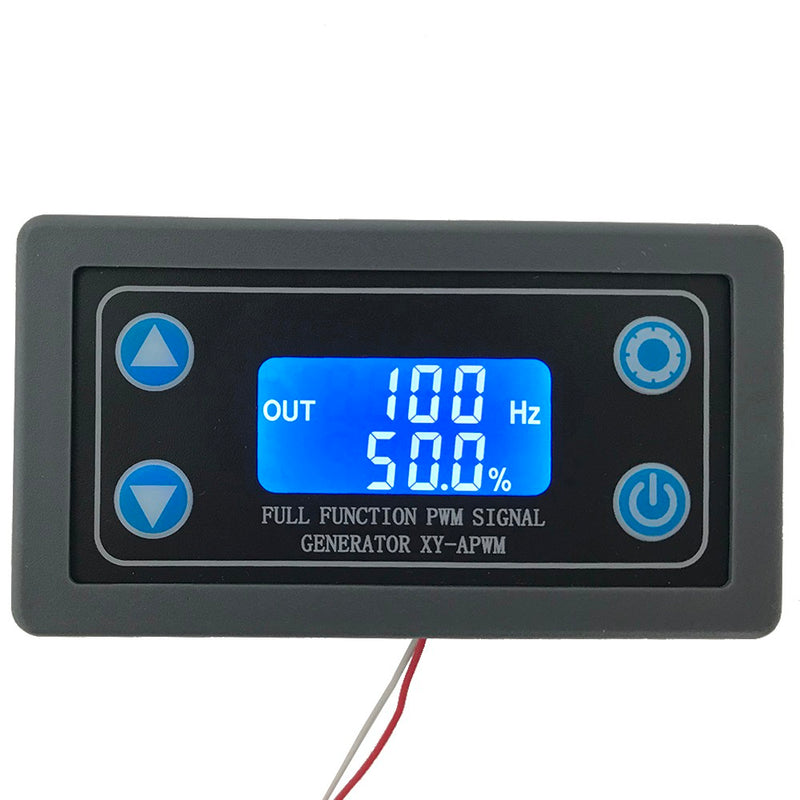

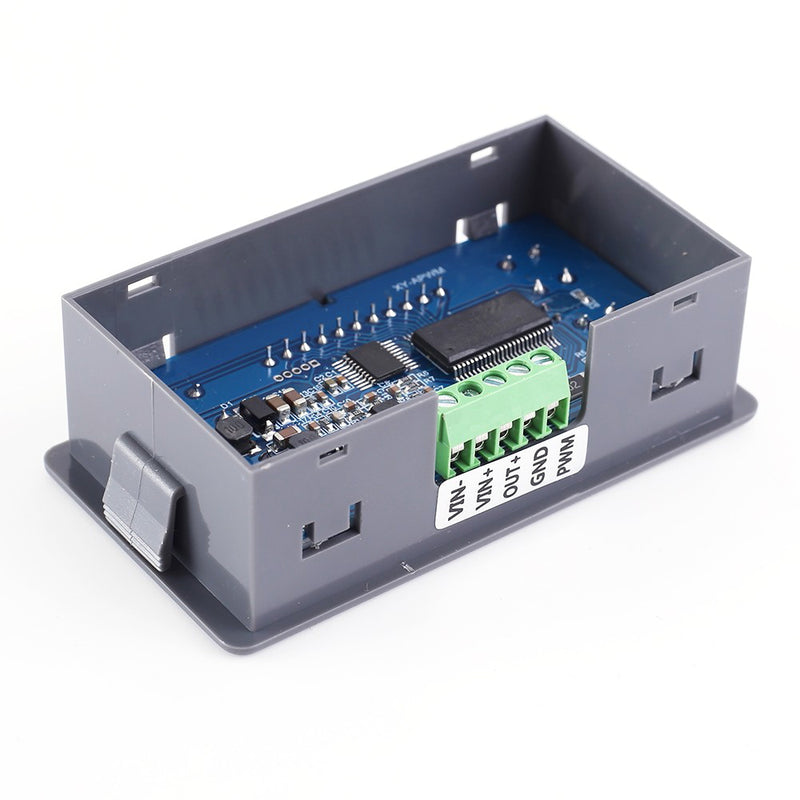

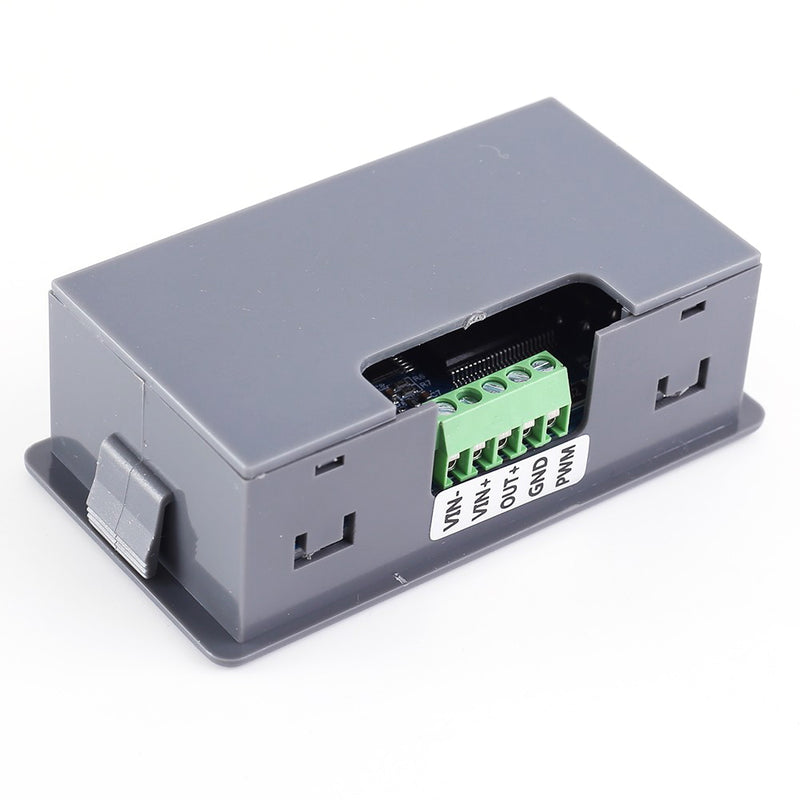

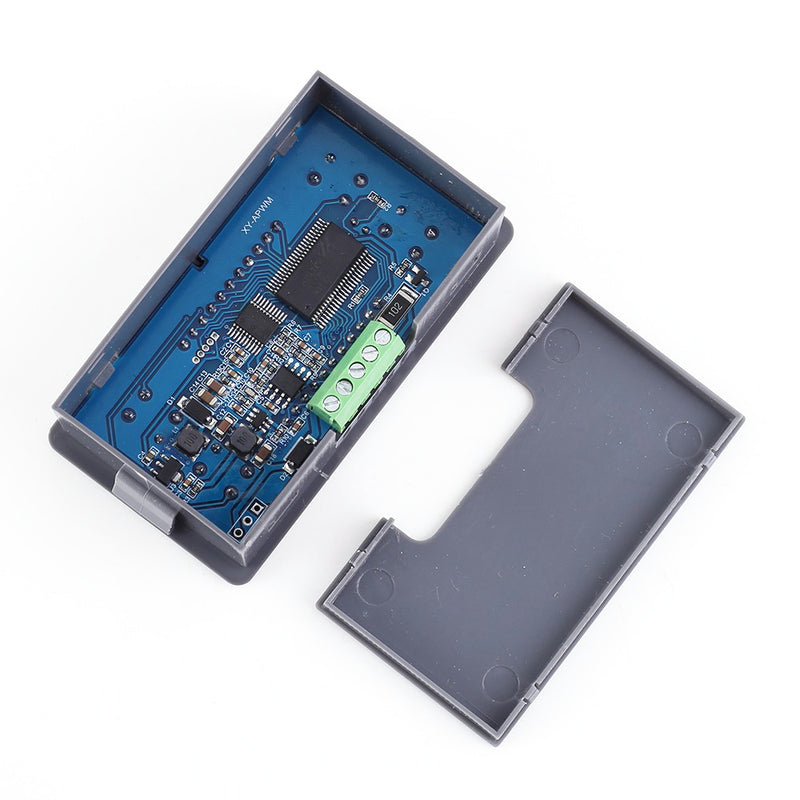

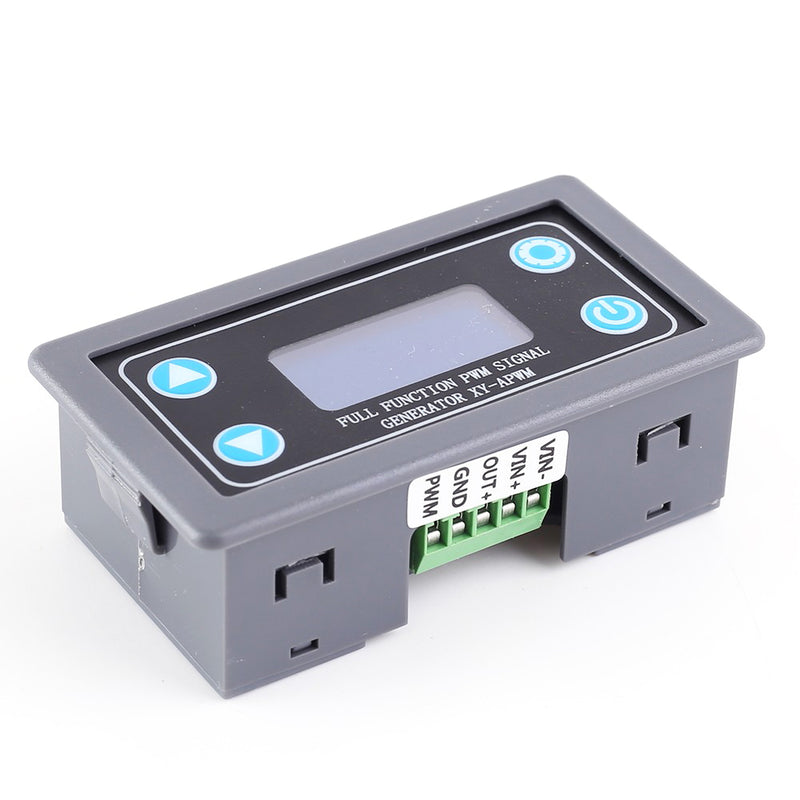

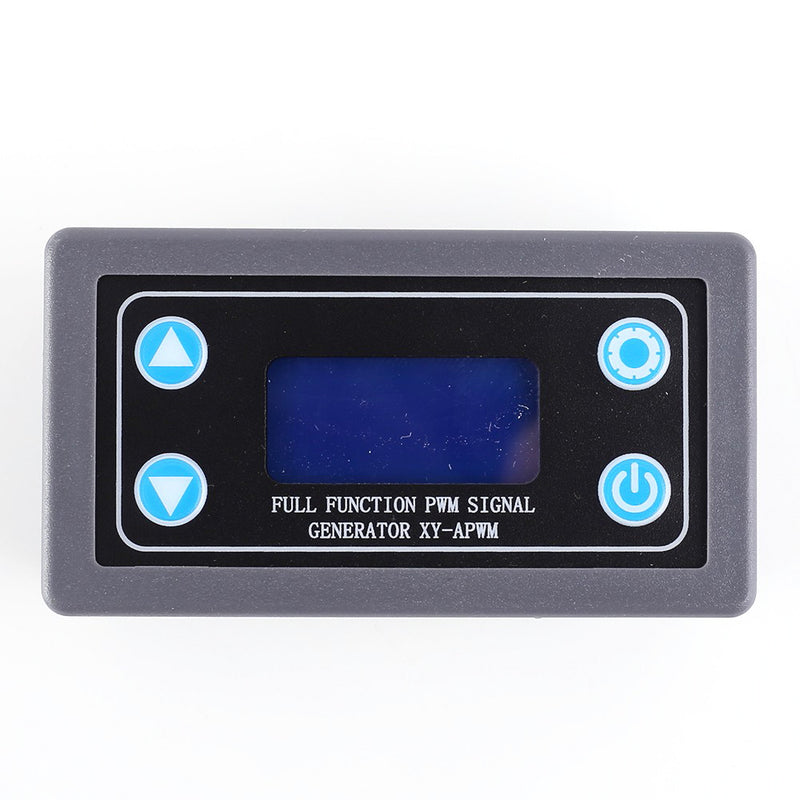

10.Details pictures:
