Specificatipons:
•Type:Turbine flowmeter
•Water pressure:≤1.75Mpa
•Voltage:DC3.5-24V
•Rated operating voltage:DC4.5 5-24V
•Load capacity:≤10mA
•Maximum operating current:15mA(DC5V)
•Flow range:2-100L/min
•Operating temperature range:≤80℃
•Pulse characteristics:f=1.0*Q (F: frequency,Q:L/min)
•Size:~114*60*48mm
Caution:
1:No severe impact or chemical attack is permitted
2:Do not throw or bump
3:Press the arrow on the product to install
4:Medium temperature should not exceed 80C.
Only weak acid and water concentration of the same liquid
Note:
Red IN :Positive
Yellow OUT: Signal output line
Black GND:Negative pole
Frequency calculation = Constant 1 * Unit flow rate (L / min) * Time (seconds)
Package includes:
1 x Flow Meter

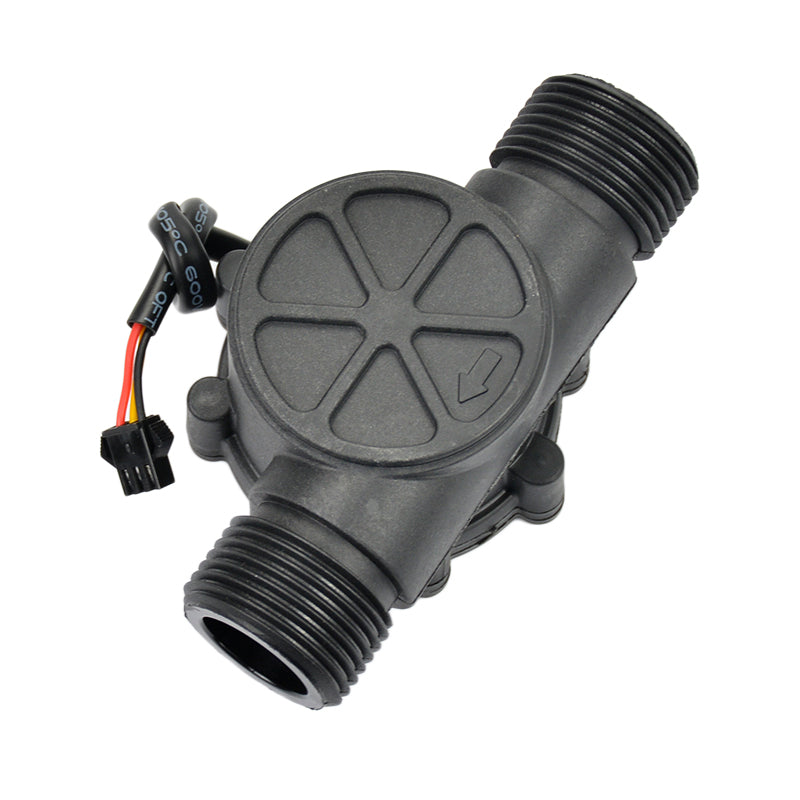

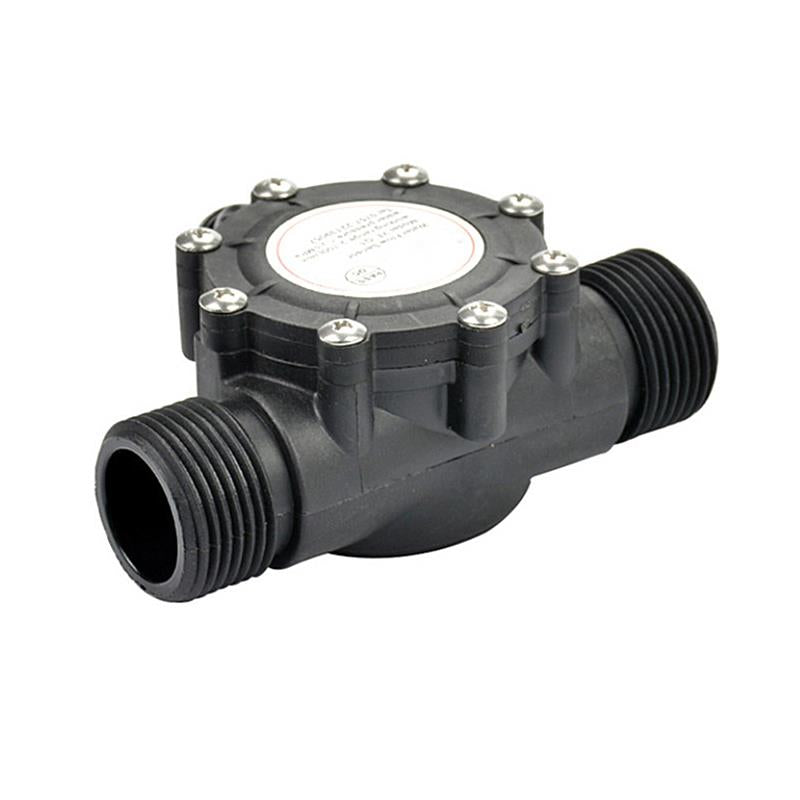

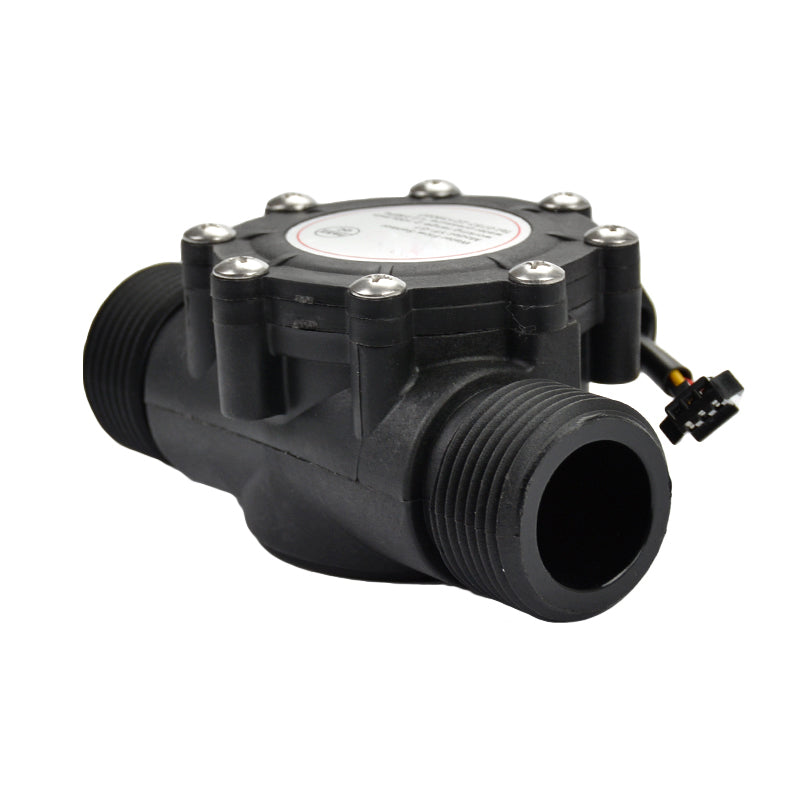

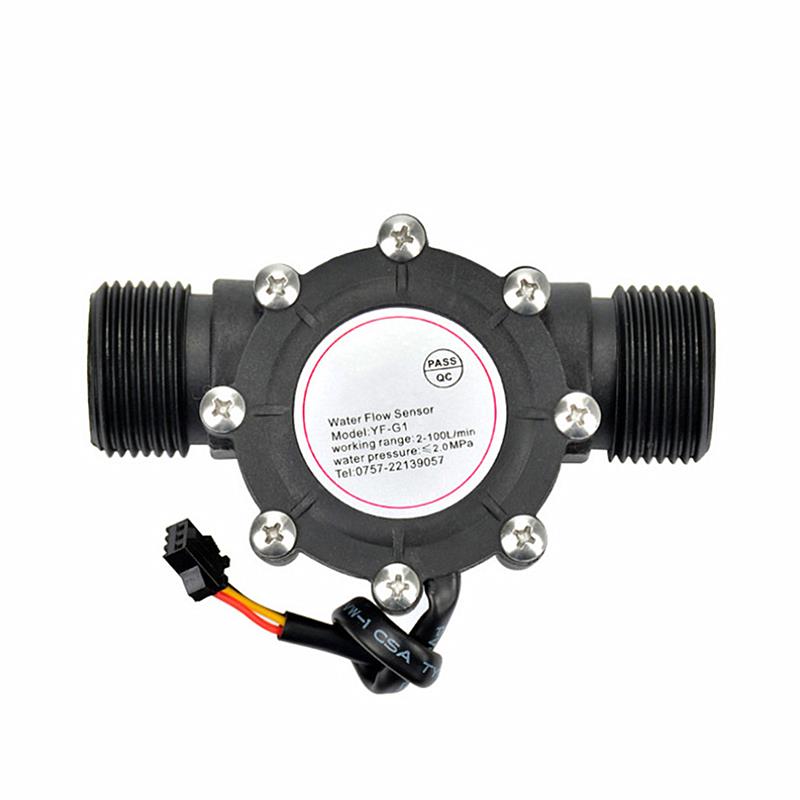

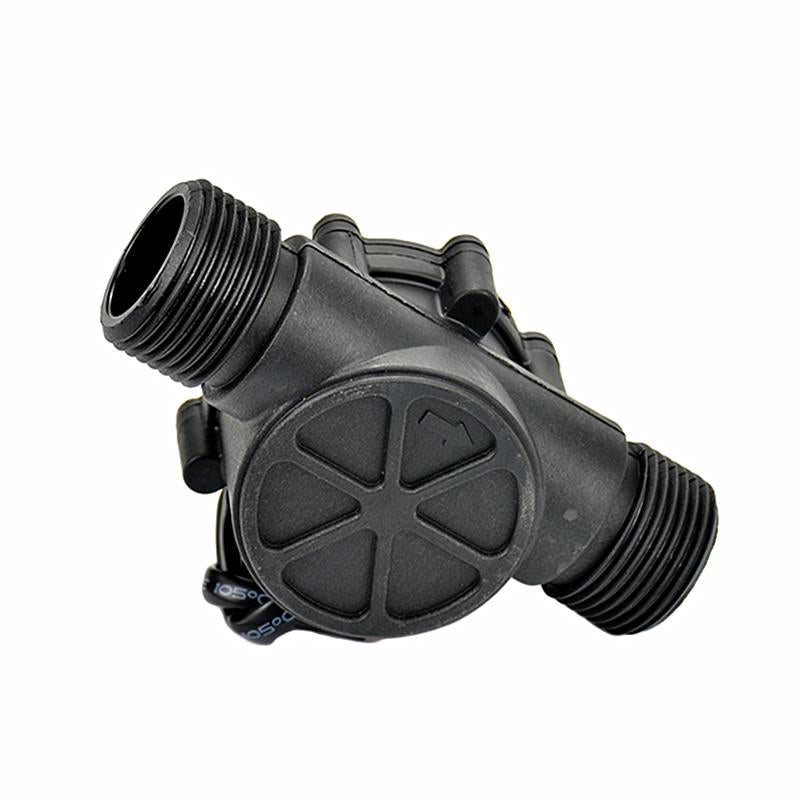

Detail pictures:
