Specifications:

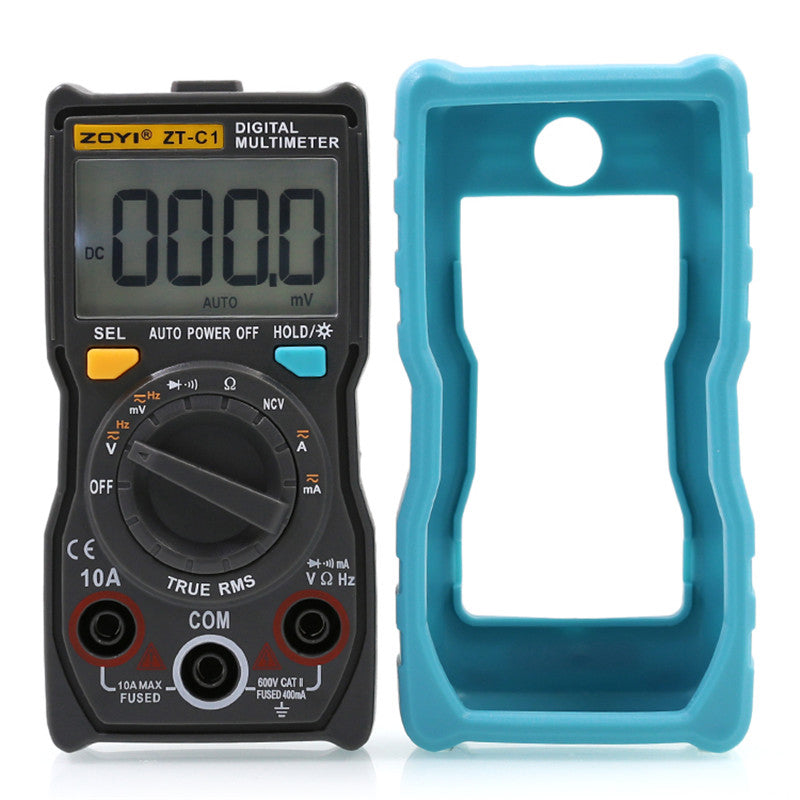

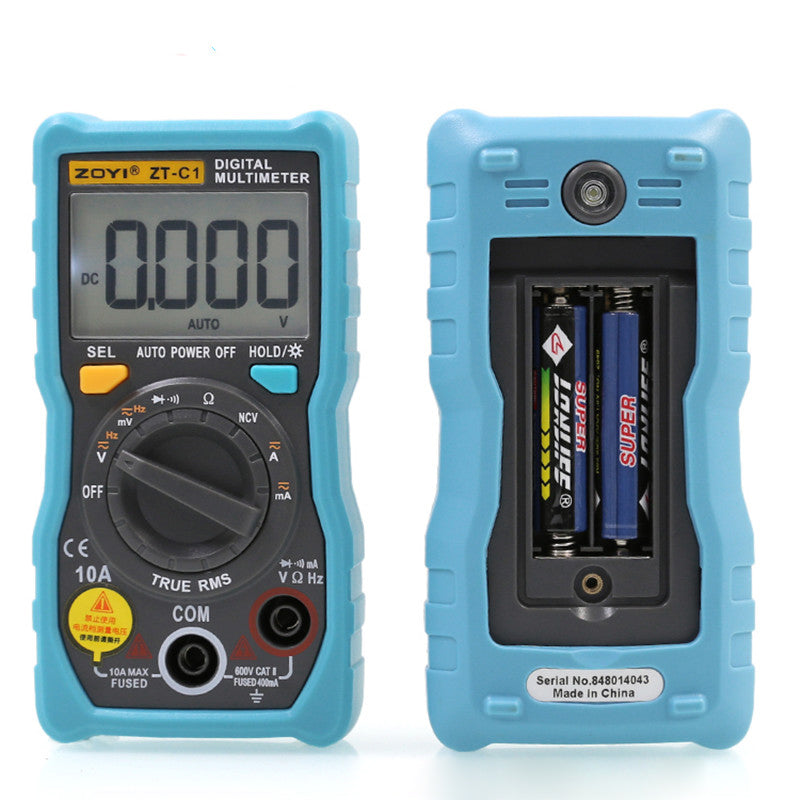

ZT-C1
1.Automatic range
2.4000 words true RMS measurement
3.550V high voltage protection (except current file)
4.4000 words high precision display

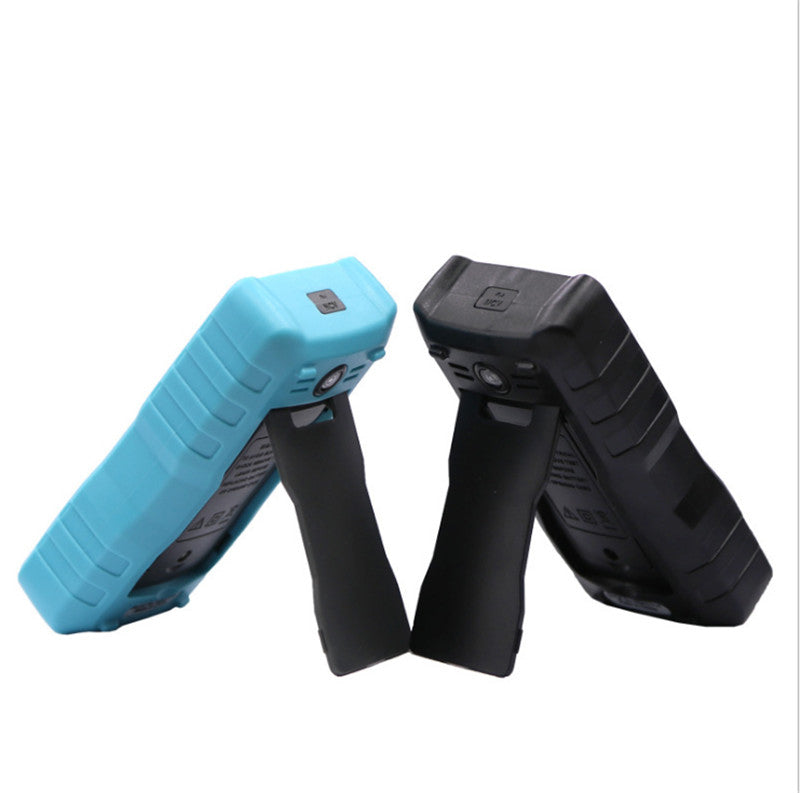

5. Backlight display, anti-break bracket
6. Data retention, automatic shutdown
7.10A current measurement
8.14 items (gear mode)
Package includes:
1 x Multimeter
1 x Test Lead
1 x English User Manual

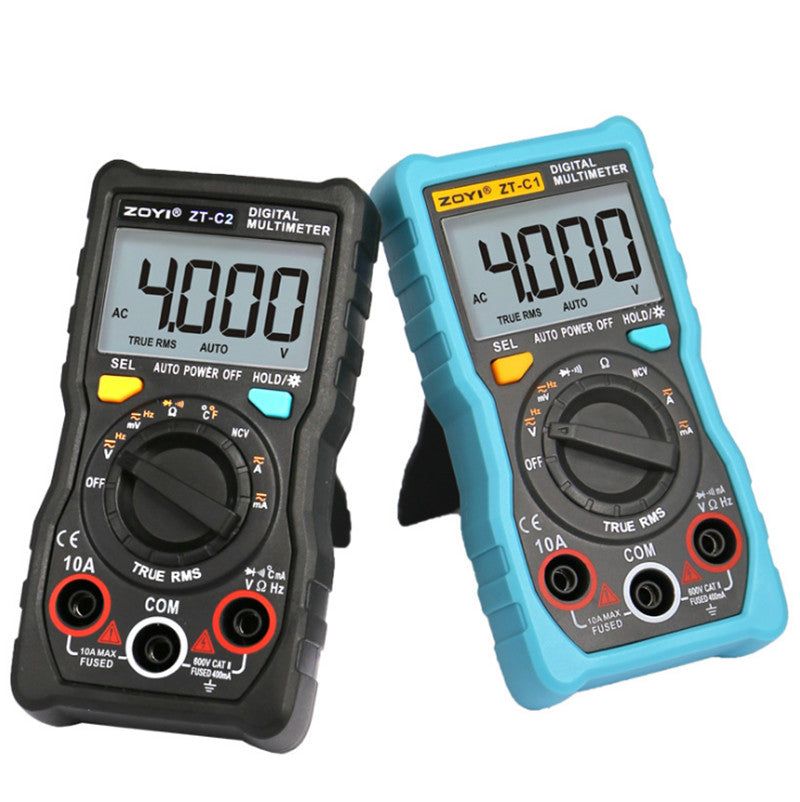

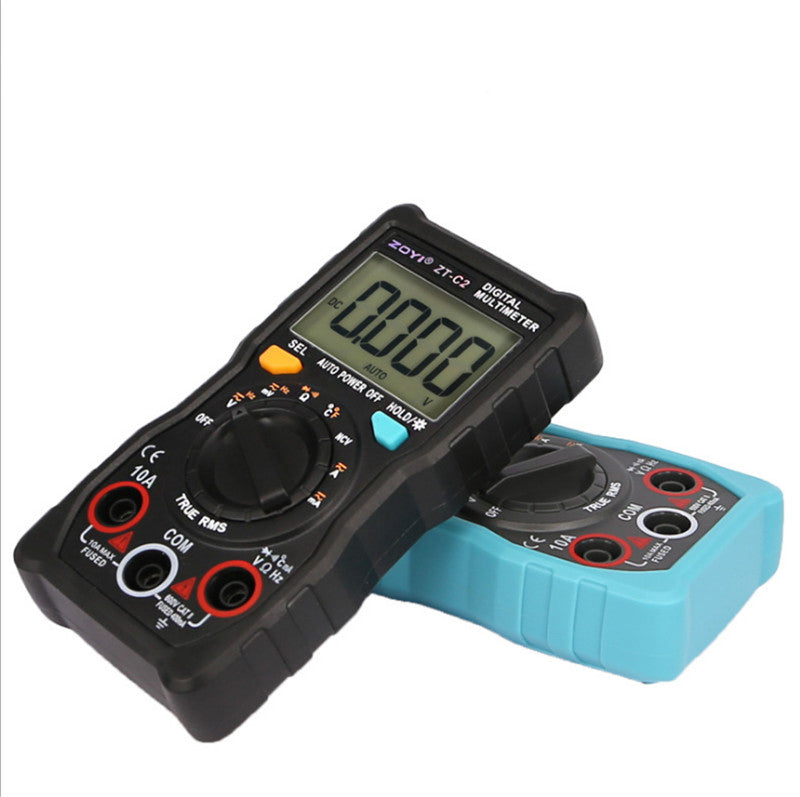

ZT-C2
1.Automatic range
2.4000 words true RMS measurement
3.550V high voltage protection (except current file)
4.4000 words high precision display
5. Backlight display, anti-break bracket
6. Data retention, automatic shutdown
7.10A current measurement
9. Temperature measurement
10.15 functions (gear mode)
Package includes:
1 x Multimeter
1 x Test Lead x1
1 x English User Manual
1 x Temperature Detector

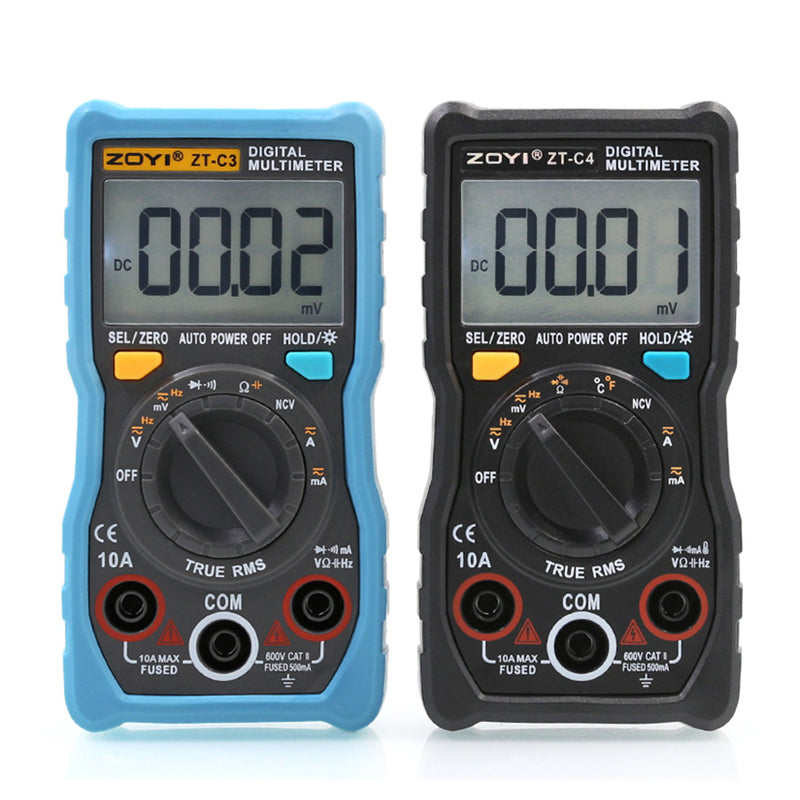

ZT-C3
Description:
This product is a battery-powered, true-rms, auto-ranging digital multimeter with a 4000 counts, LCD displayand backlight/flashlight.
Features:
Display (LCD):400counts
Ranging:Auto
Material:ABS/PVC
Update Rate:3 times/second
Ture RMS:√
Data Hold:√
Backlight/Flashlight:√
Low Battery Alert:√
Auto Power Off:√
Operating temperature:0-40°
Operating humidity:less then 75%
Storage temperature:-20~60°
Operating humidity:less then 80%
Battery type :1.5V AA batteryx3 (Not Included)
Specifications:
DC Voltage: 40mV/400mV/4.000V/40.00V/400.0V/600V ±(0.5%+3);
AC Voltage: 40mV/400mV/4.000V/40.00V/400.0V/600V ±(1.0%+3)
AC Current: 640.00mA400.0mA/4/.000A/10.00A ±(1.5%+3);
DC Current: 40.00mA400.0mA/4/.000A/10.00A ±(1.2%+3);
Resistance: 400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ ±(0.5%+3); 40.00MΩ ±(1.5%+3);
Capacitance:4nF ±(5.0%+20);40.00nF/400.0nF/4.000uF/40.00uF/400.0uF ±(3.5%+4); 4.000mF ±(5.0%+5);
Frequency: 4.000Hz/40.00Hz/400.0Hz/ 4.000kHz/40.00kHz/400.0kHz /10.00MHz ±(1.0%+2);
Diode: √ (DC forward current is 5mA,voltage is 3V)
Continuity: √ (no more than 50Ω)
Package includes:
1 x Digital Multimeter
1 x Test leads
1 x English user Manual
ZT-C4
Description:
This product is a battery-powered, true-rms, auto-ranging digital multimeter with a 4000 counts, LCD displayand backlight/flashlight.
Features:
Display (LCD):4counts
Ranging:Auto
Material:ABS/PVC
Update Rate:3 times/second
Ture RMS:√
Data Hold:√
Backlight/Flashlight:√
Low Battery Alert:√
Auto Power Off:√
Operating temperature:0-40°
Operating humidity:less then 75%
Storage temperature:-20~60°
Operating humidity:less then 80%
Battery type :1.5V AA batteryx3 (Not Included)
Specifications:
DC Voltage: 40mV/400mV/4.000V/40.00V/400.0V/600V ±(0.5%+3);
AC Voltage: 40mV/400mV/4.000V/40.00V/400.0V/600V ±(1.0%+3)
AC Current: 640.00mA400.0mA/4/.000A/10.00A ±(1.5%+3);
DC Current: 40.00mA400.0mA/4/.000A/10.00A ±(1.2%+3);
Resistance: 400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ ±(0.5%+3); 40.00MΩ ±(1.5%+3);
Capacitance:4nF ±(5.0%+20);40.00nF/400.0nF/4.000uF/40.00uF/400.0uF ±(3.5%+4); 4.000mF ±(5.0%+5);
Frequency: 4.000Hz/40.00Hz/400.0Hz/ 4.000kHz/40.00kHz/400.0kHz /10.00MHz ±(1.0%+2);
Temperature:-20 °C-1000°C( -4°F-1832°F)
Diode: √ (DC forward current is 5mA,voltage is 3V)
Continuity: √ (no more than 50Ω)
Package includes:
1 x Digital Multimeter (not included battery)
1 x Test leads
1 x Thermocouple probe
1 x English user Manual
Details Pictures:
