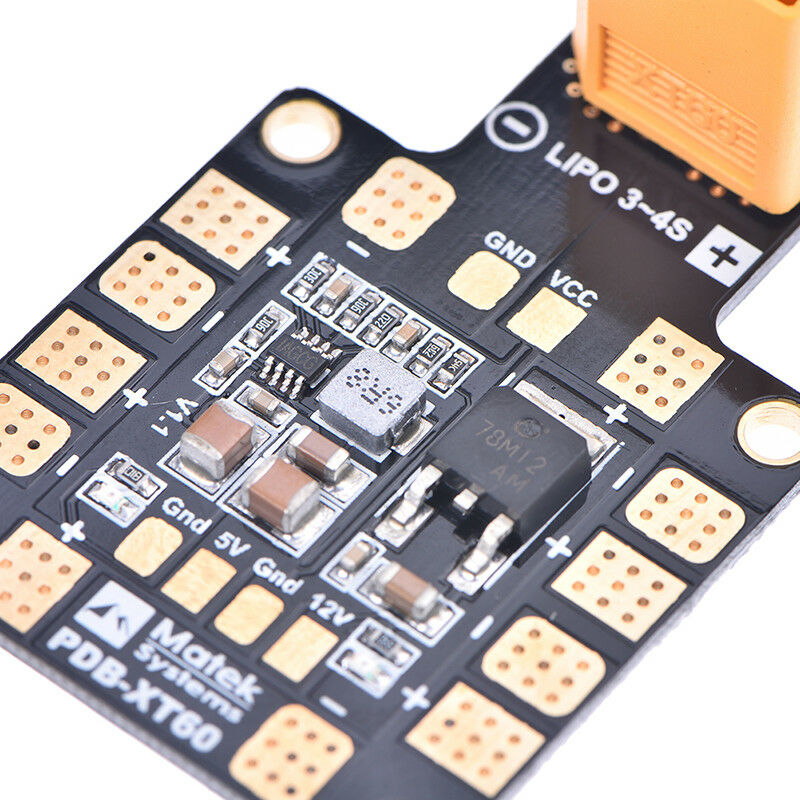

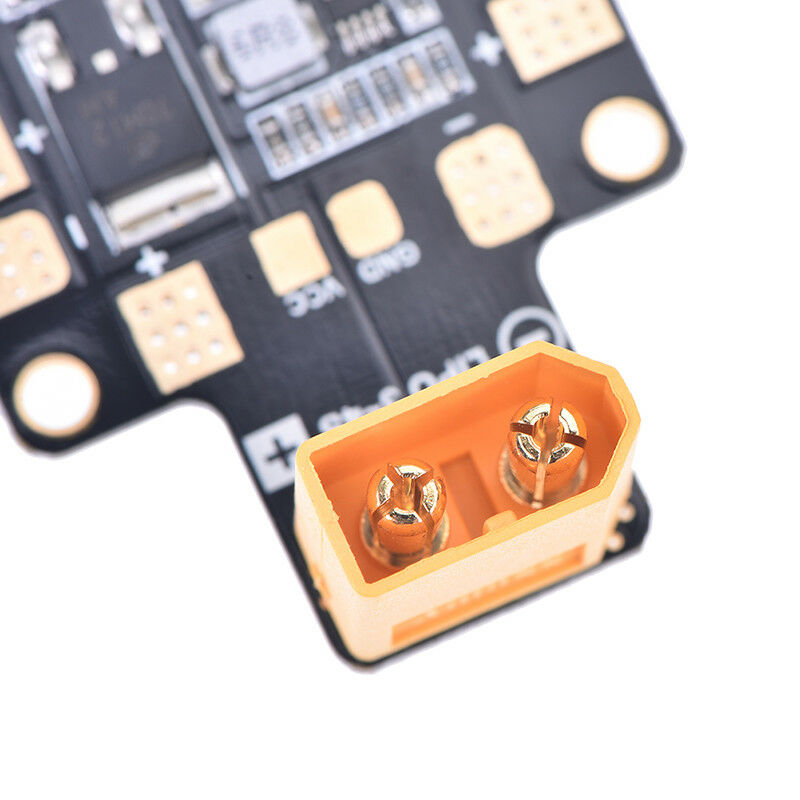

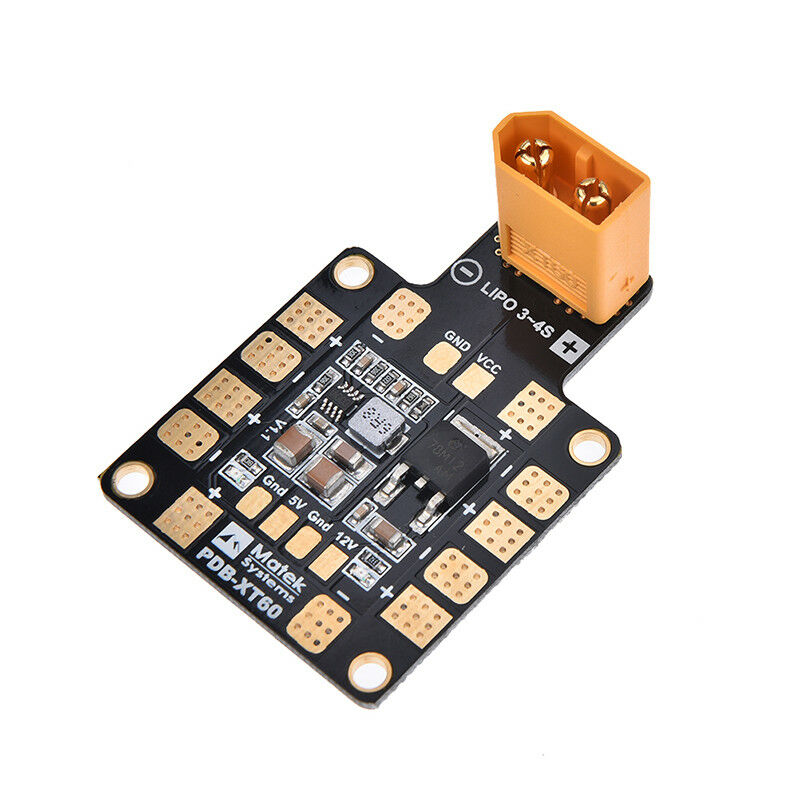

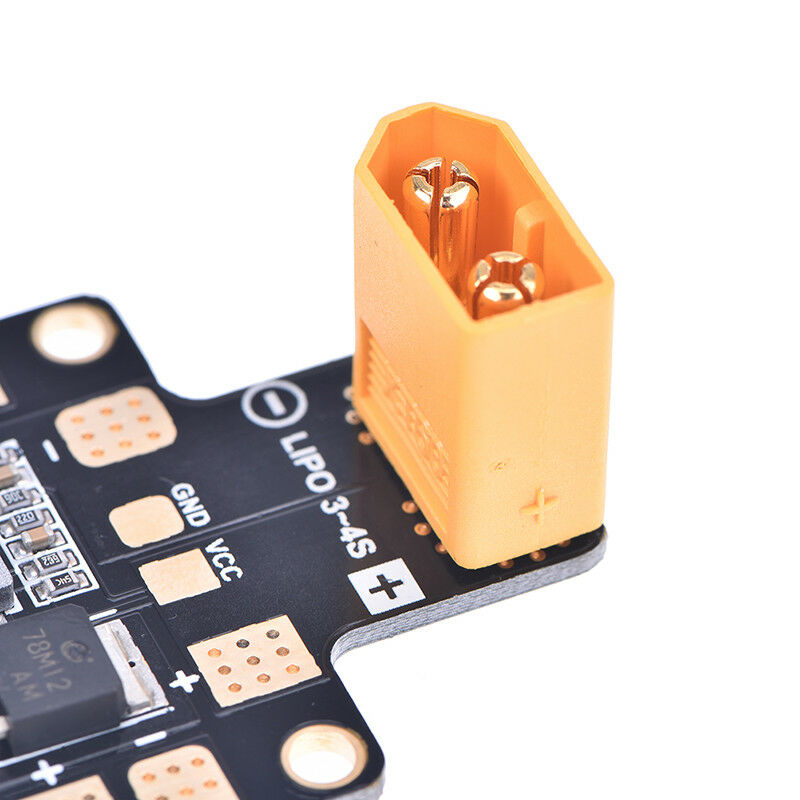

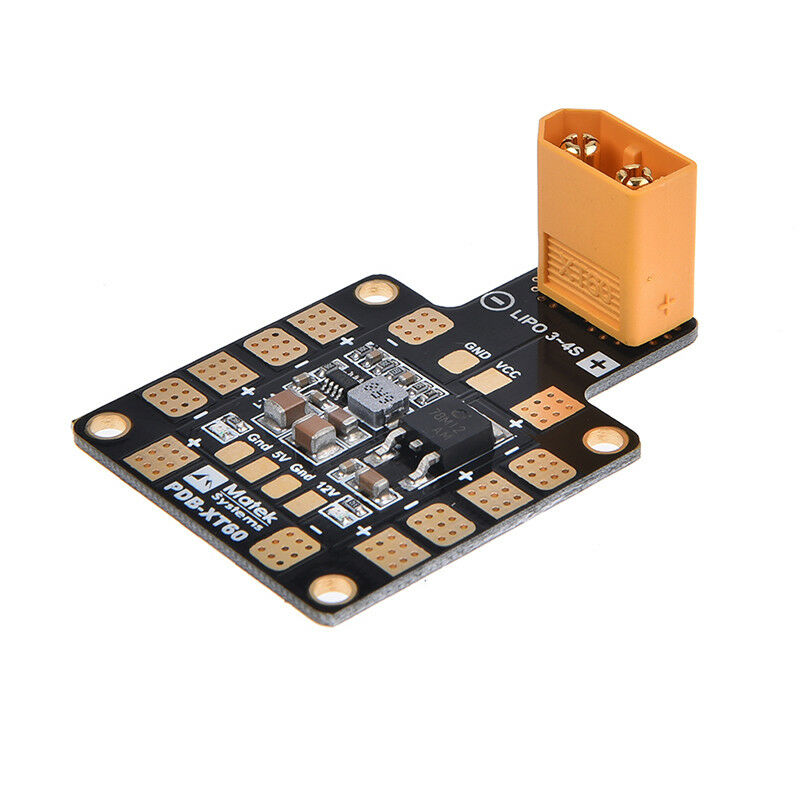

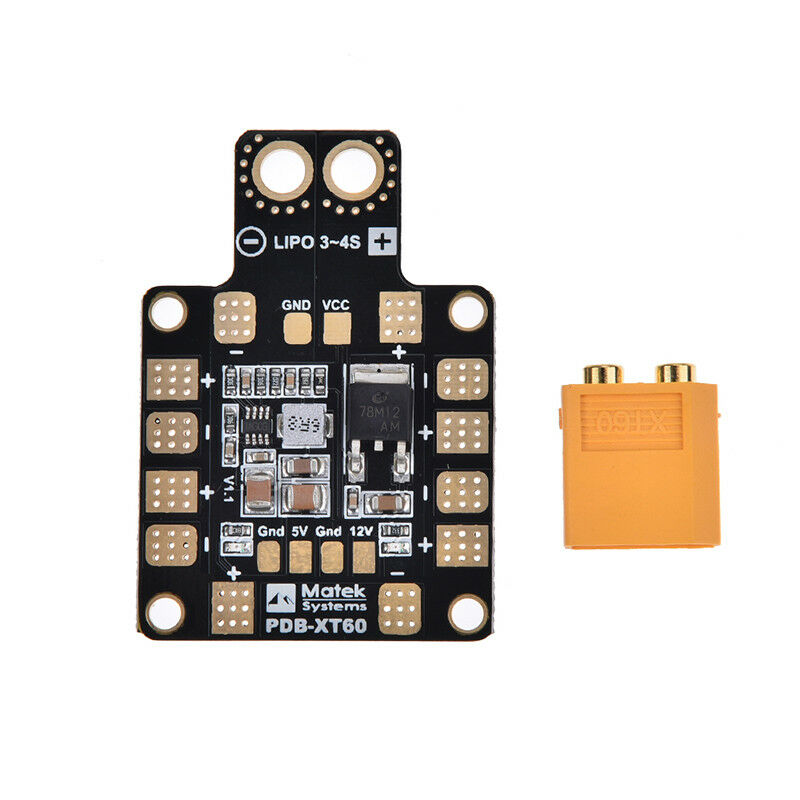

ITEM NAME:1pc pdb xt60 bec 5v/12v power distribution module board for fpv drone quad â„–[ Features: 1. 2oz copper, 4-layers &1.6mm PCB. 2. Built-in XT60 Socket. 3. Total 6 pairs ESC solder tabs are fit for H or X type frame. 4. 5V & 12V Output LED indicators & Short circuit tolerant . Specifications: 1. Input voltage range (3S-4S LiPo operation): 9 - 18V DC 2. Regulated 5V and 12V outputs 3. LED power indicators ( 5V & 12V outputs ) 4. 6 ESC outputs & 1 pair VCC/GND pads 5. Size: 50 x 35 x 3mm/2 x 1.4 x 0.1 in 6. Package size: 145 x 88mm/5.7 x 3.5 in 7. Net Weight: 10g 8. Package weight: 15g ESC outputs: 1. Continuous current: 25A*4 or 15A*6 2. Peak current (10 seconds/minute): 30A*4 or 20A*6 BEC 5V output: 1. Designed for RC Receivers, Flight controllers, OSD, and Servos. 2. DC/DC synchronous buck regulator. 3. Voltage: 5.0 +/- 0.1VDC 4. Continuous current: 2 Amps (Max.2.5A 10s/minute) 5. Output Ripple: 40mV (VIn=16V, VOut=5V@2A load) 6. Short-circuit tolerant (5 seconds/minute) BEC 12V output: 1. Designed for Video TX or FPV camera with linear regulator. 2. The battery should be 4S LiPo (13~18V DC) 3. Voltage: 12.0 +/- 0.3VDC 4. Continuous current: 500mA (Max.0.8A 5s/minute) 5. Short-circuit tolerant (2 seconds/minute) BEC 12V @ 3S LiPo Output voltage= 3S LiPo voltage -1V Package included: 1Pc x PDB-XT60.Built-in XT60 Socket. Output Ripple: 40mV (VIn=16V, VOut=5V@2A load). BEC 5V output BEC 12V output 5V & 12V Output LED indicators & Short circuit tolerant. BEC 12V @ 3S LiPo. LED power indicators ( 5V & 12V outputs ).
