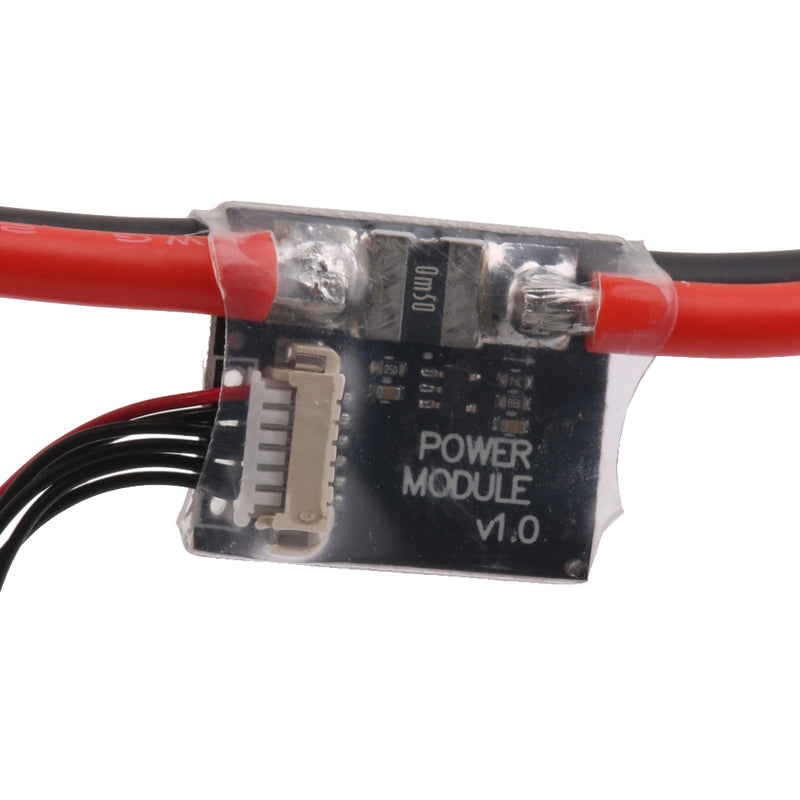

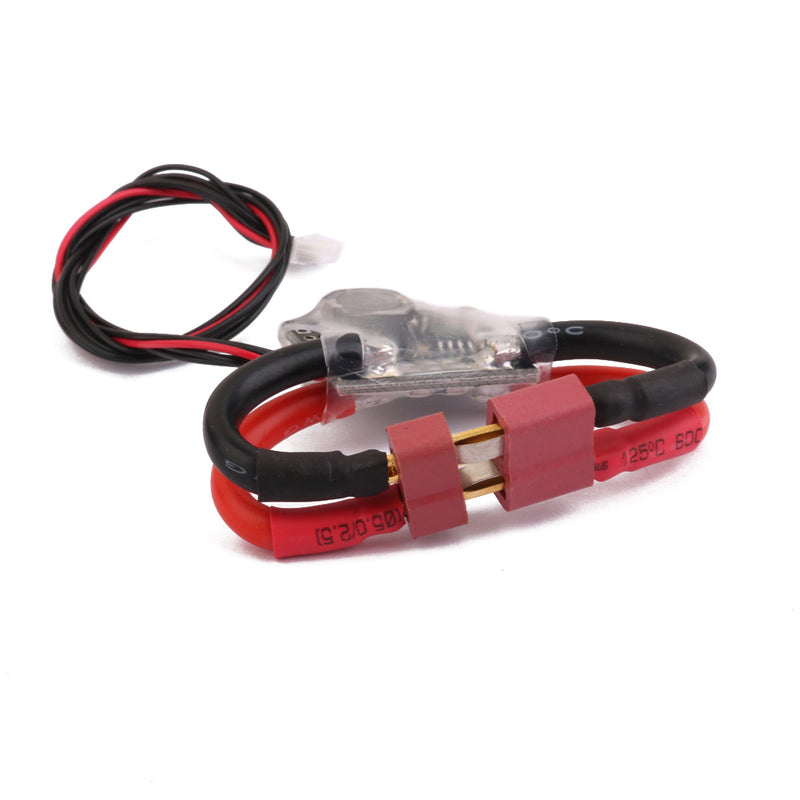

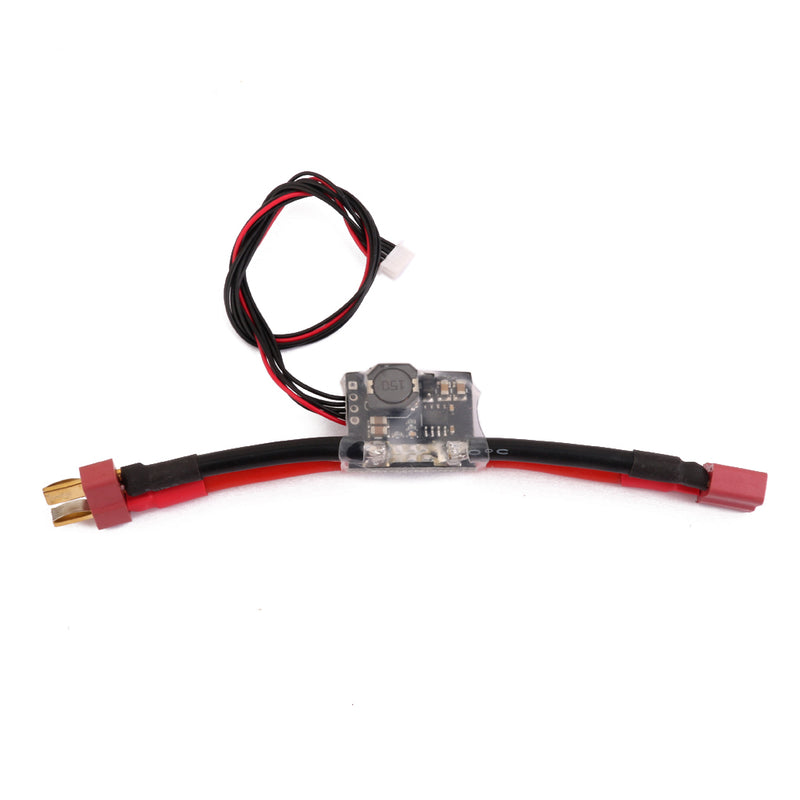

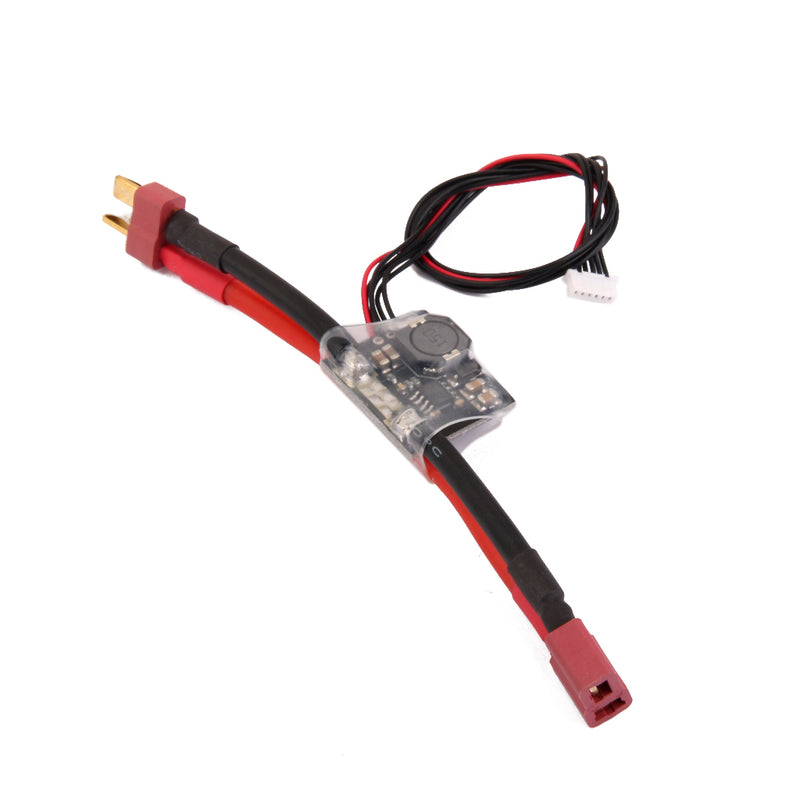

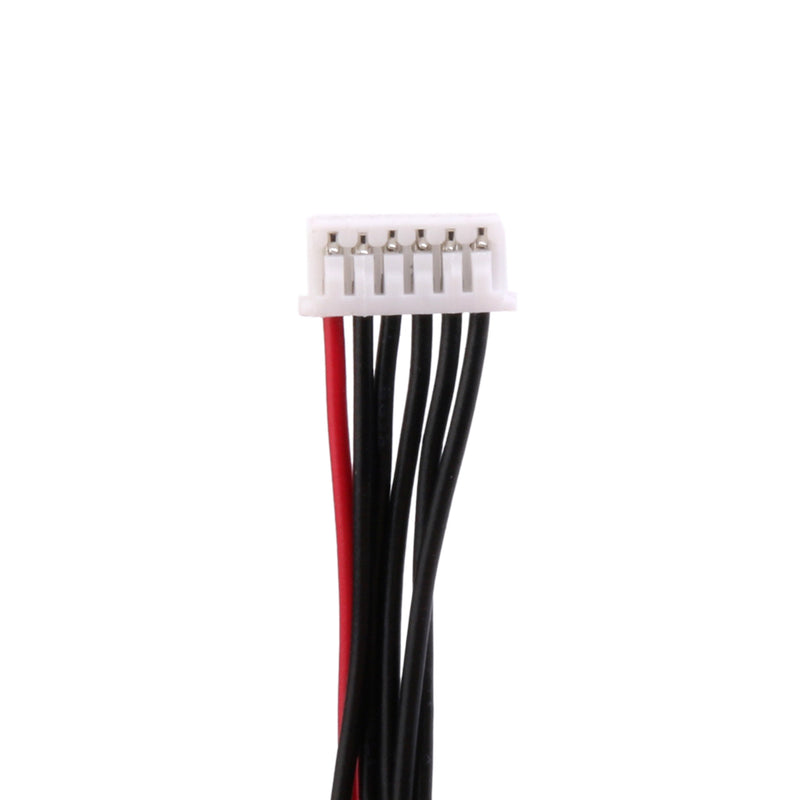

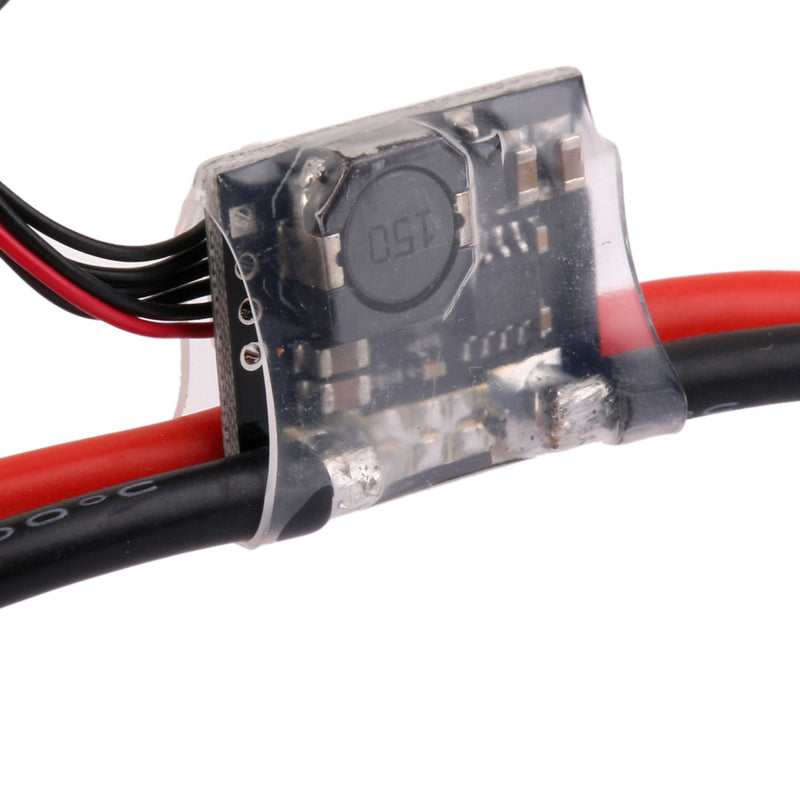

ITEM NAME:2.5 APM Flight Controller Power Supply Current Module V1.0 Output 5.3V 3A Description: Power Module is a simple way of providing your APM/Arduflyer with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6P cable. The on-board switching regulator outputs 5.3V and a maximum of 3A from up to a 6S LiPo battery. Special for APM2.5.2 APM2.6 Pixhawk flight controller. Specification: Deans Plug Input voltage: 2~6S LiPo battery (Max. 28V) Max current sensing: 90A Voltage and current measurement configured for 5V ADC Switching regulator outputs 5.3V and 3A max 6P cable plugs directly to APM/Arduflyer 2.5's 'PM' connector Note: The Power Module is only designed to power APM/Arduflyer, a RC receiver and accessories (GPS, Radio telemetry). It is not designed to power servos. Use your aircraft's own ESC/BEC for that Color: Black + Red Size: Approx. 25mm x 21mm x 9mm / 1 x 0.8 x 0.35 inch Size: Approx. 137mm / 5.4 inch Cable length: Approx. 192mm / 7.6 inch Package Includes: 1 x APM Power Module with connecting wire.1 x APM Power Module with connecting wire. The on-board switching regulator outputs 5.3V and a maximum of 3A from up to a 6S LiPo battery. Switching regulator outputs 5.3V and 3A max. It is not designed to power servos.
