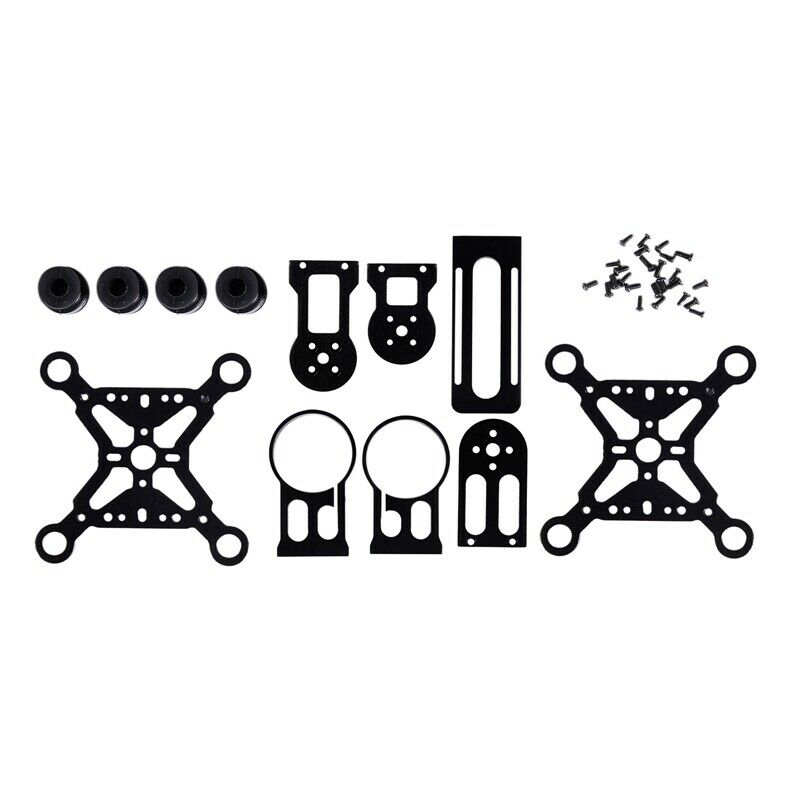

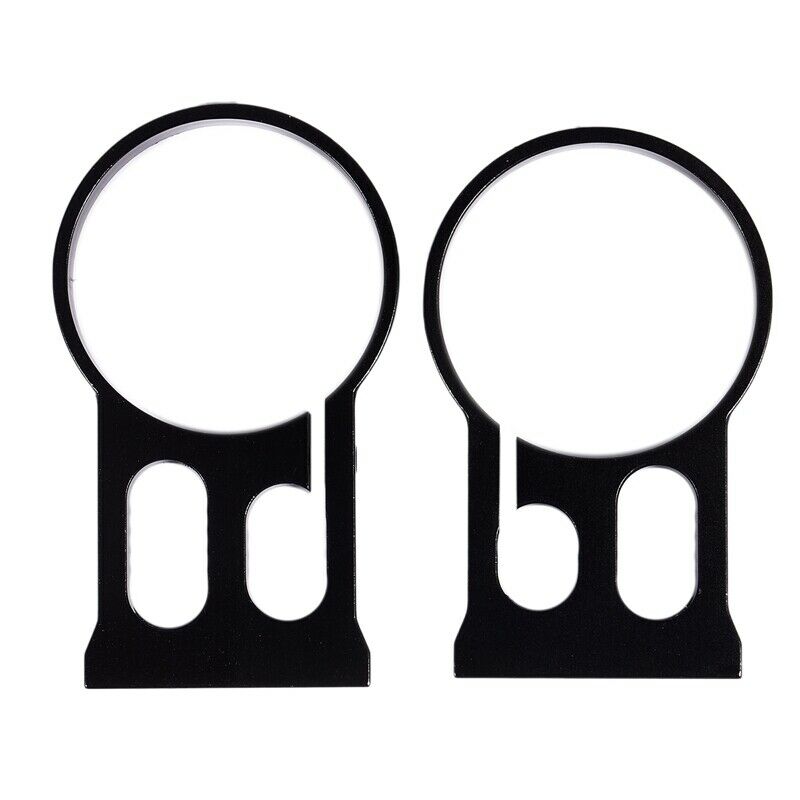

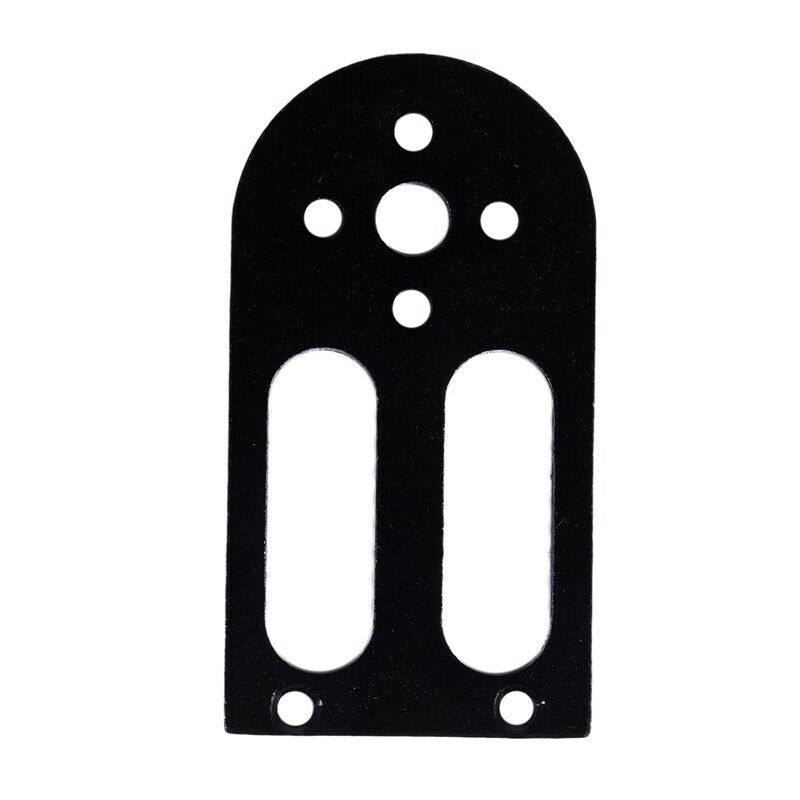

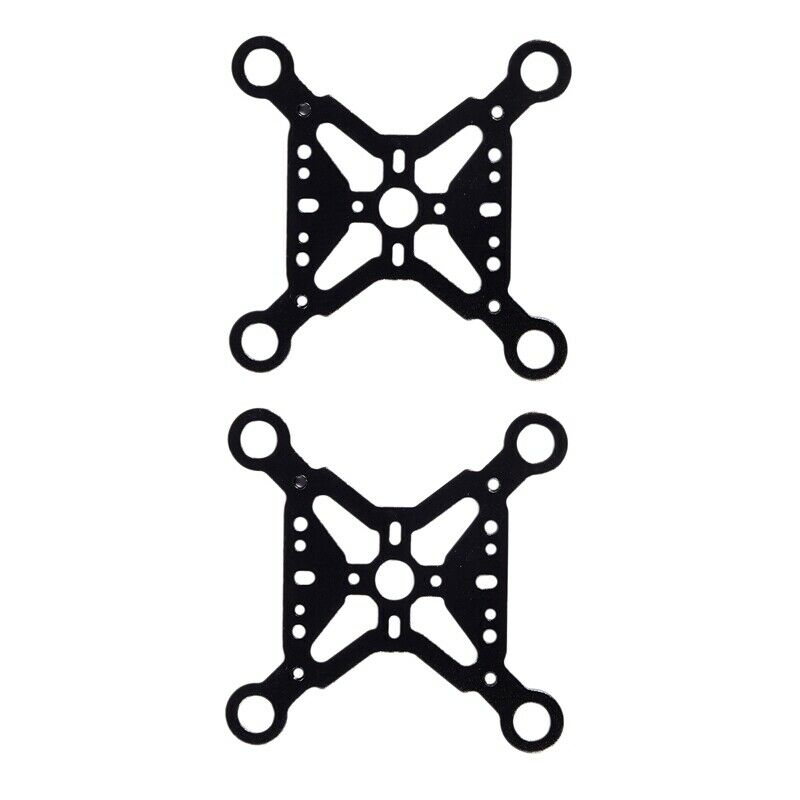

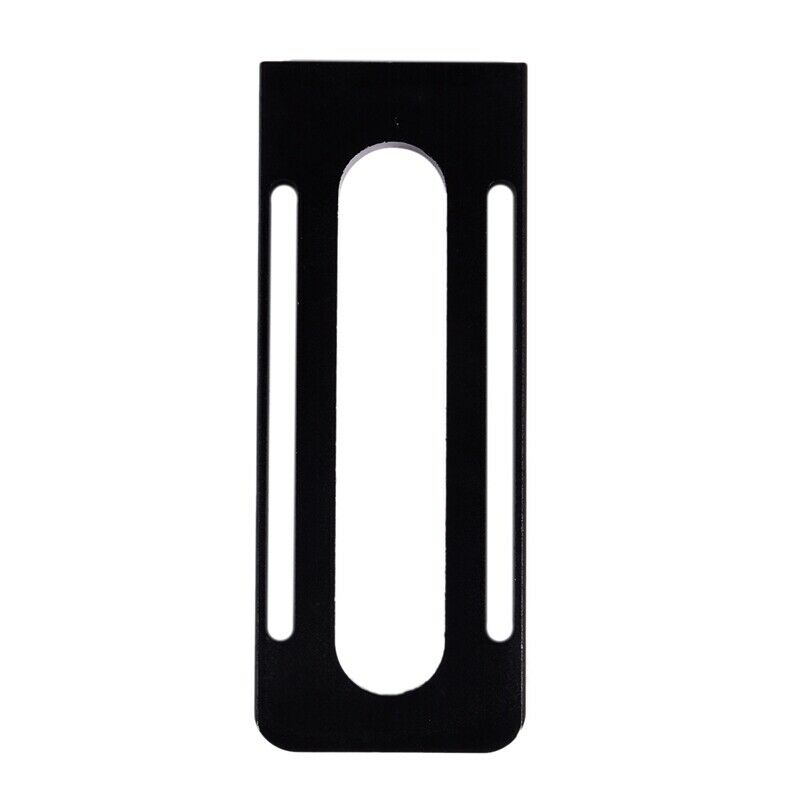

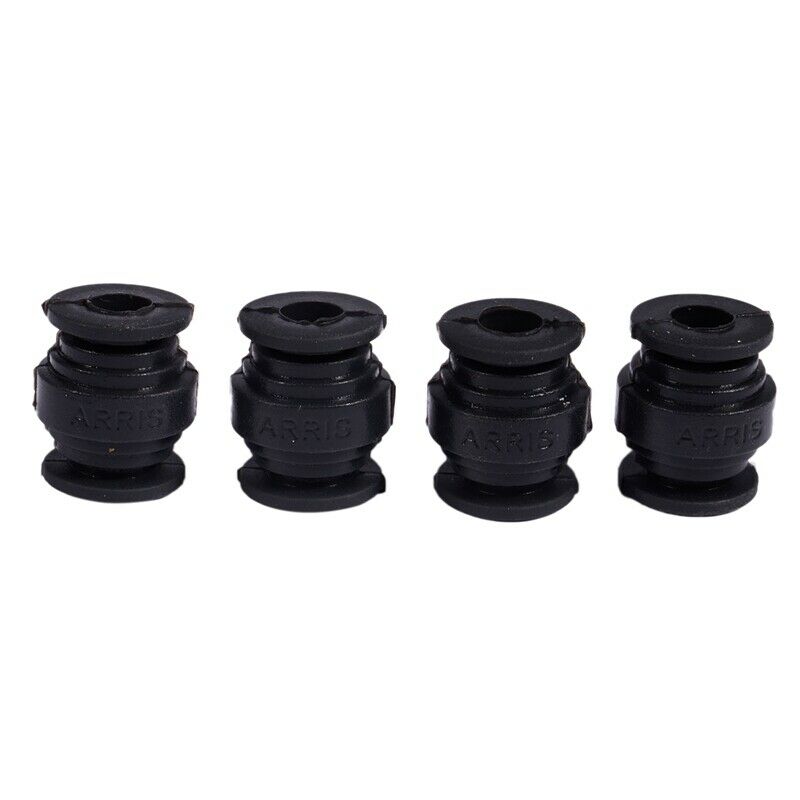

ITEM NAME:3 Axis Brushless Gimbal Frame Storm32 Controller Spare Parts Accessories Pa S4A3 3 Axis Brushless Gimbal Frame Storm32 Controller Spare Parts Accessories Pa S4A3 Control panel:A new generation of 32-bit brushless pan/tilt control board, non-Alexmos hair version. Performance parameter:(1) With the STM32F103RC at 72 MHz processor, the processing speed is 10 times faster than that of the 8th, and the response is faster and more sensitive. (2) It can be equipped with onboard Bluetooth, PID tuning via mobile phone, and convenient outdoor tuning. (3) On-board gyroscope and acceleration sensor (MPU6050), dual gyroscopes, can achieve more actions (4) Infrared led interface, remote camera is more convenient. (5) Futaba S-Bus, support bus receiver: Spektrum satellite port. (6) Up to 7 channels of PWM/Sum-PPM input/output. (7) Each axis can be connected to support the analog joystick, and the SLR handheld pan/tilt can use this function.(8) With an additional I2C port (I2C#2), an external 6050 can be used instead of the onboard sensor. (9) 3 aux interfaces. (10) Power supply voltage: 6 18 V or 2 4S.(11) Motor drive current: 2A per phase per motor (12) Dimensions: 5 cm x 5 cm, ï ¼Å¸3 mm screw holes, hole spacing 45 mm. (13) Weight: 13 g specification Motor model: 2206/100T brushless motor: 2, 2804/100T brushless motor: 1 Driver board: STORM32BGC Firmware version: o323bgc-release-v070 Hardware version: V130 Working voltage: 3-4S (11.1-16.8V) Working current: 350mA Joystick control angle: PITCH: -25 degrees +25 degrees / ROLL: -25 degrees +25 degrees / YAW: -90 degrees + 90 degrees. Switch control mode: lock / follow Size: 80 * 80 * 100mm (L * W * H) Weight: 180g Scope of application: GOPRO series compatible cameras. Power connector: JST and HX Instructions for use Install the camera (must install the camera, otherwise it will keep shaking), after the power is turned on, stabilize the gimbal for about 20 seconds (do not shake the gimbal, keep the gimpi.Motor model: 2206/100T brushless motor: 2, 2804/100T brushless motor: 1. (6) Up to 7 channels of PWM/Sum-PPM input/output. (7) Each axis can be connected to support the analog joystick, and the SLR handheld pan/tilt can use this function.
