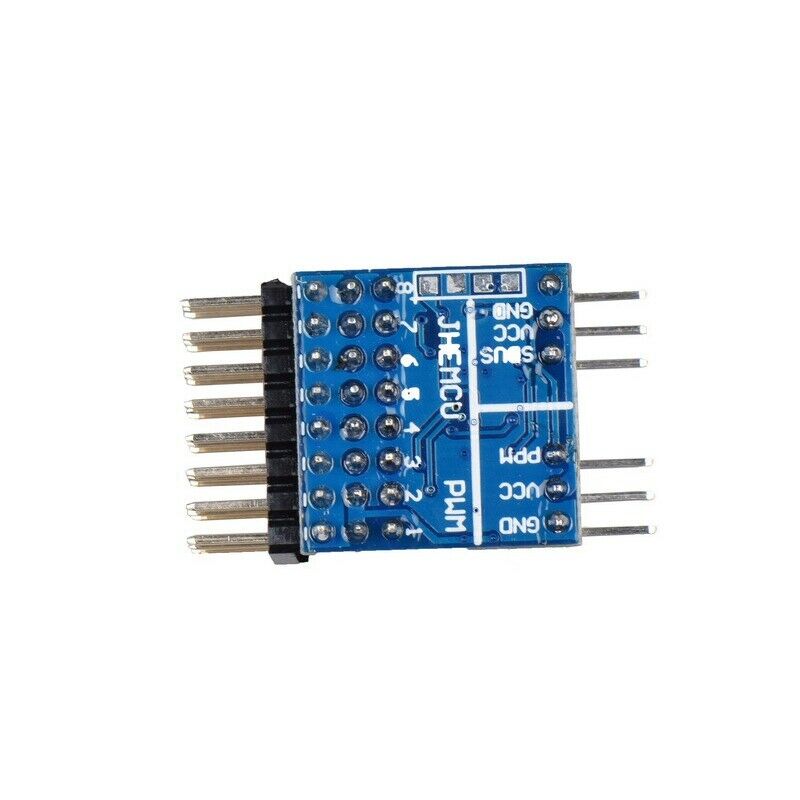

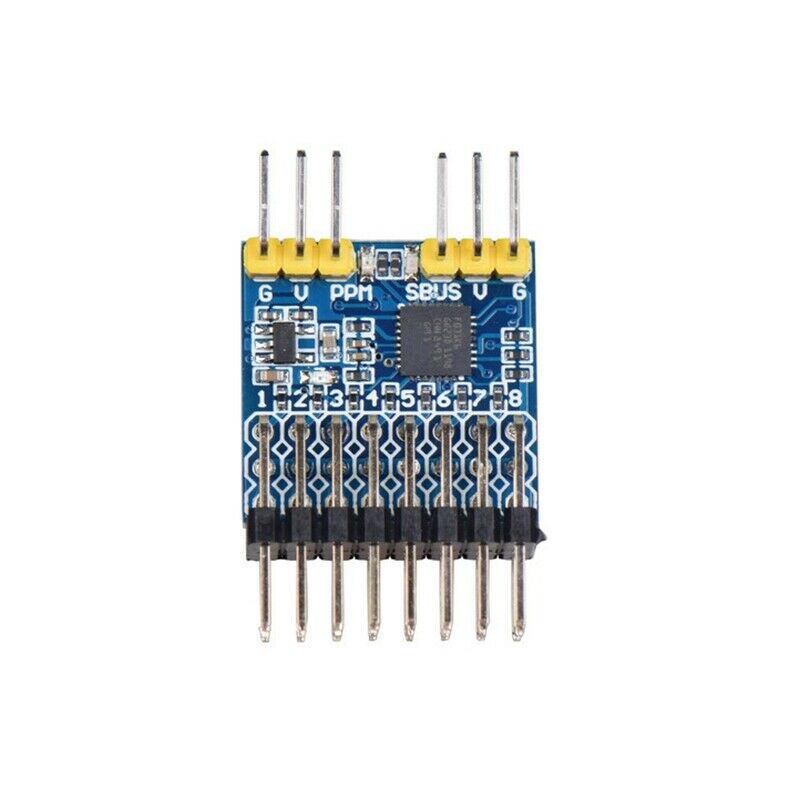

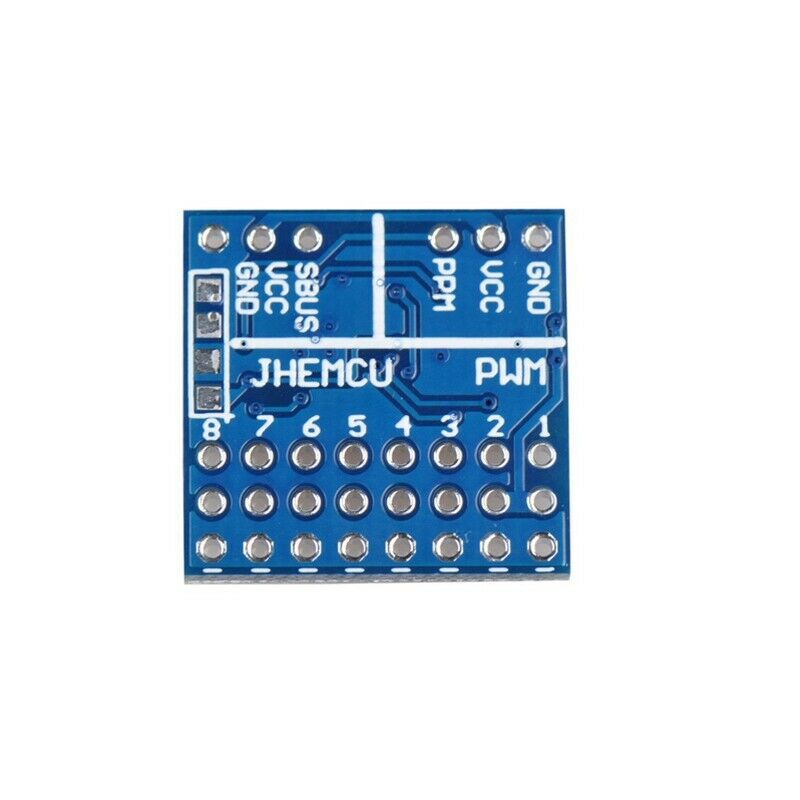

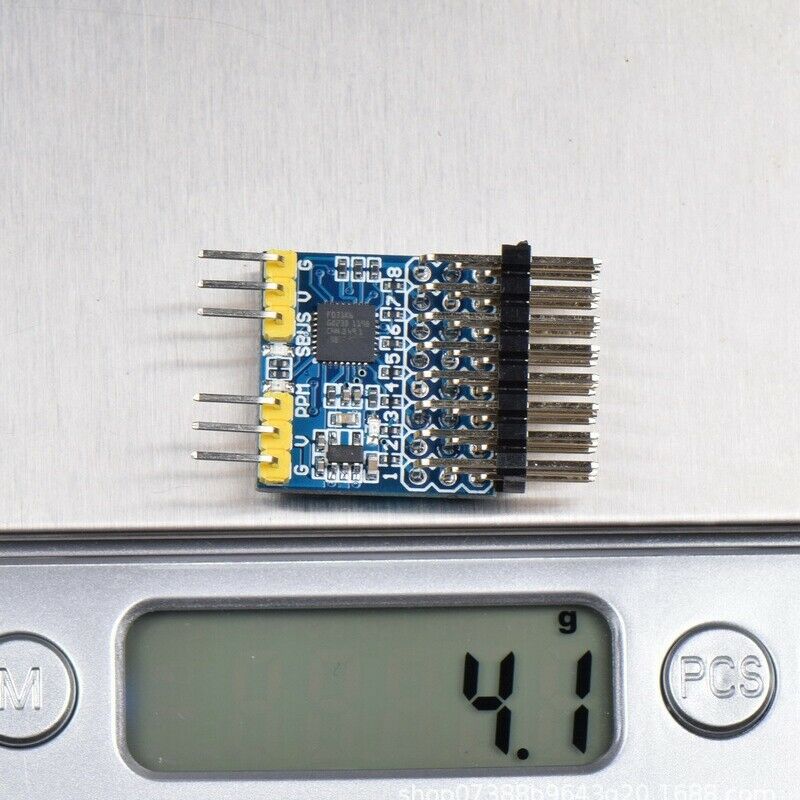

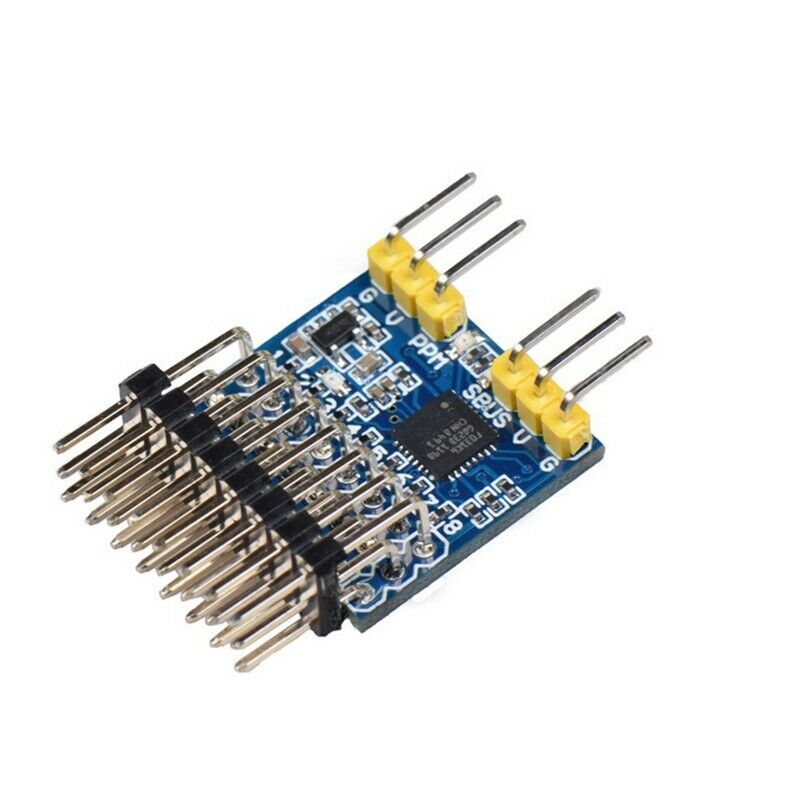

ITEM NAME:8CH PWM PPM SBUS Signal Conversion Module Converter Input Voltage 3.3-20V foL4X6 8CH PWM PPM SBUS Signal Conversion Module Converter Input Voltage 3.3-20V foL4X6 This module's wide voltage design supports up to 20V input. It adopts a 32-bit single-chip microcomputer to complete signal acquisition, processing, conversion, stability and speed far faster than ordinary 8-bit single-chip microcomputers. The input signal is automatically recognized without manual switching, plug and play, and simple status indication Clearly, it supports 8 channels of input / output. Input SBUS signal, and output PWM and PPM signals at the same time Input PWM signal and output PPM and SBUS signals at the same time Input PPM signal, and output PWM and SBUS signals at the same time parameter: Input voltage: 3.3-20V Current: 15MA input signal: PPM (CPPM) PWM (general receiver signal) SBUS (including futaba-R7008SB series, FrSky, etc.) Indicator: When no signal is input, all three indicators are on (PPM green, SBUS blue, PWM red) The input signal blinks and the output signal blinks. For example: When the PPM signal is input, the corresponding PPM indicator flashes green, and the PWM red and SBUS blue signal indicators are always on. Channel description: 1-8 channels are PWM signal input or output channels SBUS channel is SBUS signal input or output channel PPM channel is a PPM signal input or output channel Wiring instructions: When any one or more of the 1-8 channels input the PWM signal, the corresponding PPM channel outputs the PPM signal, and the SBUS channel outputs the SBUS signal. When the PPM signal is input to the PPM channel, it corresponds to the 1-8 channel output PWM signal, and the SBUS channel outputs SBUS signal. When the SBUS signal is input to the SBUS channel, the corresponding 1-8 channels output PWM signals, and the PPM channel outputs PPM signals. Colour: blue Material: composite material Size: 21 * 21MM On 13-Apr-20 at 11:31:21 AEST, seller added the following.SBUS channel is SBUS signal input or output channel. When any one or more of the 1-8 channels input the PWM signal, the corresponding PPM channel outputs the PPM signal, and the SBUS channel outputs the SBUS signal.
